Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#5759) — 217 parça

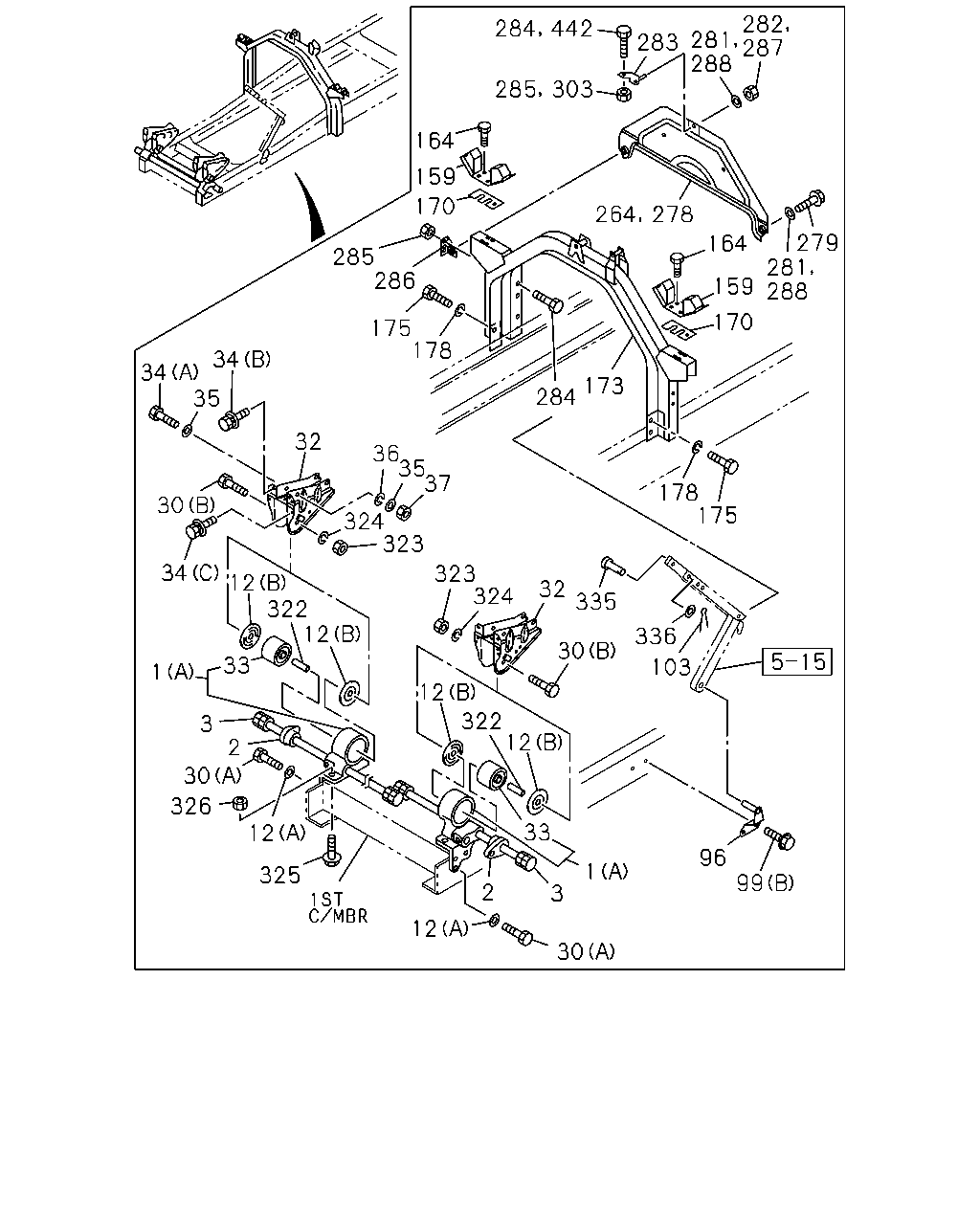

282 281 287 288 283 164 159 170 279 281 288 164 285 286 159 170 175 178 34 34 35 173 284 32 36 35 37 178 175 30 324 323 34 323 324 12 322 12 33 32 335 336 30 103 1 12 322 12 3 2 30 326 33 12 96 1 325 99 2 3 12 30 264 278 284 442 285 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (C)	1-53453-256-0	01	1	9811-9906	●
1	BRACKET; CAB MTG (A)	1-53453-308-1	01	1	9907-	●
1	BRACKET; CAB MTG (C)	1-53453-255-0	01	1	9811-9906	●
1	BRACKET; CAB MTG (A)	1-53453-307-1	01	1	9907-	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9811-9906	●	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9907-		●
1	BRACKET; CAB MTG (C)	1-53453-266-0	01	1	9811-		●
1	BRACKET; CAB MTG (C)	1-53453-265-0	01	1	9811-		●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9811-	●	●
3	TORSION BAR	1-09585-130-0	01	1	9811-	●	●
3	TORSION BAR	1-09585-129-0	01	1	9811-	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9811-0306	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●	●
12	WASHER; LK,BRKT (A) ID=15 TAI	9-09651-069-0	10	1	9811-	●	●
30	BOLT; CAB FRT FOOT (A) M14X40 TAI	9-92061-440-0	10	1	9811-0512	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9811-	●	●
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9811-0512		●
30	BOLT; CAB FRT FOOT (A) M14X50	0-20951-450-0	10	1	0601-		●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9811-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-230-4	01	1	9811-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	9811-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-634-0	02	1	9811-		●
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. A/C MAN CONT(C60) (C) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	03	1	0611-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9811-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	9811-0610	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE A/C MAN CONT(C60) (C) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	0611-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	0611-		●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9811-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	08	1	9811-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9811-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9811-	●	●
96	BRACKET; CAB STAY TAI	8-97530-355-0	01	1	9811-0610	●	●
96	BRACKET; CAB STAY TAI	1-62500-628-0	01	1	0611-	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9811-9906	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9907-0512		●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-		●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9811-9906	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9907-0512		●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612		●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-		●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9811-0512	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-	●	●
103	PIN; SPLIT,CAB STAY TAI	1-09746-021-0	01	1	9811-	●	●
159	RUBBER; CUSHION,CAB MTG	1-53458-894-0	02	1	9907-	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9811-9906	●	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9907-		●
164	BOLT; CUSHION RUBBER,CAB MTG M8X25 FLANGE	0-28680-825-0	04	1	9907-0512	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9811-9906	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9907-0512		●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
170	SHIM; CUSHION RUBBER	1-53458-897-0	AR	1	9907-	●
173	MEMBER; CAB MTG RR	1-53454-729-0	01	1	9811-9906	●
173	MEMBER; CAB MTG RR	1-53454-827-3	01	1	9907-	●
173	MEMBER; CAB MTG RR	1-53454-705-3	01	1	9811-		●
175	BOLT; MEMBER TO FRAME M12X40	0-20951-240-0	08	1	0611-		●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9811-0512	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-0610	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0611-	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9811-0603	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●
264	PANEL; BACK	1-53192-204-0	01	1	0611-	●	●
278	COVER ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-931-1	01	1	0503-0610	●
278	COVER ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-932-1	01	1	0503-0610		●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	02	1	0503-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28650-825-0	02	1	0601-0610	●	●
279	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0611-	●	●
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26	9-09164-808-0	03	1	0503-0605	●	●
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26	0-91614-808-0	03	1	0606-0610	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	01	1	0503-0602	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91180-108-0	01	1	0603-0610	●	●
283	BRACKET; UPR ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-630-2	01	1	0503-0610	●	●
283	BRACKET; UPR	1-53457-193-0	01	1	0611-	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28680-820-0	06	1	0503-0512	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28650-820-0	06	1	0601-0610	●	●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	06	1	0503-0602	●	●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91180-108-0	06	1	0603-0610	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-631-3	01	1	0503-0610	●	●
286	BRACKET; LOW	1-53459-631-3	01	1	0611-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-632-3	01	1	0503-0610	●	●
286	BRACKET; LOW	1-53459-632-3	01	1	0611-	●	●
287	NUT M8 FLANGE	0-91180-108-0	01	1	0611-	●	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0611-	●	●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0611-	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9811-	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9811-0512	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9811-0603	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9811-0512	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	9811-0512	●	●
326	NUT; GUIDE NUT M12 TAI	0-91110-512-0	02	1	0601-	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9811-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0 TAI	1-09985-183-0	01	1	9811-	●	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	06	1	0611-	●	●

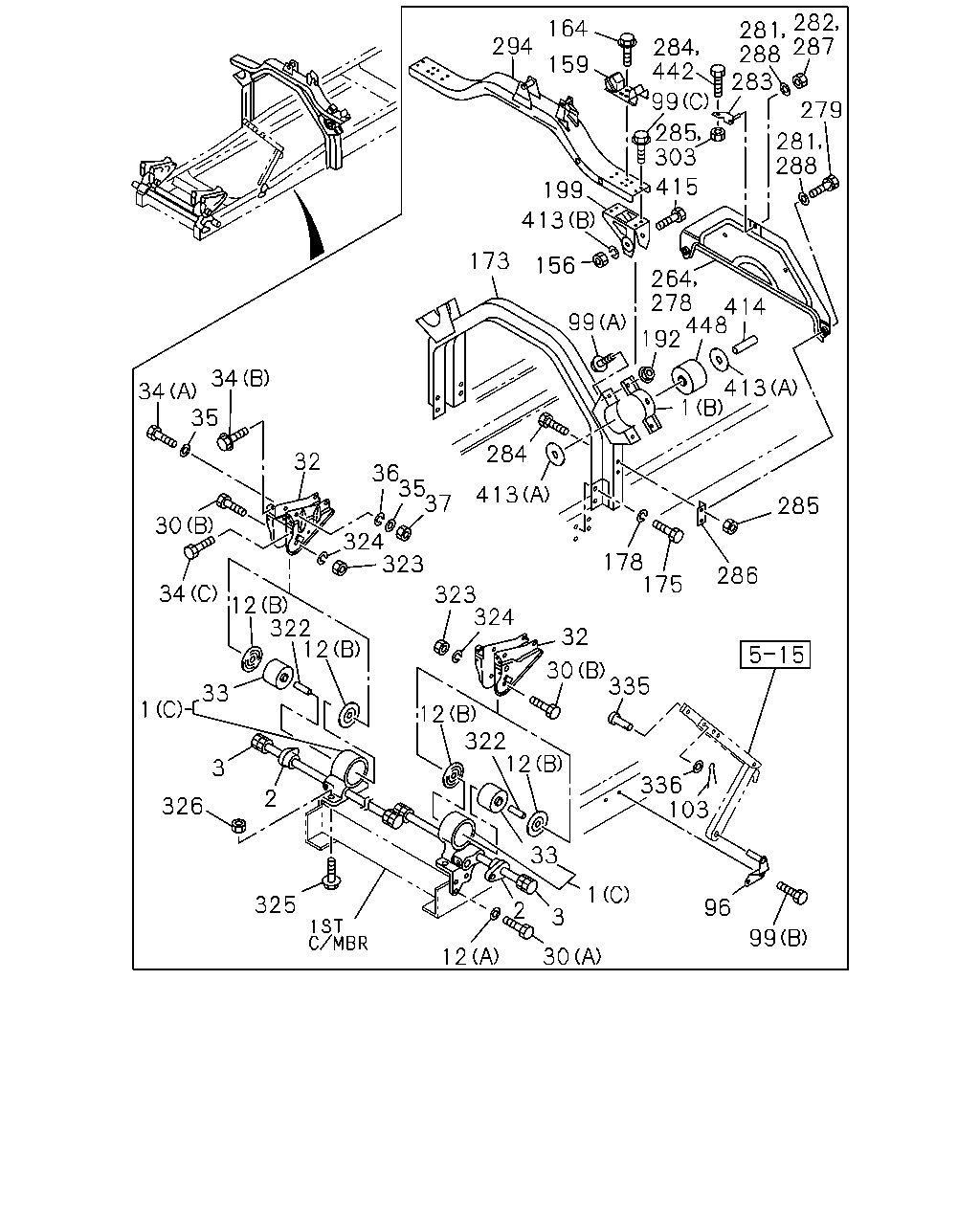

282 281 287 288 283 164 294 284 442 159 99 279 285 303 281 288 415 199 413 173 156 264 278 414 448 192 99 34 413 1 34 35 284 32 36 35 37 413 285 30 324 323 178 175 286 34 323 324 12 322 2 32 30 335 33 1 12 322 12 3 336 103 2 326 33 1 325 96 2 3 99 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (C)	1-53453-256-0	01	1	9811-9906	●
1	BRACKET; CAB MTG (A)	1-53453-308-1	01	1	9907-	●
1	BRACKET; CAB MTG (C)	1-53453-255-0	01	1	9811-9906	●
1	BRACKET; CAB MTG (A)	1-53453-307-1	01	1	9907-	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9811-9906	●	●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9907-		●
1	BRACKET; CAB MTG (C)	1-53453-266-0	01	1	9811-		●
1	BRACKET; CAB MTG (C)	1-53453-265-0	01	1	9811-		●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9811-	●	●
3	TORSION BAR	1-09585-130-0	01	1	9811-	●	●
3	TORSION BAR	1-09585-129-0	01	1	9811-	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9811-0306	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●	●
12	WASHER; LK,BRKT (A) ID=15 TAI	9-09651-069-0	10	1	9811-	●	●
30	BOLT; CAB FRT FOOT (A) M14X40 TAI	9-92061-440-0	10	1	9811-0512	●
30	BOLT; CAB FRT FOOT (A) M14X40	0-20951-440-0	10	1	0601-	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9811-	●	●
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9811-0512		●
30	BOLT; CAB FRT FOOT (A) M14X50	0-20951-450-0	10	1	0601-		●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9811-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-230-4	01	1	9811-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-836-3	02	1	9811-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53458-634-0	02	1	9811-		●
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. A/C MAN CONT(C60) (C) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	03	1	0611-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9811-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	9811-0610	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE A/C MAN CONT(C60) (C) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	0611-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	0611-		●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9811-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	08	1	9811-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9811-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9811-	●	●
96	BRACKET; CAB STAY TAI	8-97530-355-0	01	1	9811-0610	●	●
96	BRACKET; CAB STAY TAI	1-62500-628-0	01	1	0611-	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9811-9906	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9907-0512		●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-		●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9811-9906	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9907-0512		●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612		●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-		●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9811-0512	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-	●	●
103	PIN; SPLIT,CAB STAY TAI	1-09746-021-0	01	1	9811-	●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9811-9906	●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9907-0512		●
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-		●
159	RUBBER; CUSHION,CAB MTG	1-53458-894-0	02	1	9907-	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9811-9906	●	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9907-		●
164	BOLT; CUSHION RUBBER,CAB MTG M8X25 FLANGE	0-28680-825-0	04	1	9907-0512	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9811-9906	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9907-0512		●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
173	MEMBER; CAB MTG RR	1-53454-729-0	01	1	9811-9906	●
173	MEMBER; CAB MTG RR	1-53454-827-3	01	1	9907-	●
173	MEMBER; CAB MTG RR	1-53454-705-3	01	1	9811-		●
175	BOLT; MEMBER TO FRAME M12X40	0-20951-240-0	08	1	0611-		●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9811-0512	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-0610	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0611-	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9811-0603	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	9811-9906	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	9907-0602		●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0603-		●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	9811-9906	●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	9907-0207		●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-		●
264	PANEL; BACK	1-53192-204-0	01	1	0611-	●	●
278	COVER ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-931-1	01	1	0503-0610	●
278	COVER ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-932-1	01	1	0503-0610		●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28680-825-0	02	1	0503-0512	●	●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25 FLANGE	0-28650-825-0	02	1	0601-0610	●	●
279	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0611-	●	●
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26	9-09164-808-0	03	1	0503-0605	●	●
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26	0-91614-808-0	03	1	0606-0610	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	01	1	0503-0602	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91180-108-0	01	1	0603-0610	●	●
283	BRACKET; UPR ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-630-2	01	1	0503-0610	●	●
283	BRACKET; UPR	1-53457-193-0	01	1	0611-	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28680-820-0	06	1	0503-0512	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28650-820-0	06	1	0601-0610	●	●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	06	1	0503-0602	●	●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91180-108-0	06	1	0603-0610	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-631-3	01	1	0503-0610	●	●
286	BRACKET; LOW	1-53459-631-3	01	1	0611-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-632-3	01	1	0503-0610	●	●
286	BRACKET; LOW	1-53459-632-3	01	1	0611-	●	●
287	NUT M8 FLANGE	0-91180-108-0	01	1	0611-	●	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0611-	●	●
294	MEMBER; FLOATING	1-53454-530-1	01	1	9811-9906	●
294	MEMBER; FLOATING	1-53454-602-0	01	1	9811-0610		●
294	MEMBER; FLOATING	1-53454-530-1	01	1	0611-		●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0611-	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9811-	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9811-0512	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9811-0603	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9811-0512	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●
326	NUT; GUIDE NUT M12	9-99110-512-0	02	1	9811-0512	●	●
326	NUT; GUIDE NUT M12 TAI	0-91110-512-0	02	1	0601-	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9811-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0 TAI	1-09985-183-0	01	1	9811-	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9811-9906	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9907-0306		●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-		●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9811-9906	●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9907-0603		●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-		●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9811-9906	●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9907-		●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9811-9906	●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9907-		●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	06	1	0611-	●	●
448	BUSHING; CAB MTG	1-53459-836-2	02	1	9811-9906	●
448	BUSHING; CAB MTG	1-53458-635-0	02	1	9811-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
