3-70 — BRAKE PIPING; AIR,AIR MASTER (#57589) — 41 parça

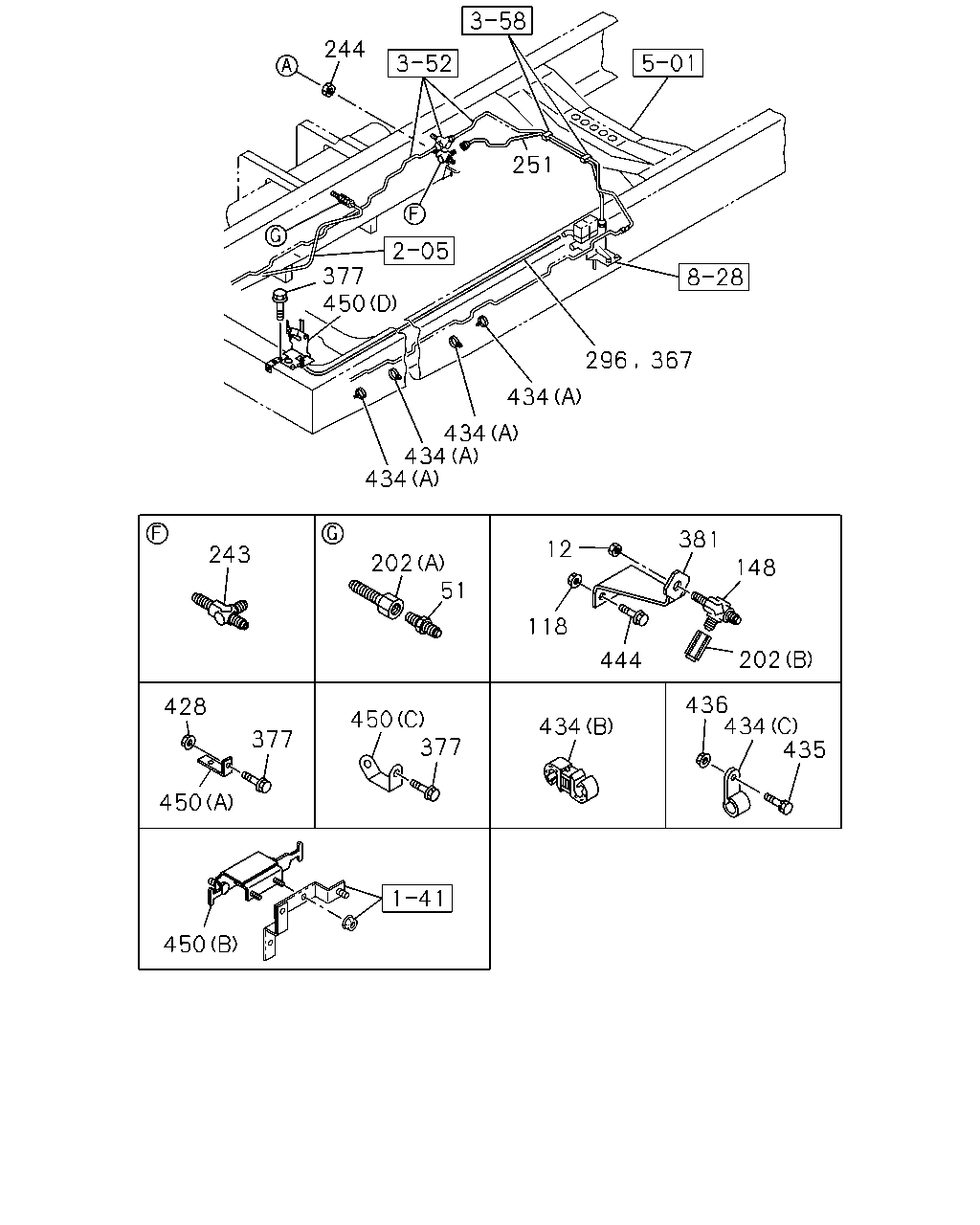

çizim 147536
244 251 377 450 296 367 434 434 434 434 381 12 243 202 51 148 118 202 444 436 434 435 428 450 377 434 377 450 450
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1110-
51 UNION
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1110-
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 02 1 1110-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 1110-
202 ADAPTER
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) 		1-09654-280-1 01 1 1110-
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1110-
243 UNION; AIR PIPE
PTO CONTROL<SV6> M12 3WAY 		0-92138-906-0 01 1 1110-
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 3WAY 		0-92138-906-0 01 1 1110-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1110-
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=944 SERVICED BY L=1000 		1-47428-814-0 01 1 1110-
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=944 SERVICED BY L=1000 		1-47428-814-0 01 1 1110-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1110-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1110-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 1110-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1110-
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> 		8-98119-700-0 01 1 1110-
428 NUT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 03 1 1110-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110-
434 CLIP
(B) ID=6.35 & 15 		1-09709-276-1 02 1 1110-
434 CLIP
(B) ID=10 & 15 		1-09709-279-1 01 1 1110-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1110-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 1110-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1110-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1110-
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1110-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47477-694-0 01 1 1110-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (D) 		8-98070-479-0 01 1 1110-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98077-895-1 01 1 1110-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 02 1 1110-

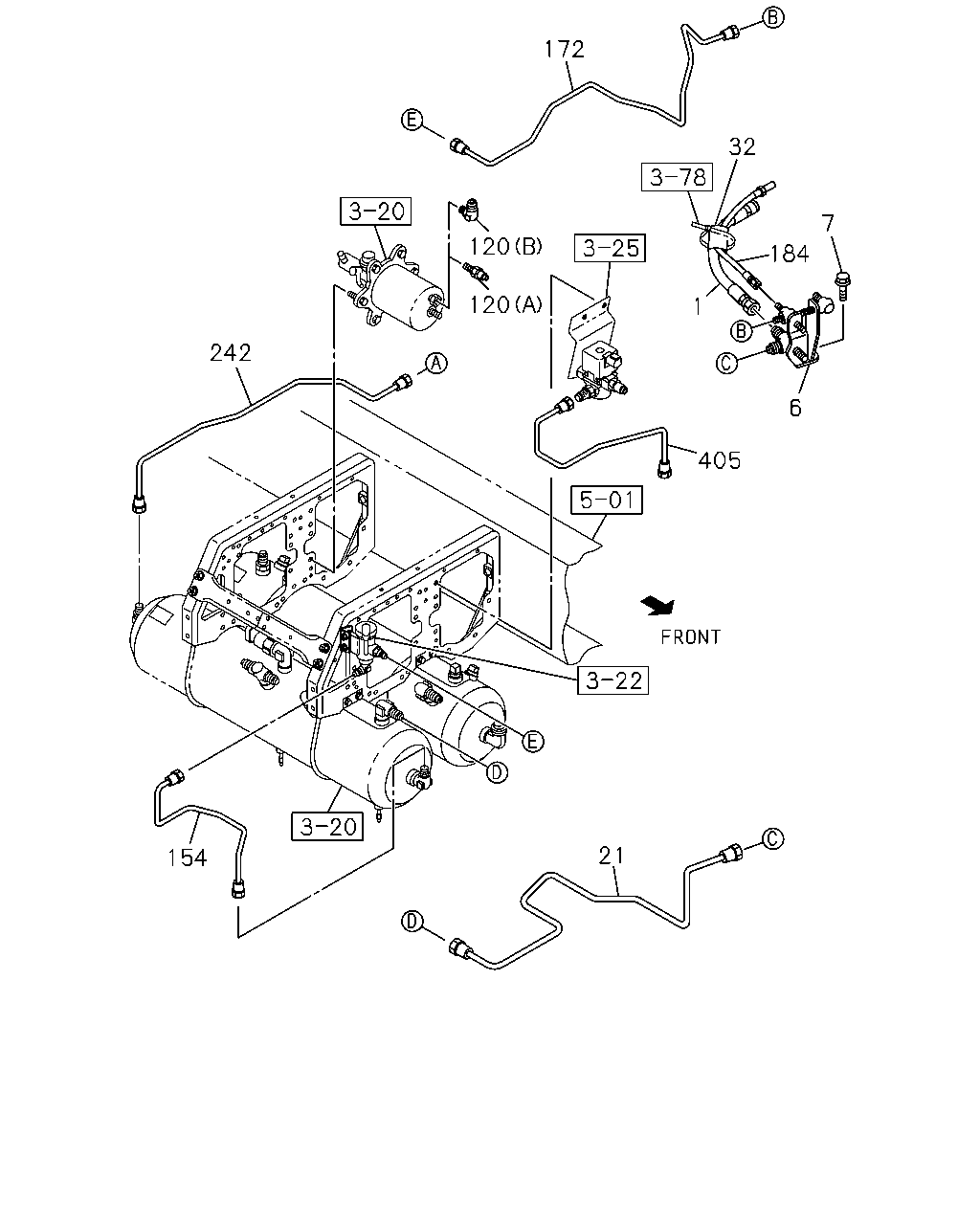

çizim 147537
172 32 7 120 184 120 1 242 6 405 21 154
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98140-111-0 01 1 1110-
6 BRACKET; FLEX HOSE,AIR TANK 8-98146-359-0 01 1 1110-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1110-
21 PIPE; AIR,UNION TO AIR DRYER
L=1142 		8-98163-969-0 01 1 1110-
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1110-
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1110-
120 CONNECTOR; AIR PIPE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1110-
154 PIPE; AIR,AIR TANK TO AIR GOV 8-98152-813-0 01 1 1110-
172 PIPE; AIR,GOV TO UNION 8-98197-591-0 01 1 1110-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1110-
242 PIPE; AIR,AIR TANK TO UNION
L=676 SERVICED BY L=700 		1-47428-811-0 01 1 1110-
405 PIPE; AIR,TANK TO MAG VLV
L=471 		8-98163-967-0 01 1 1110-
