◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11399 - FSR(RHD)EURO1 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#57587) — 13 parça

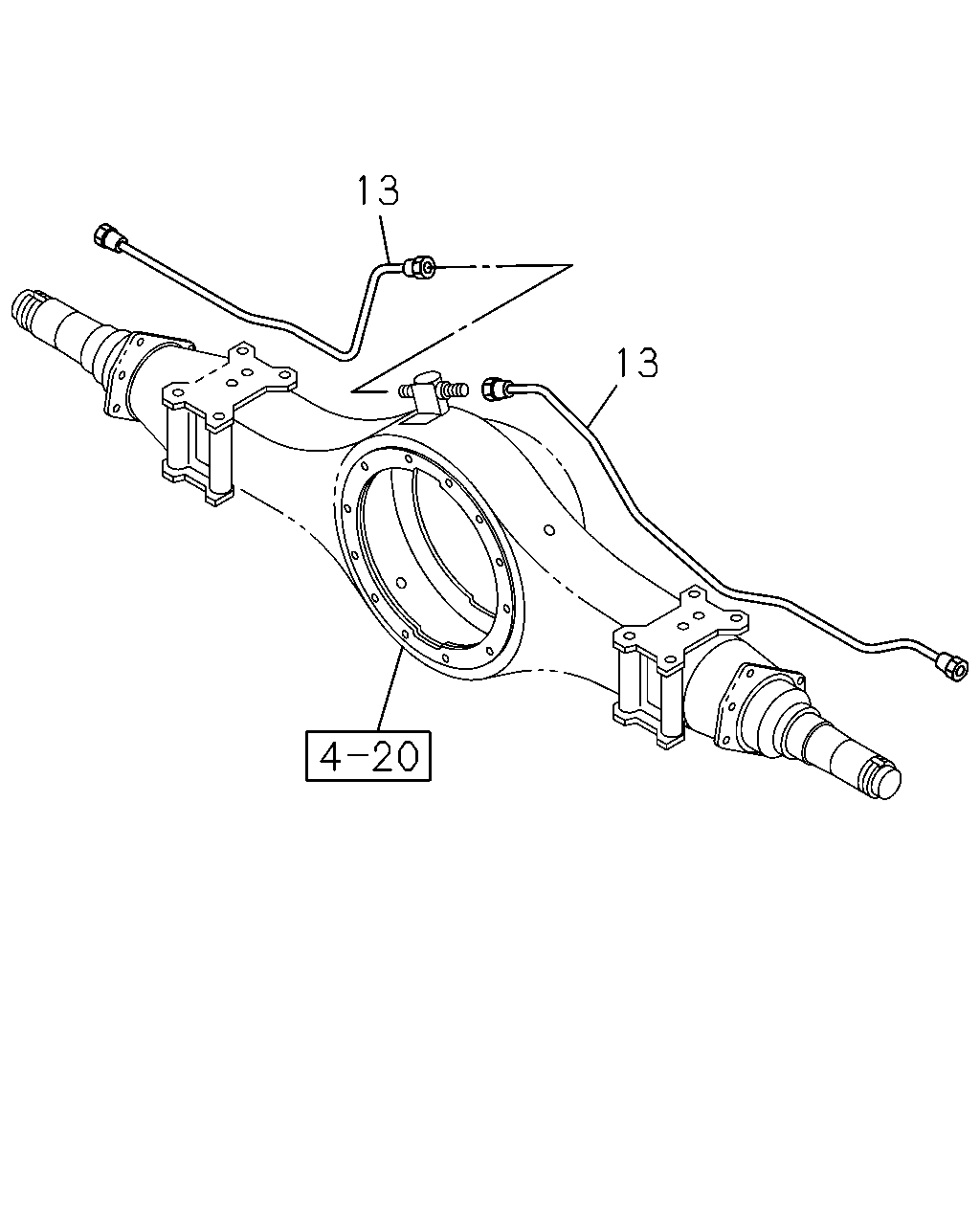

çizim 147528
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE
L=685 		1-47427-107-0 01 1 1110-
13 PIPE; BRK,RR AXLE
L=858 		1-47427-108-0 01 1 1110-

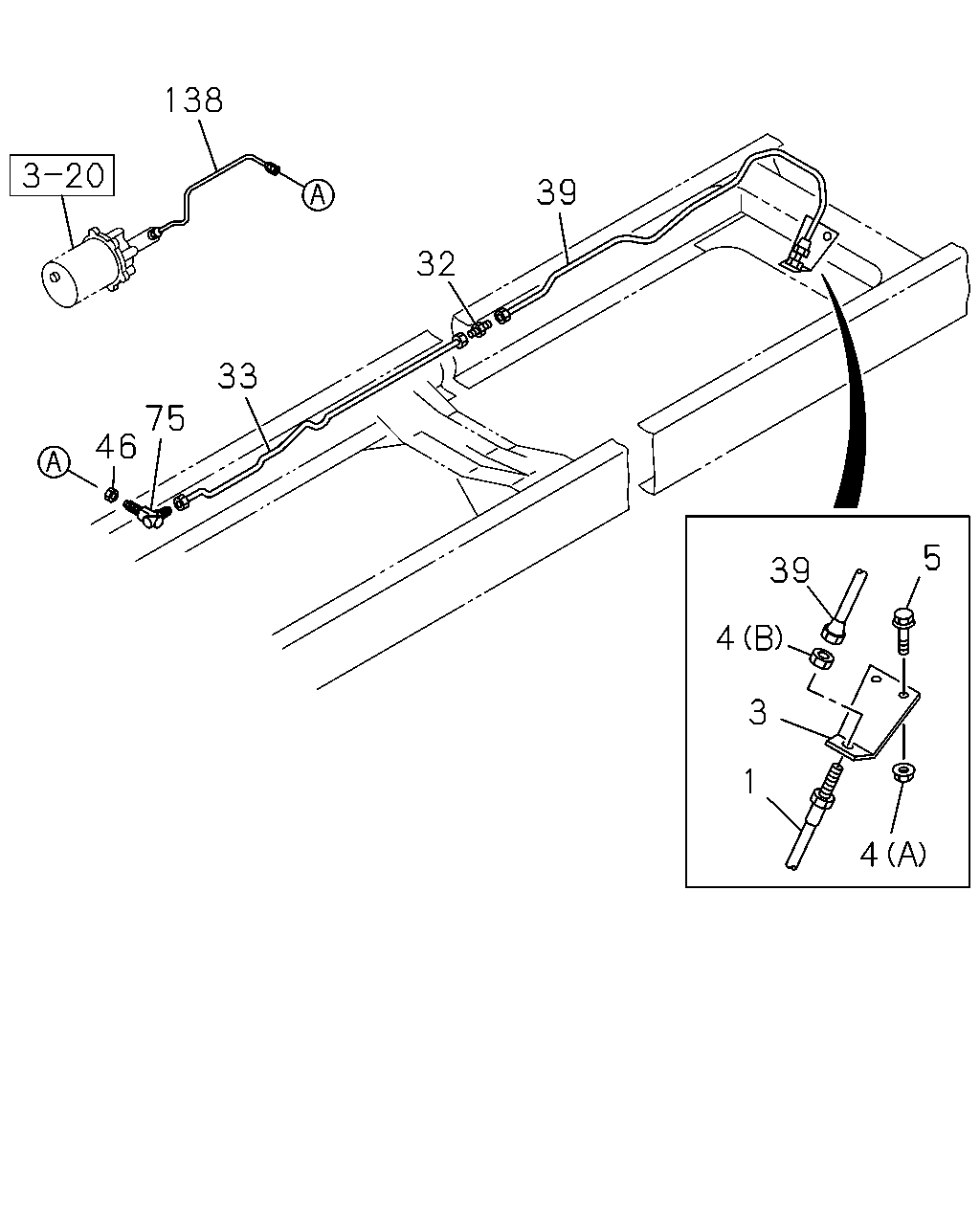

çizim 147529
138 39 32 33 75 46 5 39 4 3 1 4
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=610 		0-05213-610-0 01 1 1110-
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 1110-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 02 1 1110-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M12 		9-09840-280-0 01 1 1110-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1110-
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 1110-
33 PIPE; OIL,UNION TO UNION
L=1977 SERVICED BY L=2000 		1-47428-739-0 01 1 1110-
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2000 SERVICED BY L=2000 		1-47428-739-0 01 1 1110-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1110-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1110-
138 PIPE; HYDRAULIC UNIT
L=420 		8-98120-163-0 01 1 1110-
