3-52 — BRAKE PIPING; OIL,FRONT (#57586) — 20 parça

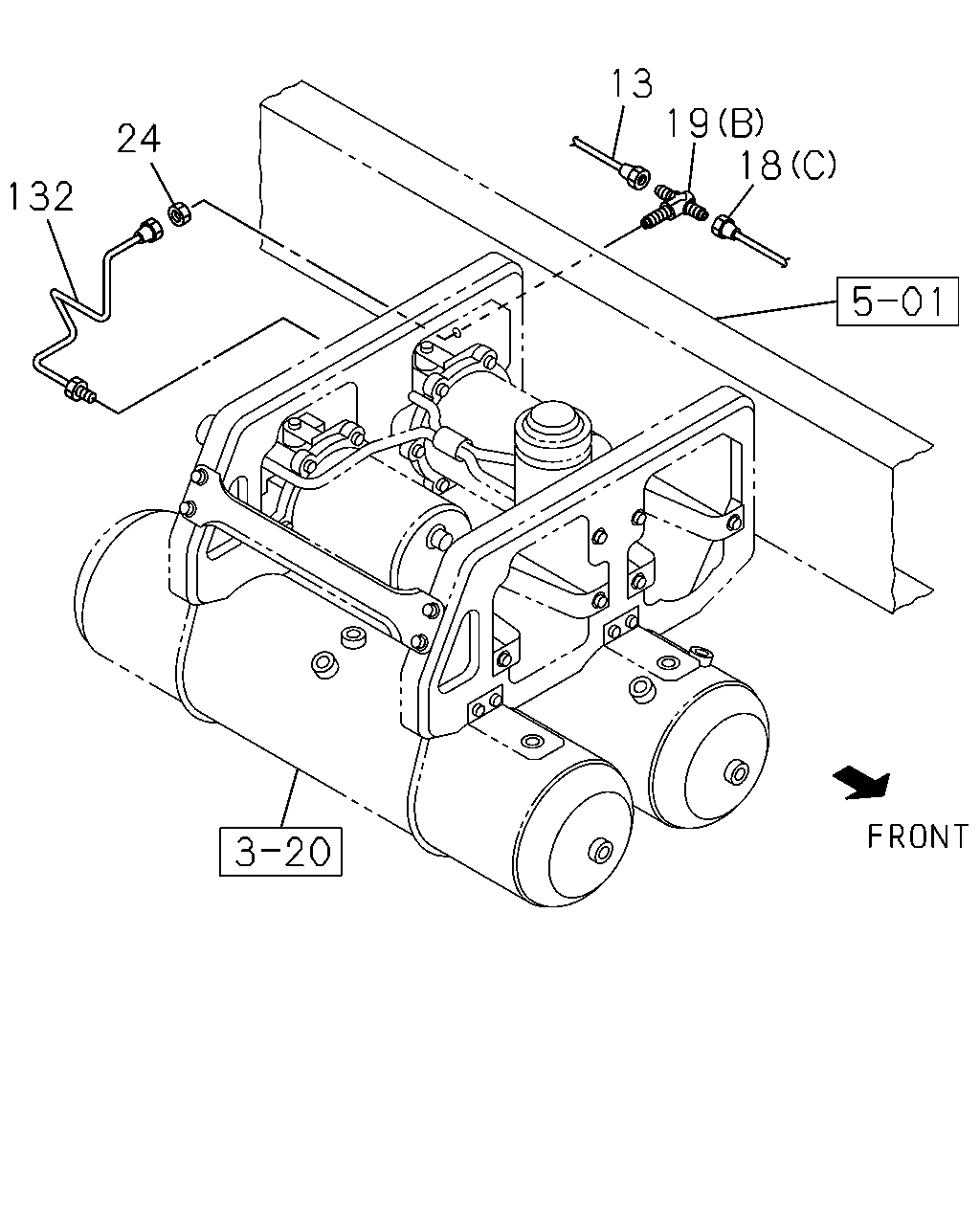

çizim 147534
13 19 18 24 132
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,UNION TO UNION
L=2281 SERVICED BY L=2350 		1-47428-741-0 01 1 1110-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=584 SERVICED BY L=600 		1-47428-725-0 01 1 1110-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=527 SERVICED BY L=550 		1-47428-724-0 01 1 1110-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(C) L=1319 SERVICED BY L=1370 		1-47428-734-0 01 1 1110-
19 UNION; OIL PIPE
(A) M12 3WAY 		0-92138-606-0 01 1 1110-
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1110-
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1110-
132 PIPE; OIL,BRK,HYD UNIT
L=407 		8-98120-162-0 01 1 1110-

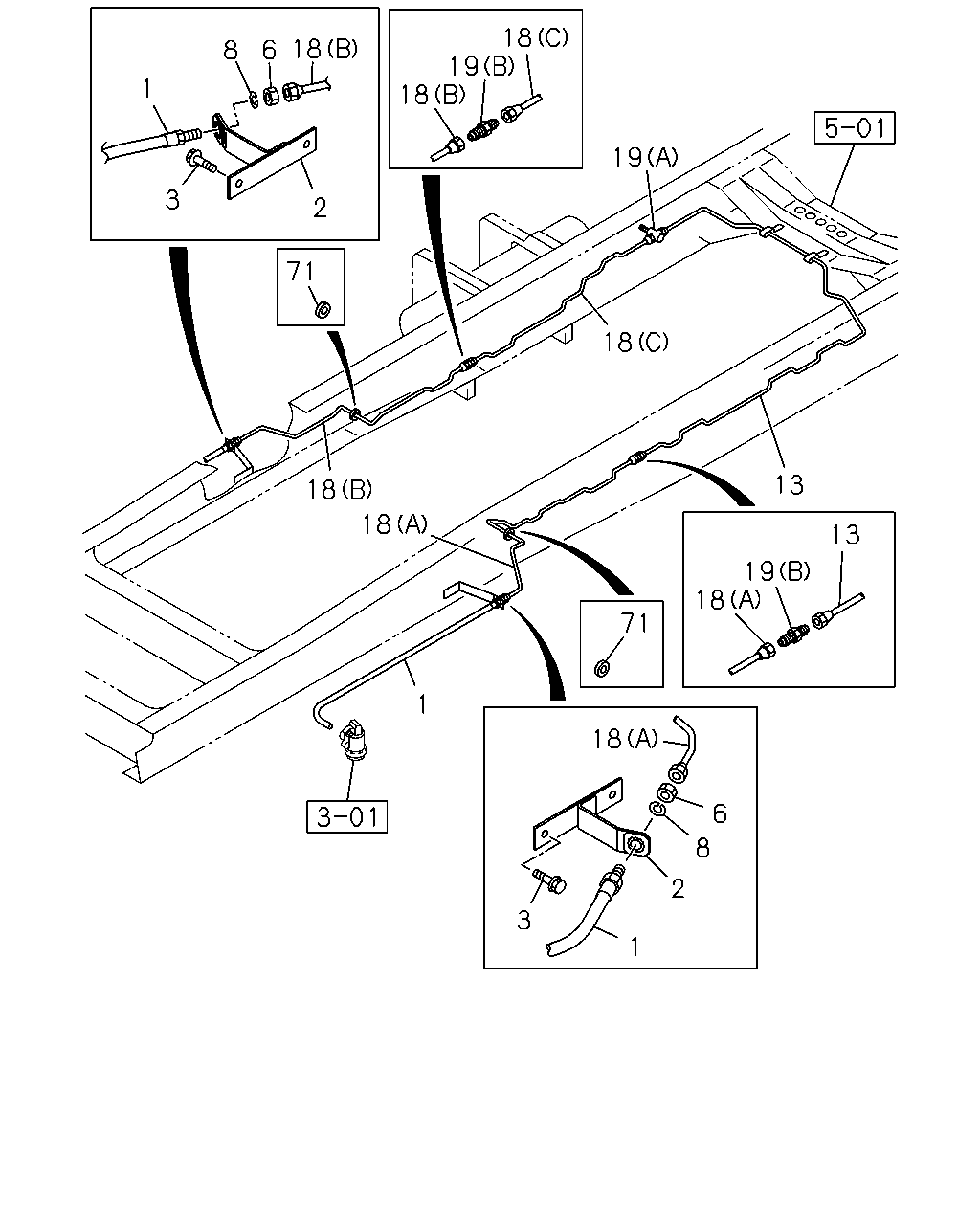

çizim 147540
18 19 18 18 8 6 1 19 3 2 71 18 13 18 18 13 19 18 71 1 18 6 8 2 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK 8-98187-085-0 02 1 1110-
2 BRACKET; FLEX HOSE,FRT BRK 8-98119-698-1 02 1 1110-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1110-
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 1110-
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 1110-
13 PIPE; OIL,UNION TO UNION
L=2281 SERVICED BY L=2350 		1-47428-741-0 01 1 1110-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=584 SERVICED BY L=600 		1-47428-725-0 01 1 1110-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=527 SERVICED BY L=550 		1-47428-724-0 01 1 1110-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(C) L=1319 SERVICED BY L=1370 		1-47428-734-0 01 1 1110-
19 UNION; OIL PIPE
(A) M12 3WAY 		0-92138-606-0 01 1 1110-
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1110-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1110-
