Isuzu WW
▶
TRUCKS
▶
FSR
▶
11399 - FSR(RHD)EURO1
▶
3 - Brakes, Brake System
▶

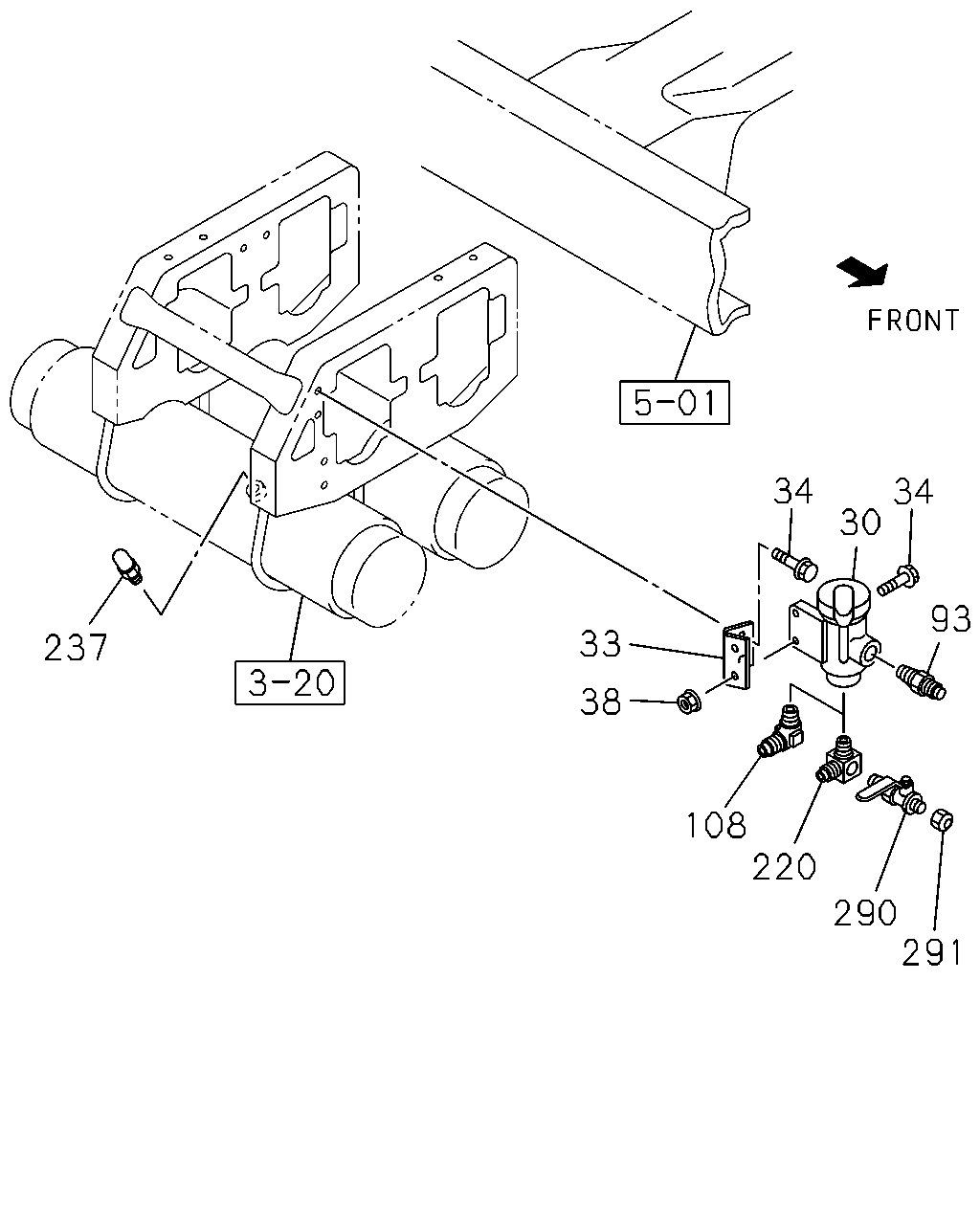

3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#57582) — 11 parça
◀
[322A] REPAIR KIT;GOVERNOR (1 parça)
[322A] FIXING (10 parça)
▶
240
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
240
REPAIR KIT; AIR CONT GOV
1-85576-467-0
01
1
1110-
34
34
30
93
33
237
38
108
220
290
291
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
GOVERNOR; AIR CONT
1-48350-093-2
01
1
1110-
33
BRACKET; GOV,AIR CONT
8-98120-459-1
01
1
1110-
34
BOLT; BRKT,GOV
M8X25 FLANGE
0-28650-825-0
02
1
1110-
38
NUT; BRKT,GOV
M8 FLANGE
0-91180-108-0
02
1
1110-
93
CONNECTOR; GOV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1110-
108
CONNECTOR; ELBOW
EXC. TIRE INFLATOR DEVICE<SG4> M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1110-
220
CONNECTOR; 3WAY
TIRE INFLATOR DEVICE<SG4> PT1/4 & M12 ELBOW
1-09656-666-0
01
1
1110-
237
VALVE; SAFETY
1-48320-012-2
01
1
1110-
290
COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4>
1-09680-099-0
01
1
1110-
291
CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4>
9-48319-102-0
01
1
1110-
