4-80 — ROAD WHEEL (#5757) — 66 parça

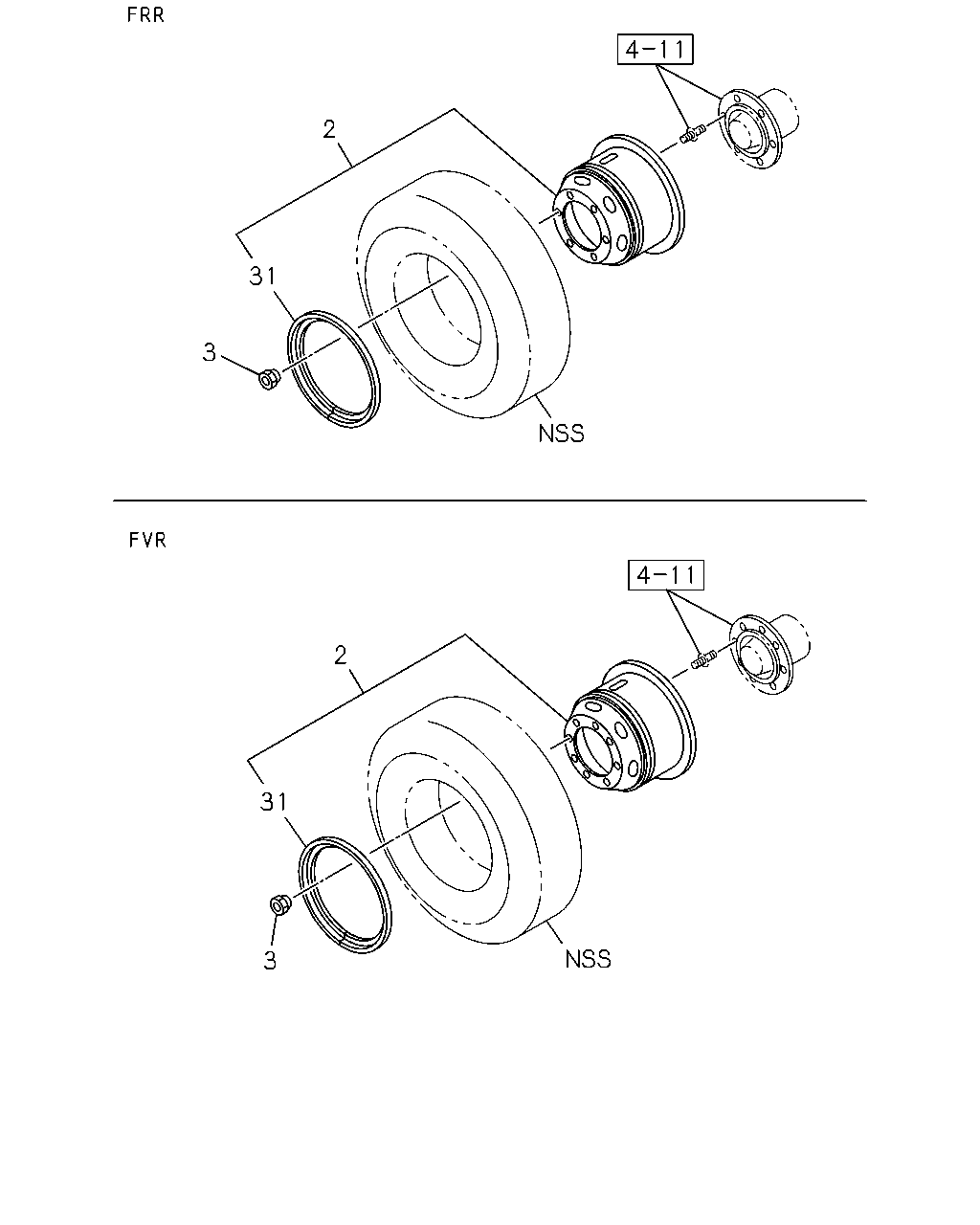

2 31 3 2 31 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC TAI	1-42350-417-0	06	1	0611-	●
2	WHEEL; DISC DISC WHL SPARE<N79> TAI	1-42350-478-0	01	1	0611-		●
2	WHEEL; DISC SPARE TIRE & DISC WHL RR<R46> EXC. DISC WHL SPARE<N79> TAI	1-42350-478-0	01	1	0611-		●
2	WHEEL; DISC TIRE 8.25-16-14 RIB(40S) TAI	8-97530-535-0	07	1	9811-9906	●
2	WHEEL; DISC TIRE 8.25R16-128/126L(78N) TAI	8-97530-535-0	07	1	9907-0610	●
2	WHEEL; DISC DISC WHL SPARE<N79> TAI	1-42350-417-0	01	1	0611-	●
2	WHEEL; DISC SPARE TIRE & DISC WHL RR<R46> EXC. DISC WHL SPARE<N79> TAI	1-42350-417-0	01	1	0611-	●
2	WHEEL; DISC TIRE 10.00-20-14 RIB(30T) TAI	8-97530-230-0	07	1	9811-9906		●
2	WHEEL; DISC TAI	8-97530-230-0	07	1	9907-0610		●
2	WHEEL; DISC TAI	1-42350-478-0	06	1	0611-		●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	9811-	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	9811-	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	9811-		●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	9811-		●
31	RING; SIDE,DISC WHEEL TAI	1-42355-015-2	06	1	0611-	●
31	RING; SIDE,DISC WHEEL DISC WHL SPARE<N79> TAI	1-42355-003-1	01	1	0611-		●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHL RR<R46> EXC. DISC WHL SPARE<N79> TAI	1-42355-003-1	01	1	0611-		●
31	RING; SIDE,DISC WHEEL TAI	1-42355-003-1	06	1	0611-		●
31	RING; SIDE,DISC WHEEL TIRE 8.25-16-14 RIB(40S) TAI	8-97530-646-0	07	1	9811-9906	●
31	RING; SIDE,DISC WHEEL TIRE 8.25R16-128/126L(78N) TAI	8-97530-646-0	07	1	9907-0610	●
31	RING; SIDE,DISC WHEEL DISC WHL SPARE<N79> TAI	1-42355-015-2	01	1	0611-	●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHL RR<R46> EXC. DISC WHL SPARE<N79> TAI	1-42355-015-2	01	1	0611-	●
31	RING; SIDE,DISC WHEEL TAI	8-97530-647-0	07	1	9907-0610		●
31	RING; SIDE,DISC WHEEL TIRE 10.00-20-14 RIB(30T) TAI	8-97530-647-0	07	1	9811-9906		●

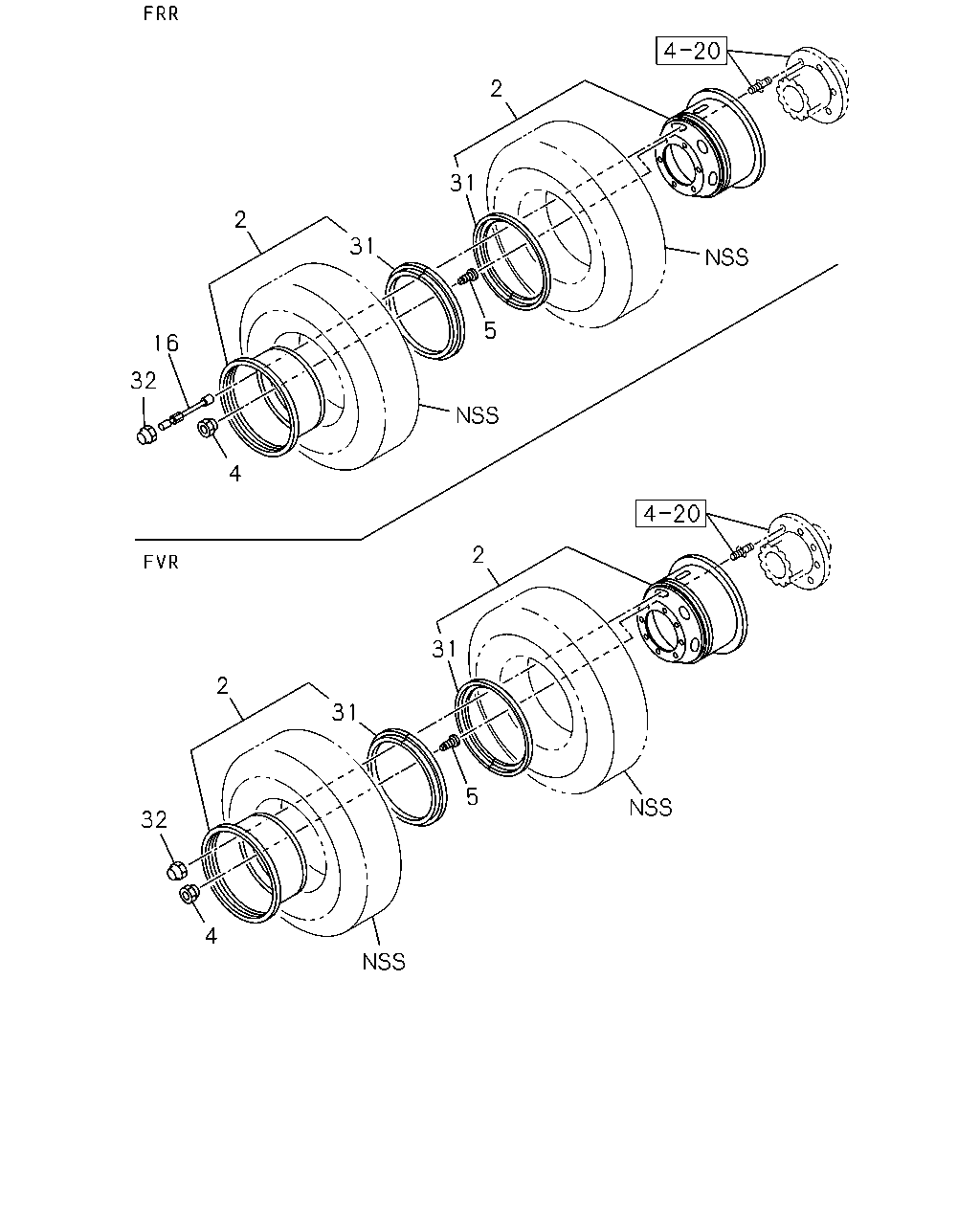

2 31 2 31 5 16 32 4 2 31 2 31 5 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC TAI	1-42350-417-0	06	1	0611-	●
2	WHEEL; DISC DISC WHL SPARE<N79> TAI	1-42350-478-0	01	1	0611-		●
2	WHEEL; DISC SPARE TIRE & DISC WHL RR<R46> EXC. DISC WHL SPARE<N79> TAI	1-42350-478-0	01	1	0611-		●
2	WHEEL; DISC TIRE 8.25-16-14 RIB(40S) TAI	8-97530-535-0	07	1	9811-9906	●
2	WHEEL; DISC TIRE 8.25R16-128/126L(78N) TAI	8-97530-535-0	07	1	9907-0610	●
2	WHEEL; DISC DISC WHL SPARE<N79> TAI	1-42350-417-0	01	1	0611-	●
2	WHEEL; DISC SPARE TIRE & DISC WHL RR<R46> EXC. DISC WHL SPARE<N79> TAI	1-42350-417-0	01	1	0611-	●
2	WHEEL; DISC TIRE 10.00-20-14 RIB(30T) TAI	8-97530-230-0	07	1	9811-9906		●
2	WHEEL; DISC TAI	8-97530-230-0	07	1	9907-0610		●
2	WHEEL; DISC TAI	1-42350-478-0	06	1	0611-		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	06	1	9811-0610	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0611-	●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	06	1	9811-0610	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0611-	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	9811-0610		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-		●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	9811-0610		●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	06	1	9811-0610	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0611-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	06	1	9811-0610	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0611-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	9811-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	9811-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-		●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115 TAI	1-42370-015-2	04	1	0611-0612	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=115 TAI	1-42370-015-2	02	1	0701-	●
31	RING; SIDE,DISC WHEEL TAI	1-42355-015-2	06	1	0611-	●
31	RING; SIDE,DISC WHEEL DISC WHL SPARE<N79> TAI	1-42355-003-1	01	1	0611-		●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHL RR<R46> EXC. DISC WHL SPARE<N79> TAI	1-42355-003-1	01	1	0611-		●
31	RING; SIDE,DISC WHEEL TAI	1-42355-003-1	06	1	0611-		●
31	RING; SIDE,DISC WHEEL TIRE 8.25-16-14 RIB(40S) TAI	8-97530-646-0	07	1	9811-9906	●
31	RING; SIDE,DISC WHEEL TIRE 8.25R16-128/126L(78N) TAI	8-97530-646-0	07	1	9907-0610	●
31	RING; SIDE,DISC WHEEL DISC WHL SPARE<N79> TAI	1-42355-015-2	01	1	0611-	●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHL RR<R46> EXC. DISC WHL SPARE<N79> TAI	1-42355-015-2	01	1	0611-	●
31	RING; SIDE,DISC WHEEL TAI	8-97530-647-0	07	1	9907-0610		●
31	RING; SIDE,DISC WHEEL TIRE 10.00-20-14 RIB(30T) TAI	8-97530-647-0	07	1	9811-9906		●
32	CAP; VALVE SPARE TIRE & DISC WHL RR<R46> TAI	1-42374-001-0	05	1	0611-	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHL RR<R46> TAI	1-42374-001-0	04	1	0611-	●
32	CAP; VALVE SPARE TIRE & DISC WHL RR<R46> TAI	1-42374-001-0	07	1	0611-		●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHL RR<R46> TAI	1-42374-001-0	06	1	0611-		●
