Isuzu WW
▶
TRUCKS
▶
FSR
▶
11399 - FSR(RHD)EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

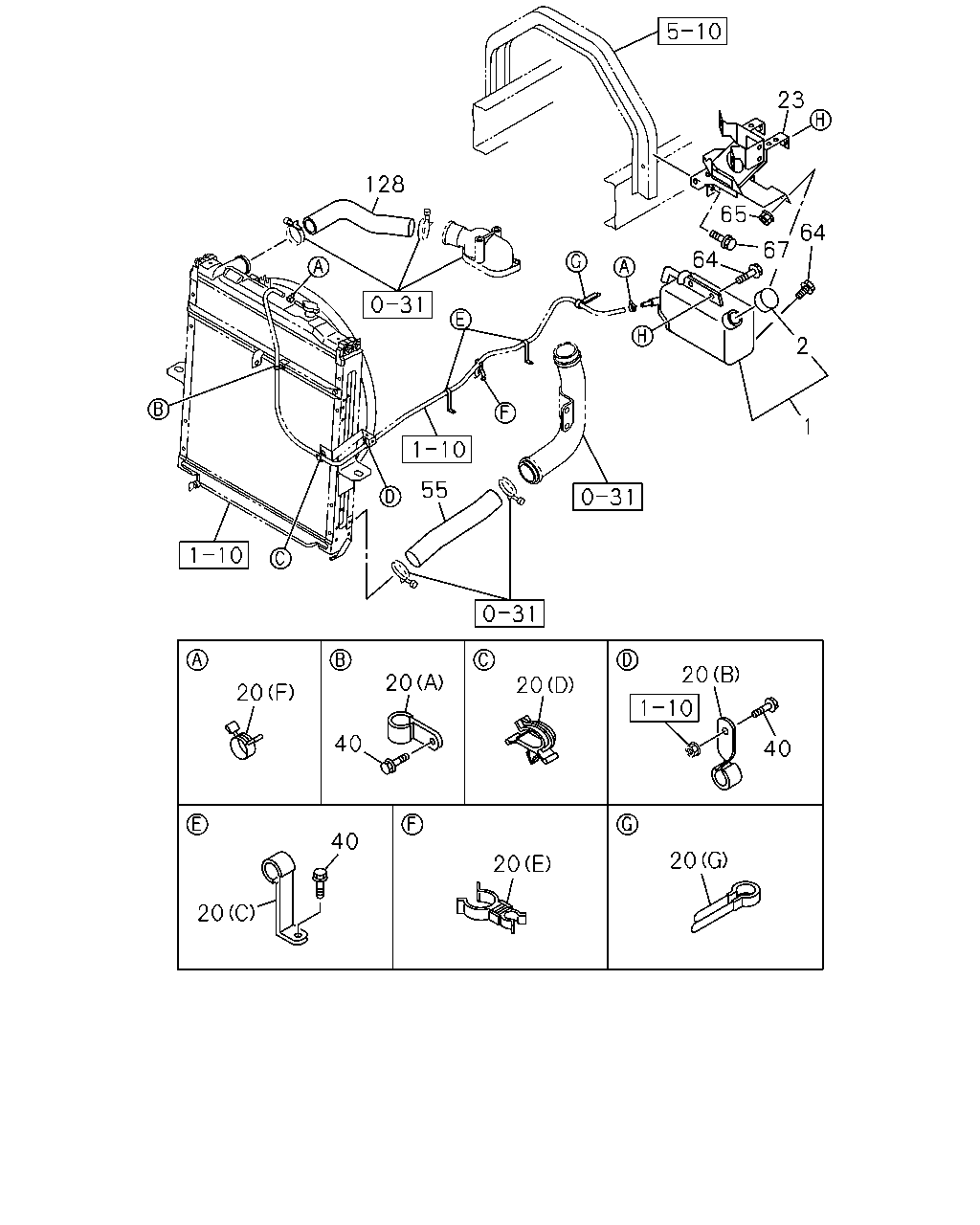

1-11 — RADIATOR HOSE AND SUB TANK
(#57552) — 16 parça
23
128
65
64
67
64
2
1
55
20
20
20
20
40
40
40
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1110-
2
CAP; SURGE TANK
8-98178-074-0
01
1
1110-
20
CLIP; HOSE,RAD
(A) ID=13 L=20
0-95235-235-0
01
1
1110-
20
CLIP; HOSE,RAD
(B) ID=13 L=50
1-09700-027-1
01
1
1110-
20
CLIP; HOSE,RAD
(C) ID=13 H=75 L=25
1-09700-601-0
02
1
1110-
20
CLIP; HOSE,RAD
(D) ID=14-12
8-94379-592-0
01
1
1110-
20
CLIP; HOSE,RAD
(E) ID=10.5 & 18
8-94381-420-0
01
1
1110-
20
CLIP; HOSE,RAD
(F) ID=11.5
8-97375-638-0
02
1
1110-
20
CLIP; HOSE,RAD
(G) ID=20 L=50
9-09917-430-0
01
1
1110-
23
BRACKET; RESERVE TANK
8-98174-415-0
01
1
1110-
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
1110-
55
HOSE; WATER,RAD OUTLET
8-98010-577-1
01
1
1110-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1110-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
01
1
1110-
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
1110-
128
HOSE; WATER,RAD INL
8-98106-018-0
01
1
1110-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
