4-60 — REAR SUSPENSION (#5755) — 75 parça

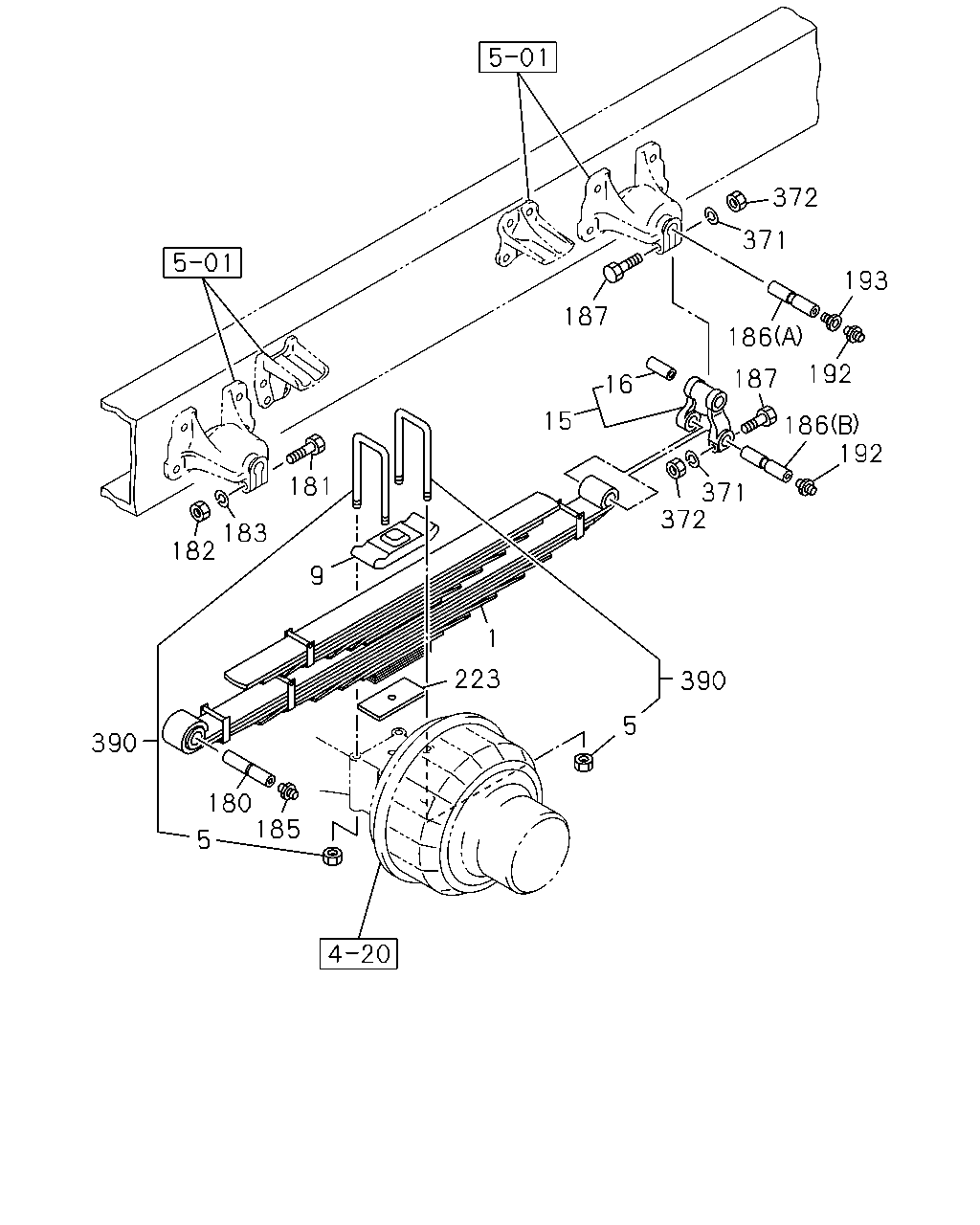

372 371 193 187 186 192 187 16 15 186 192 181 371 372 183 182 9 1 223 390 5 390 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF TAI	8-97530-429-0	02	1	9811-0610	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF TAI	1-51300-362-3	02	1	0611-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF TAI	8-97530-428-0	02	1	9811-0610		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF TAI	1-51300-352-0	02	1	0611-		●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	9811-	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	9811-0512		●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0601-		●
9	PAD; U BOLT,RR SPR TAI	8-97530-433-0	02	1	9811-0610	●
9	PAD; U BOLT,RR SPR TAI	1-51372-059-0	02	1	0611-	●
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	9811-		●
15	SHACKLE; RR SPR TAI	8-97530-457-0	02	1	9811-0610	●
15	SHACKLE; RR SPR TAI	1-51362-038-2	02	1	0611-	●
16	BUSHING; SHACKLE,RR SPR ID=25 TAI	9-51151-032-0	02	1	9811-	●
180	PIN; RR SPR DO=25 L=115 PT1/8	1-51361-016-0	02	1	9811-	●
180	PIN; RR SPR	1-51361-020-0	02	1	9811-		●
181	BOLT; SPR & SHACKLE M12X55	0-10811-255-0	02	1	9811-	●
181	BOLT; SPR & SHACKLE M14X80	0-10806-480-0	02	1	9811-0512		●
181	BOLT; SPR & SHACKLE M14X80	0-10856-480-0	02	1	0601-		●
182	NUT; PIN,RR SPR M12	9-99110-512-0	02	1	9811-0512	●
182	NUT; PIN,RR SPR M12 TAI	0-91110-512-0	02	1	0601-	●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	9811-0512		●
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0601-		●
183	WASHER; LK,PIN,RR SPR ID=12.2	9-09150-612-0	02	1	9811-0603	●
183	WASHER; LK,PIN,RR SPR ID=12.2	0-91510-612-0	02	1	0604-	●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	9811-0603		●
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0604-		●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	9811-0512	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●
186	PIN; SHACKLE,RR SPR (A) DO=25 L=115 PT1/8	1-51361-016-0	02	1	9811-	●
186	PIN; SHACKLE,RR SPR (B) DO=25 L=115 M12	1-51361-017-0	02	1	9811-	●
187	BOLT; SPR & SHACKLE M12X55	0-10811-255-0	02	1	9811-	●
187	BOLT; SPR & SHACKLE M12X65	0-10811-265-0	02	1	9811-	●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	9811-0512	●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-	●
193	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	02	1	9811-	●
223	SPACER; U BOLT,RR SPR	1-51377-329-1	02	1	9811-	●
223	SPACER; U BOLT,RR SPR	1-51377-371-1	02	1	9811-		●
371	WASHER; LK,SHACKLE ID=12.2	9-09150-612-0	04	1	9811-0603	●
371	WASHER; LK,SHACKLE ID=12.2	0-91510-612-0	04	1	0604-	●
372	NUT; SHACKLE M12	9-99110-512-0	04	1	9811-0512	●
372	NUT; SHACKLE M12 TAI	0-91110-512-0	04	1	0601-	●
390	U-BOLT SET; RR SPRING L=405	1-87870-353-0	04	1	9811-	●
390	U-BOLT SET; RR SPRING L=490	1-87870-036-4	04	1	9811-		●

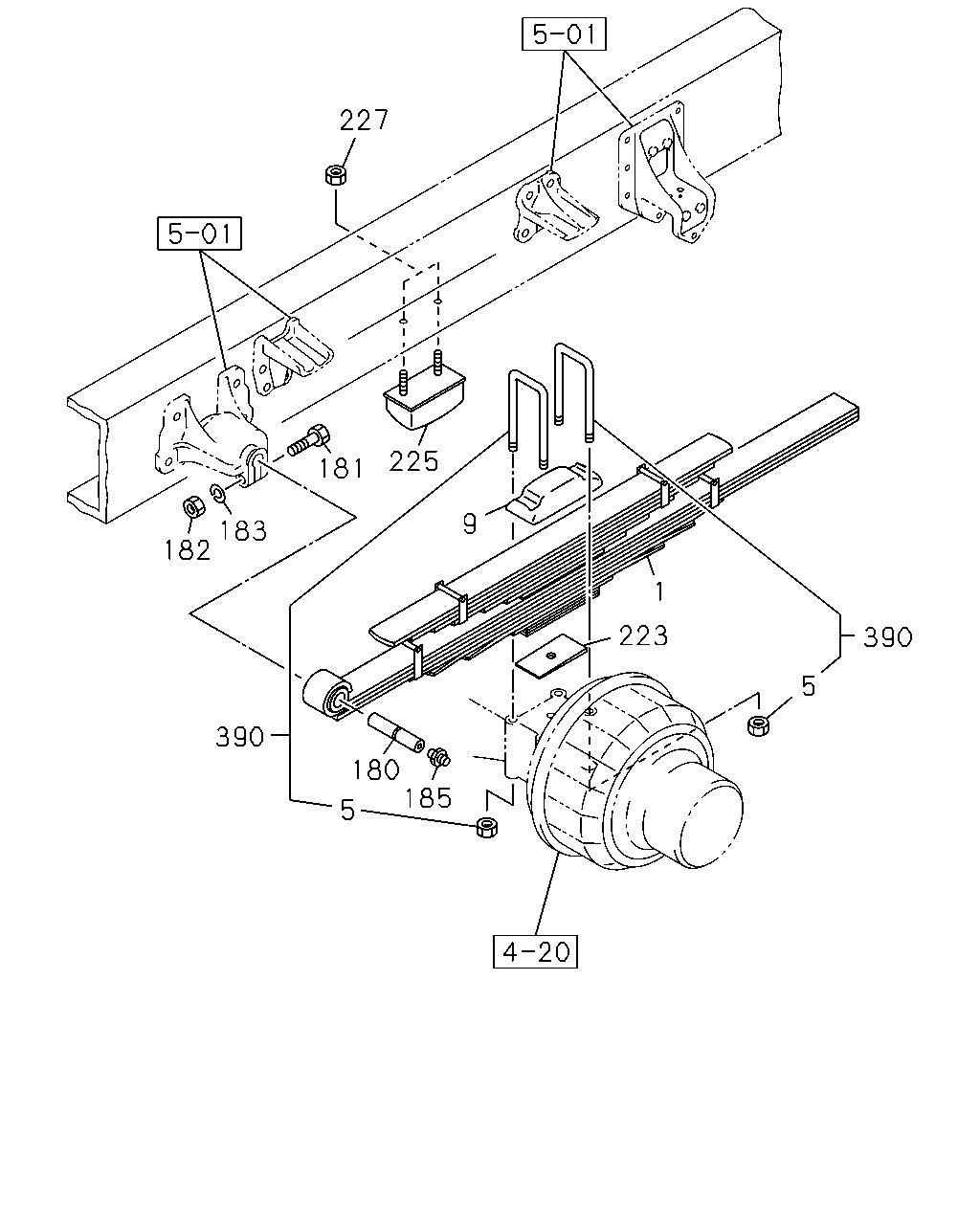

227 225 181 9 183 182 1 223 390 5 390 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF TAI	8-97530-429-0	02	1	9811-0610	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF TAI	1-51300-362-3	02	1	0611-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF TAI	8-97530-428-0	02	1	9811-0610		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF TAI	1-51300-352-0	02	1	0611-		●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	9811-	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	9811-0512		●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0601-		●
9	PAD; U BOLT,RR SPR TAI	8-97530-433-0	02	1	9811-0610	●
9	PAD; U BOLT,RR SPR TAI	1-51372-059-0	02	1	0611-	●
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	9811-		●
180	PIN; RR SPR DO=25 L=115 PT1/8	1-51361-016-0	02	1	9811-	●
180	PIN; RR SPR	1-51361-020-0	02	1	9811-		●
181	BOLT; SPR & SHACKLE M12X55	0-10811-255-0	02	1	9811-	●
181	BOLT; SPR & SHACKLE M14X80	0-10806-480-0	02	1	9811-0512		●
181	BOLT; SPR & SHACKLE M14X80	0-10856-480-0	02	1	0601-		●
182	NUT; PIN,RR SPR M12	9-99110-512-0	02	1	9811-0512	●
182	NUT; PIN,RR SPR M12 TAI	0-91110-512-0	02	1	0601-	●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	9811-0512		●
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0601-		●
183	WASHER; LK,PIN,RR SPR ID=12.2	9-09150-612-0	02	1	9811-0603	●
183	WASHER; LK,PIN,RR SPR ID=12.2	0-91510-612-0	02	1	0604-	●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	9811-0603		●
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0604-		●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	9811-0512	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●
223	SPACER; U BOLT,RR SPR	1-51377-329-1	02	1	9811-	●
223	SPACER; U BOLT,RR SPR	1-51377-371-1	02	1	9811-		●
225	RUBBER; CUSHION,RR SPR	1-53366-081-1	02	1	9811-		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9811-0602		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0603-		●
390	U-BOLT SET; RR SPRING L=405	1-87870-353-0	04	1	9811-	●
390	U-BOLT SET; RR SPRING L=490	1-87870-036-4	04	1	9811-		●
