0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#57541) — 39 parça

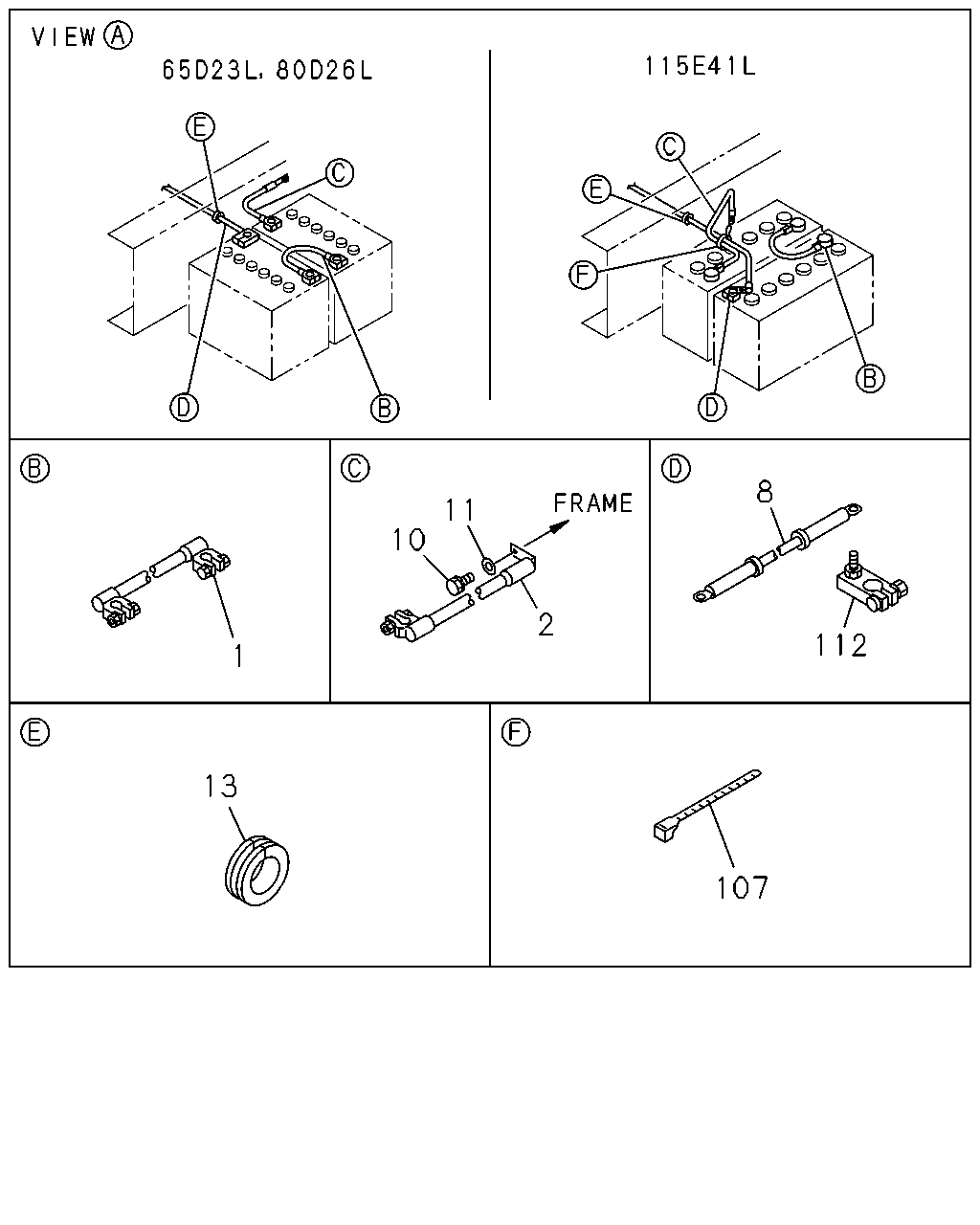

çizim 147458
1 13 10 11 2 8 112 107
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1110-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 1110-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250 		8-97619-729-2 01 1 1110-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98178-672-2 01 1 1110-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=2200 		8-98295-617-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98178-671-2 01 1 1110-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1955 		8-98295-616-0 01 1 1503-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1110-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1110-
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1110-
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1110-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1110-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-

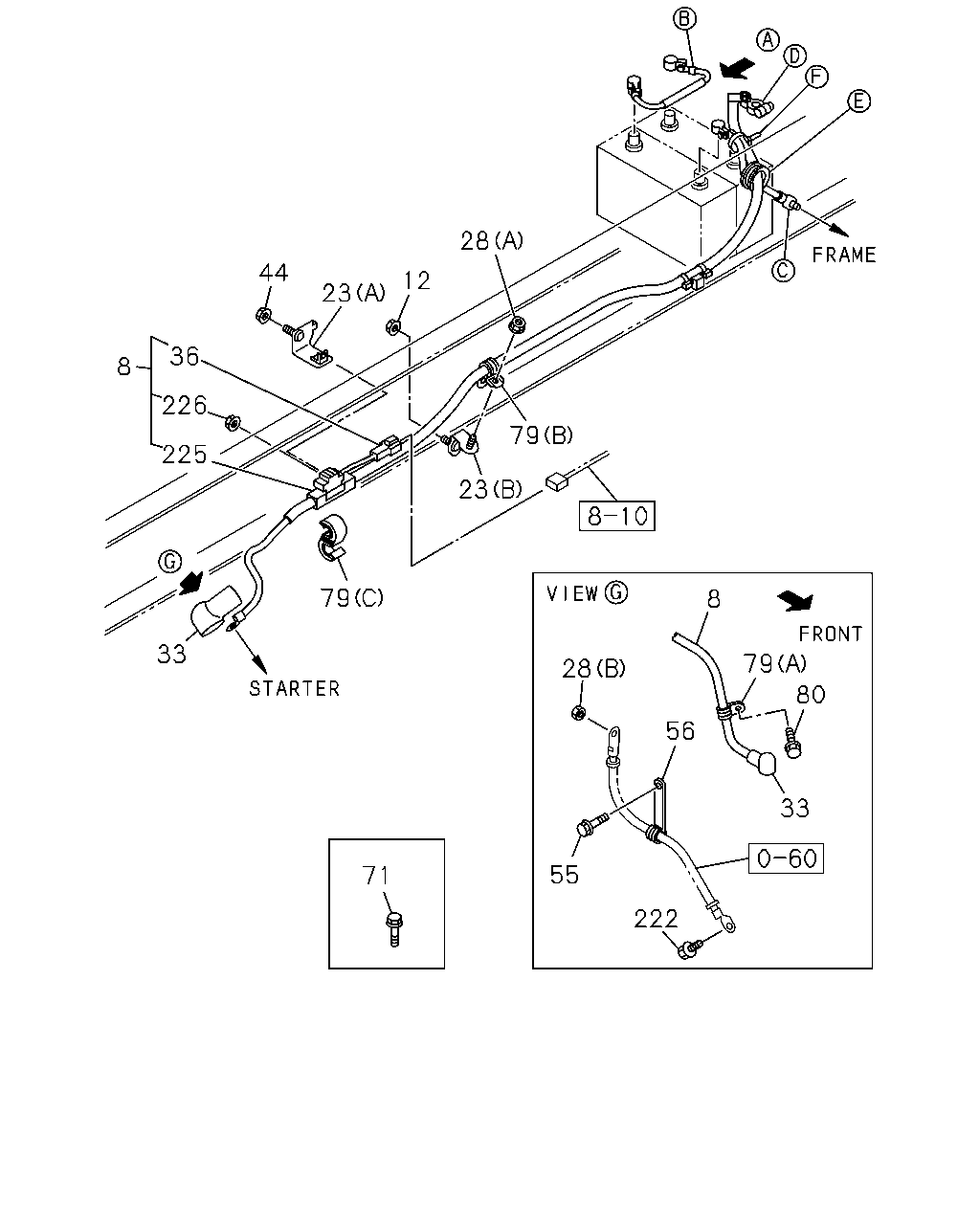

çizim 147459
28 44 12 23 36 8 226 79 225 23 79 8 33 79 28 80 56 33 55 71 222
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98178-672-2 01 1 1110-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=2200 		8-98295-617-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98178-671-2 01 1 1110-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1955 		8-98295-616-0 01 1 1503-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1110-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 01 1 1110-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98091-358-0 01 1 1110-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98091-358-0 01 1 1110-
28 NUT; BRKT TO FRAME
(A) M8 FLANGE 		0-91180-108-0 01 1 1110-
28 NUT; BRKT TO FRAME
(B) M10 FLANGE 		0-91180-210-0 01 1 1110-
33 CAP; INSULATOR 1-82699-431-0 01 1 1110-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1110-1502
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1110-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1110-
56 CLIP; BATTERY CABLE
ID=12 L=70 		1-09700-097-1 01 1 1110-
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28051-020-0 01 1 1110-
79 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1110-
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 1110-
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 1110-
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1110-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1110-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1110-1502
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1110-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-
