4-55 — FRONT LEAF SPRING (#5754) — 123 parça

17 16 1 20 2 19 17 18 3 4 18 5 6 18 7 8 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: A = 1-51130-110-0	1-51131-110-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: B = 1-51130-343-0	1-51131-343-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: C = 1-51130-474-0	1-51131-474-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-679-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-687-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-695-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: A = 1-51130-110-0	1-51132-110-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: B = 1-51130-343-0	1-51132-343-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: C = 1-51130-474-0	1-51132-474-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-680-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-688-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-696-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP, TAI ASM PART: A = 1-51130-110-0	1-51133-110-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP, TAI ASM PART: B = 1-51130-343-0	1-51133-343-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP, TAI ASM PART: C = 1-51130-474-0	1-51133-474-0	01	1	-
3	SPRING; LEAF,NO 3,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-681-0	01	1	-
3	SPRING; LEAF,NO 3,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-689-0	01	1	-
3	SPRING; LEAF,NO 3,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-697-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: A = 1-51130-110-0	1-51134-110-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: B = 1-51130-343-0	1-51134-343-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: C = 1-51130-474-0	1-51134-474-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-682-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-690-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-698-0	01	1	-
5	SPRING; LEAF,NO 5,FRT TAI ASM PART: A = 1-51130-110-0	1-51135-110-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP, TAI ASM PART: B = 1-51130-343-0	1-51135-343-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP, TAI ASM PART: C = 1-51130-474-0	1-51135-474-0	01	1	-
5	SPRING; LEAF,NO 5,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-683-0	01	1	-
5	SPRING; LEAF,NO 5,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-691-0	01	1	-
5	SPRING; LEAF,NO 5,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-699-0	01	1	-
6	SPRING; LEAF,NO 6,FRT W/CLIP, TAI ASM PART: A = 1-51130-110-0	1-51136-110-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: B = 1-51130-343-0	1-51136-343-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: C = 1-51130-474-0	1-51136-474-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-684-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-692-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-700-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: A = 1-51130-110-0	1-51137-110-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: B = 1-51130-343-0	1-51137-343-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: C = 1-51130-474-0	1-51137-474-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-685-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-693-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-701-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: A = 1-51130-110-0	1-51138-110-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: B = 1-51130-343-0	1-51138-343-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: C = 1-51130-474-0	1-51138-474-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-686-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-694-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-702-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=105, TAI ASM PART: A = 1-51130-110-0	1-51156-280-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140, TAI ASM PART: C = 1-51130-474-0, F = 8-97530-427-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=105, TAI ASM PART: D = 8-97530-425-0	1-51156-323-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135, TAI ASM PART: B = 1-51130-343-0, E = 8-97530-426-0	1-51156-333-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16, TAI ASM PART: B = 1-51130-343-0, C = 1-51130-474-0, E = 8-97530-426-0, F = 8-97530-427-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M14 ASM PART: A = 1-51130-110-0, D = 8-97530-425-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38, TAI ASM PART: B = 1-51130-343-0, C = 1-51130-474-0, E = 8-97530-426-0, F = 8-97530-427-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ID=25, TAI ASM PART: A = 1-51130-110-0, D = 8-97530-425-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99, TAI ASM PART: B = 1-51130-343-0, C = 1-51130-474-0, E = 8-97530-426-0, F = 8-97530-427-0	1-09000-328-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M8X87, TAI ASM PART: A = 1-51130-110-0, D = 8-97530-425-0	1-09000-335-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1, TAI ASM PART: A = 1-51130-110-0, D = 8-97530-425-0	1-51177-263-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=6 ASM PART: C = 1-51130-474-0, F = 8-97530-427-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=13 ASM PART: B = 1-51130-343-0, C = 1-51130-474-0, E = 8-97530-426-0, F = 8-97530-427-0	1-51177-181-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=6 ASM PART: A = 1-51130-110-0, D = 8-97530-425-0	1-51177-262-0	01	1	-

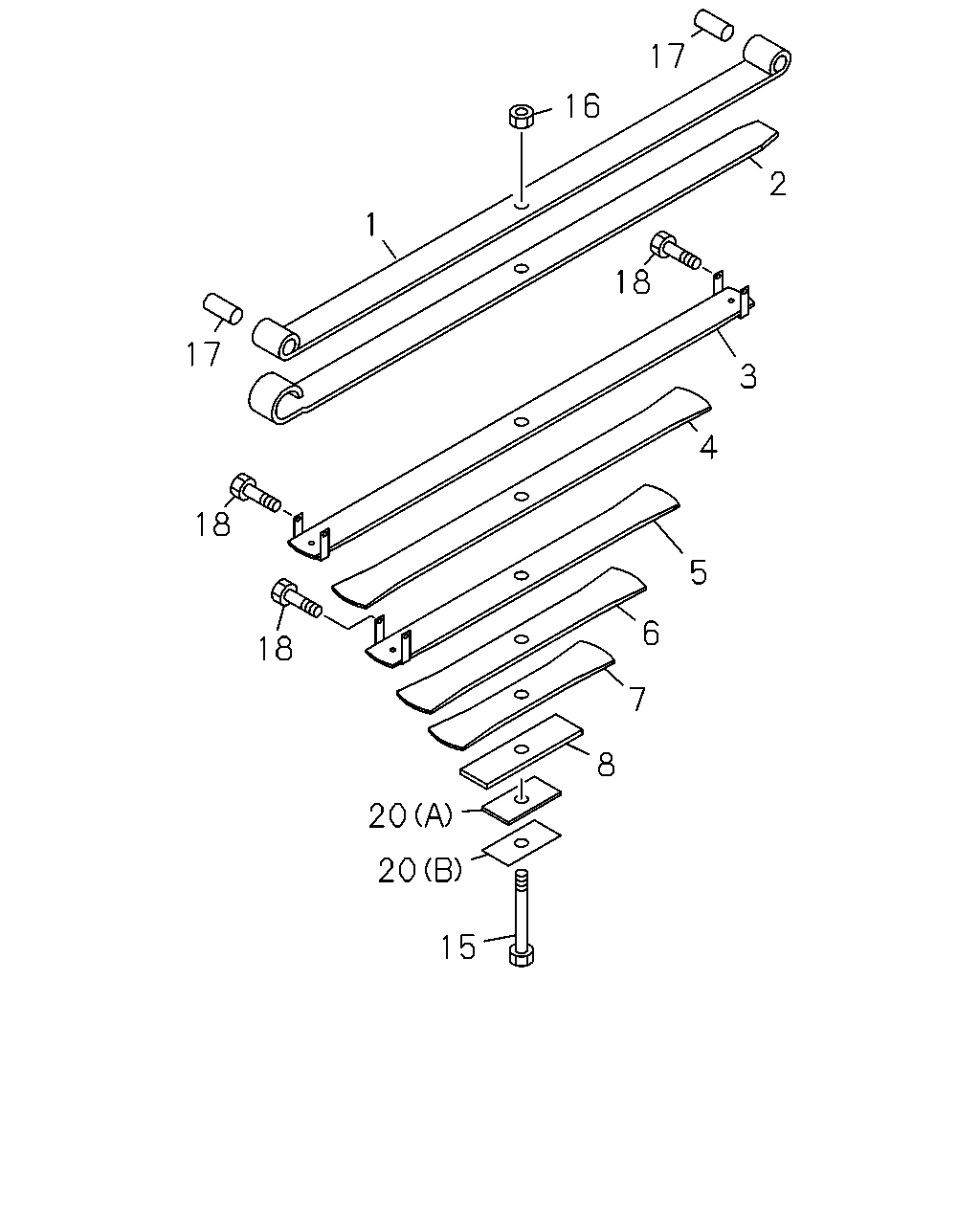

17 16 2 1 18 17 3 4 18 5 6 18 7 8 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: A = 1-51130-110-0	1-51131-110-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: B = 1-51130-343-0	1-51131-343-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: C = 1-51130-474-0	1-51131-474-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-679-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-687-0	01	1	-
1	SPRING; LEAF,NO 1,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-695-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: A = 1-51130-110-0	1-51132-110-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: B = 1-51130-343-0	1-51132-343-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: C = 1-51130-474-0	1-51132-474-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-680-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-688-0	01	1	-
2	SPRING; LEAF,NO 2,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-696-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP, TAI ASM PART: A = 1-51130-110-0	1-51133-110-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP, TAI ASM PART: B = 1-51130-343-0	1-51133-343-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP, TAI ASM PART: C = 1-51130-474-0	1-51133-474-0	01	1	-
3	SPRING; LEAF,NO 3,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-681-0	01	1	-
3	SPRING; LEAF,NO 3,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-689-0	01	1	-
3	SPRING; LEAF,NO 3,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-697-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: A = 1-51130-110-0	1-51134-110-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: B = 1-51130-343-0	1-51134-343-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: C = 1-51130-474-0	1-51134-474-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-682-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-690-0	01	1	-
4	SPRING; LEAF,NO 4,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-698-0	01	1	-
5	SPRING; LEAF,NO 5,FRT TAI ASM PART: A = 1-51130-110-0	1-51135-110-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP, TAI ASM PART: B = 1-51130-343-0	1-51135-343-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP, TAI ASM PART: C = 1-51130-474-0	1-51135-474-0	01	1	-
5	SPRING; LEAF,NO 5,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-683-0	01	1	-
5	SPRING; LEAF,NO 5,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-691-0	01	1	-
5	SPRING; LEAF,NO 5,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-699-0	01	1	-
6	SPRING; LEAF,NO 6,FRT W/CLIP, TAI ASM PART: A = 1-51130-110-0	1-51136-110-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: B = 1-51130-343-0	1-51136-343-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: C = 1-51130-474-0	1-51136-474-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-684-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-692-0	01	1	-
6	SPRING; LEAF,NO 6,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-700-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: A = 1-51130-110-0	1-51137-110-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: B = 1-51130-343-0	1-51137-343-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: C = 1-51130-474-0	1-51137-474-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-685-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-693-0	01	1	-
7	SPRING; LEAF,NO 7,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-701-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: A = 1-51130-110-0	1-51138-110-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: B = 1-51130-343-0	1-51138-343-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: C = 1-51130-474-0	1-51138-474-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: D = 8-97530-425-0	8-97530-686-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: E = 8-97530-426-0	8-97530-694-0	01	1	-
8	SPRING; LEAF,NO 8,FRT TAI ASM PART: F = 8-97530-427-0	8-97530-702-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=105, TAI ASM PART: A = 1-51130-110-0	1-51156-280-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140, TAI ASM PART: C = 1-51130-474-0, F = 8-97530-427-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=105, TAI ASM PART: D = 8-97530-425-0	1-51156-323-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135, TAI ASM PART: B = 1-51130-343-0, E = 8-97530-426-0	1-51156-333-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16, TAI ASM PART: B = 1-51130-343-0, C = 1-51130-474-0, E = 8-97530-426-0, F = 8-97530-427-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M14 ASM PART: A = 1-51130-110-0, D = 8-97530-425-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38, TAI ASM PART: B = 1-51130-343-0, C = 1-51130-474-0, E = 8-97530-426-0, F = 8-97530-427-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ID=25, TAI ASM PART: A = 1-51130-110-0, D = 8-97530-425-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99, TAI ASM PART: B = 1-51130-343-0, C = 1-51130-474-0, E = 8-97530-426-0, F = 8-97530-427-0	1-09000-328-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M8X87, TAI ASM PART: A = 1-51130-110-0, D = 8-97530-425-0	1-09000-335-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=6 ASM PART: C = 1-51130-474-0, F = 8-97530-427-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=13 ASM PART: B = 1-51130-343-0, C = 1-51130-474-0, E = 8-97530-426-0, F = 8-97530-427-0	1-51177-181-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=6 ASM PART: A = 1-51130-110-0, D = 8-97530-425-0	1-51177-262-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
