Isuzu WW
▶
TRUCKS
▶
FSR
▶
11398 - FSR(LHD)EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#57530) — 56 parça
◀

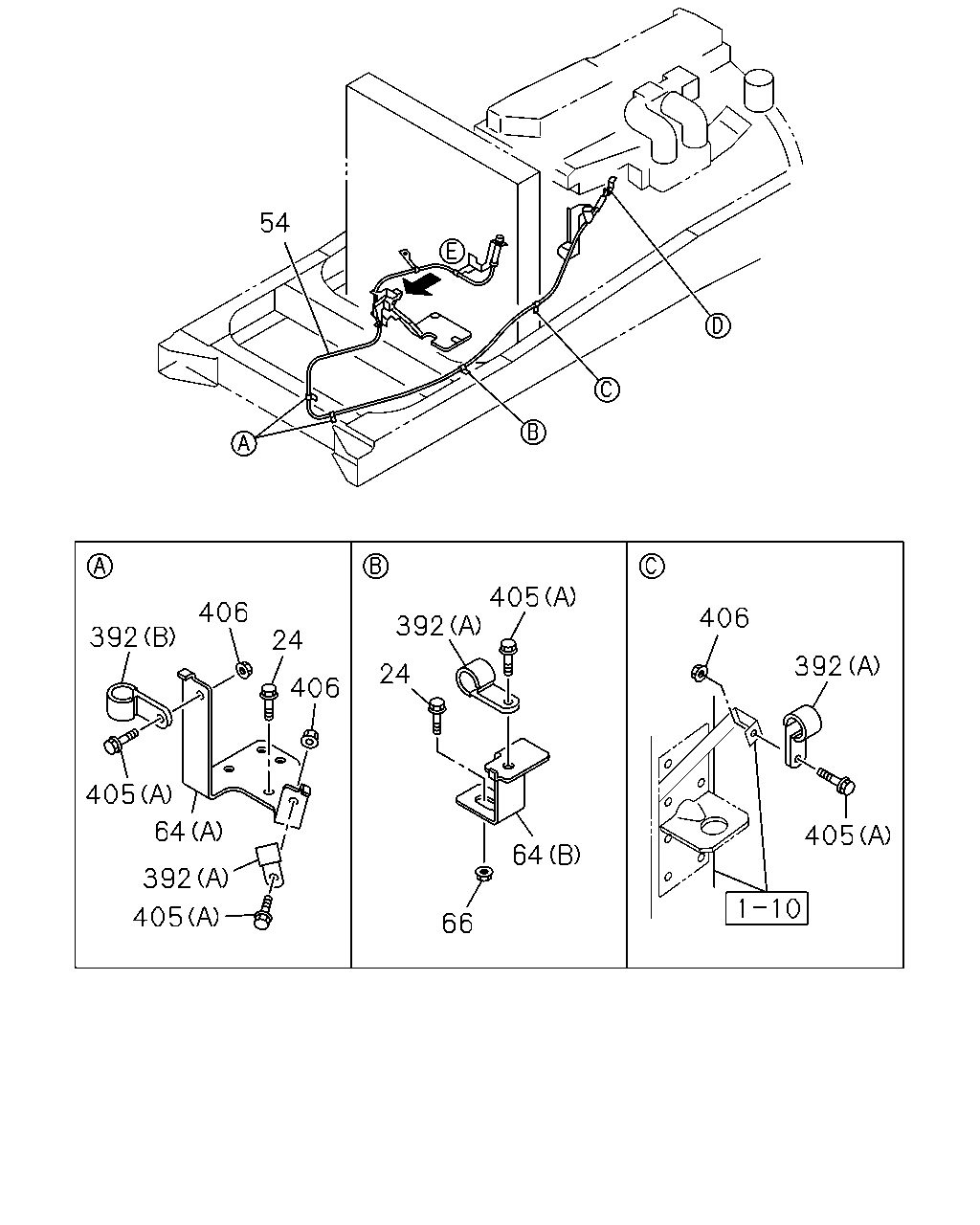

[101A] NO.1 (14 parça)

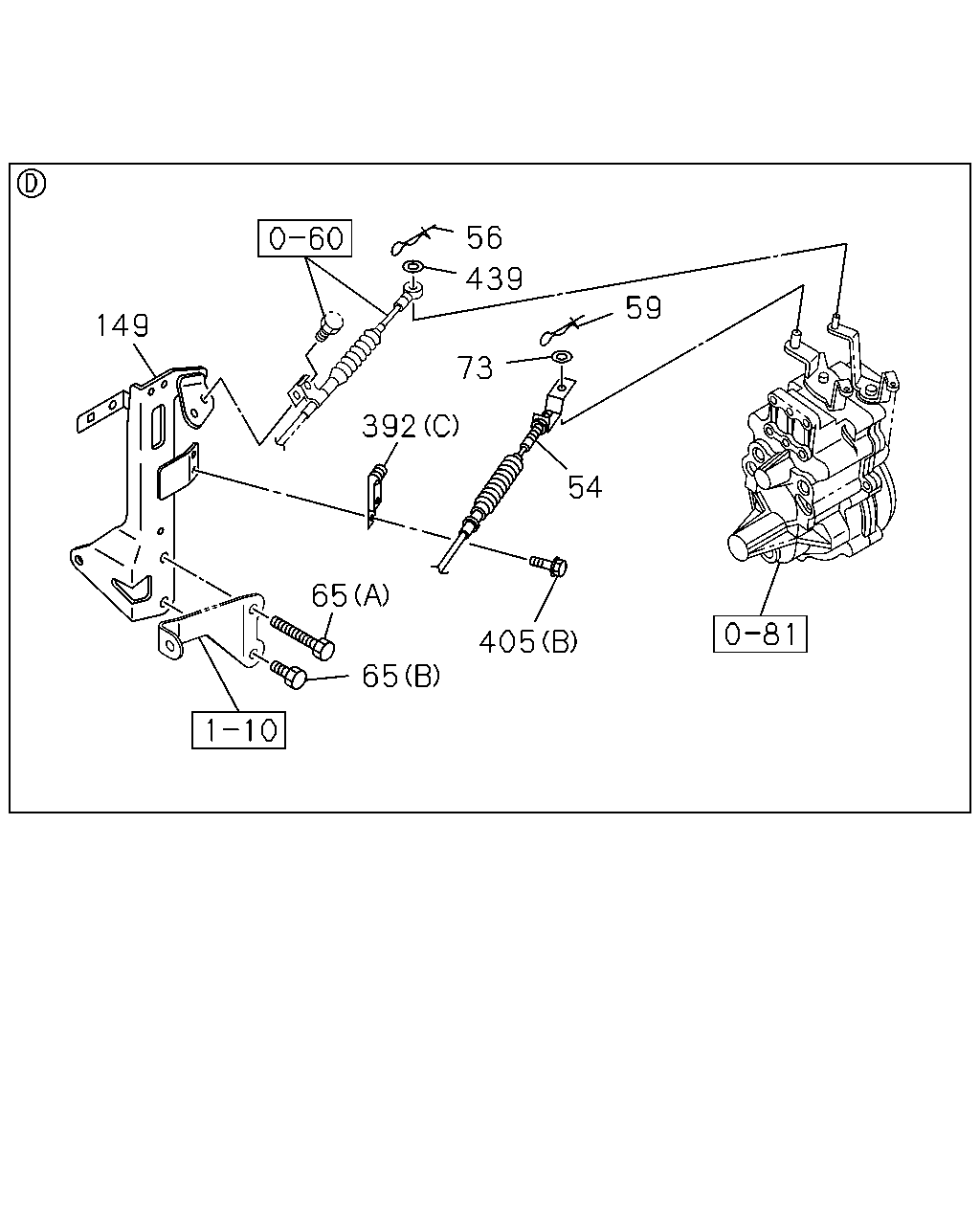

[101A] NO.2 (17 parça)

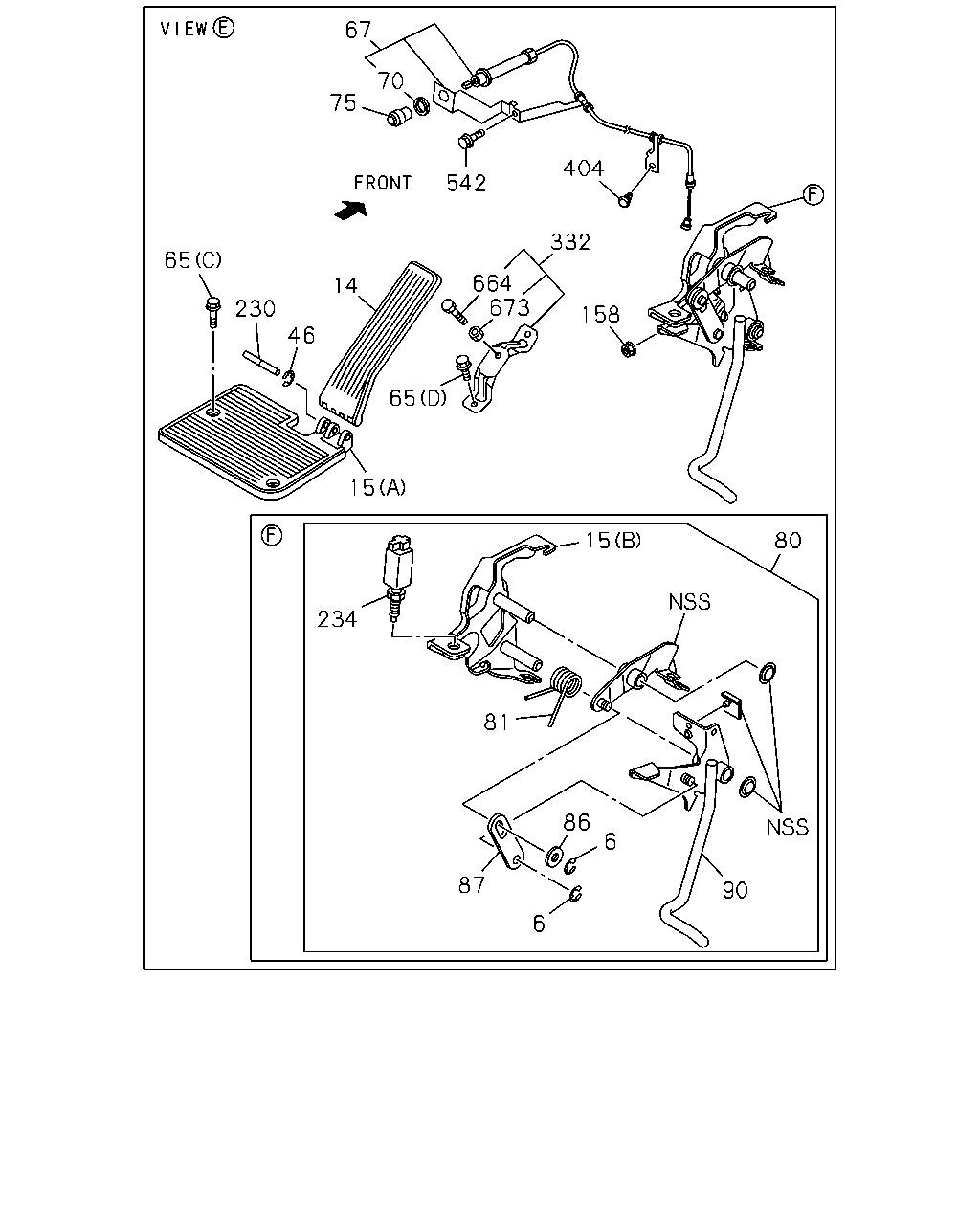

[101A] NO.3 (25 parça)
▶
54
405
406
406
392
392
24
392
24
406
405
64
405
64
392
405
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
03
1
1110-
54
CABLE; ENG CONT
L=2107
8-98114-747-1
01
1
1110-
64
BRACKET; ENG CONT CABLE
(A)
8-98186-711-1
01
1
1110-
64
BRACKET; ENG CONT CABLE
(B)
8-98186-712-1
01
1
1110-
66
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1110-
392
CLIP; ACCEL CONT CABLE
(A) ID=9 L=20
0-95234-835-0
03
1
1110-
392
CLIP; ACCEL CONT CABLE
(B) ID=9 L=32
0-95234-865-0
01
1
1110-
392
CLIP; ACCEL CONT CABLE
(C) L=30
1-09700-326-0
01
1
1110-
405
BOLT; CABLE CLIP
(A) M8X16 FLANGE
0-28050-816-0
01
1
1110-
405
BOLT; CABLE CLIP
(A) M8X16 FLANGE
0-28050-816-0
03
1
1110-1110
405
BOLT; CABLE CLIP
(A) M8X16 FLANGE
0-28050-816-0
02
1
1110-
405
BOLT; CABLE CLIP
(B) M6X20 FLANGE
0-28650-620-0
02
1
1110-
406
NUT; CABLE CLIP
M8 FLANGE
0-91180-108-0
02
1
1110-
406
NUT; CABLE CLIP
M8 FLANGE
0-91180-108-0
01
1
1110-
56
439
59
149
73
392
54
65
405
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
54
CABLE; ENG CONT
L=2107
8-98114-747-1
01
1
1110-
56
PIN; SNAP,JAW JOINT
L=17.9
1-09747-015-0
01
1
1110-
59
PIN; SNAP,ENG CONT CABLE
L=27.7
1-09987-141-0
01
1
1110-
65
BOLT
(A) M10X60
0-16861-060-0
01
1
1110-
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
1110-
65
BOLT
(C) M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
1110-
65
BOLT
(D) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1110-
73
WASHER; PL,ACCEL CONT CABLE
ID=8.4 OD=16
0-91610-508-0
01
1
1110-
149
BRACKET; ENG CONT
8-94390-006-2
01
1
1110-
392
CLIP; ACCEL CONT CABLE
(A) ID=9 L=20
0-95234-835-0
03
1
1110-
392
CLIP; ACCEL CONT CABLE
(B) ID=9 L=32
0-95234-865-0
01
1
1110-
392
CLIP; ACCEL CONT CABLE
(C) L=30
1-09700-326-0
01
1
1110-
405
BOLT; CABLE CLIP
(A) M8X16 FLANGE
0-28050-816-0
01
1
1110-
405
BOLT; CABLE CLIP
(A) M8X16 FLANGE
0-28050-816-0
03
1
1110-1110
405
BOLT; CABLE CLIP
(A) M8X16 FLANGE
0-28050-816-0
02
1
1110-
405
BOLT; CABLE CLIP
(B) M6X20 FLANGE
0-28650-620-0
02
1
1110-
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
0-91610-505-0
01
1
1110-
67
70
75
404
542
332
65
664
673
14
230
158
46
65
15
15
80
234
81
86
6
87
90
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
RING; SNAP,LINK TO LINK
ID=6
9-09185-406-0
02
1
1110-
14
PAD; PEDAL,ACCEL
8-97859-101-0
01
1
1110-
15
STAND; HEEL,ACCEL PEDAL
(B)
8-97853-201-4
01
1
1110-
15
STAND; HEEL,ACCEL PEDAL
(A)
8-98022-259-2
01
1
1110-
46
RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
1110-
65
BOLT
(A) M10X60
0-16861-060-0
01
1
1110-
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
1110-
65
BOLT
(C) M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
1110-
65
BOLT
(D) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1110-
67
CABLE ASM; IDLE CONT
L=695
8-98118-355-4
01
1
1110-
70
NUT; CONT CABLE
1-73908-045-1
01
1
1110-
75
KNOB ASM; IDLING CONT
1-73908-409-0
01
1
1110-
80
LINK ASM; ENG CONT
8-98190-243-0
01
1
1110-
81
SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
1110-
86
WASHER; PL,ENG CONT LEVER
ID=8.4 OD=18
9-09160-608-0
01
1
1110-
87
LINK; ENG CONT
8-98118-868-0
01
1
1110-
90
LEVER; RELAY,ENG CONT
8-98118-870-1
01
1
1110-
158
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1110-
230
PIN; JOINT,ACCEL PEDAL TO BRKT
8-98026-806-0
01
1
1110-
234
SWITCH; ACCEL
8-97358-315-0
01
1
1110-
332
BRACKET; ACCEL PEDAL STOPPER
8-98050-879-2
01
1
1110-
404
CLIP; CABLE
OD=22 L=10.7
8-94215-211-0
01
1
1110-
542
BOLT; BRKT,IDLING CONT CABLE
M6X16 FLANGE
0-28650-616-0
01
1
1110-
664
BOLT; STOPPER
M8X40
0-20850-840-0
01
1
1110-
673
NUT; STOPPER
M8
0-91110-508-0
01
1
1110-
