◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#5753) — 153 parça

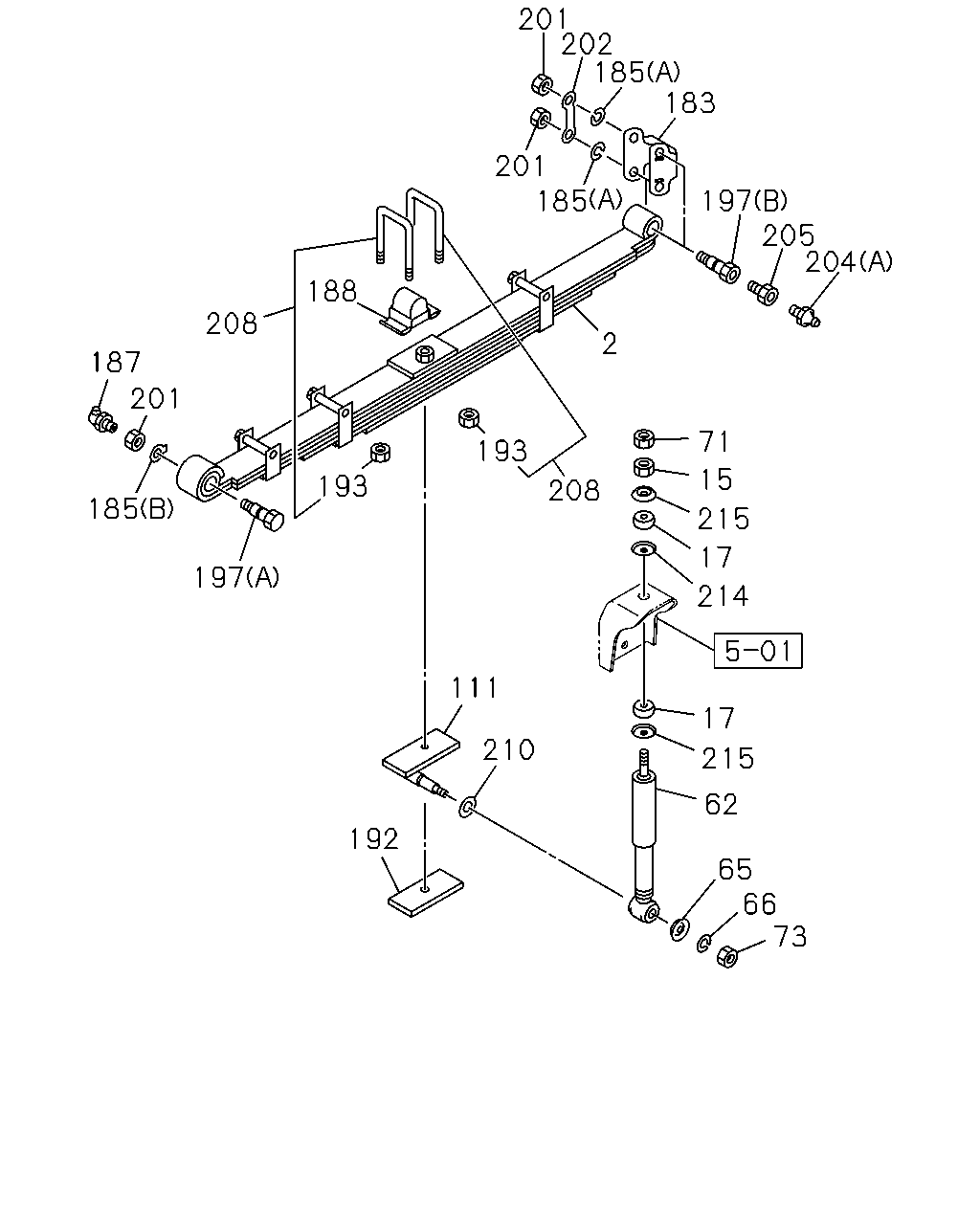

çizim 25978
201 202 185 183 201 197 205 204 188 208 2 187 201 71 193 15 193 208 185 215 17 197 214 111 17 210 215 62 192 65 66 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		8-97530-425-0 02 1 9811-0610 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		1-51130-110-0 02 1 0611- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		8-97530-427-0 01 1 9811-0610 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		1-51130-474-0 01 1 0611- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		8-97530-426-0 01 1 9811-0610 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		1-51130-343-0 01 1 0611- ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91150-210-0 02 1 9811-0602 ●
15 NUT; S/ABS,UPR
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 9811- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-381-0 02 1 9811-0308 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-838-0 02 1 0309- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 9811- ●
65 WASHER; S/ABS
ID=17 		9-09164-516-0 02 1 9811- ●
65 WASHER; S/ABS
ID=16.5 TAI 		9-51631-040-0 04 1 9811- ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		9-09150-512-0 02 1 9811-0603 ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		0-91510-512-0 02 1 0604- ●
71 NUT; LK,S/ABS,UPR
M10 		9-09111-410-0 02 1 9811-0512 ●
71 NUT; LK,S/ABS,UPR
M10 		0-91111-510-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9811-0512 ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9811-0512 ●
73 NUT; BRKT,SHOCK
M12 TAI 		0-91110-512-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9811-0311 ●
73 NUT; BRKT,SHOCK
M20 TAI 		9-99110-520-0 02 1 0312-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-742-0 01 1 9811- ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-741-0 01 1 9811- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9811- ●
183 SHACKLE; FRT SUSP
TAI 		8-97530-521-0 02 1 9811-0610 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0611- ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9811- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9811- ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9811-0603 ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9811-0512 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
TAI 		8-97530-421-0 02 1 9811-0610 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 0611- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
TAI 		8-97530-420-0 02 1 9811-0610 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0611- ●
192 PIECE; DIST
TAI 		8-97530-348-0 01 1 9811-0610 ●
192 PIECE; DIST
T=4.5 TAI 		1-51177-149-0 01 1 0611- ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9811-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-0706 ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0707- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9811-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601- ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9811- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9811- ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9811- ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9811-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9811-0512 ●
201 NUT; PIN LK
M12 TAI 		0-91110-512-0 12 1 0601- ●
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9811- ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0611- ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9811-0512 ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9811-0512 ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-0610 ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-0610 ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 0611- ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 9811-0512 ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9811- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9811- ●
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-350-0 04 1 9811-0503 ●
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-455-0 04 1 0504-0610 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-447-0 04 1 0611-0706 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-483-0 04 1 0707- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 9811- ●
210 WASHER; S/ABS,OUTER
ID=12.5 		1-09503-171-0 02 1 9811- ●
214 WASHER; S/ABS,UPR,INNER 1-51631-023-0 02 1 9811- ●
215 WASHER; S/ABS,UPR,OUTER
ID=10.5 OD=40 T=3.2 		9-09651-094-0 04 1 9811- ●

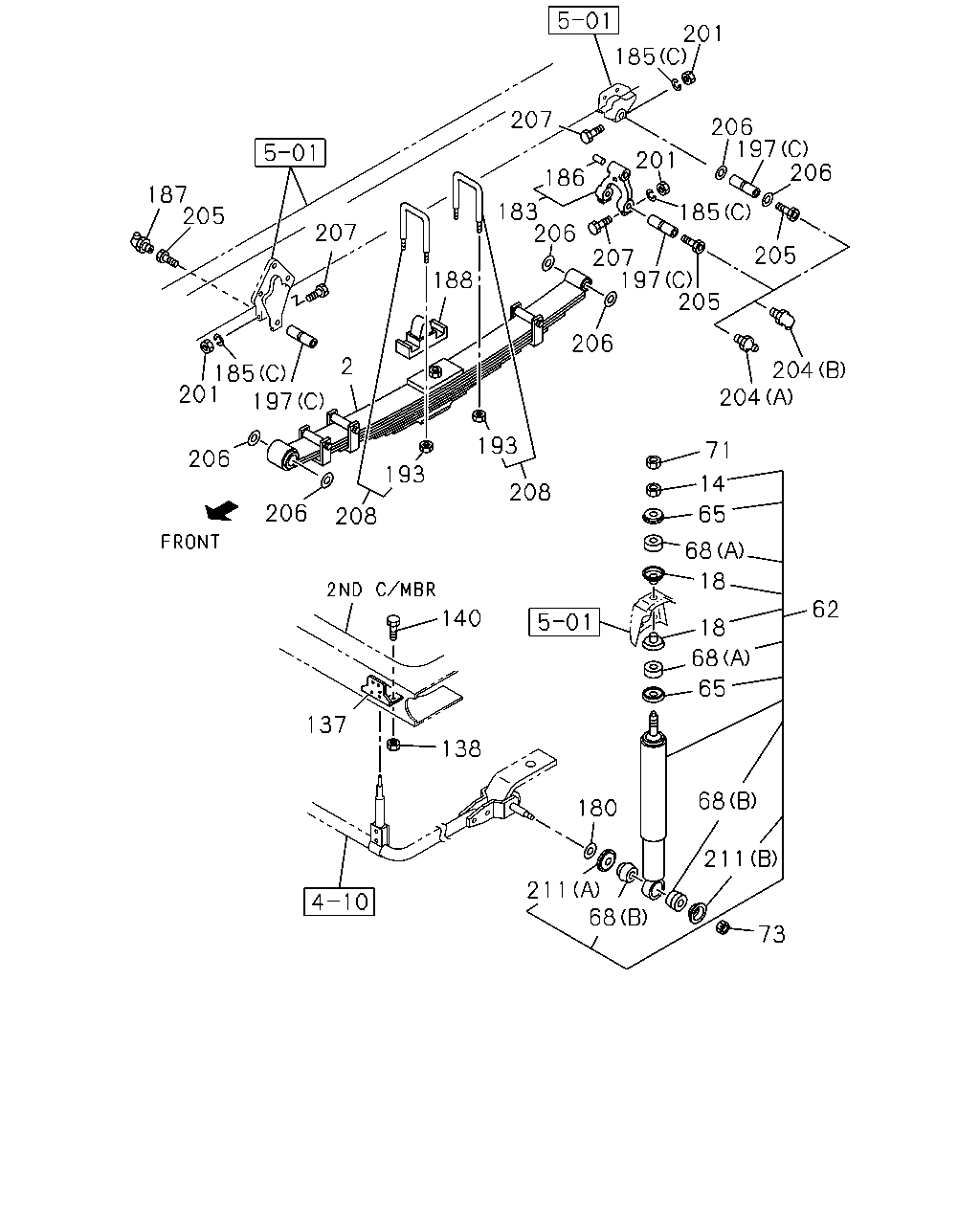

çizim 98720
201 185 207 206 197 206 201 186 187 205 185 183 206 207 205 207 197 205 188 206 2 204 204 185 201 197 193 71 206 193 14 208 206 65 208 68 18 62 140 18 68 65 137 138 68 180 211 211 68 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		8-97530-425-0 02 1 9811-0610 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		1-51130-110-0 02 1 0611- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		8-97530-427-0 01 1 9811-0610 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		1-51130-474-0 01 1 0611- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		8-97530-426-0 01 1 9811-0610 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAI 		1-51130-343-0 01 1 0611- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9811- ●
18 WASHER; CENTERING,S/ABS
ID=20.8 TAI 		9-51631-041-0 04 1 9811- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-381-0 02 1 9811-0308 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-838-0 02 1 0309- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 9811- ●
65 WASHER; S/ABS
ID=17 		9-09164-516-0 02 1 9811- ●
65 WASHER; S/ABS
ID=16.5 TAI 		9-51631-040-0 04 1 9811- ●
68 BUSHING; S/ABS
(B) TAI 		9-51631-026-0 04 1 9811- ●
68 BUSHING; S/ABS
(A) TAI 		9-51631-039-0 04 1 9811- ●
71 NUT; LK,S/ABS,UPR
M10 		9-09111-410-0 02 1 9811-0512 ●
71 NUT; LK,S/ABS,UPR
M10 		0-91111-510-0 02 1 0601- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9811-0512 ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9811-0512 ●
73 NUT; BRKT,SHOCK
M12 TAI 		0-91110-512-0 02 1 0601- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9811-0311 ●
73 NUT; BRKT,SHOCK
M20 TAI 		9-99110-520-0 02 1 0312-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ●
137 BRACKET; STAB BAR TO FRAME
TAI 		8-97530-359-0 02 1 9811-0610 ●
137 BRACKET; STAB BAR TO FRAME
TAI 		1-51781-046-2 02 1 0611-0701 ●
137 BRACKET; STAB BAR TO FRAME
TAI 		8-97530-359-0 02 1 0702- ●
138 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 9811-0602 ●
138 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0603- ●
140 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 08 1 9811-0512 ●
140 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0601- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9811-0605 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9811- ●
183 SHACKLE; FRT SUSP
TAI 		8-97530-521-0 02 1 9811-0610 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0611- ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9811- ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9811- ●
185 WASHER; LK,PIN
(C) ID=12.2 		9-09150-612-0 12 1 9811-0603 ●
185 WASHER; LK,PIN
(C) ID=12.2 		0-91510-612-0 12 1 0604- ●
186 BUSHING; SHACKLE
OD=38 TAI 		1-51351-009-0 02 1 9811-9906 ●
186 BUSHING; SHACKLE
OD=38 TAI 		1-51351-009-0 02 1 9907- ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9811-0512 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
TAI 		8-97530-421-0 02 1 9811-0610 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 0611- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
TAI 		8-97530-420-0 02 1 9811-0610 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0611- ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9811-0503 ●
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-0706 ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0707- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9811-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601- ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9811- ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9811- ●
197 PIN; FRT SPR,FRT
(C) 		1-51161-031-0 06 1 9811- ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9811-0512 ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9811-0512 ●
201 NUT; PIN LK
M12 TAI 		0-91110-512-0 12 1 0601- ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0611- ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9811-0512 ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9811-0512 ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-0610 ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-0610 ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 0611- ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 9811-0512 ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9811- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9811- ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9811- ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9811-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ●
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-350-0 04 1 9811-0503 ●
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-455-0 04 1 0504-0610 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-447-0 04 1 0611-0706 ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-483-0 04 1 0707- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 9811- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 TAI 		9-51631-027-0 02 1 9811- ●
211 WASHER; BRKT,SHOCK
(B) ID=21 TAI 		9-51631-028-0 02 1 9811- ●
