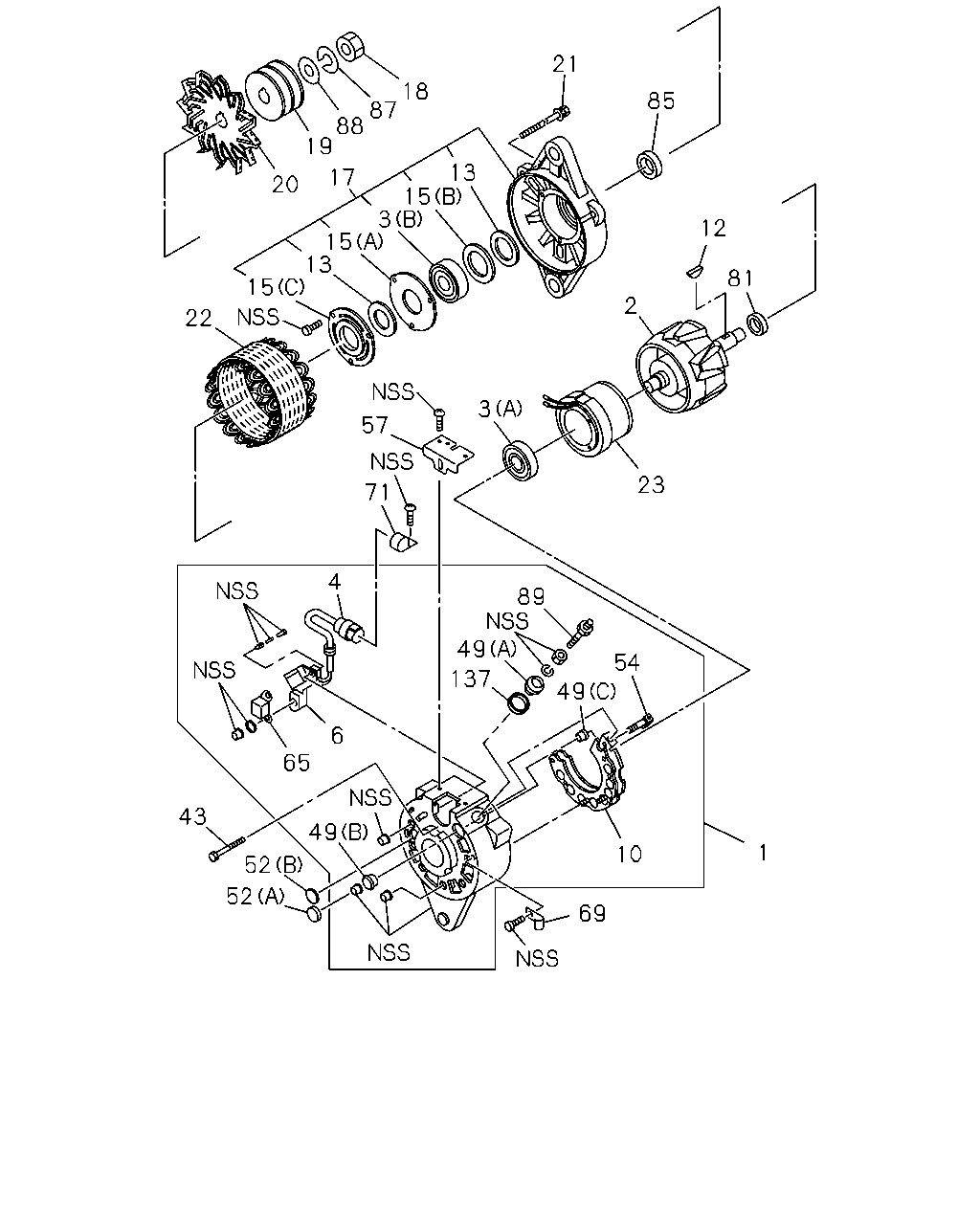

0-66 — GENERATOR (#57523) — 48 parça

20 19 88 87 18 17 21 13 15 3 15 13 15 22 85 12 2 81 23 57 3 71 65 49 43 52 6 52 69 10 137 4 1 49 54 89 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-416-5	1-81214-294-2	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-417-3	1-81214-300-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-416-5	1-81211-105-0	01	1	1309-
2	ROTOR; GEN ASM PART: A = 1-81200-416-5	1-81211-125-0	01	1	-1308
2	ROTOR; GEN ASM PART: B = 1-81200-417-3	1-81211-127-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-393-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-739-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-517-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-416-5	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-417-3	1-81260-008-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 1-81200-416-5	1-81219-107-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 1-81200-417-3	1-81219-108-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-416-5	9-82215-867-0	01	1	1309-
13	GASKET; ROTOR,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-644-0	02	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-643-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-416-5	1-81213-092-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-417-3	1-81213-093-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-474-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-416-5	1-81222-055-0	01	1	1309-
19	PULLEY; GEN ASM PART: B = 1-81200-417-3	1-81222-122-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-416-5	1-81222-122-0	01	1	-1308
20	FAN; GEN ASM PART: A = 1-81200-416-5	1-81223-016-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-417-3	1-81223-017-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-416-5	1-81229-382-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-417-3	1-81229-660-0	04	1	-
22	STATOR; GEN ASM PART: A = 1-81200-416-5	1-81211-106-1	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-417-3	1-81211-116-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-416-5	1-81212-011-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-417-3	1-81222-092-0	01	1	-
43	SCREW; RR END COVER ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-477-0	03	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-648-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-649-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-650-0	01	1	-
52	CAP; RUBBER,TERMINAL (A) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-652-0	01	1	-
52	CAP; RUBBER,TERMINAL (B) ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-653-0	01	1	-
54	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-647-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81214-296-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-84132-008-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-516-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-642-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-642-0	01	1	-
87	WASHER; PULLEY,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-479-0	01	1	-
88	WASHER; PL,PULLEY GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-478-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-646-0	01	1	-
137	GASKET; RECTIFIER,GENERATOR ASM PART: A = 1-81200-416-5, B = 1-81200-417-3	1-81229-651-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
