Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#5752) — 261 parça

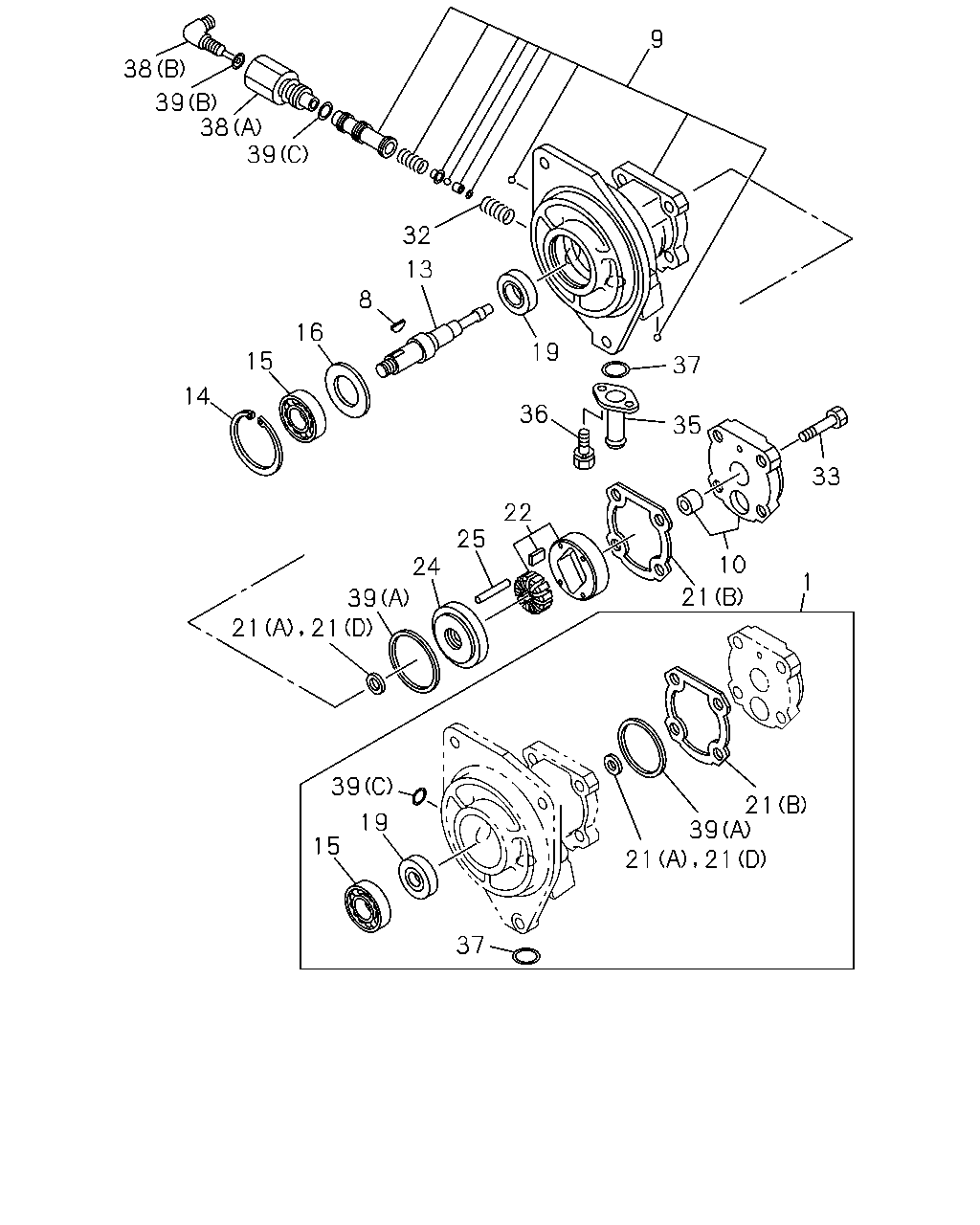

9 38 39 38 39 32 13 8 16 19 15 37 14 36 35 33 22 25 10 24 1 21 39 21 21 39 21 39 21 19 15 21 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-465-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-548-0	1-85574-060-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-539-0	1-85574-064-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-538-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-589-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-465-0, D = 1-19500-548-0, E = 1-19500-589-1	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-538-0, C = 1-19500-539-0	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-465-0	1-19511-138-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-548-0	1-19511-149-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-538-0	1-19511-158-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-539-0	1-19511-159-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-589-1	1-19511-183-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-465-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-548-0	1-19511-150-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-538-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-539-0	1-19511-161-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-589-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-465-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-548-0	1-19521-034-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-538-0	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-539-0	1-19521-039-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-589-1	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-539-0	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-548-0	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-19519-078-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (E) ASM PART: C = 1-19500-539-0	1-19519-314-0	01	1	-
21	GASKET; FRT COVER TO BODY (F) ASM PART: D = 1-19500-548-0	1-19519-321-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-538-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-465-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-465-0	1-19519-303-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	1-19519-341-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-465-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: C = 1-19500-539-0	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: D = 1-19500-548-0	1-19519-331-0	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-538-0	1-19519-346-0	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-48119-054-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	8-94395-492-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	8-94461-139-1	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, D = 1-19500-548-0, E = 1-19500-589-1	1-19519-307-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-19519-323-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: B = 1-19500-538-0	1-19519-343-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, D = 1-19500-548-0, E = 1-19500-589-1	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (E) ASM PART: C = 1-19500-539-0	1-19519-313-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: D = 1-19500-548-0	1-19519-320-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: E = 1-19500-589-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	9-48429-028-0	01	1	-

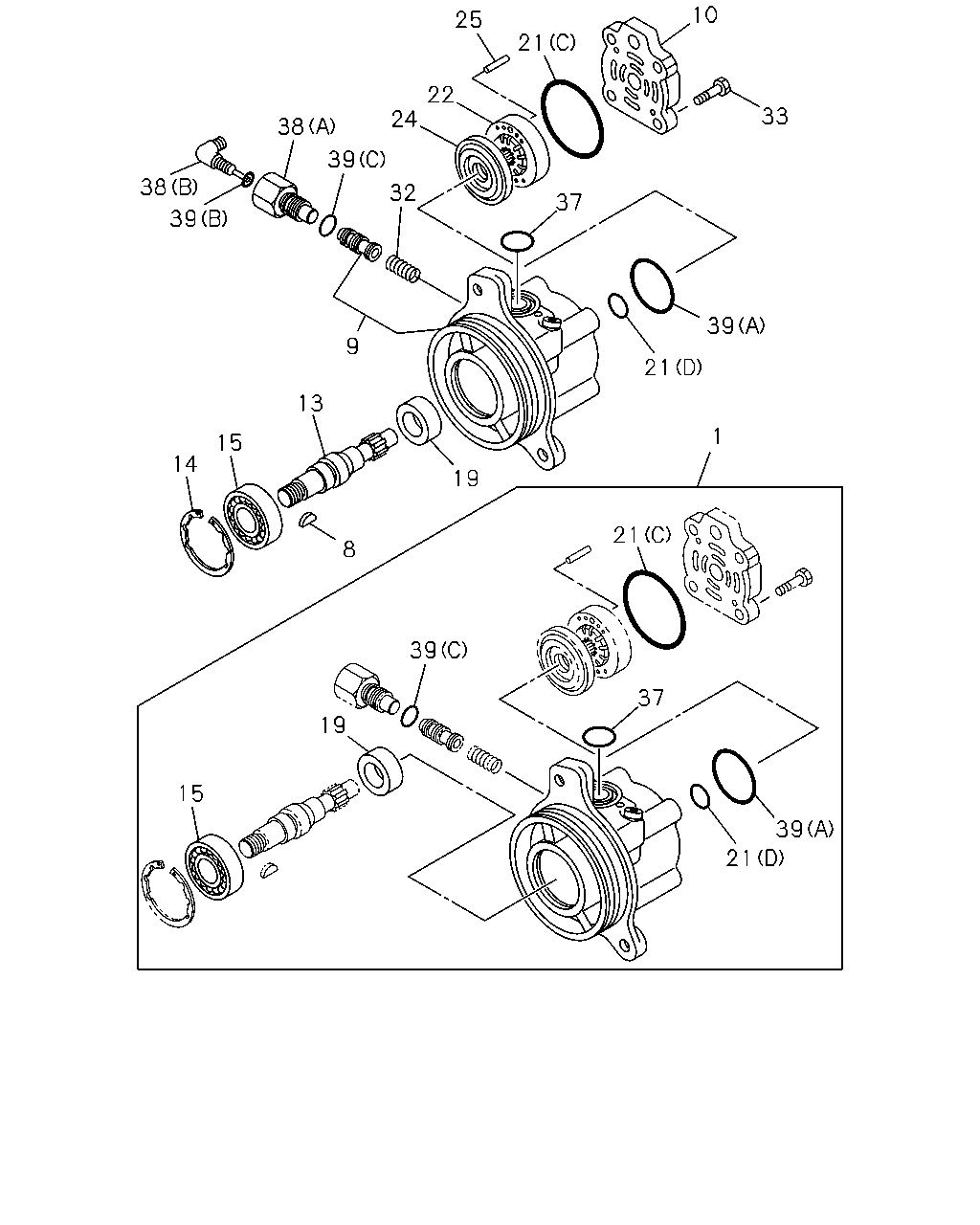

10 25 21 22 24 33 38 39 38 32 37 39 39 9 21 13 1 15 14 19 21 8 39 37 19 15 39 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-465-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-548-0	1-85574-060-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-539-0	1-85574-064-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-538-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-589-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-465-0, D = 1-19500-548-0, E = 1-19500-589-1	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-538-0, C = 1-19500-539-0	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-465-0	1-19511-138-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-548-0	1-19511-149-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-538-0	1-19511-158-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-539-0	1-19511-159-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-589-1	1-19511-183-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-465-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-548-0	1-19511-150-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-538-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-539-0	1-19511-161-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-589-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-465-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-548-0	1-19521-034-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-538-0	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-539-0	1-19521-039-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-589-1	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-539-0	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-548-0	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-264-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (E) ASM PART: C = 1-19500-539-0	1-19519-314-0	01	1	-
21	GASKET; FRT COVER TO BODY (F) ASM PART: D = 1-19500-548-0	1-19519-321-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-538-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-465-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-465-0	1-19519-303-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	1-19519-341-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-465-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: C = 1-19500-539-0	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: D = 1-19500-548-0	1-19519-331-0	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-538-0	1-19519-346-0	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, D = 1-19500-548-0, E = 1-19500-589-1	1-19519-307-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-19519-323-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: B = 1-19500-538-0	1-19519-343-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, D = 1-19500-548-0, E = 1-19500-589-1	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (E) ASM PART: C = 1-19500-539-0	1-19519-313-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: D = 1-19500-548-0	1-19519-320-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: E = 1-19500-589-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	9-48429-028-0	01	1	-

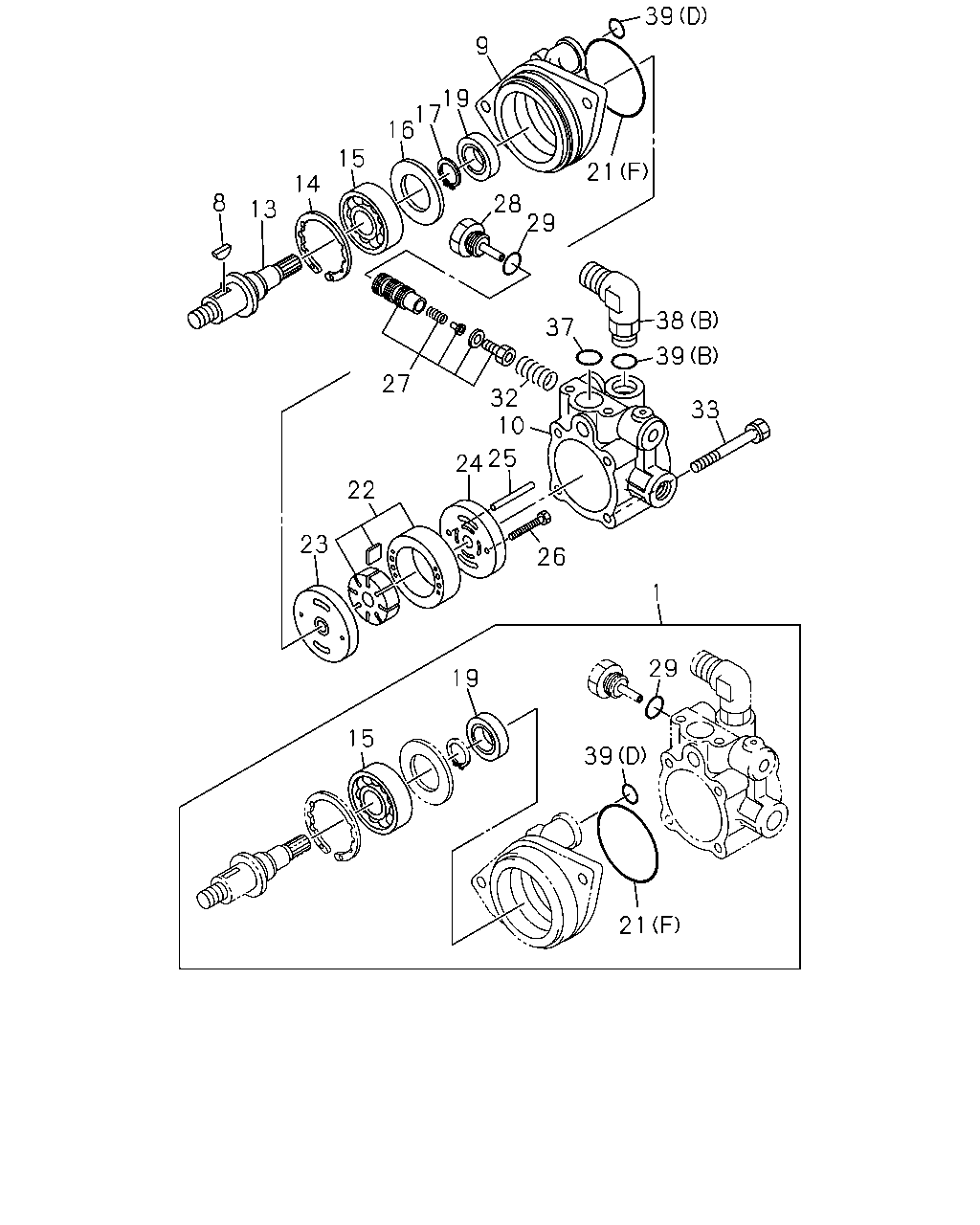

39 9 19 17 16 15 21 14 8 28 29 13 38 37 39 27 32 10 33 25 24 22 23 26 1 29 19 15 39 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-465-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-548-0	1-85574-060-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-539-0	1-85574-064-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-538-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-589-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-465-0, D = 1-19500-548-0, E = 1-19500-589-1	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-538-0, C = 1-19500-539-0	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-465-0	1-19511-138-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-548-0	1-19511-149-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-538-0	1-19511-158-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-539-0	1-19511-159-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-589-1	1-19511-183-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-465-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-548-0	1-19511-150-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-538-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-539-0	1-19511-161-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-589-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-465-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-548-0	1-19521-034-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-538-0	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-539-0	1-19521-039-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-589-1	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-539-0	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-548-0	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-19519-078-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (E) ASM PART: C = 1-19500-539-0	1-19519-314-0	01	1	-
21	GASKET; FRT COVER TO BODY (F) ASM PART: D = 1-19500-548-0	1-19519-321-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-538-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-465-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-465-0	1-19519-303-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	1-19519-341-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-133-1	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-465-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-88510-408-0	02	1	-
26	SCREW; PLATE ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-076-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 1-19500-548-0	1-19519-183-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: C = 1-19500-539-0	1-19519-347-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: D = 1-19500-548-0	8-94242-528-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: C = 1-19500-539-0	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: C = 1-19500-539-0	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: D = 1-19500-548-0	1-19519-331-0	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-538-0	1-19519-346-0	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, D = 1-19500-548-0, E = 1-19500-589-1	1-19519-307-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-19519-323-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: B = 1-19500-538-0	1-19519-343-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, D = 1-19500-548-0, E = 1-19500-589-1	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (E) ASM PART: C = 1-19500-539-0	1-19519-313-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: D = 1-19500-548-0	1-19519-320-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: E = 1-19500-589-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	9-48429-028-0	01	1	-

21 9 39 19 17 16 15 13 8 14 28 37 29 27 25 33 22 32 10 26 24 37 29 23 1 39 21 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-465-0	1-85574-042-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-548-0	1-85574-060-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-539-0	1-85574-064-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-538-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-589-1	1-85574-080-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-465-0, D = 1-19500-548-0, E = 1-19500-589-1	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-538-0, C = 1-19500-539-0	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-465-0	1-19511-138-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-548-0	1-19511-149-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-538-0	1-19511-158-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-539-0	1-19511-159-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-589-1	1-19511-183-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-465-0	1-19511-102-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-548-0	1-19511-150-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-538-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-539-0	1-19511-161-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-589-1	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-465-0	1-19521-030-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-548-0	1-19521-034-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-538-0	1-19521-038-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-539-0	1-19521-039-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-589-1	1-19521-040-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-539-0	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-548-0	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-19519-078-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (E) ASM PART: C = 1-19500-539-0	1-19519-314-0	01	1	-
21	GASKET; FRT COVER TO BODY (F) ASM PART: D = 1-19500-548-0	1-19519-321-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: B = 1-19500-538-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-465-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-465-0	1-19519-303-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-336-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	1-19519-341-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-133-1	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-465-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-316-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-538-0, E = 1-19500-589-1	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-33739-271-0	02	1	-
25	PIN; HSG,P/S ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-88510-408-0	02	1	-
26	SCREW; PLATE ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-076-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 1-19500-548-0	1-19519-183-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: C = 1-19500-539-0	1-19519-347-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: D = 1-19500-548-0	8-94242-528-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: C = 1-19500-539-0	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: C = 1-19500-539-0	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: D = 1-19500-548-0	1-19519-331-0	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-538-0	1-19519-346-0	04	1	-
33	BOLT; COVER ASM PART: A = 1-19500-465-0, E = 1-19500-589-1	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-539-0, D = 1-19500-548-0	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	1-33739-070-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, D = 1-19500-548-0, E = 1-19500-589-1	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (E) ASM PART: C = 1-19500-539-0	1-19519-313-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: D = 1-19500-548-0	1-19519-320-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: E = 1-19500-589-1	8-94475-379-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-465-0, B = 1-19500-538-0, E = 1-19500-589-1	9-48429-028-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
