Isuzu WW
▶
TRUCKS
▶
FSR
▶
11398 - FSR(LHD)EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#57513) — 40 parça
◀
[040A] NOZZLE ASM (9 parça)

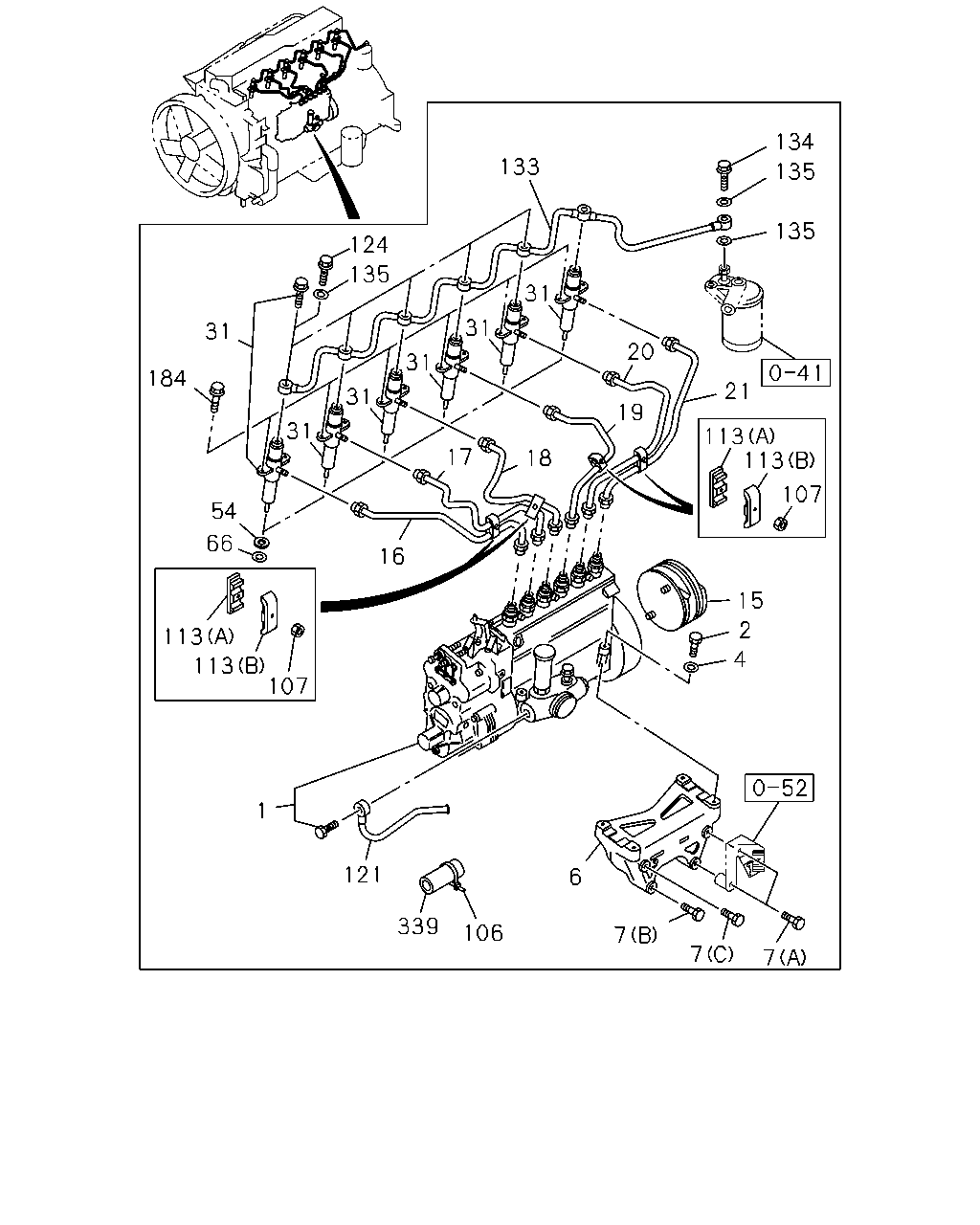

[040A] INJ PUMP ASM AND PIPE (31 parça)
▶
37
38
31
39
32
44
45
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
NOZZLE ASM; INJ
8-94395-498-2
06
1
1110-
32
HOLDER ASM; NOZZLE
8-94390-384-0
06
1
1110-
33
NOZZLE; INJ
8-94390-382-0
06
1
1110-
35
NUT; NOZZLE RET,NOZZLE HOLDER
1-15349-135-0
06
1
1110-
37
NUT; CAP,NOZZLE HOLDER
1-15349-136-0
06
1
1110-
38
GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE).
5-15339-060-0
06
1
1110-
39
SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER
8-94169-503-0
06
1
1110-
44
SPRING; NOZZLE,NOZZLE HOLDER
5-15343-005-0
06
1
1110-
45
ROD; PUSH,NOZZLE HOLDER
8-94169-502-0
06
1
1110-
134
133
135
135
124
135
31
31
31
20
31
184
21
31
19
31
113
113
17
18
107
54
66
16
15
2
113
4
113
107
1
121
6
339
106
7
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>
8-97600-180-0
01
1
1110-
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>
8-94390-081-1
01
1
1110-
2
BOLT; INJ PUMP
M8X75
0-10810-875-0
04
1
1110-
4
WASHER; INJ PUMP
ID=8.5 MITSUBISHI
9-09851-934-0
04
1
1110-
4
WASHER; INJ PUMP
ID=8.5 KAWASAKI
9-09851-983-0
04
1
1110-
6
BRACKET; INJ PUMP TO C/BL
8-94393-689-2
01
1
1110-
7
BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE
0-28151-080-0
02
1
1110-
7
BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE
8-94399-669-1
01
1
1110-
7
BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE
8-97365-449-0
01
1
1110-
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
8-94393-962-2
01
1
1110-
16
PIPE; INJ NO.1
8-94394-546-0
01
1
1110-
17
PIPE; INJ NO.2
8-94394-547-0
01
1
1110-
18
PIPE; INJ NO.3
8-94394-548-0
01
1
1110-
19
PIPE; INJ NO.4
8-94394-549-0
01
1
1110-
20
PIPE; INJ NO.5
8-94394-550-0
01
1
1110-
21
PIPE; INJ NO.6
8-94394-551-0
01
1
1110-
31
NOZZLE ASM; INJ
8-94395-498-2
06
1
1110-
54
COVER; DUST,NOZZLE HOLDER
9-15339-051-0
06
1
1110-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1
8-98079-248-0
06
1
1110-
106
CLIP; INJ PIPE
L=140
5-09707-031-1
01
1
1110-1205
106
CLIP; INJ PIPE
L=140
8-98216-431-0
01
1
1206-
107
NUT; INJ PIPE CLIP
M6 FLANGE
0-91180-106-0
04
1
1110-
113
CLIP; INJ PIPE
(A)
8-94396-793-0
04
1
1110-
113
CLIP; INJ PIPE
(B)
8-94397-444-0
04
1
1110-
121
PIPE; FUEL,FEED PUMP,SUCTION
8-94394-408-0
01
1
1110-
124
BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT
1-09675-037-1
06
1
1110-
133
PIPE; INJ NOZZLE LEAK OFF
8-94395-805-0
01
1
1110-
134
BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT
1-09675-037-1
01
1
1110-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
14
1
1110-
184
BOLT; NOZZLE HOLDER
M8X40 FLANGE
0-28050-840-0
12
1
1110-
339
RUBBER; COVER
ID=6 OD=10 L=70
1-09376-512-0
01
1
1110-
