◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#5751) — 122 parça

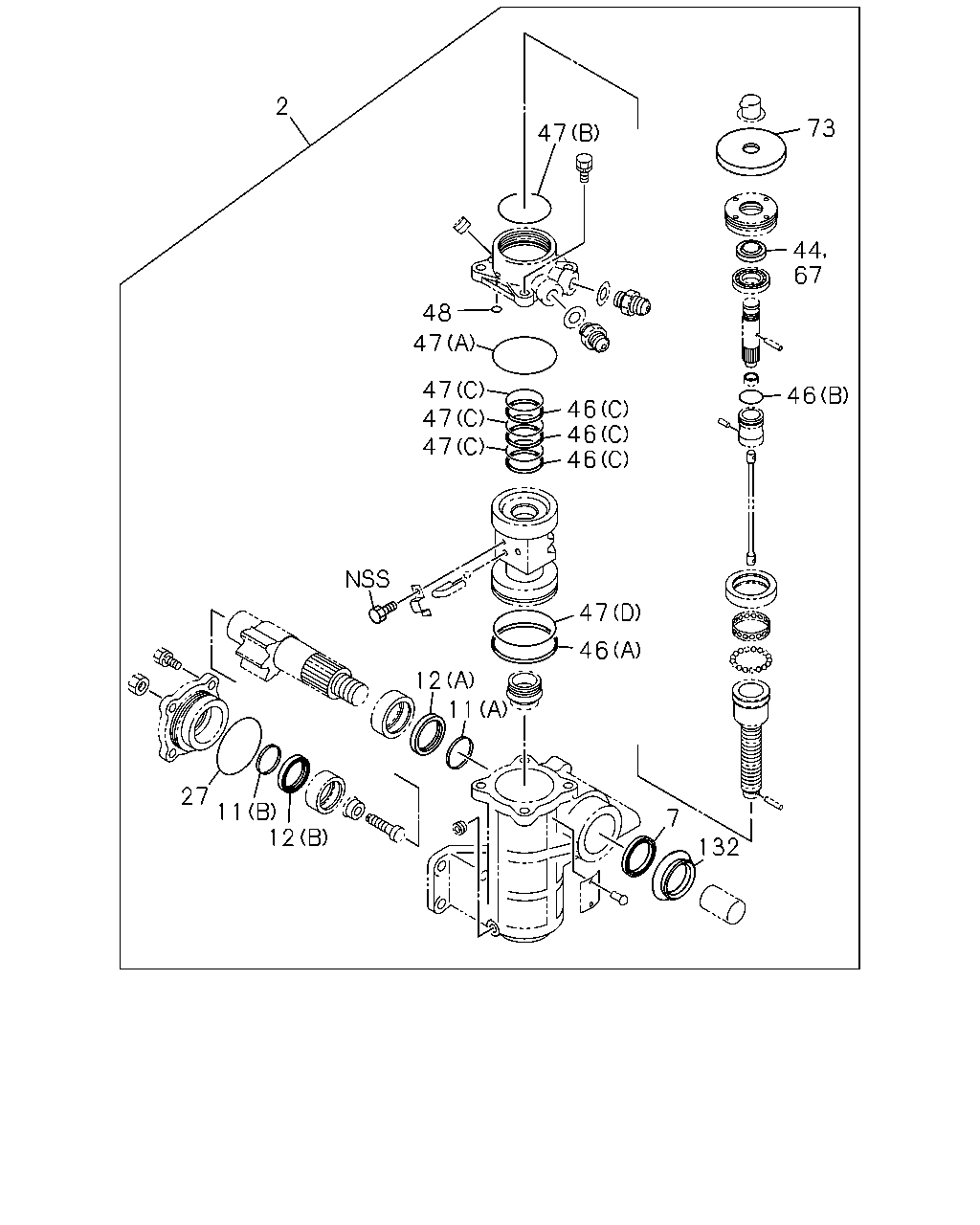

çizim 26284
2 73 47 44 67 48 47 47 47 47 46 46 46 46 47 46 12 11 27 11 12 7 132
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-843-5 		1-85574-030-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-85574-043-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-040-0 01 1 -0212
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-075-0 01 1 0301-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-071-0 01 1 -0212
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-076-0 01 1 0301-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-016-0 01 1 -0212
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-035-0 01 1 0301-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-161-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-100-0 03 1 -0212
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-255-0 03 1 0301-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-843-5 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-099-0 01 1 -0212
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-260-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-262-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-227-0 01 1 -

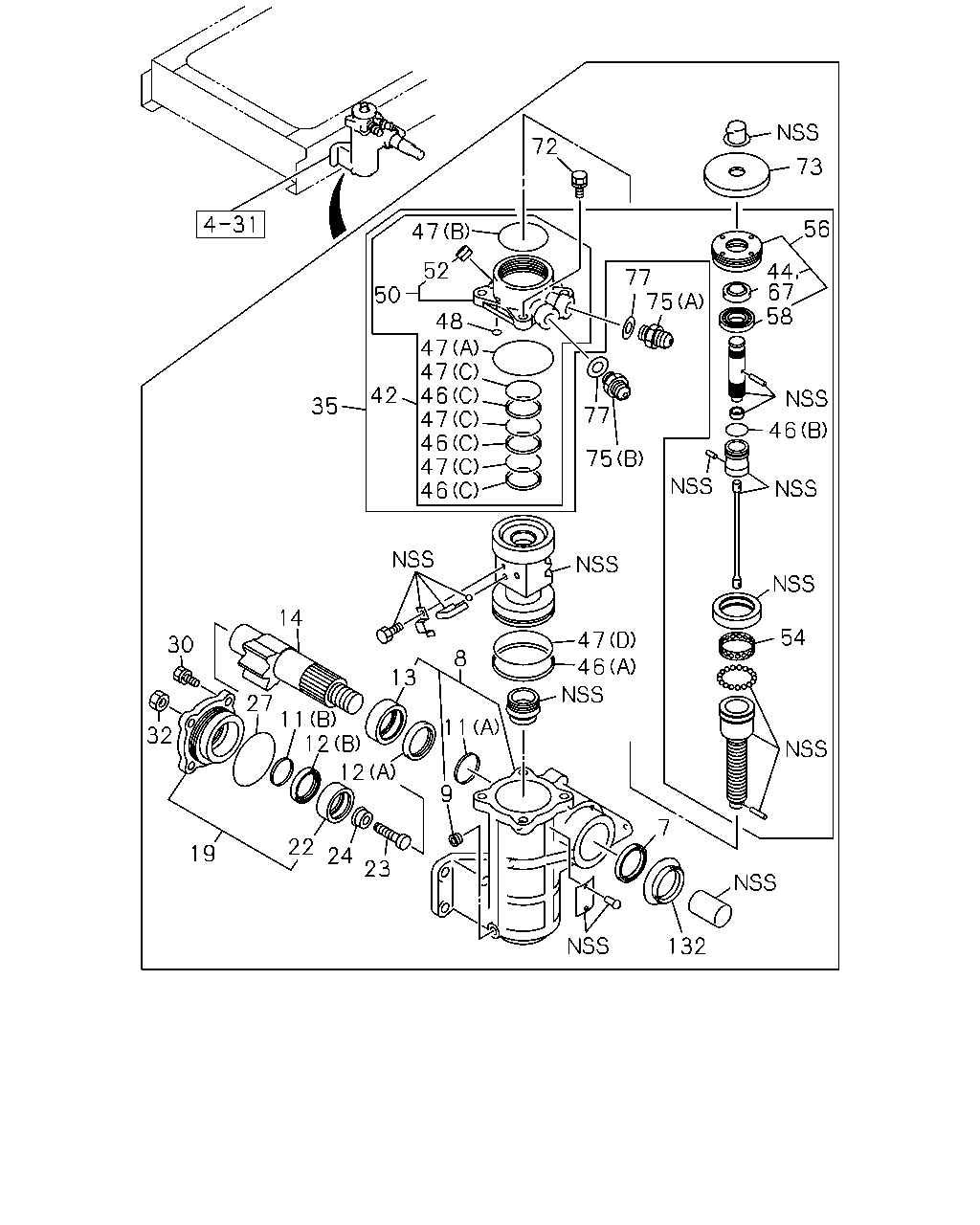

çizim 98660
72 73 56 47 52 44 67 58 77 75 50 48 47 47 46 47 46 47 46 42 35 77 46 75 14 54 47 46 30 8 13 27 11 12 11 32 12 9 7 22 19 24 23 132
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44240-108-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44240-112-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-887-2 		1-44240-130-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-040-0 01 1 -0212
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-075-0 01 1 0301-
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-071-0 01 1 -0212
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44249-076-0 01 1 0301-
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44260-008-0 01 1 -0212
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44260-019-0 01 1 0301-
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-887-2 		1-44260-027-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-842-2 		1-44519-164-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-016-0 01 1 -0212
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-035-0 01 1 0301-
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44150-056-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44150-070-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44560-071-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44560-082-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-100-0 03 1 -0212
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-255-0 03 1 0301-
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-843-5 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-099-0 01 1 -0212
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-843-5 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-843-5 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-165-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-843-5 		1-44519-260-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-262-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44560-070-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44560-083-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-842-2, B = 1-44000-843-5, C = 1-44000-887-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-842-2, C = 1-44000-887-2 		1-44159-119-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-843-5 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
