◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#5750) — 133 parça

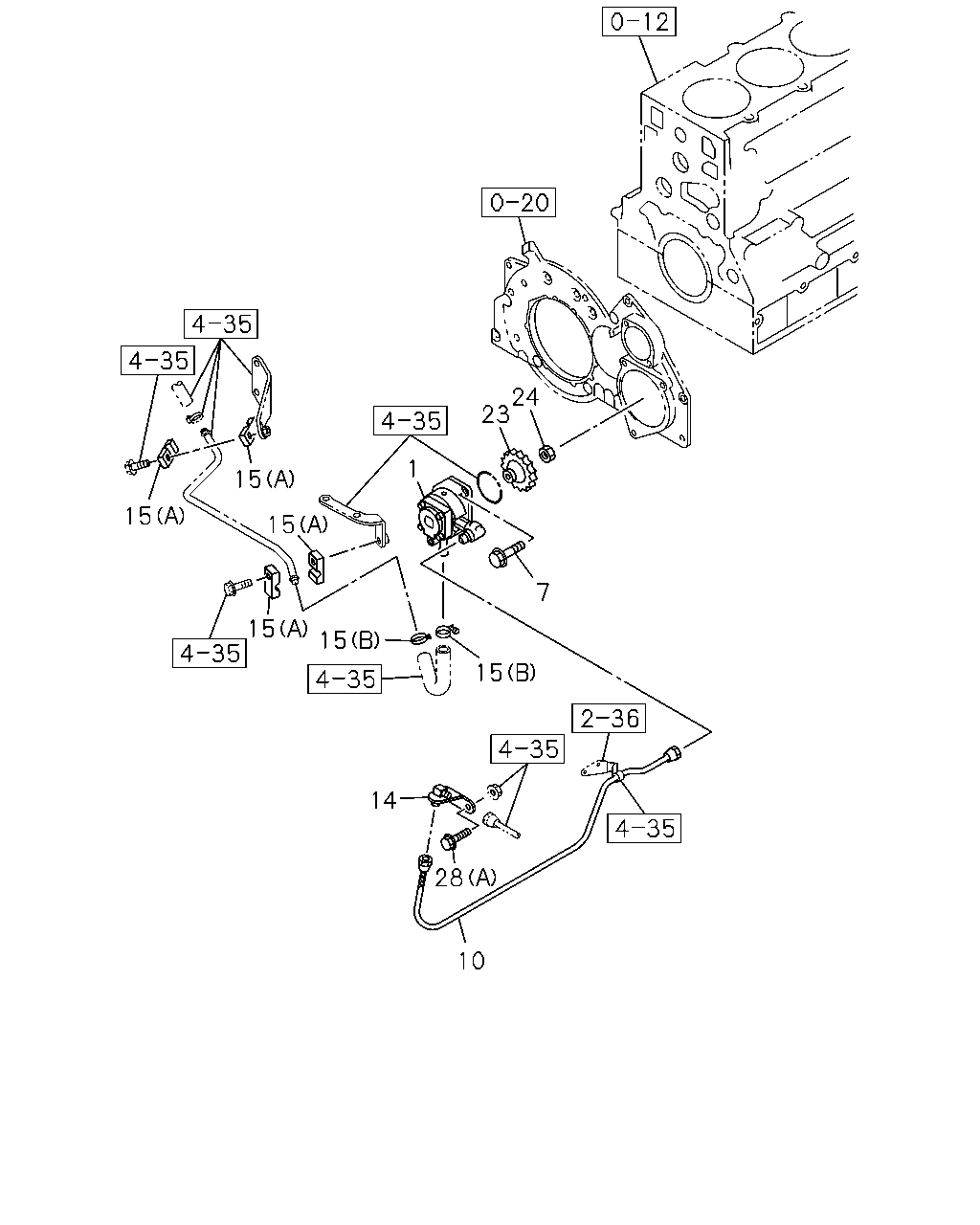

çizim 26220
24 23 1 15 15 15 7 15 15 15 14 28 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 9811-9906 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-538-1 01 1 9907-0610 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-589-1 01 1 0611- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-0 01 1 9811-9906 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-539-0 01 1 9907-0610 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-0 01 1 0611- ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 0611- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 9811-9906 ●
7 BOLT; OIL PUMP,P/S
M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9811-9906 ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 01 1 9811-9906 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-293-0 01 1 0306-0610 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-129-0 01 1 0611- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=820 		1-09364-931-0 01 1 9811-9906 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 9907-0305 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 0306-0610 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-385-0 01 1 0611- ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09364-983-1 01 1 9811-9906 ●
14 UNION; FLEX HOSE,P/S 1-47470-394-3 01 1 0611- ● ●
14 UNION; FLEX HOSE,P/S 1-47470-394-3 01 1 9811-9906 ● ●
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 04 1 0611- ● ●
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 02 1 9811-9906 ● ●
15 CLIP; OIL PIPE SUCTION
(C) 		1-09701-210-0 02 1 9907-0610 ● ●
15 CLIP; OIL PIPE SUCTION
(A) 		1-09701-284-0 04 1 0611- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9811-9906 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 9907-0610 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0611- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9811-9906 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 9907-0602 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603-0610 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0611- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9811-9906 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9811-9906 ● ●

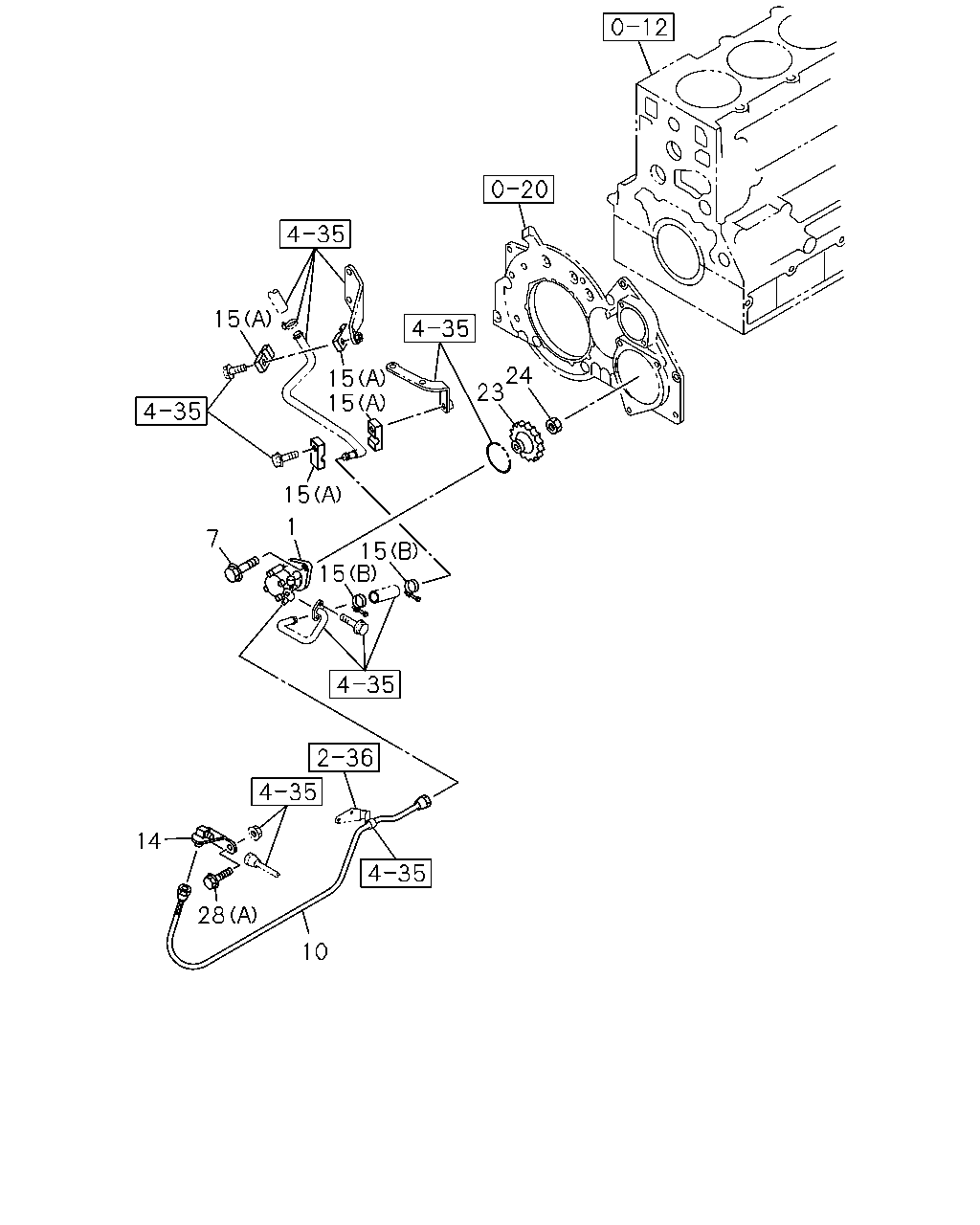

çizim 26456
15 24 23 15 15 15 1 7 15 15 14 28 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 9811-9906 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-538-1 01 1 9907-0610 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-589-1 01 1 0611- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-0 01 1 9811-9906 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-539-0 01 1 9907-0610 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-0 01 1 0611- ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 0611- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 9811-9906 ●
7 BOLT; OIL PUMP,P/S
M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9811-9906 ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 01 1 9811-9906 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-293-0 01 1 0306-0610 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-129-0 01 1 0611- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=820 		1-09364-931-0 01 1 9811-9906 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 9907-0305 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 0306-0610 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-385-0 01 1 0611- ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09364-983-1 01 1 9811-9906 ●
14 UNION; FLEX HOSE,P/S 1-47470-394-3 01 1 0611- ● ●
14 UNION; FLEX HOSE,P/S 1-47470-394-3 01 1 9811-9906 ● ●
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 04 1 0611- ● ●
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 02 1 9811-9906 ● ●
15 CLIP; OIL PIPE SUCTION
(C) 		1-09701-210-0 02 1 9907-0610 ● ●
15 CLIP; OIL PIPE SUCTION
(A) 		1-09701-284-0 04 1 0611- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9811-9906 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 9907-0610 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0611- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9811-9906 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 9907-0602 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603-0610 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0611- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9811-9906 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9811-9906 ● ●

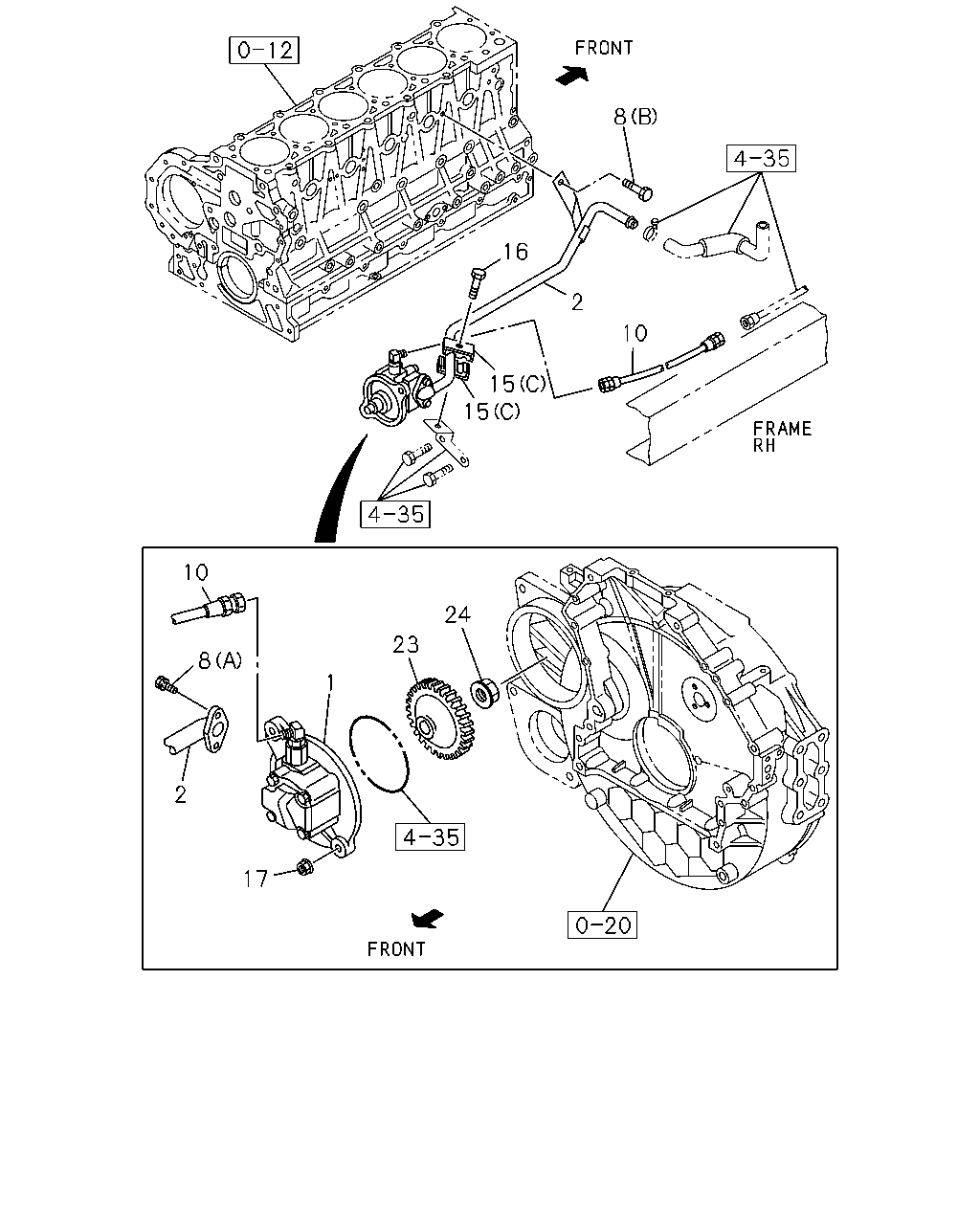

çizim 98661
8 16 2 10 15 15 10 24 23 8 1 2 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 9811-9906 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-538-1 01 1 9907-0610 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-589-1 01 1 0611- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-0 01 1 9811-9906 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-539-0 01 1 9907-0610 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-0 01 1 0611- ●
2 PIPE ASM; OIL,SUCTION 8-97600-395-2 01 1 9907-0610 ●
2 PIPE ASM; OIL,SUCTION 8-97600-394-2 01 1 9907-0610 ●
8 BOLT; OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9907-0512 ● ●
8 BOLT; OIL PIPE
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0610 ● ●
8 BOLT; OIL PIPE
(A) M8X30 FLANGE 		0-28080-830-0 02 1 9907-0512 ● ●
8 BOLT; OIL PIPE
(A) M8X30 FLANGE 		0-28050-830-0 02 1 0601-0610 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-293-0 01 1 0306-0610 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-129-0 01 1 0611- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=820 		1-09364-931-0 01 1 9811-9906 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 9907-0305 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 0306-0610 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-385-0 01 1 0611- ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09364-983-1 01 1 9811-9906 ●
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 04 1 0611- ● ●
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 02 1 9811-9906 ● ●
15 CLIP; OIL PIPE SUCTION
(C) 		1-09701-210-0 02 1 9907-0610 ● ●
15 CLIP; OIL PIPE SUCTION
(A) 		1-09701-284-0 04 1 0611- ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X45 FLANGE 		0-28080-645-0 01 1 9907-0512 ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X45 FLANGE 		0-28050-645-0 01 1 0601-0610 ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9907-0602 ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 0603-0610 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9811-9906 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 9907-0610 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0611- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9811-9906 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 9907-0602 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603-0610 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0611- ● ●

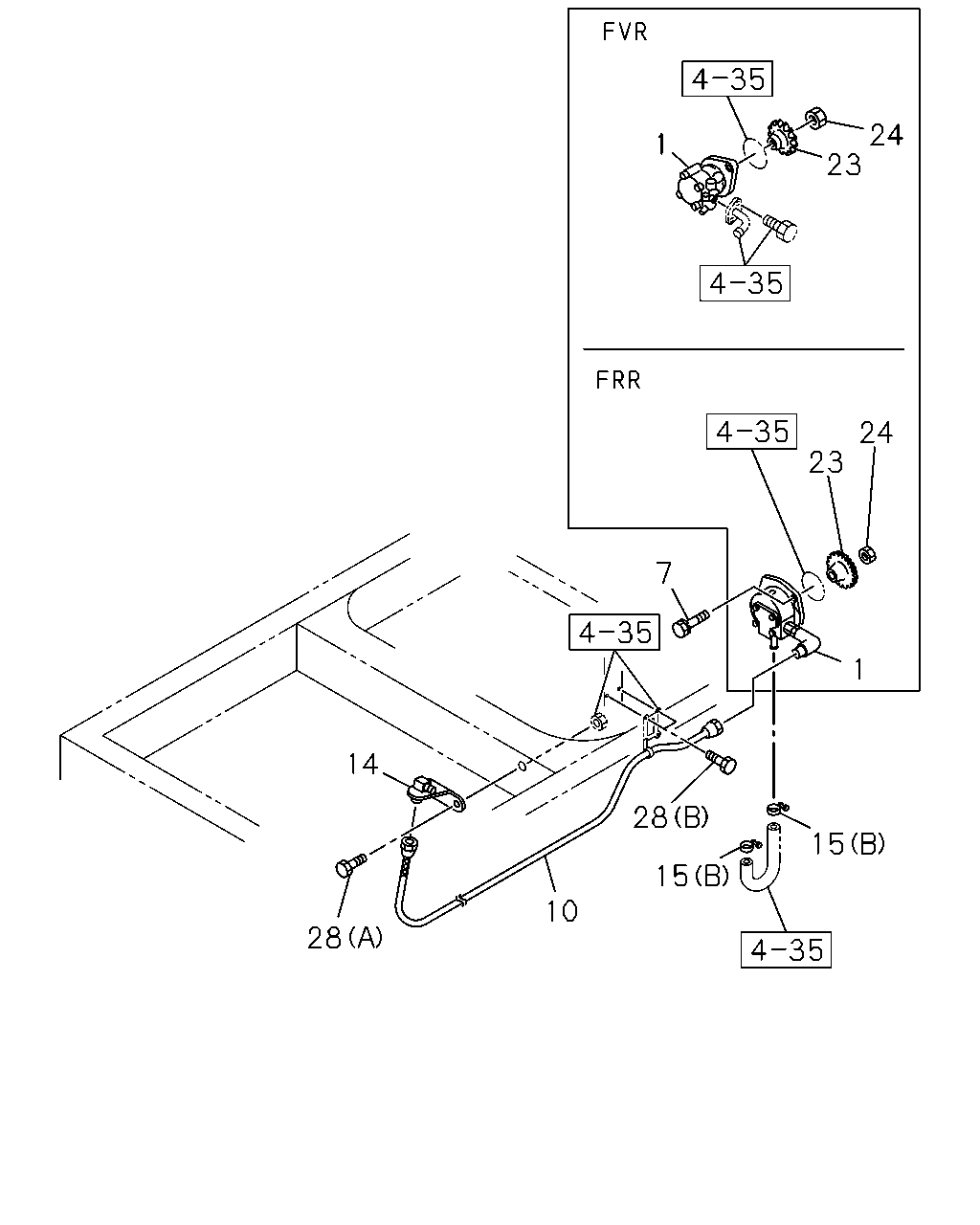

çizim 98984
24 23 1 24 23 7 1 14 28 15 15 10 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 9811-9906 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-538-1 01 1 9907-0610 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-589-1 01 1 0611- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-0 01 1 9811-9906 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-539-0 01 1 9907-0610 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-0 01 1 0611- ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 0611- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 9811-9906 ●
7 BOLT; OIL PUMP,P/S
M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9811-9906 ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 01 1 9811-9906 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-293-0 01 1 0306-0610 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-129-0 01 1 0611- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=820 		1-09364-931-0 01 1 9811-9906 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 9907-0305 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-073-0 01 1 0306-0610 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-385-0 01 1 0611- ●
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09364-983-1 01 1 9811-9906 ●
14 UNION; FLEX HOSE,P/S 1-47470-394-3 01 1 0611- ● ●
14 UNION; FLEX HOSE,P/S 1-47470-394-3 01 1 9811-9906 ● ●
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 04 1 0611- ● ●
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 02 1 9811-9906 ● ●
15 CLIP; OIL PIPE SUCTION
(C) 		1-09701-210-0 02 1 9907-0610 ● ●
15 CLIP; OIL PIPE SUCTION
(A) 		1-09701-284-0 04 1 0611- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9811-9906 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 9907-0610 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0611- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9811-9906 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 9907-0602 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603-0610 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0611- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9811-9906 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9811-9906 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
