Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-01 - EMBLEM AND NAME PLATE
▶

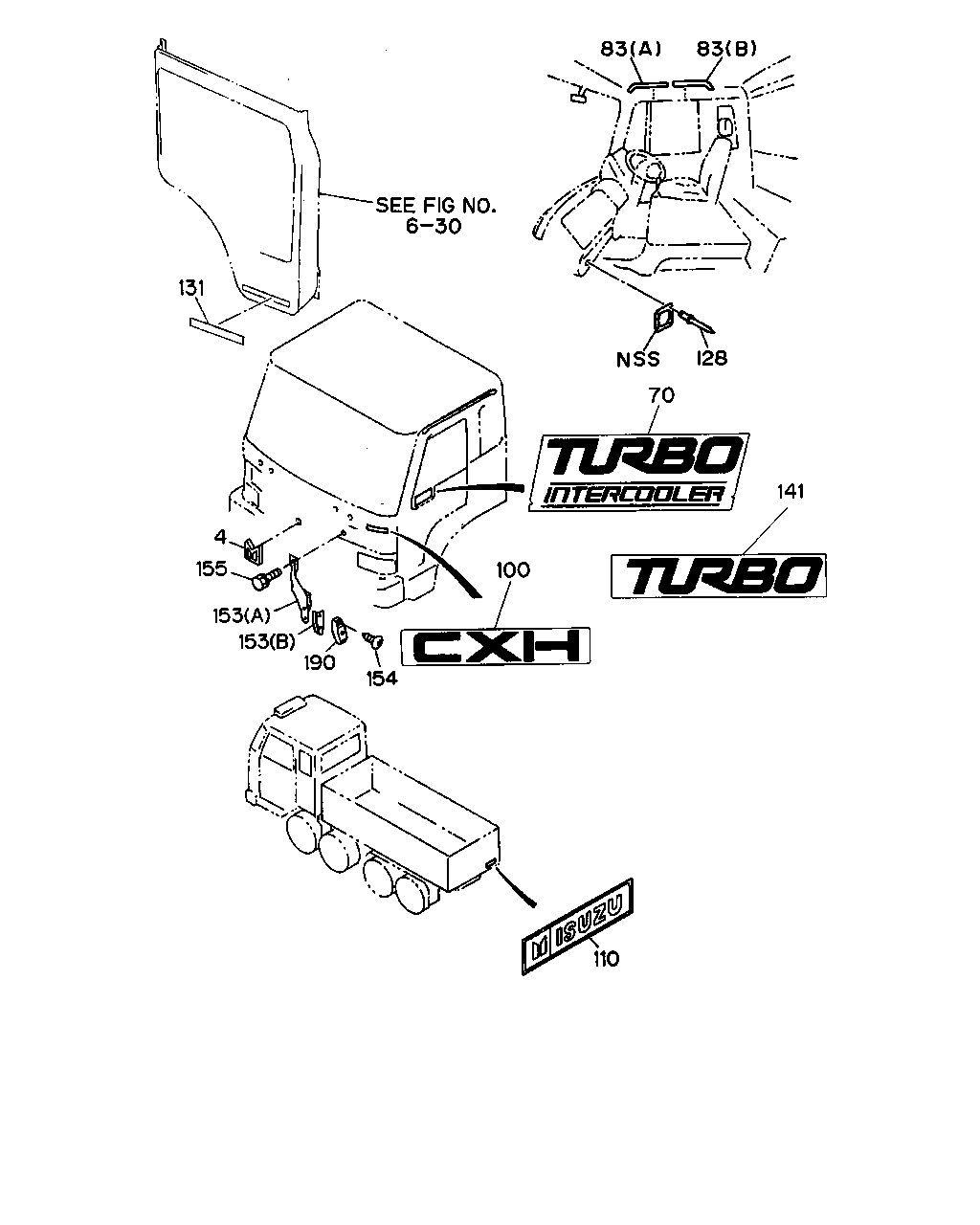

7-01 — EMBLEM AND NAME PLATE
(#575) — 23 parça
131
4
155
153
153
190
154
110
100
141
70
128
83
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
EMBLEM; RAD GRILLE
1-76210-268-1
01
1
8712-9001
4
EMBLEM; RAD GRILLE
1-76210-492-0
01
1
9002-9004
4
EMBLEM; RAD GRILLE
1-76210-596-0
01
1
9005-
70
DECAL; INTERCOOLER
L TYPE ENG<90L>
1-76230-198-0
01
1
8712-
70
DECAL; INTERCOOLER
L TYPE ENG<90L>
1-76230-197-0
01
1
8712-
83
PROTECTOR; SUB SEAL,DOOR
(A) CLEAR
1-65500-225-0
01
1
9112-
83
PROTECTOR; SUB SEAL,DOOR
(B) CLEAR
1-65500-227-0
01
1
9112-
83
PROTECTOR; SUB SEAL,DOOR
(A) CLEAR
1-65500-224-0
01
1
9112-
83
PROTECTOR; SUB SEAL,DOOR
(B) CLEAR
1-65500-226-0
01
1
9112-
100
EMBLEM; PET NAME
1-76210-348-1
01
1
8712-
110
EMBLEM; "ISUZU",RR BODY
1-76210-310-0
01
1
8712-9306
110
EMBLEM; "ISUZU",RR BODY
1-76210-624-0
01
1
9307-
128
RIVET; POP,NAME PLATE
5-09734-001-0
04
1
8712-
131
DECAL; DOOR INNER
1-79998-254-0
02
1
9002-9111
141
EMBLEM; "TURBO"
6RB1 TURBO ENG(33L)
1-76210-355-0
01
1
8712-9001
141
EMBLEM; "TURBO"
6RB1 TURBO ENG(33L)
1-76210-354-0
01
1
8712-9001
153
PLATE; GUIDE
(A)
1-76211-035-1
02
1
8712-
153
PLATE; GUIDE
(B)
1-76211-036-0
02
1
8712-
154
SCREW
M6X25 W/LK WASHER
1-09164-016-0
04
1
8712-
155
BOLT; GUIDE PLATE
M8X16
1-09980-255-0
04
1
8712-8812
155
BOLT; GUIDE PLATE
M8X16 W/LK&PL WASHER
1-09980-498-0
04
1
8901-9302
155
BOLT; GUIDE PLATE
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
9303-
190
PROTECTOR; HARNESS
1-82699-194-0
02
1
8712-
