Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#5749) — 591 parça

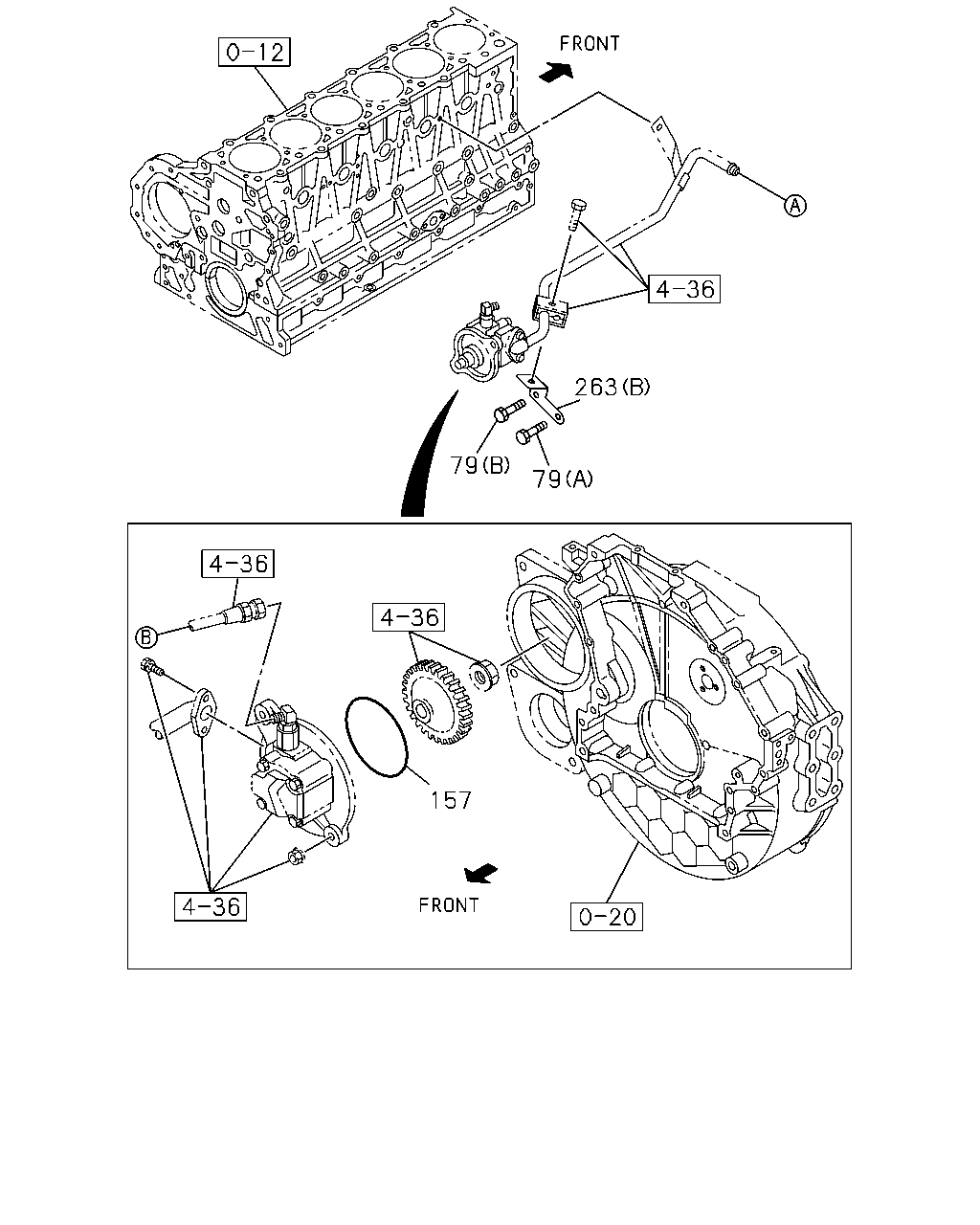

263 79 79 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9907-0512	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	04	1	0611-	●	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9906	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	9907-0512	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-0610	●	●
79	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28881-420-0	01	1	9907-0512	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-0610	●	●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	02	1	9907-0512		●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9811-9906	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	9907-0610	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0611-	●	●
263	BRACKET; P/S PIPE (C)	8-97614-668-1	01	1	0611-	●	●
263	BRACKET; P/S PIPE (D)	8-98049-252-0	01	1	0611-		●
263	BRACKET; P/S PIPE (A)	8-94393-981-0	01	1	9811-9901	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	9902-9906	●	●
263	BRACKET; P/S PIPE (B)	8-97600-076-0	01	1	9907-0610	●	●
263	BRACKET; P/S PIPE (D)	8-98049-251-0	01	1	0611-	●

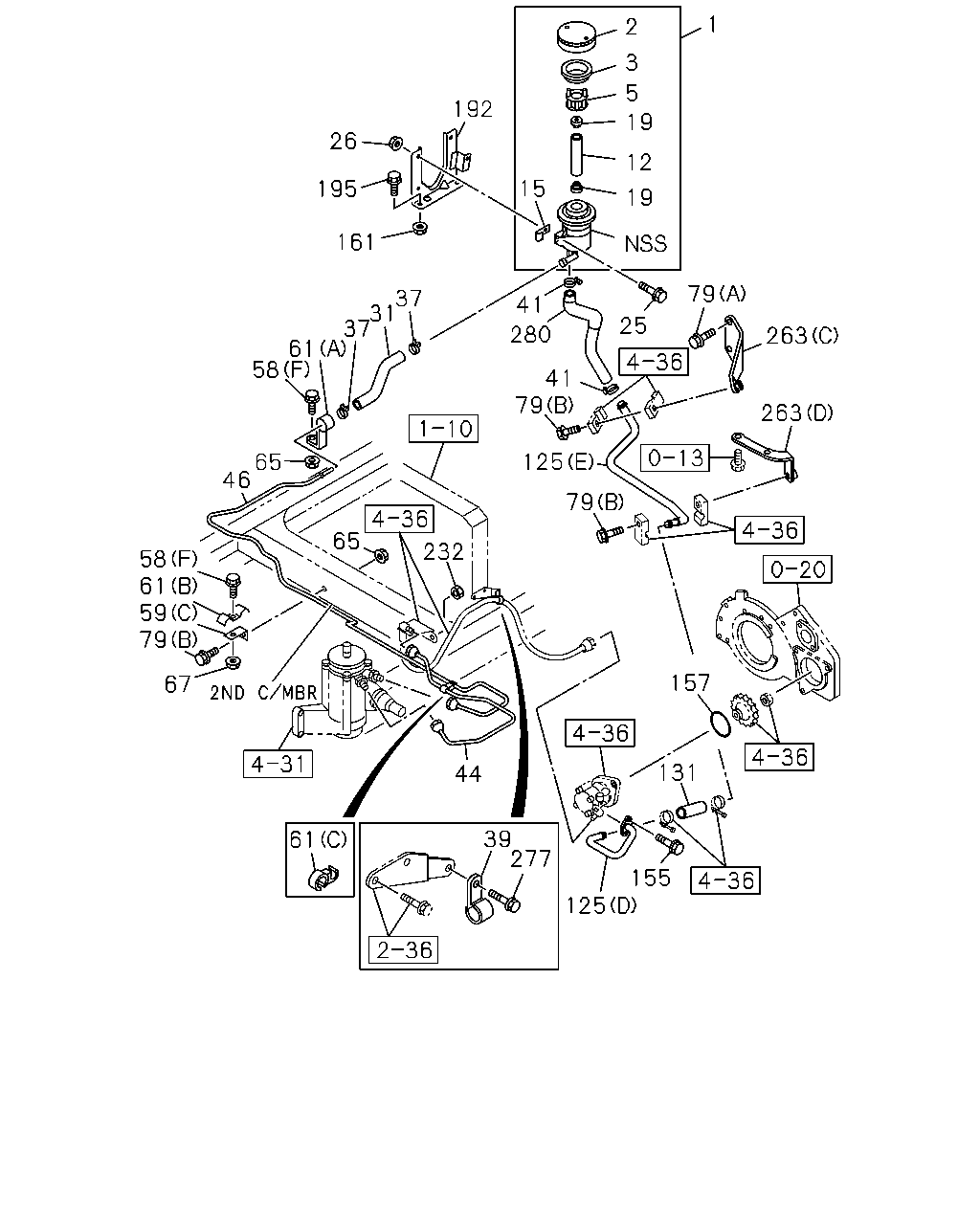

1 2 3 5 192 19 26 12 15 19 195 157 25 263 31 37 58 41 37 41 65 61 46 280 125 130 155 161 79 131 232 58 65 61 59 67 288 61 39 79 277 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S TAI	8-97530-394-0	01	1	9811-0610	●	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0611-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9811-	●	●
3	GASKET; OIL TANK,P/S TAI	1-21249-003-1	01	1	9811-	●	●
5	STRAINER; OIL TANK,P/S TAI	1-21235-007-1	01	1	9811-	●	●
12	FILTER; MICROBON,OIL TANK,P/S TAI	1-21235-011-0	01	1	9811-	●	●
15	PLATE; FILTER,OIL TANK TAI	1-21249-007-1	02	1	9811-0610	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0611-	●	●
19	SEAT; OIL TANK TAI	1-21249-004-0	02	1	9811-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0512	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
31	HOSE; P/S OIL TANK,INL TAI	1-21113-590-0	01	1	0611-		●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-415-1	01	1	9811-9906	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-598-1	01	1	9907-0610	●	●
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	0611-	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-416-0	01	1	9811-9906		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9811-	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9811-9906	●	●
39	CLIP; FLEX HOSE ID=18 H=23 L=28	1-09700-860-0	02	1	9907-0610	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0611-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9811-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-341-0	01	1	0611-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-359-0	01	1	0611-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE TAI	8-97530-440-0	01	1	9811-9906	●
44	PIPE; OIL,P/S UNIT TO NIPPLE TAI	8-97530-439-0	01	1	9811-9906		●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-441-0	01	1	9811-9906	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-046-0	01	1	9907-9907	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-373-0	01	1	9908-0610	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-205-0	01	1	0611-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-442-0	01	1	9811-9906		●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-045-0	01	1	9907-9907		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-552-0	01	1	9908-0610		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21117-688-0	01	1	0611-		●
58	BOLT; CLIP (F) M8X25 FLANGE	0-28650-825-0	03	1	0611-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28680-825-0	03	1	9811-9906	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	9907-0302	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	0303-0512	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-0610	●	●
58	BOLT; CLIP (H) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	9907-0302		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	9811-9906		●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
58	BOLT; CLIP (G) M8X25 FLANGE	0-28650-825-0	02	1	0611-	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	9811-9906	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	9907-0610	●	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	0611-	●	●
59	BRACKET; CLIP,OIL PIPE (B) L=68	1-47475-525-0	01	1	9907-0610	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0611-	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	9811-9906	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9907-0610	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0611-	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9811-9906	●	●
61	CLIP; OIL PIPE (C) ID=12 & 15	1-09709-281-1	01	1	9811-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9811-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9811-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9907-0512	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	04	1	0611-	●	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9906	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	9907-0512	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-0610	●	●
79	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28881-420-0	01	1	9907-0512	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-0610	●	●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	02	1	9907-0512		●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610		●
125	CONNECTOR; P/S PUMP (C)	8-97613-776-1	01	1	0611-	●
125	CONNECTOR; P/S PUMP (D)	8-98045-797-0	01	1	0611-		●
125	CONNECTOR; P/S PUMP (E)	8-98045-798-0	01	1	0611-		●
125	CONNECTOR; P/S PUMP (A)	8-94390-310-0	01	1	9811-9901	●
125	CONNECTOR; P/S PUMP (A)	8-97600-113-0	01	1	9902-9906	●
125	CONNECTOR; P/S PUMP (B)	8-94390-584-1	01	1	9811-9906		●
130	ADAPTER; P/S PUMP	8-94390-583-0	01	1	9811-9906		●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	0611-0702	●
131	HOSE; RUBBER,P/S	8-98067-907-0	01	1	0703-	●
131	HOSE; RUBBER,P/S L=100 SERVICED BY L=10000	9-09912-813-0	01	1	0611-		●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9811-9906	●	●
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0611-	●	●
155	BOLT; CONNECTOR M8X16 FLANGE	0-28080-816-0	02	1	9811-9906		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9811-9906	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	9907-0610	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0611-	●	●
161	NUT; P/S PIPE M10 FLANGE	0-91180-110-0	01	1	0611-	●	●
161	NUT; P/S PIPE M10 FLANGE	0-91150-110-0	01	1	9811-9906		●
192	BRACKET; P/S OIL TANK TAI	8-97530-361-0	01	1	9811-0610	●
192	BRACKET; P/S OIL TANK TAI	1-21119-129-0	01	1	0611-	●
192	BRACKET; P/S OIL TANK TAI	8-97530-362-0	01	1	9811-9906		●
192	BRACKET; P/S OIL TANK TAI	8-97531-013-0	01	1	9907-0610		●
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	0611-		●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0512	●
195	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-0610	●
195	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	02	1	0611-	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9811-0512		●
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
263	BRACKET; P/S PIPE (C)	8-97614-668-1	01	1	0611-	●	●
263	BRACKET; P/S PIPE (D)	8-98049-252-0	01	1	0611-		●
263	BRACKET; P/S PIPE (A)	8-94393-981-0	01	1	9811-9901	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	9902-9906	●	●
263	BRACKET; P/S PIPE (B)	8-97600-076-0	01	1	9907-0610	●	●
263	BRACKET; P/S PIPE (D)	8-98049-251-0	01	1	0611-	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0611-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-907-0	01	1	0611-		●
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9811-9906	●
280	HOSE; P/S OIL PUMP,INL	1-21115-676-0	01	1	9907-0610	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-905-0	01	1	0611-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-491-0	01	1	9811-9906		●
288	BRACKET; CLIP,P/S	1-82659-149-0	01	1	9811-9906	●	●

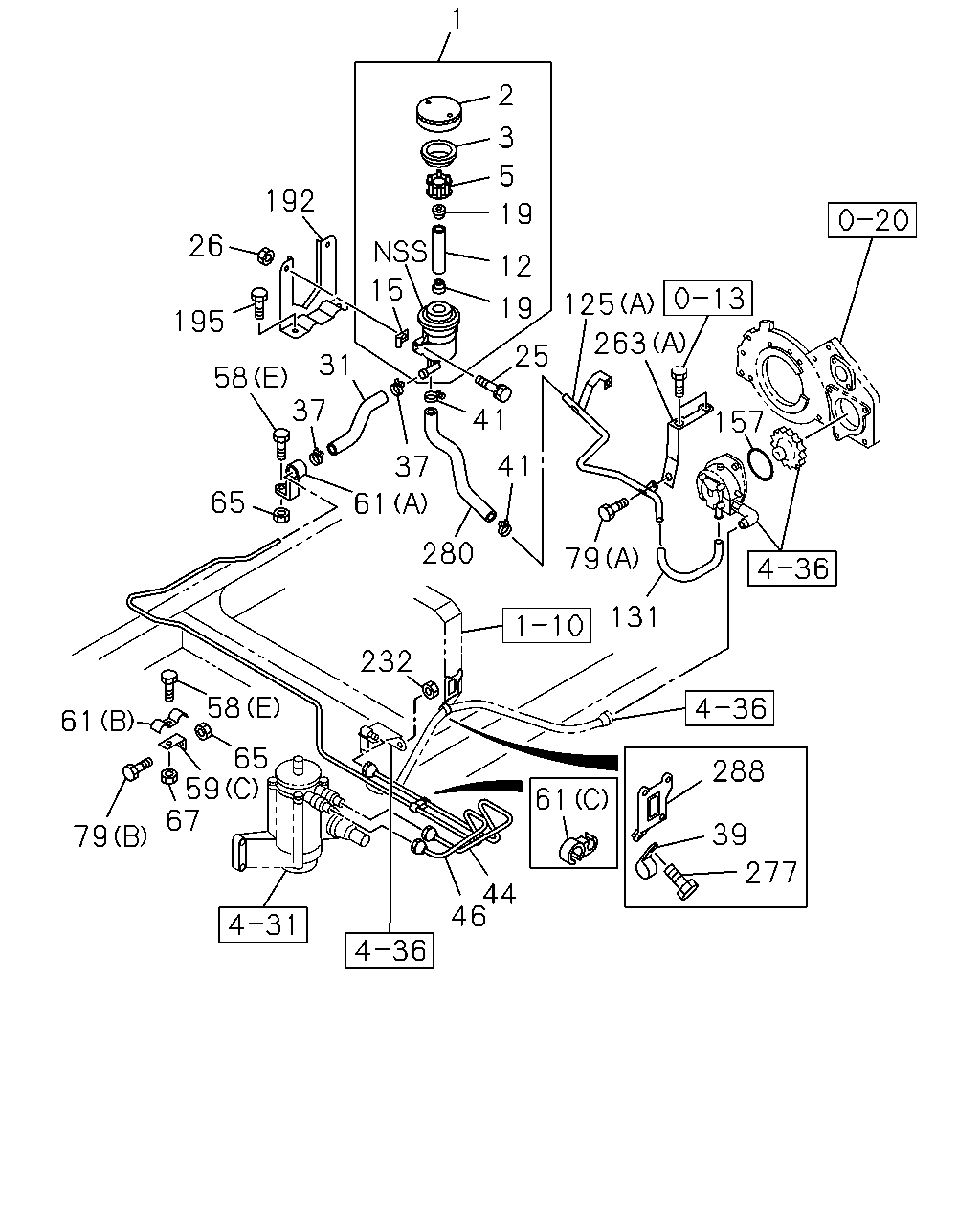

2 1 3 5 19 192 26 12 15 19 195 161 37 31 37 79 155 41 25 61 58 280 263 41 79 65 263 125 79 65 232 58 61 59 157 79 67 44 46 61 39 277 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S TAI	8-97530-394-0	01	1	9811-0610	●	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0611-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9811-	●	●
3	GASKET; OIL TANK,P/S TAI	1-21249-003-1	01	1	9811-	●	●
5	STRAINER; OIL TANK,P/S TAI	1-21235-007-1	01	1	9811-	●	●
12	FILTER; MICROBON,OIL TANK,P/S TAI	1-21235-011-0	01	1	9811-	●	●
15	PLATE; FILTER,OIL TANK TAI	1-21249-007-1	02	1	9811-0610	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0611-	●	●
19	SEAT; OIL TANK TAI	1-21249-004-0	02	1	9811-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0512	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
31	HOSE; P/S OIL TANK,INL TAI	1-21113-590-0	01	1	0611-		●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-415-1	01	1	9811-9906	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-598-1	01	1	9907-0610	●	●
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	0611-	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-416-0	01	1	9811-9906		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9811-	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9811-9906	●	●
39	CLIP; FLEX HOSE ID=18 H=23 L=28	1-09700-860-0	02	1	9907-0610	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0611-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9811-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-341-0	01	1	0611-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-359-0	01	1	0611-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE TAI	8-97530-440-0	01	1	9811-9906	●
44	PIPE; OIL,P/S UNIT TO NIPPLE TAI	8-97530-439-0	01	1	9811-9906		●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-441-0	01	1	9811-9906	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-046-0	01	1	9907-9907	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-373-0	01	1	9908-0610	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-205-0	01	1	0611-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-442-0	01	1	9811-9906		●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-045-0	01	1	9907-9907		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-552-0	01	1	9908-0610		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21117-688-0	01	1	0611-		●
58	BOLT; CLIP (F) M8X25 FLANGE	0-28650-825-0	03	1	0611-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28680-825-0	03	1	9811-9906	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	9907-0302	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	0303-0512	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-0610	●	●
58	BOLT; CLIP (H) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	9907-0302		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	9811-9906		●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
58	BOLT; CLIP (G) M8X25 FLANGE	0-28650-825-0	02	1	0611-	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	9811-9906	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	9907-0610	●	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	0611-	●	●
59	BRACKET; CLIP,OIL PIPE (B) L=68	1-47475-525-0	01	1	9907-0610	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0611-	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	9811-9906	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9907-0610	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0611-	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9811-9906	●	●
61	CLIP; OIL PIPE (C) ID=12 & 15	1-09709-281-1	01	1	9811-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9811-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9811-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9907-0512	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	04	1	0611-	●	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9906	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	9907-0512	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-0610	●	●
79	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28881-420-0	01	1	9907-0512	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-0610	●	●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	02	1	9907-0512		●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610		●
125	CONNECTOR; P/S PUMP (C)	8-97613-776-1	01	1	0611-	●
125	CONNECTOR; P/S PUMP (D)	8-98045-797-0	01	1	0611-		●
125	CONNECTOR; P/S PUMP (E)	8-98045-798-0	01	1	0611-		●
125	CONNECTOR; P/S PUMP (A)	8-94390-310-0	01	1	9811-9901	●
125	CONNECTOR; P/S PUMP (A)	8-97600-113-0	01	1	9902-9906	●
125	CONNECTOR; P/S PUMP (B)	8-94390-584-1	01	1	9811-9906		●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	0611-0702	●
131	HOSE; RUBBER,P/S	8-98067-907-0	01	1	0703-	●
131	HOSE; RUBBER,P/S L=100 SERVICED BY L=10000	9-09912-813-0	01	1	0611-		●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9811-9906	●	●
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0611-	●	●
155	BOLT; CONNECTOR M8X16 FLANGE	0-28080-816-0	02	1	9811-9906		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9811-9906	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	9907-0610	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0611-	●	●
161	NUT; P/S PIPE M10 FLANGE	0-91180-110-0	01	1	0611-	●	●
161	NUT; P/S PIPE M10 FLANGE	0-91150-110-0	01	1	9811-9906		●
192	BRACKET; P/S OIL TANK TAI	8-97530-361-0	01	1	9811-0610	●
192	BRACKET; P/S OIL TANK TAI	1-21119-129-0	01	1	0611-	●
192	BRACKET; P/S OIL TANK TAI	8-97530-362-0	01	1	9811-9906		●
192	BRACKET; P/S OIL TANK TAI	8-97531-013-0	01	1	9907-0610		●
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	0611-		●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0512	●
195	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-0610	●
195	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	02	1	0611-	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9811-0512		●
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
263	BRACKET; P/S PIPE (C)	8-97614-668-1	01	1	0611-	●	●
263	BRACKET; P/S PIPE (D)	8-98049-252-0	01	1	0611-		●
263	BRACKET; P/S PIPE (A)	8-94393-981-0	01	1	9811-9901	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	9902-9906	●	●
263	BRACKET; P/S PIPE (B)	8-97600-076-0	01	1	9907-0610	●	●
263	BRACKET; P/S PIPE (D)	8-98049-251-0	01	1	0611-	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0611-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-907-0	01	1	0611-		●
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9811-9906	●
280	HOSE; P/S OIL PUMP,INL	1-21115-676-0	01	1	9907-0610	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-905-0	01	1	0611-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-491-0	01	1	9811-9906		●

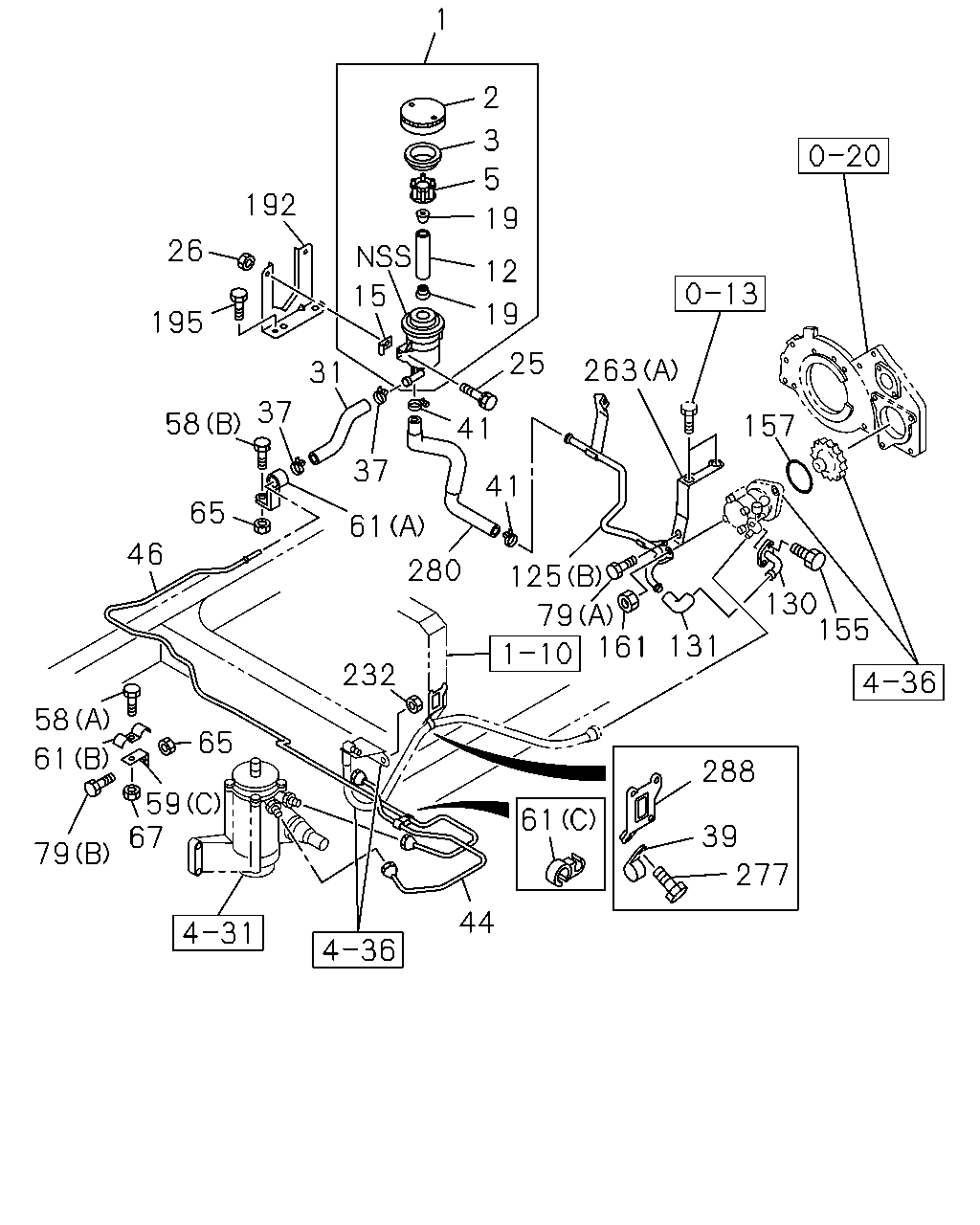

2 1 39 3 287 5 63 192 19 26 12 15 232 19 195 40 25 31 79 37 41 41 37 280 58 61 59 65 61 58 48 61 46 59 67 65 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S TAI	8-97530-394-0	01	1	9811-0610	●	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0611-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9811-	●	●
3	GASKET; OIL TANK,P/S TAI	1-21249-003-1	01	1	9811-	●	●
5	STRAINER; OIL TANK,P/S TAI	1-21235-007-1	01	1	9811-	●	●
12	FILTER; MICROBON,OIL TANK,P/S TAI	1-21235-011-0	01	1	9811-	●	●
15	PLATE; FILTER,OIL TANK TAI	1-21249-007-1	02	1	9811-0610	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0611-	●	●
19	SEAT; OIL TANK TAI	1-21249-004-0	02	1	9811-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0512	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
31	HOSE; P/S OIL TANK,INL TAI	1-21113-590-0	01	1	0611-		●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-415-1	01	1	9811-9906	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-598-1	01	1	9907-0610	●	●
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	0611-	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-416-0	01	1	9811-9906		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9811-	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9811-9906	●	●
39	CLIP; FLEX HOSE ID=18 H=23 L=28	1-09700-860-0	02	1	9907-0610	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0611-	●	●
40	CLIP; BAND L=250	1-09707-126-0	01	1	9907-0610	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9811-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-441-0	01	1	9811-9906	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-046-0	01	1	9907-9907	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-373-0	01	1	9908-0610	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-205-0	01	1	0611-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-442-0	01	1	9811-9906		●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-045-0	01	1	9907-9907		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-552-0	01	1	9908-0610		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21117-688-0	01	1	0611-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-375-0	01	1	9907-0610	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-422-0	01	1	9907-0610		●
58	BOLT; CLIP (F) M8X25 FLANGE	0-28650-825-0	03	1	0611-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28680-825-0	03	1	9811-9906	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	9907-0302	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	0303-0512	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-0610	●	●
58	BOLT; CLIP (H) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	9907-0302		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	9811-9906		●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
58	BOLT; CLIP (G) M8X25 FLANGE	0-28650-825-0	02	1	0611-	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	9811-9906	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	9907-0610	●	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	0611-	●	●
59	BRACKET; CLIP,OIL PIPE (B) L=68	1-47475-525-0	01	1	9907-0610	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0611-	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	9811-9906	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9907-0610	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0611-	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9811-9906	●	●
61	CLIP; OIL PIPE (C) ID=12 & 15	1-09709-281-1	01	1	9811-	●	●
63	BRACKET; CLIP,P/S	1-47478-449-0	01	1	9907-0008	●	●
63	BRACKET; CLIP,P/S	1-47479-049-1	01	1	0009-0610	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9811-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9811-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9907-0512	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	04	1	0611-	●	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9906	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	9907-0512	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-0610	●	●
79	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28881-420-0	01	1	9907-0512	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-0610	●	●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	02	1	9907-0512		●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610		●
192	BRACKET; P/S OIL TANK TAI	8-97530-361-0	01	1	9811-0610	●
192	BRACKET; P/S OIL TANK TAI	1-21119-129-0	01	1	0611-	●
192	BRACKET; P/S OIL TANK TAI	8-97530-362-0	01	1	9811-9906		●
192	BRACKET; P/S OIL TANK TAI	8-97531-013-0	01	1	9907-0610		●
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	0611-		●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0512	●
195	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-0610	●
195	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	02	1	0611-	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9811-0512		●
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-907-0	01	1	0611-		●
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9811-9906	●
280	HOSE; P/S OIL PUMP,INL	1-21115-676-0	01	1	9907-0610	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-905-0	01	1	0611-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-491-0	01	1	9811-9906		●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9907-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-0610	●	●

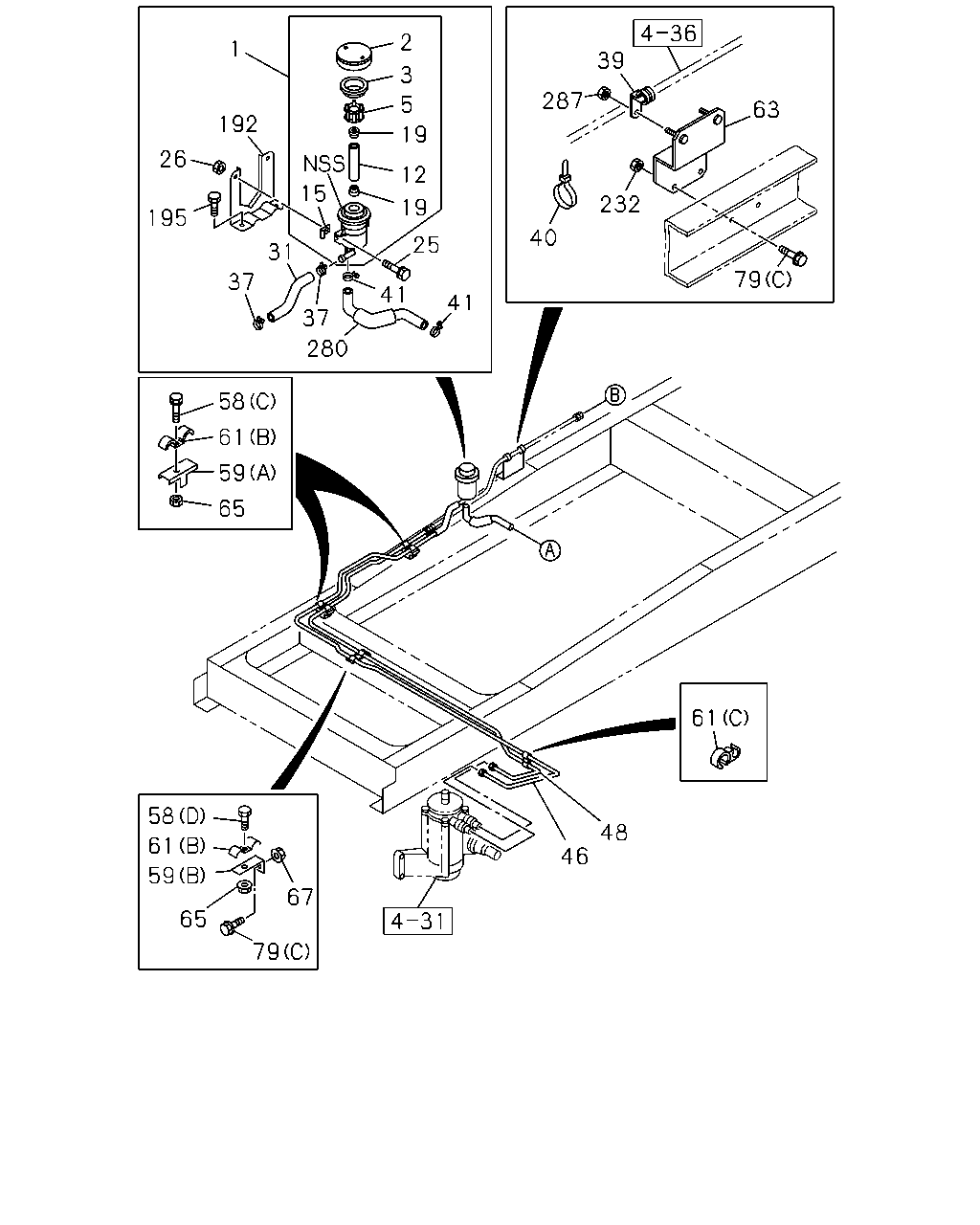

1 2 3 5 192 19 26 12 15 195 19 161 79 37 31 37 41 25 280 263 61 58 41 79 263 125 65 46 79 65 232 58 61 59 79 157 67 131 44 39 277 61 155 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S TAI	8-97530-394-0	01	1	9811-0610	●	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0611-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9811-	●	●
3	GASKET; OIL TANK,P/S TAI	1-21249-003-1	01	1	9811-	●	●
5	STRAINER; OIL TANK,P/S TAI	1-21235-007-1	01	1	9811-	●	●
12	FILTER; MICROBON,OIL TANK,P/S TAI	1-21235-011-0	01	1	9811-	●	●
15	PLATE; FILTER,OIL TANK TAI	1-21249-007-1	02	1	9811-0610	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0611-	●	●
19	SEAT; OIL TANK TAI	1-21249-004-0	02	1	9811-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0512	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
31	HOSE; P/S OIL TANK,INL TAI	1-21113-590-0	01	1	0611-		●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-415-1	01	1	9811-9906	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-598-1	01	1	9907-0610	●	●
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	0611-	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-416-0	01	1	9811-9906		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9811-	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9811-9906	●	●
39	CLIP; FLEX HOSE ID=18 H=23 L=28	1-09700-860-0	02	1	9907-0610	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0611-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9811-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-341-0	01	1	0611-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-359-0	01	1	0611-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE TAI	8-97530-440-0	01	1	9811-9906	●
44	PIPE; OIL,P/S UNIT TO NIPPLE TAI	8-97530-439-0	01	1	9811-9906		●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-441-0	01	1	9811-9906	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-046-0	01	1	9907-9907	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-373-0	01	1	9908-0610	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-205-0	01	1	0611-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-442-0	01	1	9811-9906		●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-045-0	01	1	9907-9907		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-552-0	01	1	9908-0610		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21117-688-0	01	1	0611-		●
58	BOLT; CLIP (F) M8X25 FLANGE	0-28650-825-0	03	1	0611-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28680-825-0	03	1	9811-9906	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	9907-0302	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	0303-0512	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-0610	●	●
58	BOLT; CLIP (H) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	9907-0302		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	9811-9906		●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
58	BOLT; CLIP (G) M8X25 FLANGE	0-28650-825-0	02	1	0611-	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	9811-9906	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	9907-0610	●	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	0611-	●	●
59	BRACKET; CLIP,OIL PIPE (B) L=68	1-47475-525-0	01	1	9907-0610	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0611-	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	9811-9906	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9907-0610	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0611-	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9811-9906	●	●
61	CLIP; OIL PIPE (C) ID=12 & 15	1-09709-281-1	01	1	9811-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9811-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9811-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9907-0512	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	04	1	0611-	●	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9906	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	9907-0512	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-0610	●	●
79	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28881-420-0	01	1	9907-0512	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-0610	●	●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	02	1	9907-0512		●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610		●
125	CONNECTOR; P/S PUMP (C)	8-97613-776-1	01	1	0611-	●
125	CONNECTOR; P/S PUMP (D)	8-98045-797-0	01	1	0611-		●
125	CONNECTOR; P/S PUMP (E)	8-98045-798-0	01	1	0611-		●
125	CONNECTOR; P/S PUMP (A)	8-94390-310-0	01	1	9811-9901	●
125	CONNECTOR; P/S PUMP (A)	8-97600-113-0	01	1	9902-9906	●
125	CONNECTOR; P/S PUMP (B)	8-94390-584-1	01	1	9811-9906		●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	0611-0702	●
131	HOSE; RUBBER,P/S	8-98067-907-0	01	1	0703-	●
131	HOSE; RUBBER,P/S L=100 SERVICED BY L=10000	9-09912-813-0	01	1	0611-		●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9811-9906	●	●
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0611-	●	●
155	BOLT; CONNECTOR M8X16 FLANGE	0-28080-816-0	02	1	9811-9906		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9811-9906	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	9907-0610	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0611-	●	●
161	NUT; P/S PIPE M10 FLANGE	0-91180-110-0	01	1	0611-	●	●
161	NUT; P/S PIPE M10 FLANGE	0-91150-110-0	01	1	9811-9906		●
192	BRACKET; P/S OIL TANK TAI	8-97530-361-0	01	1	9811-0610	●
192	BRACKET; P/S OIL TANK TAI	1-21119-129-0	01	1	0611-	●
192	BRACKET; P/S OIL TANK TAI	8-97530-362-0	01	1	9811-9906		●
192	BRACKET; P/S OIL TANK TAI	8-97531-013-0	01	1	9907-0610		●
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	0611-		●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0512	●
195	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-0610	●
195	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	02	1	0611-	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9811-0512		●
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
263	BRACKET; P/S PIPE (C)	8-97614-668-1	01	1	0611-	●	●
263	BRACKET; P/S PIPE (D)	8-98049-252-0	01	1	0611-		●
263	BRACKET; P/S PIPE (A)	8-94393-981-0	01	1	9811-9901	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	9902-9906	●	●
263	BRACKET; P/S PIPE (B)	8-97600-076-0	01	1	9907-0610	●	●
263	BRACKET; P/S PIPE (D)	8-98049-251-0	01	1	0611-	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0611-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-907-0	01	1	0611-		●
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9811-9906	●
280	HOSE; P/S OIL PUMP,INL	1-21115-676-0	01	1	9907-0610	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-905-0	01	1	0611-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-491-0	01	1	9811-9906		●

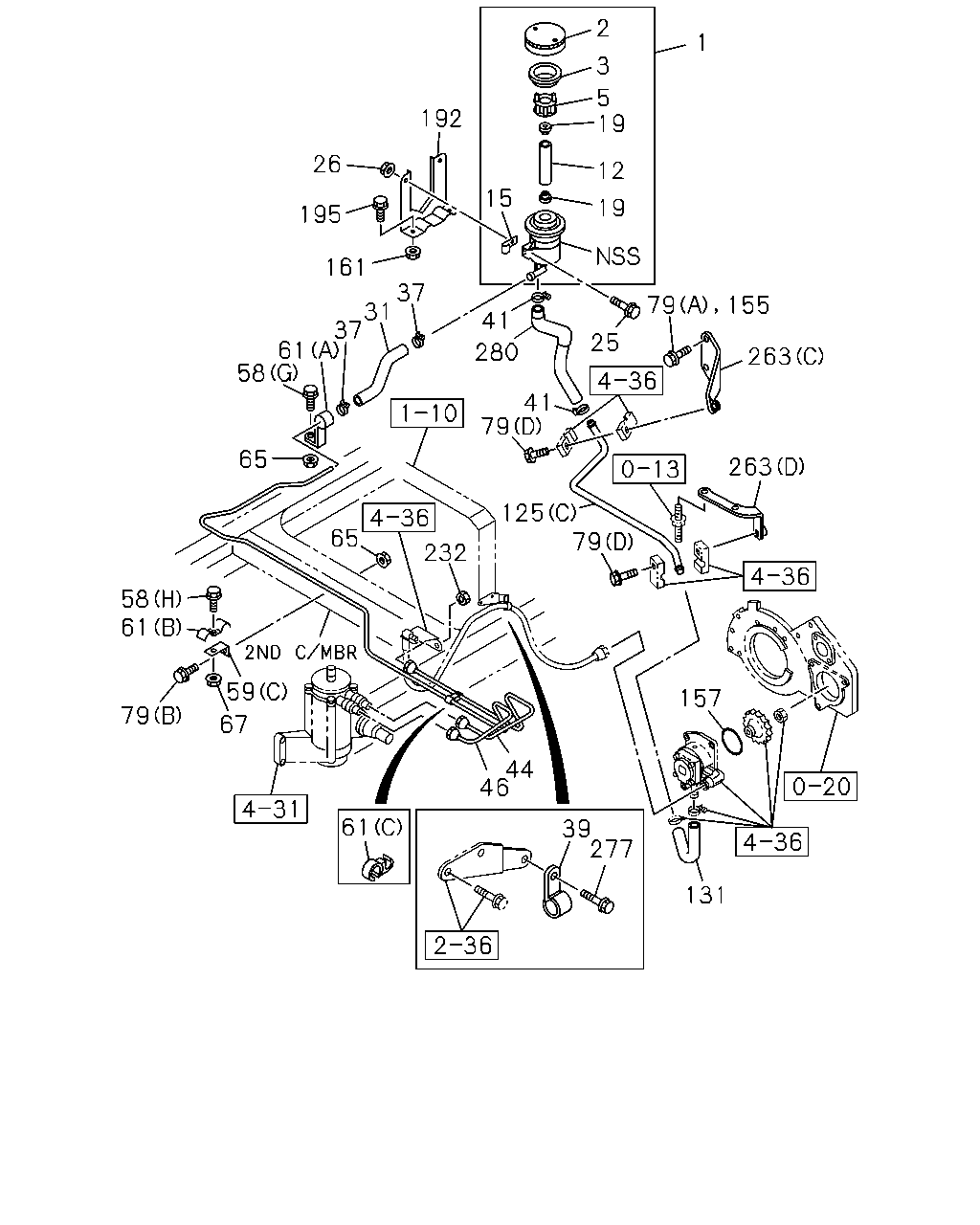

1 2 3 5 192 19 26 12 15 125 19 195 263 157 25 31 58 37 41 41 37 65 61 280 79 131 232 58 65 59 67 61 288 61 39 79 277 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S TAI	8-97530-394-0	01	1	9811-0610	●	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0611-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9811-	●	●
3	GASKET; OIL TANK,P/S TAI	1-21249-003-1	01	1	9811-	●	●
5	STRAINER; OIL TANK,P/S TAI	1-21235-007-1	01	1	9811-	●	●
12	FILTER; MICROBON,OIL TANK,P/S TAI	1-21235-011-0	01	1	9811-	●	●
15	PLATE; FILTER,OIL TANK TAI	1-21249-007-1	02	1	9811-0610	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0611-	●	●
19	SEAT; OIL TANK TAI	1-21249-004-0	02	1	9811-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0512	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
31	HOSE; P/S OIL TANK,INL TAI	1-21113-590-0	01	1	0611-		●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-415-1	01	1	9811-9906	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-598-1	01	1	9907-0610	●	●
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	0611-	●
31	HOSE; P/S OIL TANK,INL TAI	8-97530-416-0	01	1	9811-9906		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9811-	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9811-9906	●	●
39	CLIP; FLEX HOSE ID=18 H=23 L=28	1-09700-860-0	02	1	9907-0610	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0611-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9811-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-341-0	01	1	0611-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-359-0	01	1	0611-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE TAI	8-97530-440-0	01	1	9811-9906	●
44	PIPE; OIL,P/S UNIT TO NIPPLE TAI	8-97530-439-0	01	1	9811-9906		●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-441-0	01	1	9811-9906	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-046-0	01	1	9907-9907	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-373-0	01	1	9908-0610	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-205-0	01	1	0611-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97530-442-0	01	1	9811-9906		●
46	PIPE; OIL,P/S UNIT TO OIL TANK TAI	8-97531-045-0	01	1	9907-9907		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-552-0	01	1	9908-0610		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21117-688-0	01	1	0611-		●
58	BOLT; CLIP (F) M8X25 FLANGE	0-28650-825-0	03	1	0611-		●
58	BOLT; CLIP (E) M8X25 FLANGE	0-28680-825-0	03	1	9811-9906	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	9907-0302	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	0303-0512	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-0610	●	●
58	BOLT; CLIP (H) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	9907-0302		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	9811-9906		●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
58	BOLT; CLIP (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
58	BOLT; CLIP (G) M8X25 FLANGE	0-28650-825-0	02	1	0611-	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	9811-9906	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	9907-0610	●	●
59	BRACKET; CLIP,OIL PIPE (C) L=60	1-47475-455-0	01	1	0611-	●	●
59	BRACKET; CLIP,OIL PIPE (B) L=68	1-47475-525-0	01	1	9907-0610	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0611-	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	9811-9906	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	9907-0610	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0611-	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9811-9906	●	●
61	CLIP; OIL PIPE (C) ID=12 & 15	1-09709-281-1	01	1	9811-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9811-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9811-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9907-0512	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	04	1	0611-	●	●
79	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-9906	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	9907-0512	●	●
79	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-0610	●	●
79	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	9811-9906	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
79	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28881-420-0	01	1	9907-0512	●	●
79	BOLT; BRKT (B) M14X20 FLANGE	0-28851-420-0	01	1	0601-0610	●	●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	02	1	9907-0512		●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610		●
125	CONNECTOR; P/S PUMP (C)	8-97613-776-1	01	1	0611-	●
125	CONNECTOR; P/S PUMP (D)	8-98045-797-0	01	1	0611-		●
125	CONNECTOR; P/S PUMP (E)	8-98045-798-0	01	1	0611-		●
125	CONNECTOR; P/S PUMP (A)	8-94390-310-0	01	1	9811-9901	●
125	CONNECTOR; P/S PUMP (A)	8-97600-113-0	01	1	9902-9906	●
125	CONNECTOR; P/S PUMP (B)	8-94390-584-1	01	1	9811-9906		●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	0611-0702	●
131	HOSE; RUBBER,P/S	8-98067-907-0	01	1	0703-	●
131	HOSE; RUBBER,P/S L=100 SERVICED BY L=10000	9-09912-813-0	01	1	0611-		●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9811-9906	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9811-9906	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-247-0	01	1	9907-0610	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0611-	●	●
192	BRACKET; P/S OIL TANK TAI	8-97530-361-0	01	1	9811-0610	●
192	BRACKET; P/S OIL TANK TAI	1-21119-129-0	01	1	0611-	●
192	BRACKET; P/S OIL TANK TAI	8-97530-362-0	01	1	9811-9906		●
192	BRACKET; P/S OIL TANK TAI	8-97531-013-0	01	1	9907-0610		●
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	0611-		●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0512	●
195	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-0610	●
195	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	02	1	0611-	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9811-0512		●
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
263	BRACKET; P/S PIPE (C)	8-97614-668-1	01	1	0611-	●	●
263	BRACKET; P/S PIPE (D)	8-98049-252-0	01	1	0611-		●
263	BRACKET; P/S PIPE (A)	8-94393-981-0	01	1	9811-9901	●	●
263	BRACKET; P/S PIPE (A)	8-97600-117-0	01	1	9902-9906	●	●
263	BRACKET; P/S PIPE (B)	8-97600-076-0	01	1	9907-0610	●	●
263	BRACKET; P/S PIPE (D)	8-98049-251-0	01	1	0611-	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0611-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-907-0	01	1	0611-		●
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9811-9906	●
280	HOSE; P/S OIL PUMP,INL	1-21115-676-0	01	1	9907-0610	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-905-0	01	1	0611-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-491-0	01	1	9811-9906		●
288	BRACKET; CLIP,P/S	1-82659-149-0	01	1	9811-9906	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
