◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#5747) — 50 parça

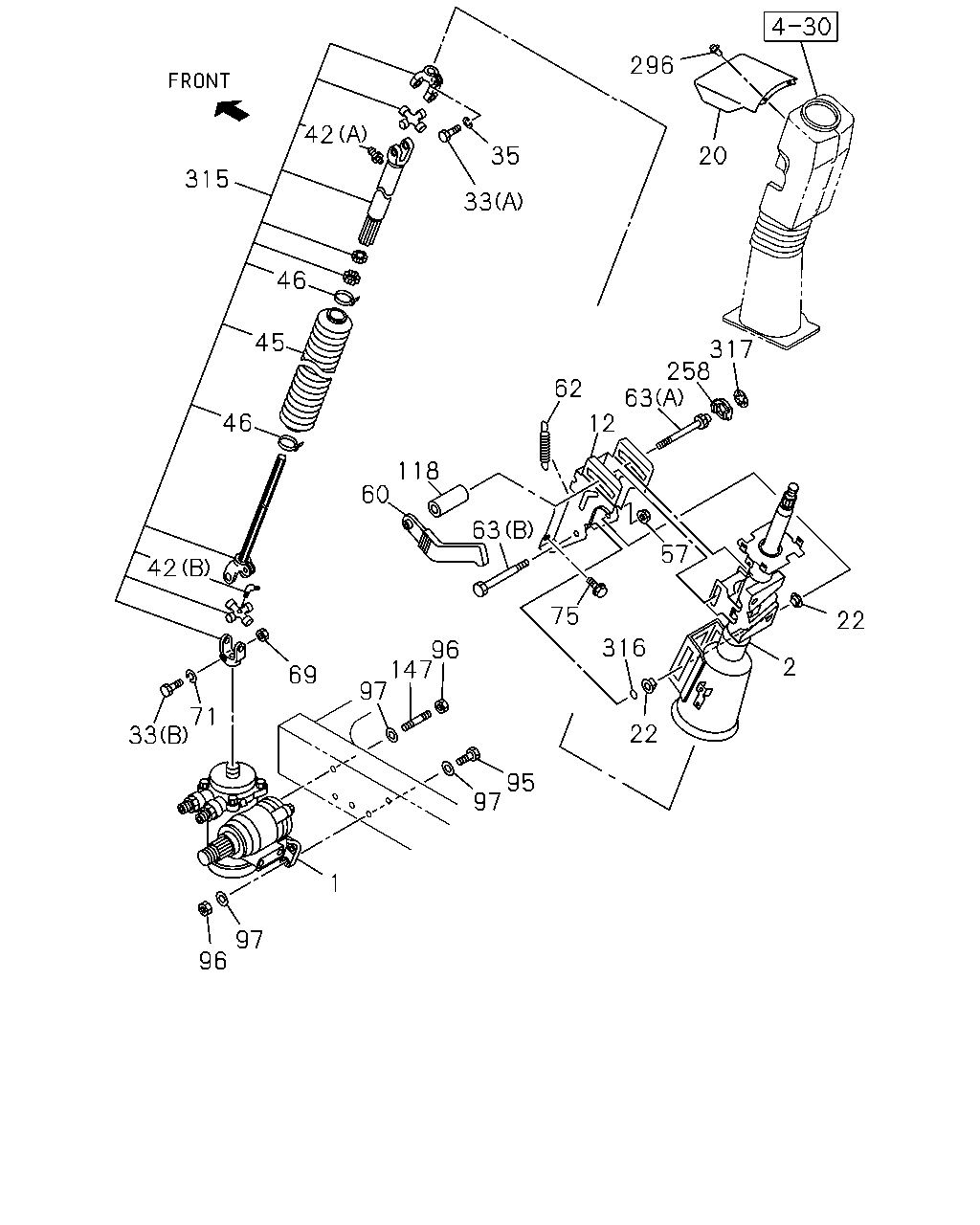

çizim 98985
296 42 35 20 315 33 46 317 258 63 12 45 62 46 118 60 63 57 42 75 22 316 96 147 97 2 69 71 33 22 95 97 1 97 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-842-2 01 1 9811-0205 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-887-2 01 1 0206- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-843-5 01 1 9811- ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 9811- ● ●
12 BRACKET; LWR,STRG COLUMN
TAI 		1-44227-143-0 01 1 9811- ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9811- ● ●
22 BUSHING; STRG COLUMN
TAI 		1-44227-150-0 02 1 9811- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9811-0707 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) TAI 		1-44139-153-0 01 1 9811- ● ●
35 WASHER; LK,STRG SHAFT
TAI 		1-44139-154-0 01 1 9811- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) 		1-44135-375-0 01 1 0507- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) 		1-44135-376-0 01 1 0507- ● ●
45 BOOT; STRG SHAFT
TAI 		1-44139-155-0 01 1 9811- ● ●
46 CLIP; BOOT
TAI 		1-44139-156-0 02 1 9811- ● ●
57 NUT; ADJ BOLT
TAI 		1-44227-151-0 01 1 9811- ● ●
60 LEVER; ADJ,STRG COLUMN
TAI 		1-44227-144-0 01 1 9811- ● ●
62 SPRING; LK,LEVER
TAI 		1-44227-153-0 02 1 9811-0111 ● ●
62 SPRING; LK,LEVER
TAI 		1-44227-153-0 01 1 0112- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) TAI 		1-44227-145-0 01 1 9811- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) TAI 		1-44227-149-0 01 1 9811- ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9811-0512 ● ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9811-0603 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9811-0512 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
95 BOLT; STRG UNIT
M14X45 		9-92061-445-0 04 1 9811-0610 ●
95 BOLT; STRG UNIT
M14X50 		1-09000-739-1 04 1 0611- ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 05 1 9811-0610 ●
95 BOLT; STRG UNIT
M14X55 		8-97301-262-0 05 1 0611- ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 05 1 9811-0512 ●
96 NUT; STRG UNIT
M14 		0-91110-514-0 05 1 0601-0610 ●
96 NUT; STRG UNIT
M14 		1-09440-080-0 05 1 0611- ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 9811-0512 ●
96 NUT; STRG UNIT
M14 		0-91110-514-0 06 1 0601-0610 ●
96 NUT; STRG UNIT
M14 		1-09440-080-0 06 1 0611- ●
97 WASHER; PL,STRG UNIT
ID=15 TAI 		9-09651-069-0 09 1 9811- ●
97 WASHER; PL,STRG UNIT
ID=15 TAI 		9-09651-069-0 11 1 9811- ●
118 NUT; LEVER,TILT BOLT
TAI 		1-44227-146-0 01 1 9811-0506 ● ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507- ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9811- ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC
TAI 		1-44227-147-0 01 1 9811- ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9811- ● ●
315 JOINT; SPLINE
TAI 		1-44135-341-0 01 1 9811-9906 ●
315 JOINT; SPLINE 1-44135-342-0 01 1 9811-9906 ●
315 JOINT; SPLINE 1-44135-342-0 01 1 9907-0506 ● ●
315 JOINT; SPLINE 1-44135-377-0 01 1 0507- ● ●
316 RING
TAI 		1-44227-152-0 01 1 9811- ● ●
317 NUT; PUSH
TAI 		1-44227-148-0 01 1 9811- ● ●
