◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#5746) — 32 parça

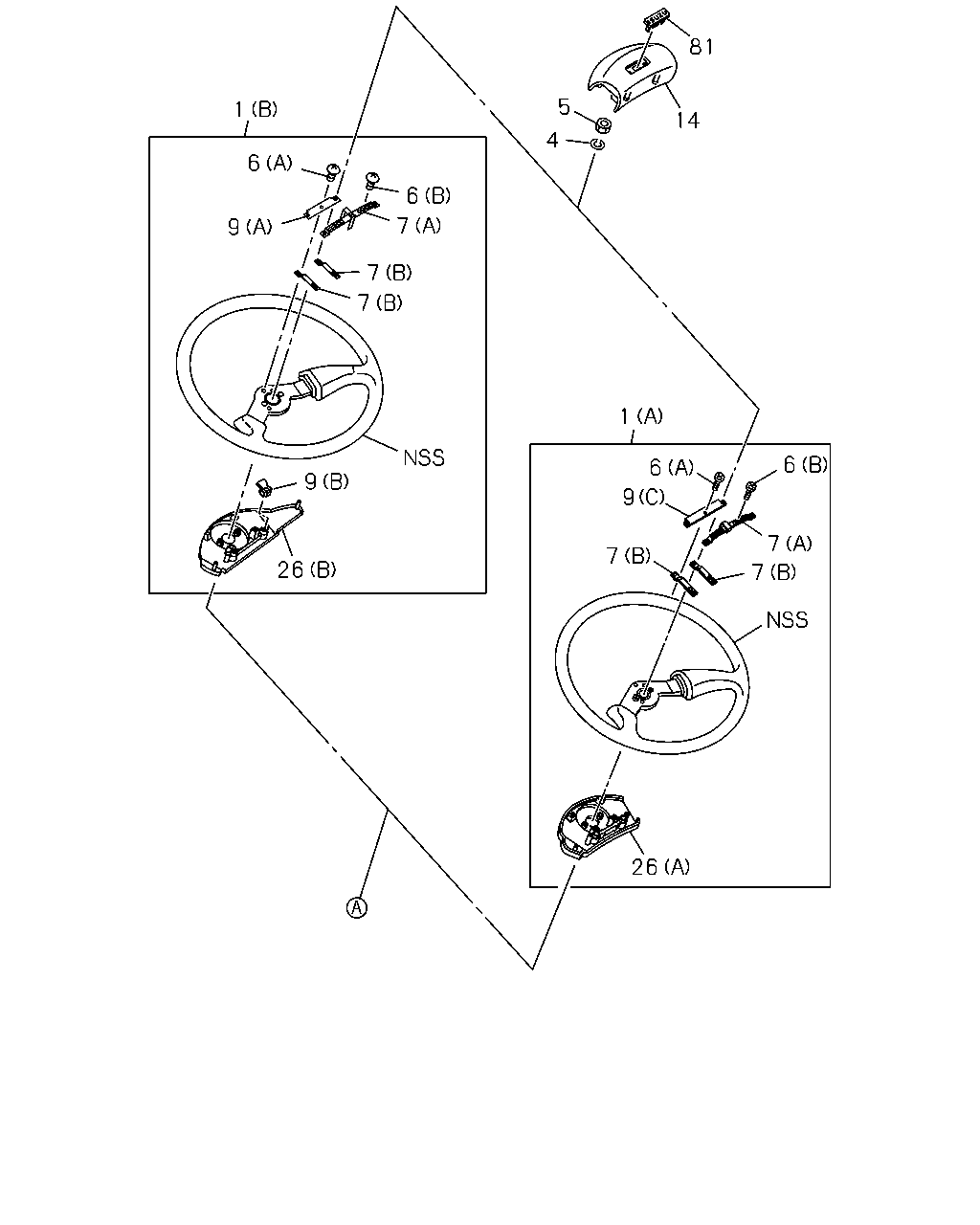

çizim 26510
81 5 1 14 4 6 6 7 9 7 7 1 6 6 9 9 7 7 26 7 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
(A) 		1-44110-159-0 01 1 9811-9906 ● ●
1 WHEEL; STRG
(B) 		1-44110-162-0 01 1 9907- ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9811-0603 ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604- ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 9811-0512 ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0601- ● ●
6 SCREW; HORN SPR CONTACT
(A) M4X10 		1-44129-034-0 01 1 9811-9906 ● ●
6 SCREW; HORN SPR CONTACT
(A) M5X10 		1-44129-049-0 01 1 9907- ● ●
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 9811- ● ●
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 9811- ● ●
7 SPRING; HORN CONTACT
(A) 		1-44129-037-0 01 1 9811-9906 ● ●
7 SPRING; HORN CONTACT
(A) 		1-44129-060-0 01 1 9907- ● ●
9 PLATE; HORN CONTACT
(C) 		1-44129-038-0 01 1 9811-9906 ● ●
9 PLATE; HORN CONTACT
(B) 		1-44129-048-0 02 1 9907- ● ●
9 PLATE; HORN CONTACT
(A) 		1-44129-059-0 01 1 9907- ● ●
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9811- ● ●
26 COVER; STRG WHEEL,LWR
(A) 		1-44129-039-0 01 1 9811-9906 ● ●
26 COVER; STRG WHEEL,LWR
(B) 		1-44129-050-0 01 1 9907- ● ●
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 9811- ● ●
çizim 98980
30 44 42 45 78 84 49
BalonParca AdiParca NoAdetTipApplied Date A B
30 COWL; STEERING
TAI 		1-79997-342-3 01 1 9811- ● ●
42 BOOT; STEERING COLUMN
TAI 		1-79996-385-1 01 1 0611- ●
42 BOOT; STEERING COLUMN
TAI 		8-97535-024-1 01 1 9811-0610 ● ●
42 BOOT; STEERING COLUMN
TAI 		8-97535-024-1 01 1 0611- ●
44 SCREW; STRG COWL
M6X16 TAI 		8-94479-534-0 04 1 9811-0302 ● ●
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0303- ● ●
45 BOOT; STRG SHAFT
TAI 		1-79998-738-2 01 1 0611- ●
45 BOOT; STRG SHAFT
TAI 		8-97535-025-0 01 1 9811-0610 ● ●
45 BOOT; STRG SHAFT
TAI 		8-97535-025-0 01 1 0611- ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE TAI 		1-09984-141-0 02 1 9811- ● ●
78 BOLT; STRG
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9811-9906 ● ●
78 BOLT; STRG
M6X28 W/LK&PL WASHER TAI 		1-09980-543-0 02 1 9907- ● ●
84 SEAL; WATER
25X25 TAI 		8-94272-533-0 02 1 9811- ● ●
