8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#57458) — 93 parça

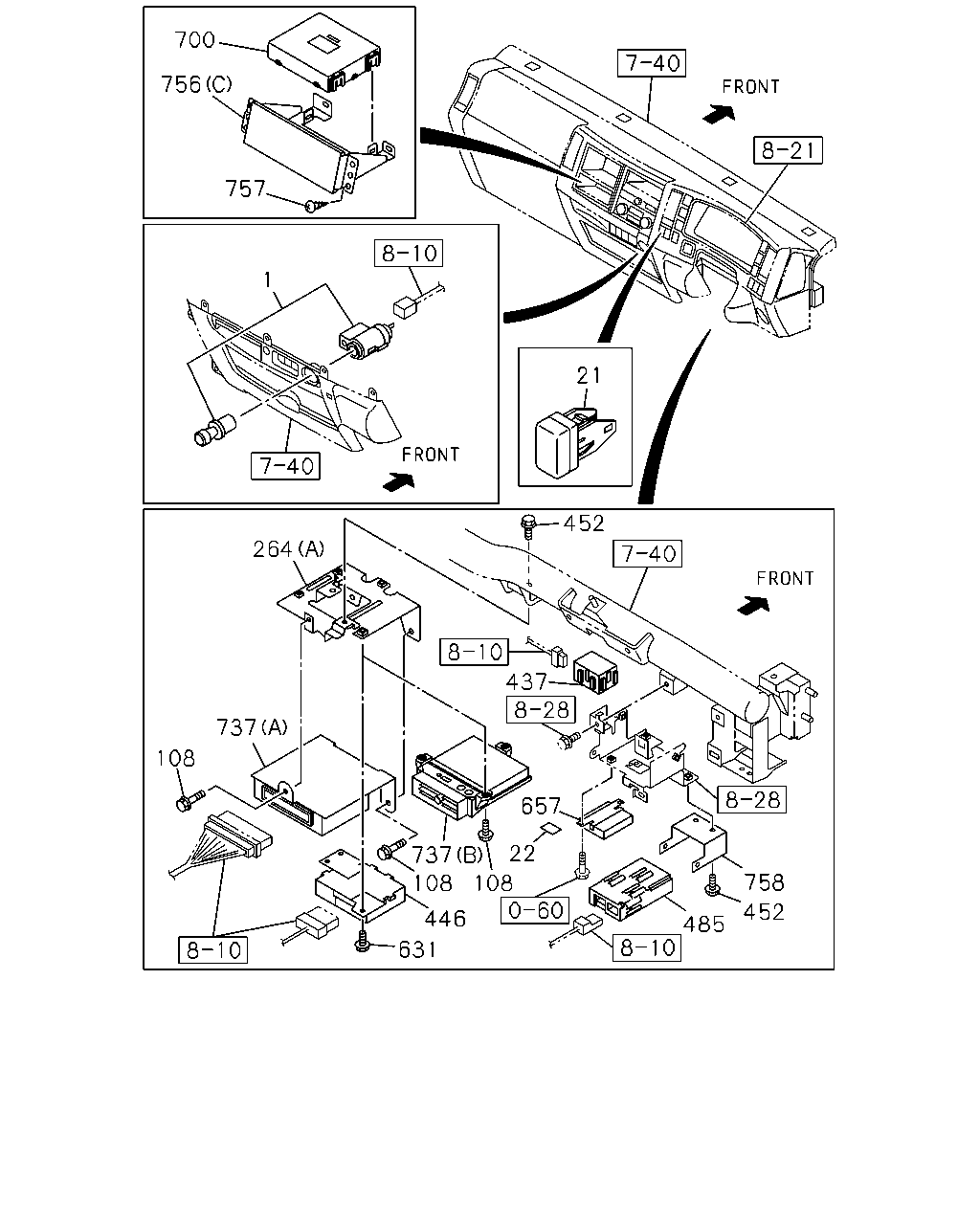

çizim 171435
700 756 757 264 1 21 452 437 737 108 737 108 446 657 22 108 485 758 452 631
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1010- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1010- ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 1010-1212 ● ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301- ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 1010- ● ●
108 BOLT; TRANS CONT MODULE
LCT2000 A/T ALLISON(Y4F) M6X16 FLANGE 		0-28650-616-0 03 1 1010- ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1010- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010- ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 1010- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 1010- ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1010- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-318-1 01 1 1010- ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1010- ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1010- ●
452 BOLT; BRKT
MZW6P M/T(RSZ) M6X16 FLANGE 		0-28650-616-0 02 1 1010- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1010- ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 1010- ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 1010- ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98140-862-0 01 1 1010-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ) 		1-80190-059-1 01 1 1110- ● ●
485 CONTROL UNIT; SPEED SENSOR
LCT2000 A/T ALLISON(Y4F) 		1-80190-061-0 01 1 1010- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 1010-1401 ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-0 01 1 1402- ● ●
700 CONTROL UNIT; CAN CONVERTER
VIN MODEL YEAR 2013<VZD> CAN INTERFACE FMS STD<8PG> 		8-98219-812-1 01 1 1210- ● ●
737 CONTROL UNIT; TRANSMISSION
LCT2000 A/T ALLISON(Y4F) (B) 		8-98178-953-0 01 1 1010- ●
737 CONTROL UNIT; TRANSMISSION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98095-624-9 01 1 1010-1411 ● ●
737 CONTROL UNIT; TRANSMISSION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98277-100-0 01 1 1412- ● ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1010- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MZW6P M/T(RSZ) 		8-98048-743-1 01 1 1010- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1010- ●

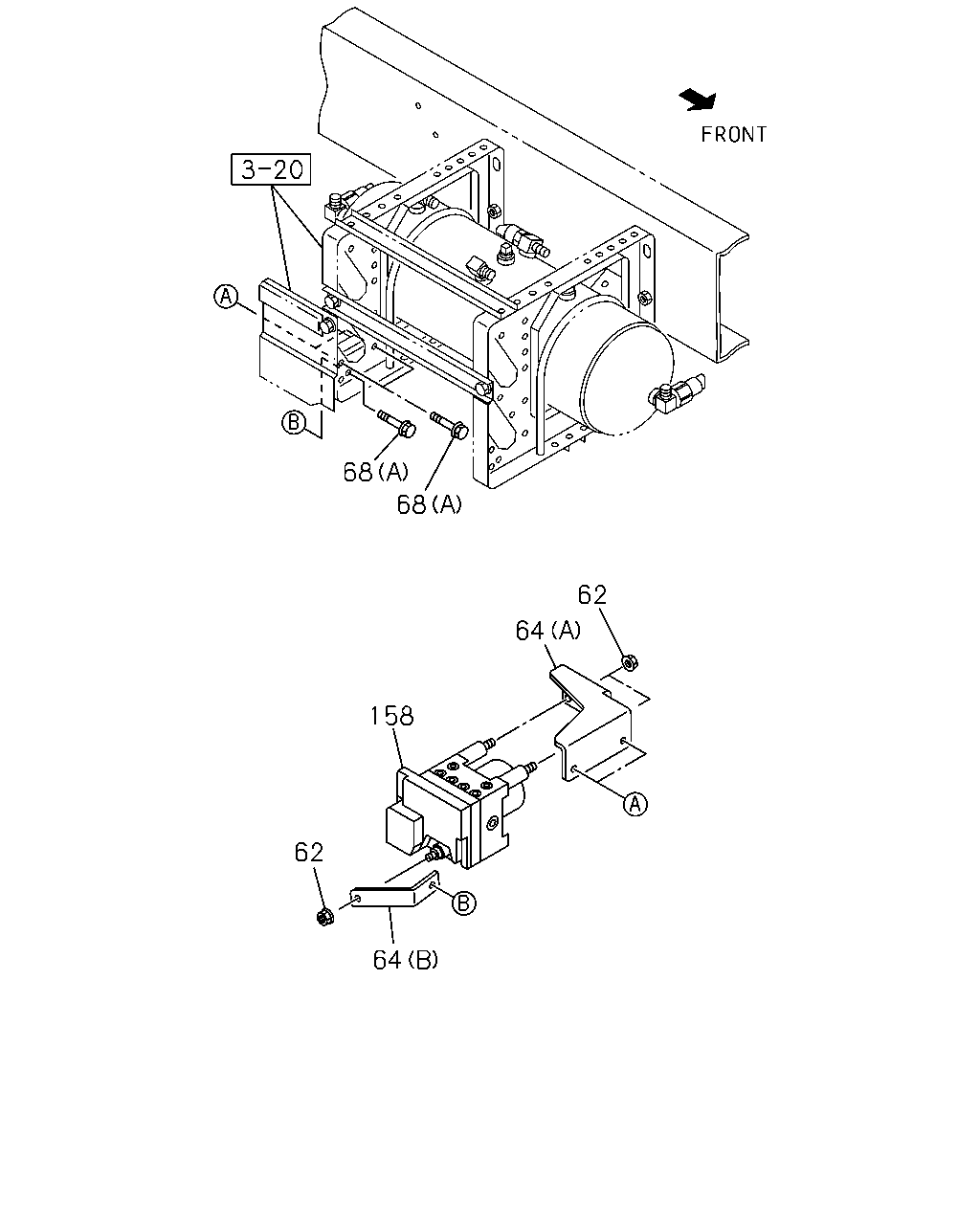

çizim 171437
68 68 62 64 158 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 1010- ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 1010- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1010- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1010- ● ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98158-000-1 01 1 1010- ● ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-994-1 01 1 1010- ● ●
çizim 171442
507
BalonParca AdiParca NoAdetTipApplied Date A B
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●

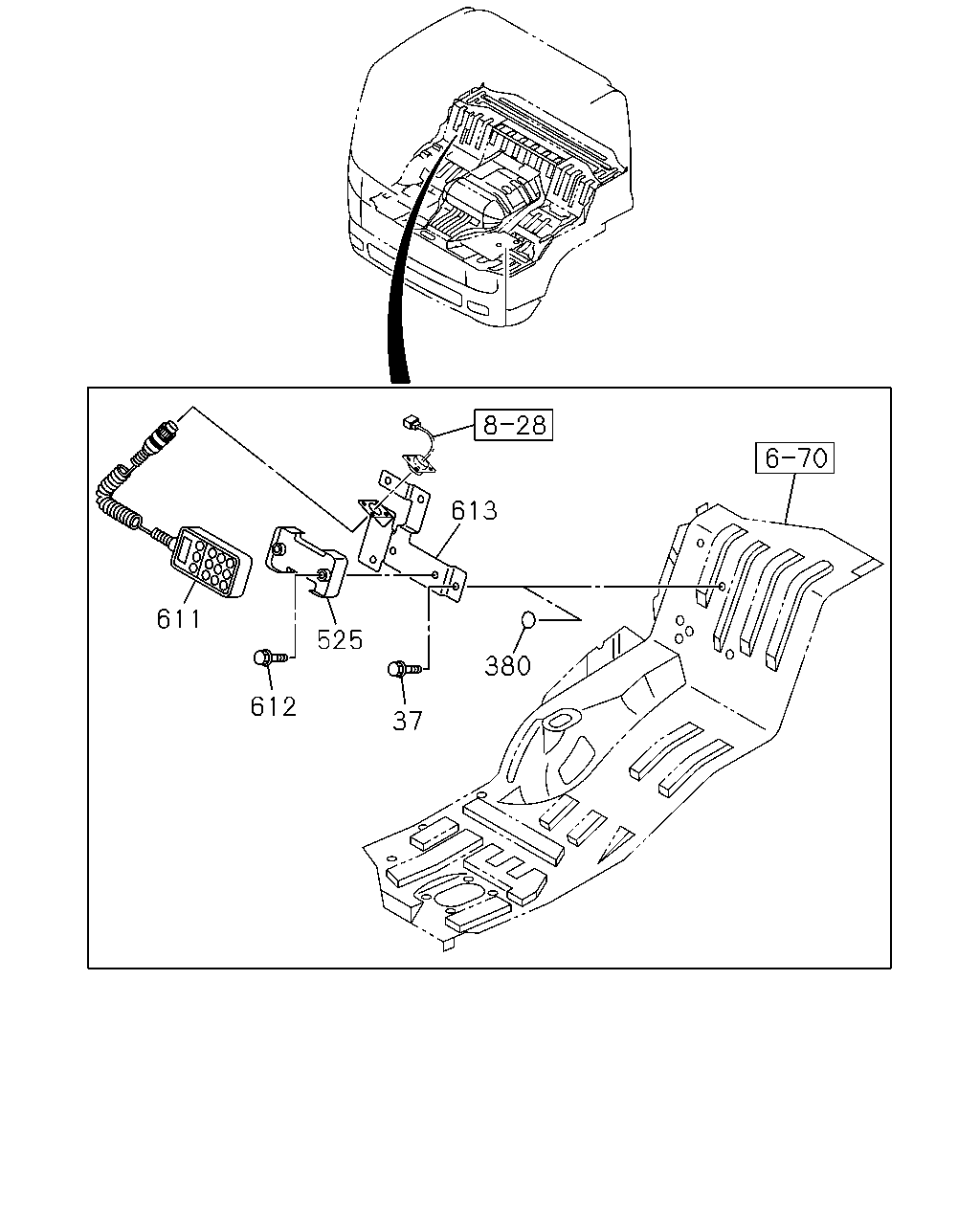

çizim 171447
613 611 525 380 612 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; BRKT FIX
M6X25 FLANGE 		0-28650-625-0 02 1 1010- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1010- ● ●
525 HOLDER; SW 1-82389-018-0 01 1 1010- ●
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 1010- ●
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 1010- ●
613 BRACKET; HOLDER,SW 8-97618-931-2 01 1 1010- ●

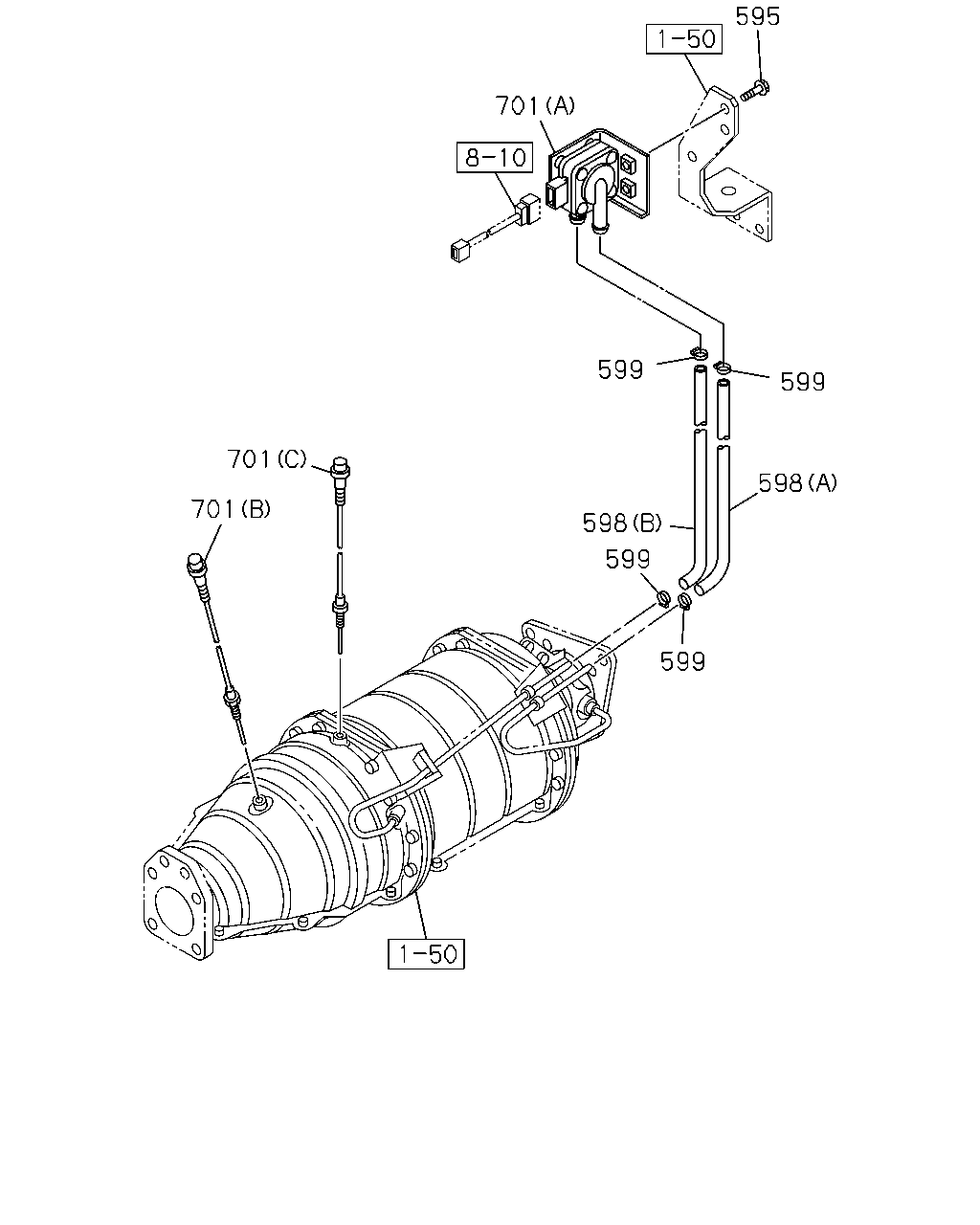

çizim 171449
595 701 599 599 701 598 701 598 599 599
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-178-1 01 1 1010- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98080-054-0 01 1 1010- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1010- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1010- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1010- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1010- ● ●

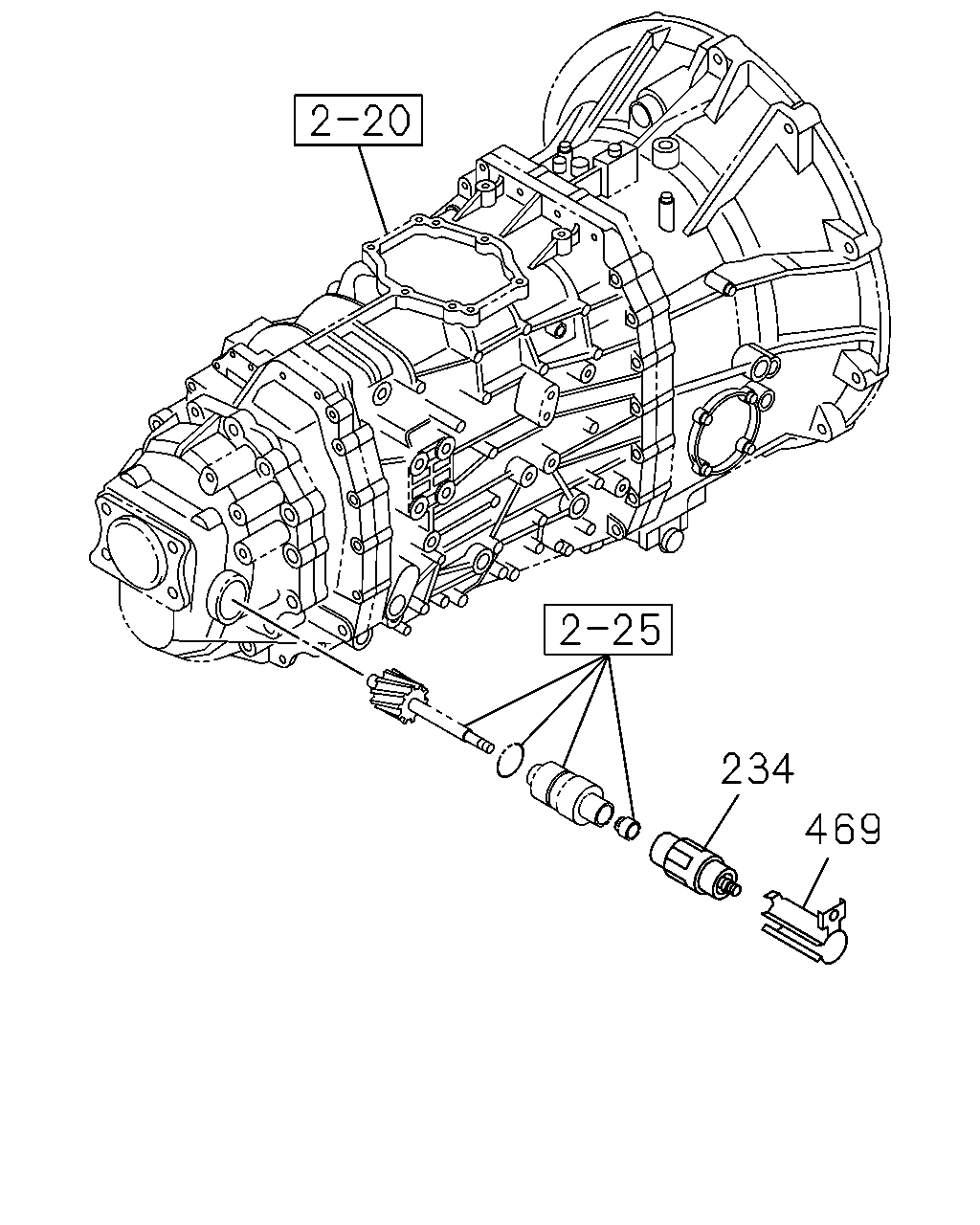

çizim 171460
234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1010- ● ●
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98119-901-0 01 1 1010- ● ●

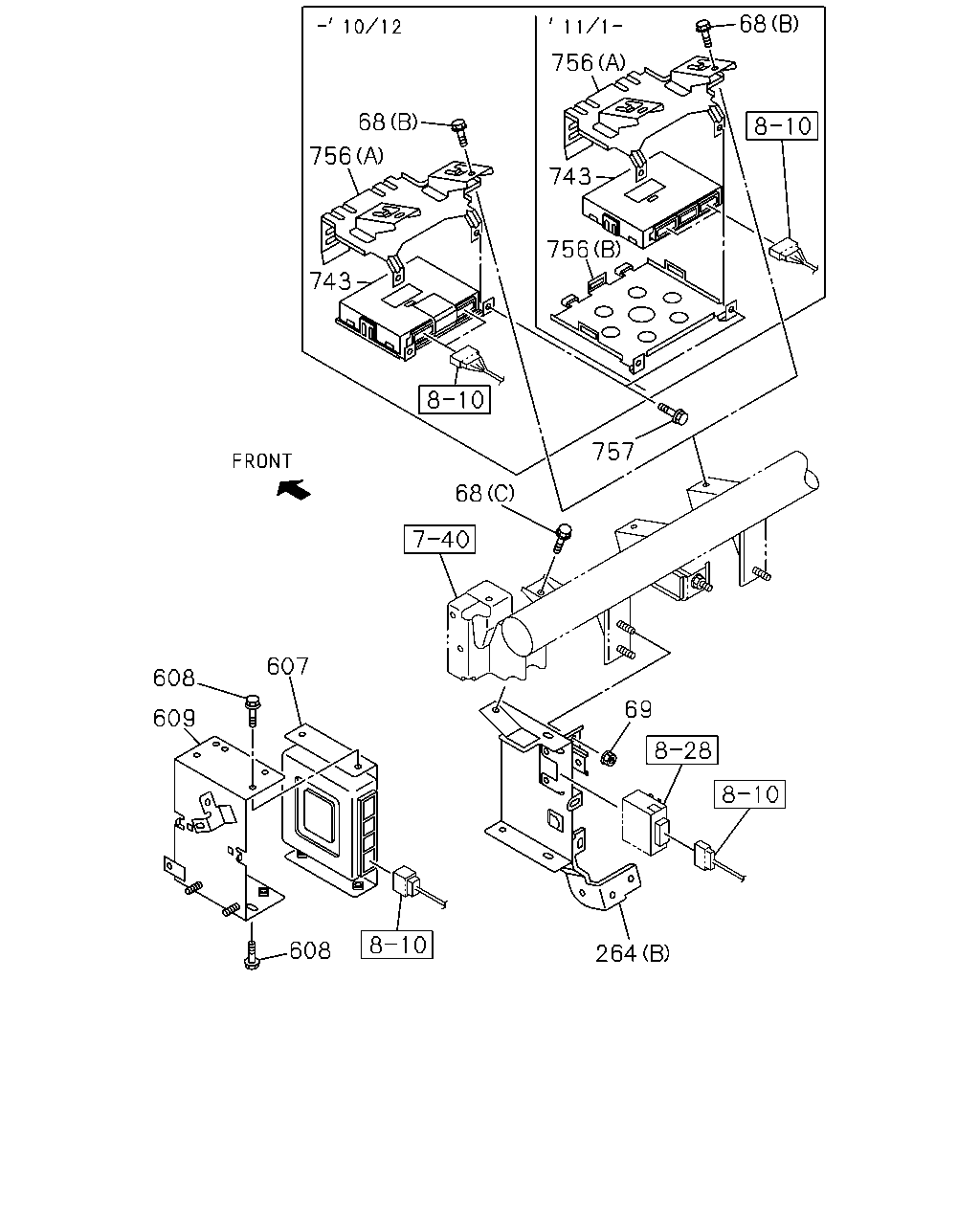

çizim 171461
68 756 68 756 743 756 743 757 68 607 608 69 609 608 264
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1010- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1010- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1010- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1010- ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 1010- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 1010- ●
607 CONTROL UNIT; AIR SUSPENSION 8-98081-298-1 01 1 1010- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 04 1 1010- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1010- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1010-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309- ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1010-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1010- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●

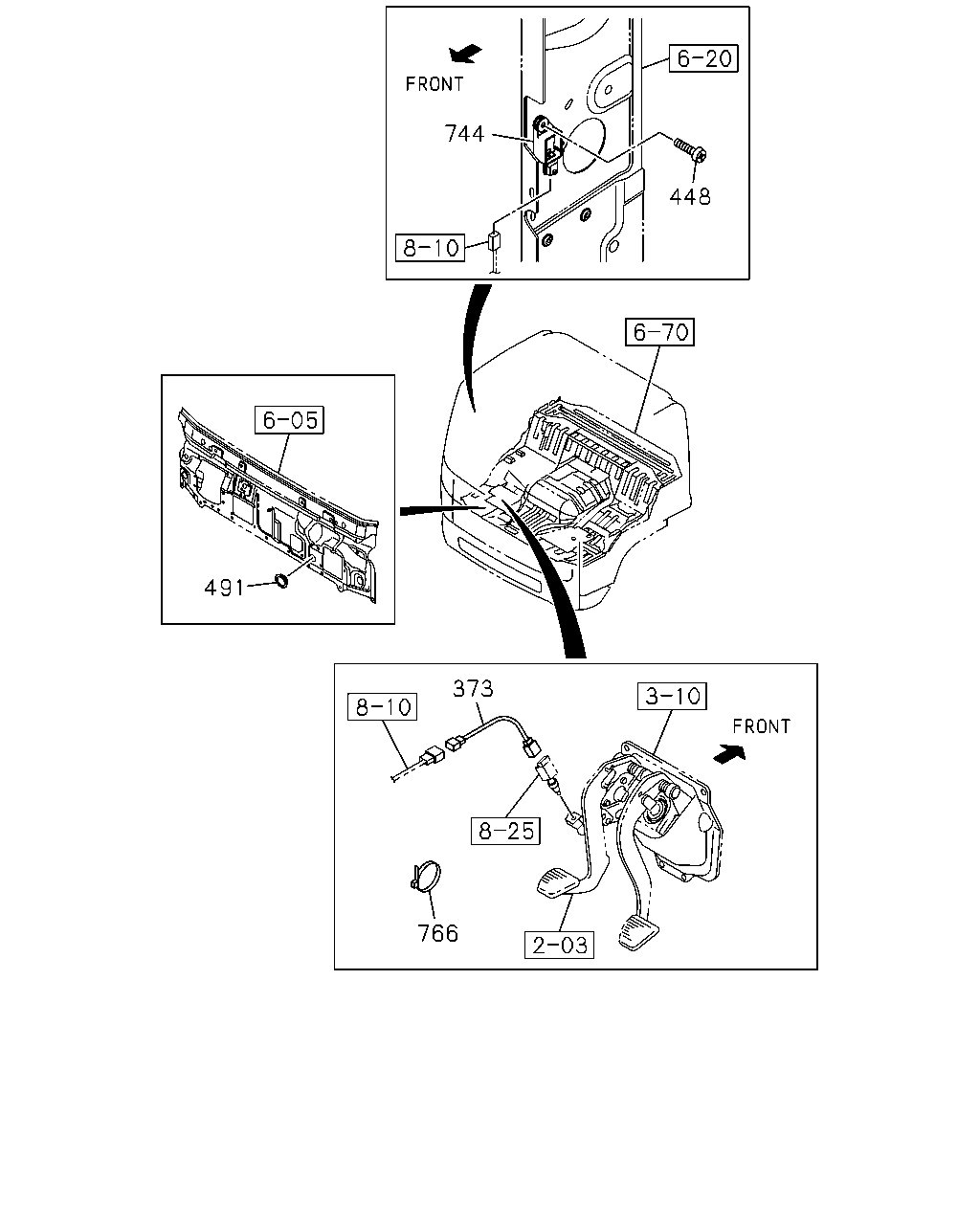

çizim 171474
744 448 491 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98059-419-2 01 1 1010- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1010- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1010- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1010- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1010-1112 ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1010-1112 ●
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1201- ● ●
