◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11327 - FSR(AUST/NZ)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#57454) — 305 parça

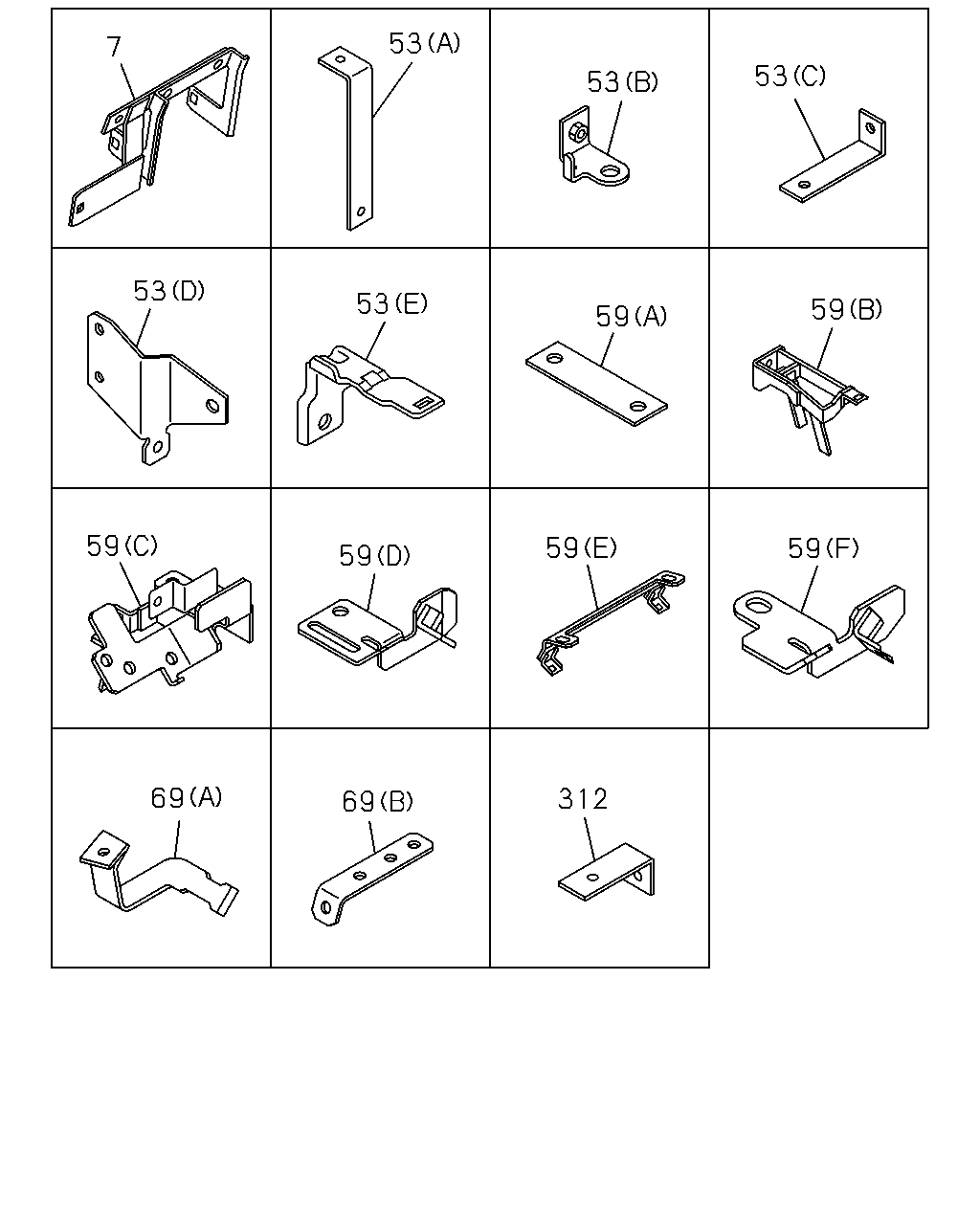

çizim 171415
7 53 53 53 53 53 59 59 59 59 59 59 69 69 312
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1010- ● ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 1010- ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 1010- ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 01 1 1010- ●
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 1010- ● ●
53 BRACKET; HARNESS
(D) 		8-98047-891-0 01 1 1010- ● ●
53 BRACKET; HARNESS
(D) 		8-98047-890-0 01 1 1010- ● ●
53 BRACKET; HARNESS
LCT2000 A/T ALLISON(Y4F) (B) 		1-82698-296-0 02 1 1010- ●
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1010- ●
59 BRACKET; FRAME HARNESS
EXC. A/T<X9D> (A) L=85 		8-98044-743-0 01 1 1010- ●
59 BRACKET; FRAME HARNESS
MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 1010- ●
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1010- ●
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 1010- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1010-1502 ● ●
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97619-534-0 01 1 1010- ● ●
69 BRACKET; CLIP
(A) 		8-97616-357-3 01 1 1010- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-82698-167-0 01 1 1010- ● ●
312 BRACKET; CLIP HARNESS
L=55 		1-47475-304-0 01 1 1010- ● ●

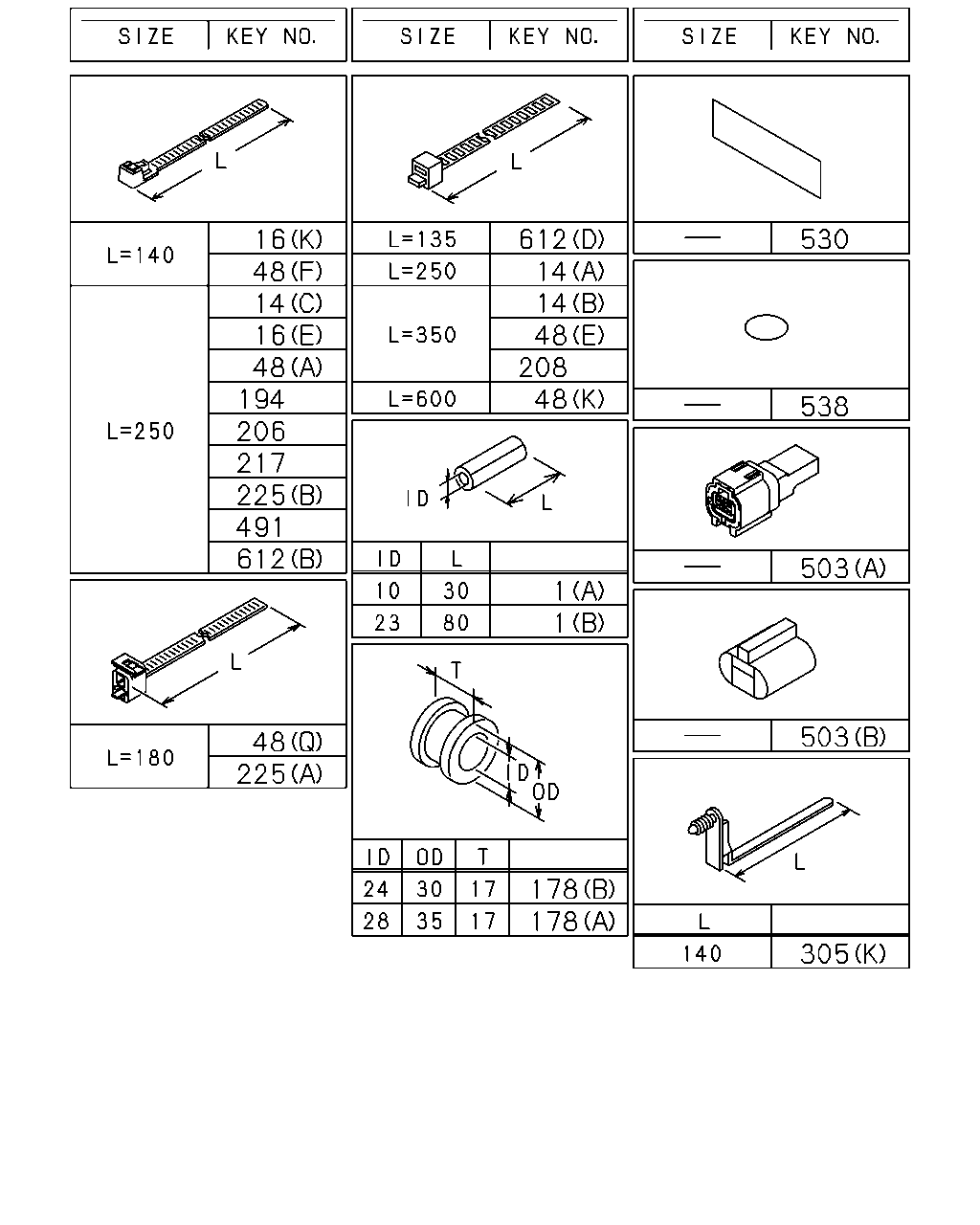

çizim 171419
16 48 14 16 48 194 206 217 225 491 612 612 14 14 48 208 48 530 538 503 1 1 503 48 225 178 178 305
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1010- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1010- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1010- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1010- ● ●
14 CLIP; BAND,HARNESS
A/T<X9D> (C) L=250 		5-09707-030-1 14 1 1010-1205 ● ●
14 CLIP; BAND,HARNESS
A/T<X9D> (C) L=250 		8-98216-430-0 14 1 1206- ● ●
14 CLIP; BAND,HARNESS
MANUAL TRANSMISSION<X9C> (C) L=250 		5-09707-030-1 13 1 1010-1205 ● ●
14 CLIP; BAND,HARNESS
MANUAL TRANSMISSION<X9C> (C) L=250 		8-98216-430-0 13 1 1206- ● ●
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 1010- ●
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 04 1 1010- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1010- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 1010- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 1010- ● ●
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 01 1 1010- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1010- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1010- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1010- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1010- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1010- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (D) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (S) ID=18-24 L=22 		1-09709-295-0 01 1 1105- ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=14 L=44 		9-09917-427-0 07 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 12 1 1010- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1010- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1010-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (P) ID=19 L=32 		0-95235-866-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (Q) L=180 		1-09707-162-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50 		1-09701-055-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (O) ID=14 L=44 		9-09917-427-0 09 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=14 L=44 		9-09917-427-0 19 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (R) ID=13-18 L=22 		1-09709-292-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=14 L=44 		9-09917-427-0 24 1 1010- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1010- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1010- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1010- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1010- ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 1010- ●
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 1010- ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 1010- ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 1010- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1010- ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1010- ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 1010-1012 ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1010- ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(K) L=140 		8-97122-360-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1010- ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 03 1 1010- ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 1010- ● ●
503 CONNECTOR
HEATER & DEFROSTER(C41) (B) 		1-82690-668-0 01 1 1010- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1010-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1010-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> 180X40 		1-72498-019-1 01 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 1010- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 1010- ● ●

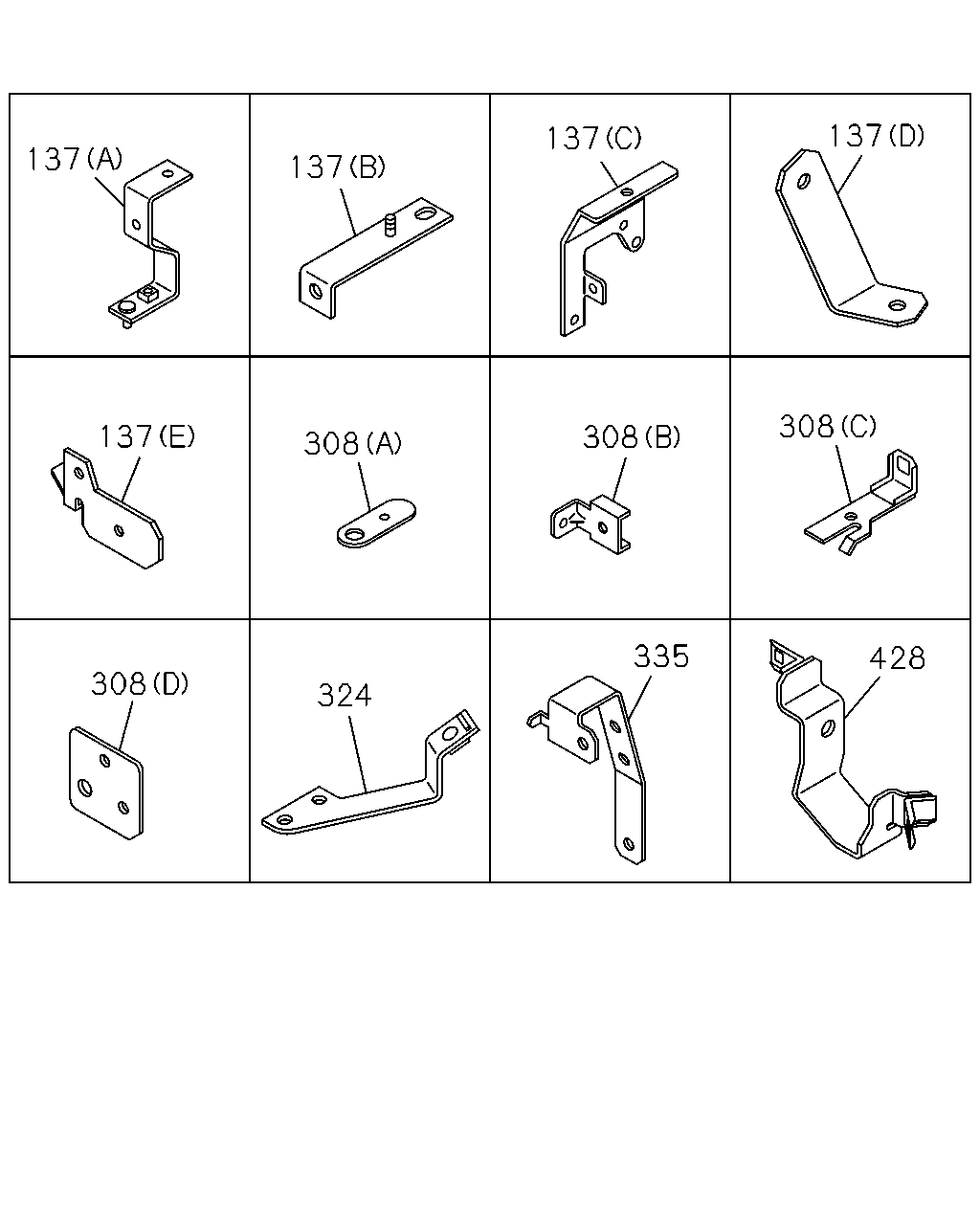

çizim 171420
137 137 137 137 308 137 308 308 335 428 308 324
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(D) 		8-97614-728-1 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-98065-904-0 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98059-231-1 01 1 1010- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 1010-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1010- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1010- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1010- ● ●
324 BRACKET; CLIP 8-98051-649-1 01 1 1010- ● ●
324 BRACKET; CLIP 8-98051-648-1 01 1 1010- ● ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1010- ●
335 BRACKET; CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-97619-097-1 01 1 1010- ●
428 BRACKET 8-98090-952-0 01 1 1010- ● ●

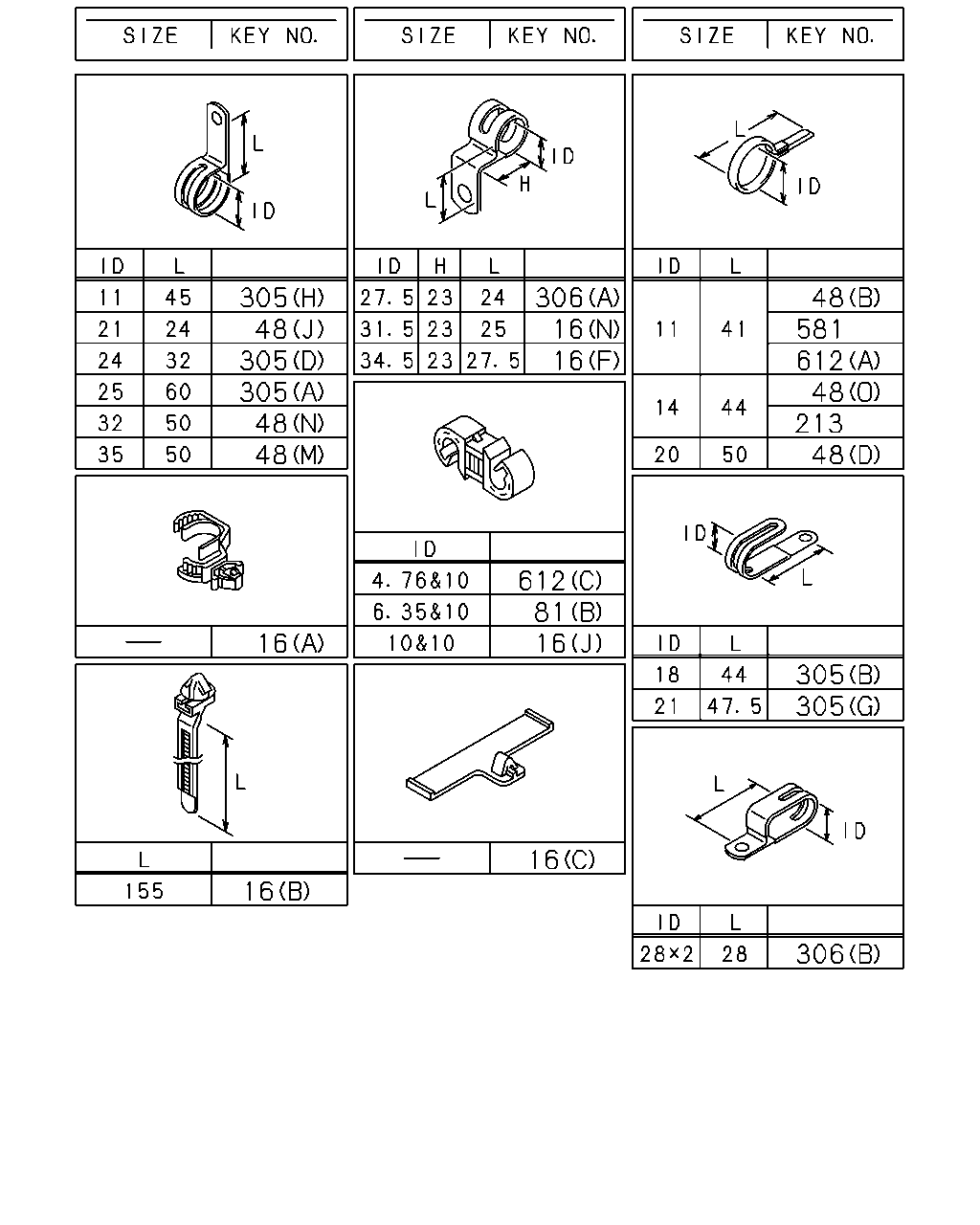

çizim 171424
305 48 305 305 48 48 306 16 16 48 581 612 48 213 48 612 81 16 16 305 305 16 16 306
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 1010- ●
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 04 1 1010- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1010- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 1010- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 1010- ● ●
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 01 1 1010- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1010- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1010- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1010- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1010- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1010- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (D) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (S) ID=18-24 L=22 		1-09709-295-0 01 1 1105- ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=14 L=44 		9-09917-427-0 07 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 12 1 1010- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1010- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1010-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (P) ID=19 L=32 		0-95235-866-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (Q) L=180 		1-09707-162-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50 		1-09701-055-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (O) ID=14 L=44 		9-09917-427-0 09 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=14 L=44 		9-09917-427-0 19 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (R) ID=13-18 L=22 		1-09709-292-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=14 L=44 		9-09917-427-0 24 1 1010- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1010-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1010- ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1010- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1010- ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(K) L=140 		8-97122-360-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1010- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1010- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1010- ● ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 1010- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 1010- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 1010- ● ●
çizim 171426
16 16 48 305 305 48 48 16 81 223 235 305 470 48 16 48 223 16 235 48 48 48 16 305 305 116 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 1010- ●
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 04 1 1010- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1010- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 1010- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 1010- ● ●
16 CLIP; HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 01 1 1010- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1010- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1010- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1010- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1010- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1010- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (D) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (S) ID=18-24 L=22 		1-09709-295-0 01 1 1105- ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=14 L=44 		9-09917-427-0 07 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 12 1 1010- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1010- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1010-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (P) ID=19 L=32 		0-95235-866-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (Q) L=180 		1-09707-162-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50 		1-09701-055-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (O) ID=14 L=44 		9-09917-427-0 09 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (O) ID=14 L=44 		9-09917-427-0 19 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (R) ID=13-18 L=22 		1-09709-292-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=14 L=44 		9-09917-427-0 24 1 1010- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1010-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1010- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1010- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 1010- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1010- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1010- ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(K) L=140 		8-97122-360-0 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1010- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1010-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ● ●

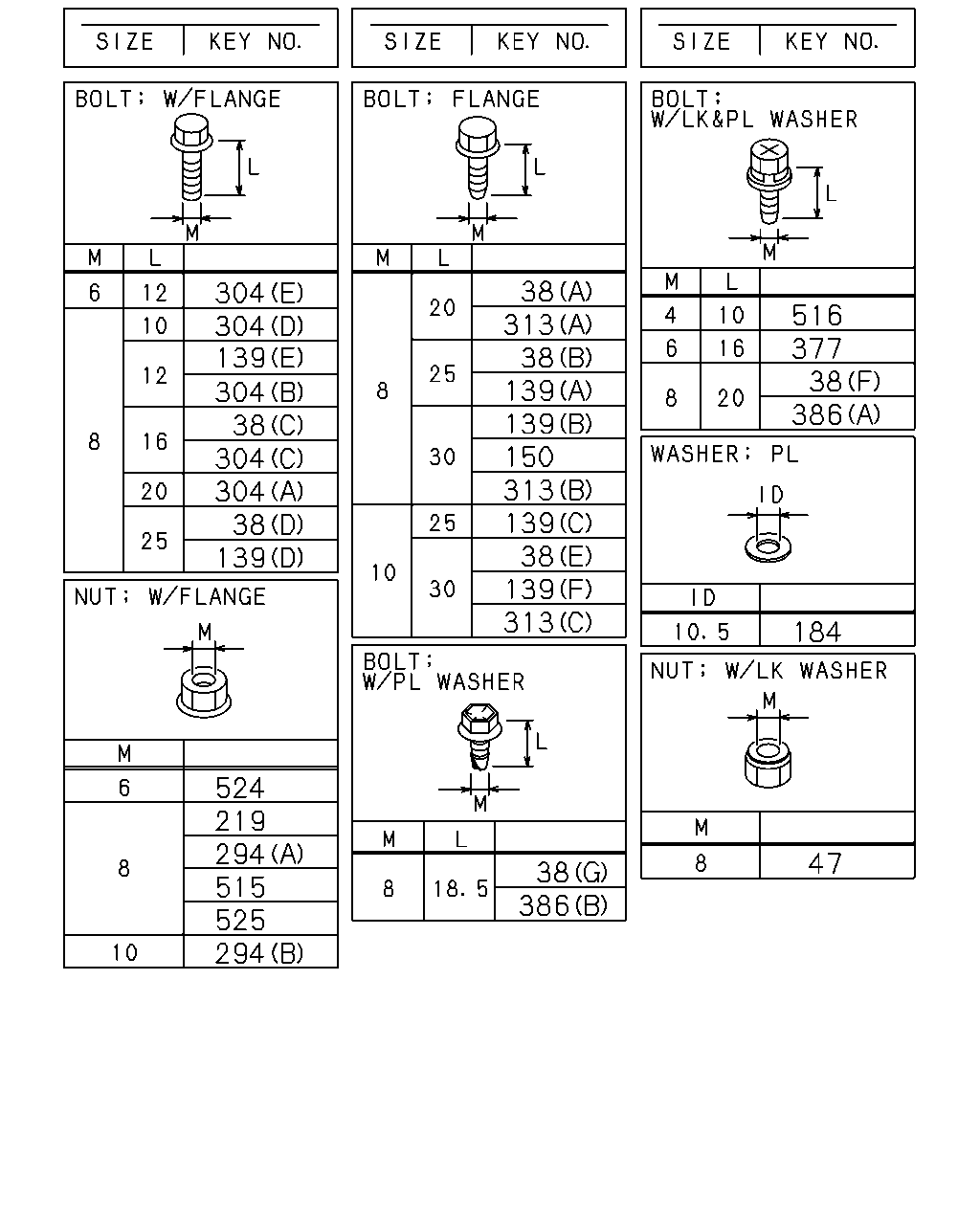

çizim 171429
304 294 524 525 294 219 515 139 38 304 304 38 304 139 304 38 386 313 38 139 38 139 313 150 139 139 38 313 516 47 184 386 38 377
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) VIN MODEL YEAR 2013<VZD> (C) M8X16 FLANGE 		0-28050-816-0 01 1 1210- ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) VIN MODEL YEAR 2013<VZD> (A) M8X20 FLANGE 		8-98105-048-0 01 1 1210- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 1010- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1010-1201 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1010-1209 ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) EXC. VIN MODEL YEAR 2013<VZD> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1210- ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1010- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1010- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1010- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1010- ● ●
139 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) M10X30 FLANGE 		0-28651-030-0 01 1 1010- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1010- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1010- ●
139 BOLT; BRKT
EXC. A/T<X9D> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1010- ●
150 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1010- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1010- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 1010- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1010-1107 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1108- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 1010- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 1010- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 1010-1010 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1010- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1010- ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ● ●
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1010- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1010- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1010-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1010- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1010- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
