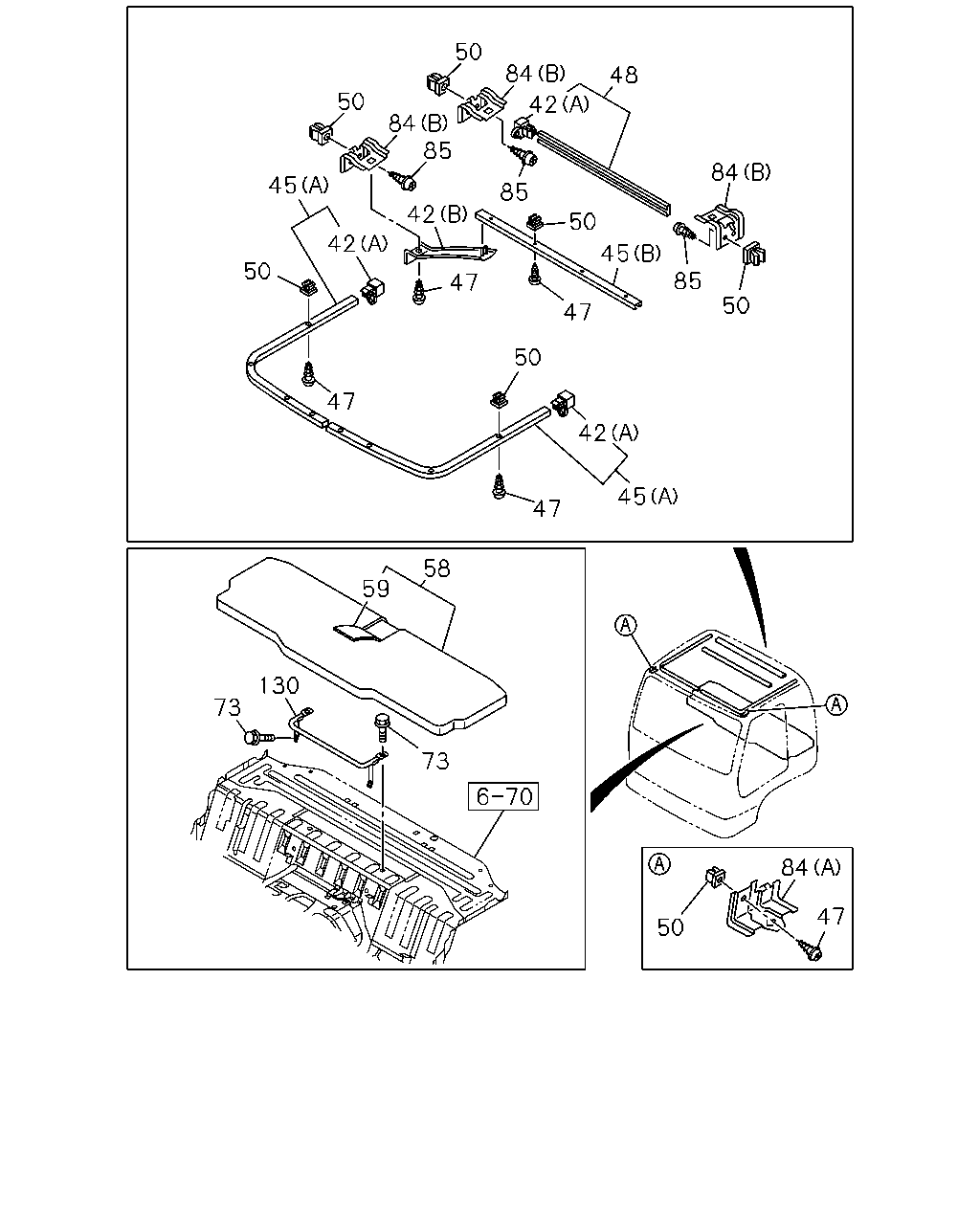

7-70 — SEPARATER AND BED (#57449) — 29 parça

50 84 48 50 42 84 85 84 45 85 42 50 42 45 50 85 47 50 47 50 47 42 45 47 58 59 130 73 73 84 47 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1010-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1010-	●	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	1010-	●	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	1010-	●	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-485-0	01	1	1010-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-672-0	01	1	1010-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-671-0	01	1	1010-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1010-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1010-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	1010-	●	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	1010-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1010-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1010-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1010-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	1010-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1406-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97407-382-2	01	1	1010-1402	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97412-045-1	01	1	1010-1402	●	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1010-1402	●	●
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1010-1405	●	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A)	8-98028-326-1	02	1	1406-	●	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	04	1	1010-	●	●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	04	1	1406-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	06	1	1010-1405	●	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1406-	●	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1010-1402	●	●
