7-20 — MIRROR AND MIRROR STAY (#57441) — 66 parça

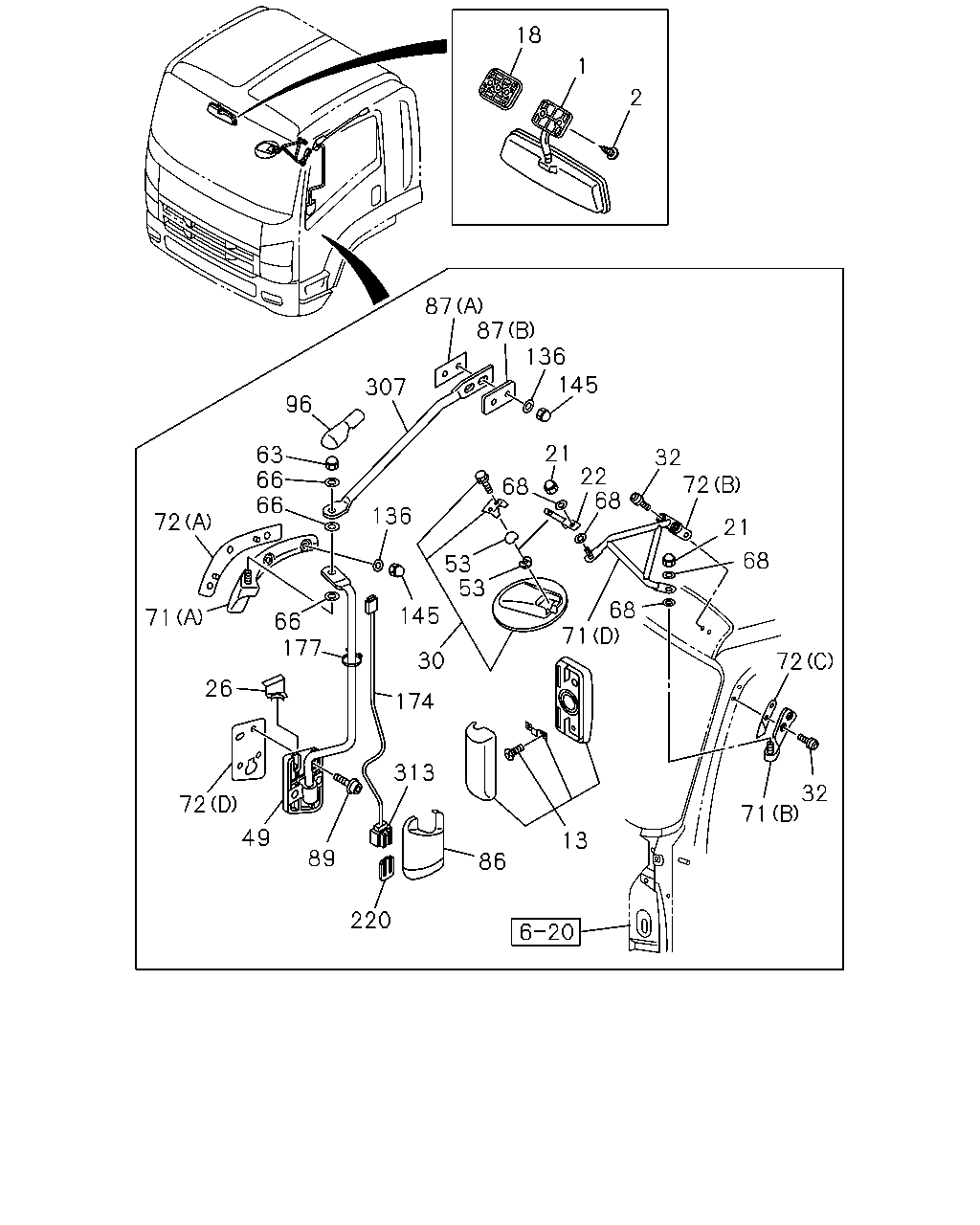

çizim 171401
18 1 2 87 87 136 145 307 96 21 63 66 66 32 72 22 68 68 136 72 21 68 53 53 68 71 145 71 66 177 30 72 26 174 313 32 71 72 49 13 89 86 220
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1010- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1010- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98055-991-1 01 1 1010- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98055-992-1 01 1 1010- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1010- ● ●
21 NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1010- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-493-0 01 1 1010- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1010- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1010- ● ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98055-994-0 01 1 1010-1504 ● ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1010- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-055-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-054-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-069-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-068-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1010- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1010- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1010- ● ●
68 WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1010-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1010- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1010- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1010- ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98101-865-0 01 1 1010- ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98101-864-0 01 1 1010- ● ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1010- ● ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1010- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1010- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1010- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1010- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1010- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1010- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1010- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1010- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1010- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1010- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1010- ● ●
177 CLIP; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> L=140 		5-09707-031-1 02 1 1010- ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-375-0 02 1 1010- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1010- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1010- ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-370-0 02 1 1010- ● ●

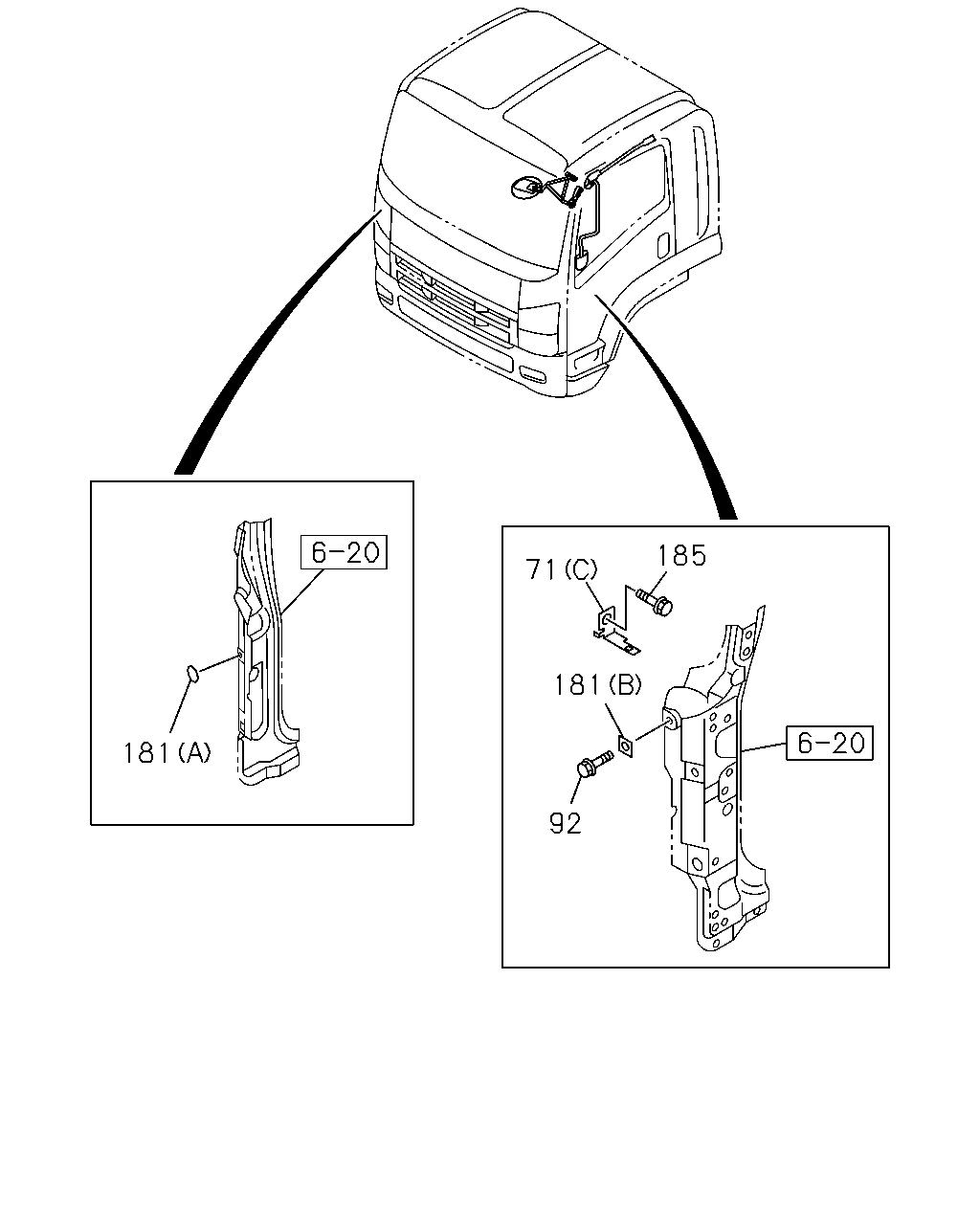

çizim 171405
185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1010-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1010- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1010- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1010- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1010- ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1010-1202 ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
