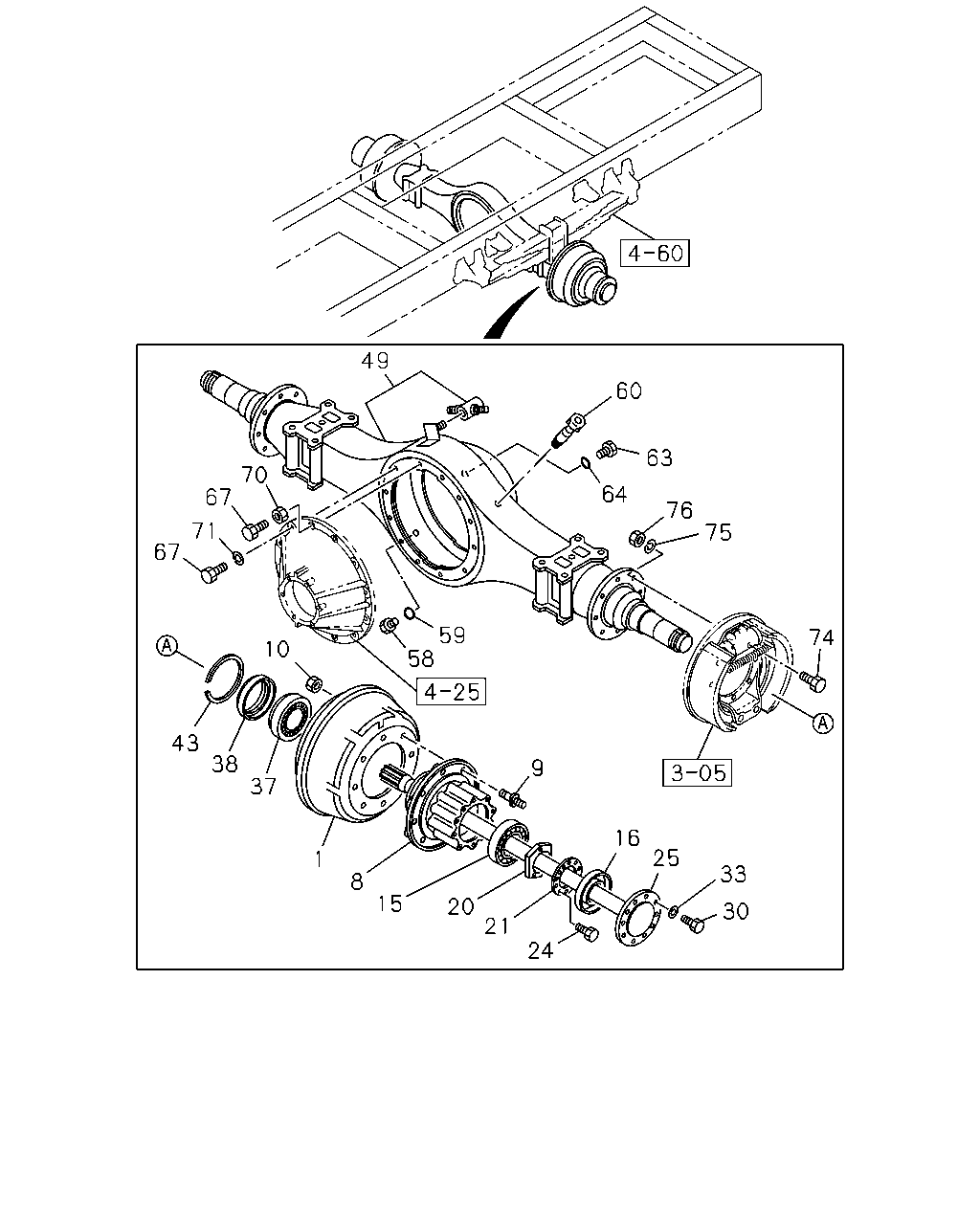

4-20 — REAR AXLE CASE AND SHAFT (#5744) — 145 parça

49 60 63 70 67 64 76 71 75 67 59 58 74 10 43 38 9 37 16 25 1 33 8 15 20 30 21 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-340-0	02	1	9811-9811	●
1	DRUM; BRK,RR TAI	1-42315-361-0	02	1	9812-	●
1	DRUM; BRK,RR TAI	1-42315-194-4	02	1	9811-		●
8	HUB; RR AXLE TAI	1-42311-009-6	02	1	9811-	●
8	HUB; RR AXLE TAI	1-42311-104-0	02	1	9811-		●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	9811-	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	9811-	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	9811-		●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	9811-		●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-055-0	12	1	9811-9904	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	9812-	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-055-0	16	1	9811-9904		●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	9905-		●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-049-0	02	1	9811-	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	9811-	●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	9811-		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	9811-	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9811-0102		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9811-		●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	9811-	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	9811-		●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	9811-	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	9811-		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9811-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	9811-0610	●
25	SHAFT; AXLE,RR L=925	8-97380-682-0	02	1	0611-	●
25	SHAFT; AXLE,RR L=1039	1-42171-414-0	02	1	9811-		●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	9811-	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9811-		●
33	WASHER; AXLE SHAFT ID=12.2	9-09150-812-0	20	1	9811-0603	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0604-	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9811-0603		●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-		●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-044-0	02	1	9811-	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	9811-	●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	9811-	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	9811-		●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	9811-	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	9811-		●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	9811-		●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	9811-	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	9811-		●
49	CASE; RR AXLE	1-42160-145-0	01	1	9811-	●
49	CASE; RR AXLE	1-42160-182-1	01	1	9811-0610		●
49	CASE; RR AXLE	8-98003-968-0	01	1	0611-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9811-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9811-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	9811-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9811-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9811-	●	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	9811-	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	9811-0512	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	0601-	●
67	BOLT; FINAL DRIVE SETTING M16X45	0-20801-645-0	02	1	9811-0211		●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9811-0512		●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0601-		●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9811-0512		●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0601-		●
70	NUT; CARRIER M16	9-99111-416-0	02	1	9811-0211		●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	9811-0603	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0604-	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9811-0603		●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-		●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9811-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	12	1	9811-0603	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	12	1	0604-	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9811-0603		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-		●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	12	1	9811-0512	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	12	1	0601-	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9811-0512		●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-		●

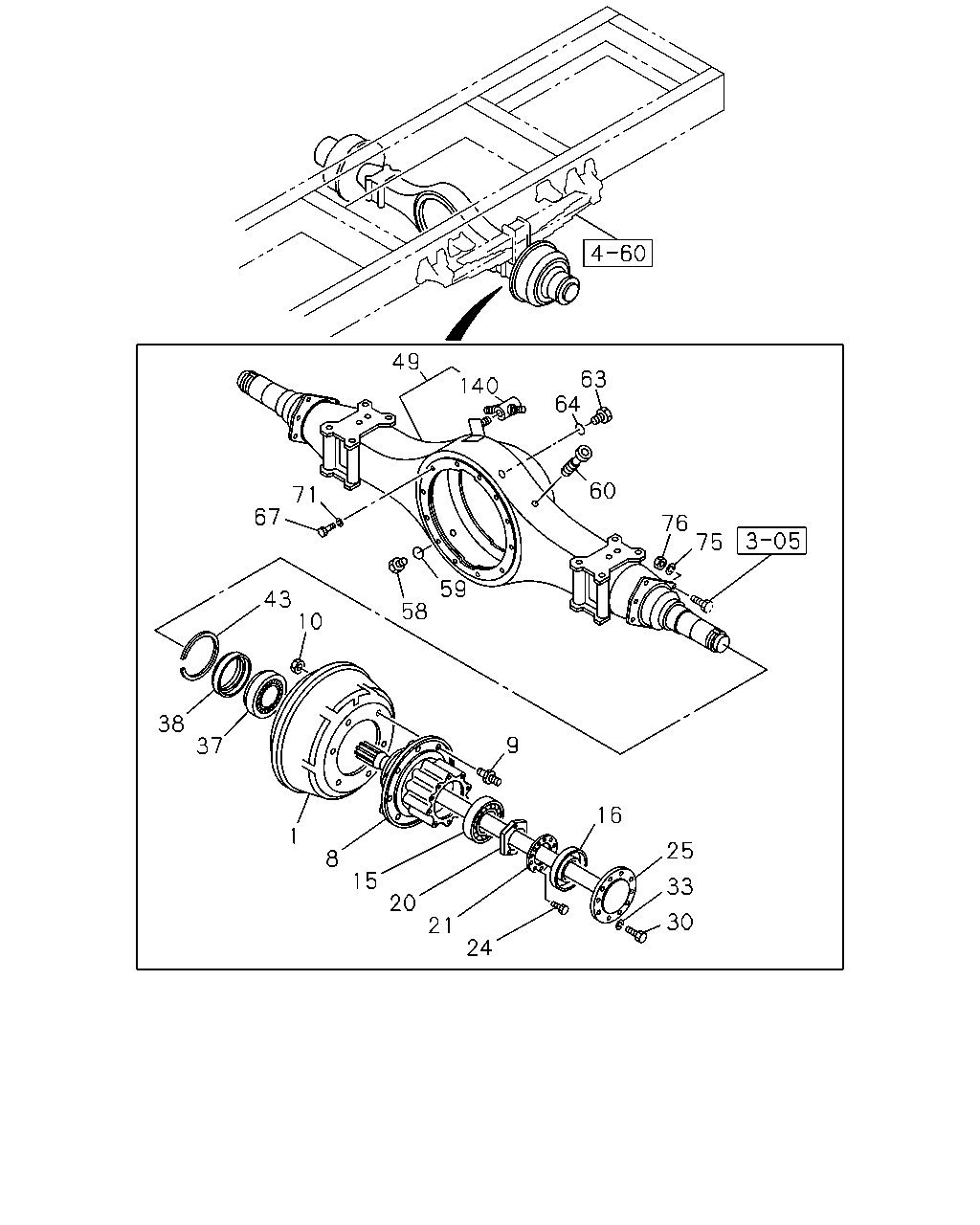

49 63 64 140 60 71 67 76 75 59 43 10 58 38 9 37 16 1 25 8 15 33 20 30 21 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-340-0	02	1	9811-9811	●
1	DRUM; BRK,RR TAI	1-42315-361-0	02	1	9812-	●
1	DRUM; BRK,RR TAI	1-42315-194-4	02	1	9811-		●
8	HUB; RR AXLE TAI	1-42311-009-6	02	1	9811-	●
8	HUB; RR AXLE TAI	1-42311-104-0	02	1	9811-		●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	9811-	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	9811-	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	9811-		●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	9811-		●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-055-0	12	1	9811-9904	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	9812-	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-055-0	16	1	9811-9904		●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	9905-		●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-049-0	02	1	9811-	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	9811-	●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	9811-		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	9811-	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9811-0102		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9811-		●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	9811-	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	9811-		●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	9811-	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	9811-		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9811-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	9811-0610	●
25	SHAFT; AXLE,RR L=925	8-97380-682-0	02	1	0611-	●
25	SHAFT; AXLE,RR L=1039	1-42171-414-0	02	1	9811-		●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	9811-	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9811-		●
33	WASHER; AXLE SHAFT ID=12.2	9-09150-812-0	20	1	9811-0603	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0604-	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9811-0603		●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-		●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-044-0	02	1	9811-	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	9811-	●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	9811-	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	9811-		●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	9811-	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	9811-		●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	9811-		●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	9811-	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	9811-		●
49	CASE; RR AXLE	1-42160-145-0	01	1	9811-	●
49	CASE; RR AXLE	1-42160-182-1	01	1	9811-0610		●
49	CASE; RR AXLE	8-98003-968-0	01	1	0611-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9811-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9811-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	9811-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9811-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9811-	●	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	9811-	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	9811-0512	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	0601-	●
67	BOLT; FINAL DRIVE SETTING M16X45	0-20801-645-0	02	1	9811-0211		●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9811-0512		●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0601-		●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9811-0512		●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0601-		●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	9811-0603	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0604-	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9811-0603		●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	12	1	9811-0603	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	12	1	0604-	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9811-0603		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-		●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	12	1	9811-0512	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	12	1	0601-	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9811-0512		●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-		●
140	CONNECTOR; AXLE CASE	1-09656-239-3	01	1	9811-	●
