4-11 — FRONT HUB AND DRUM OR ROTOR (#5743) — 110 parça

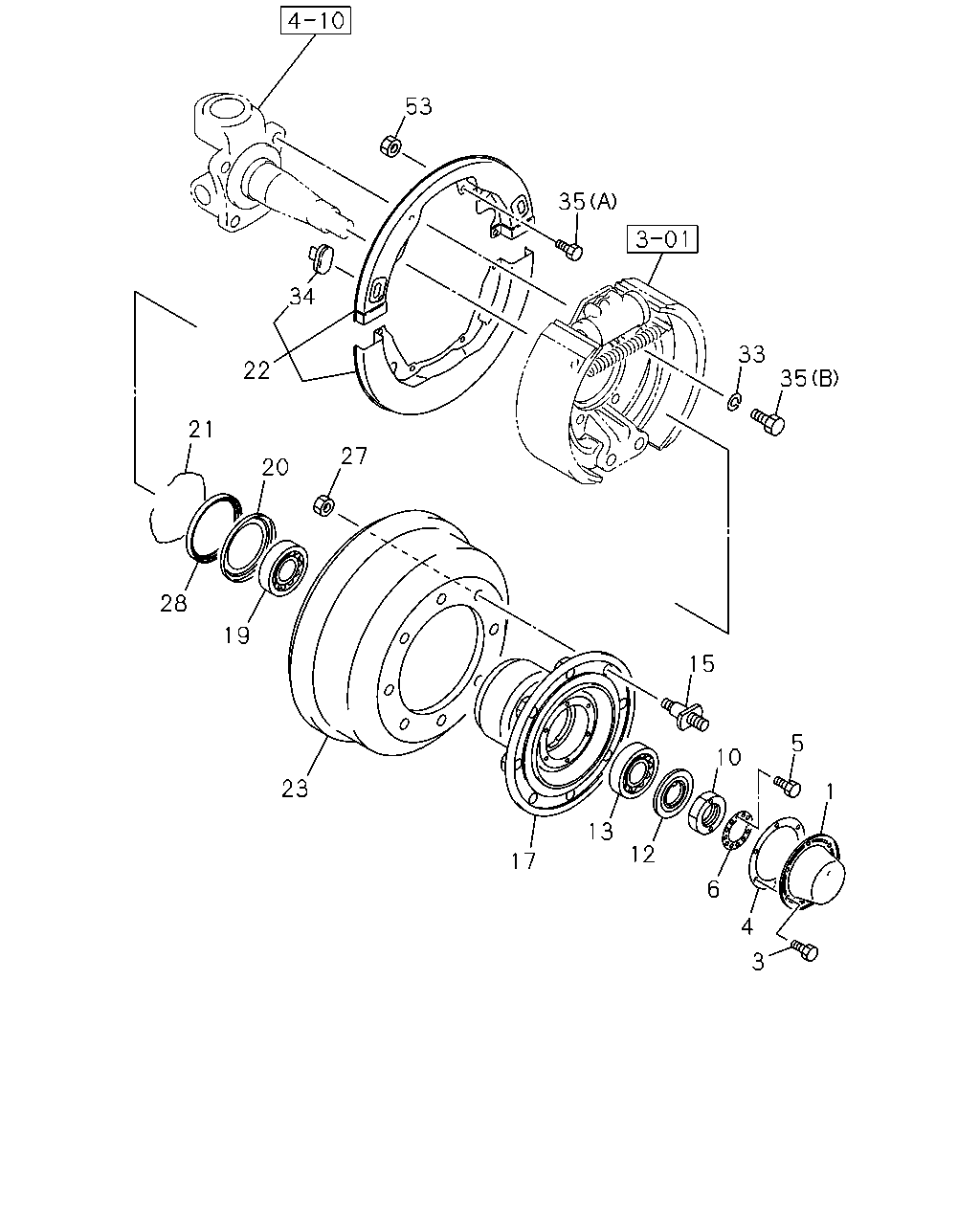

53 35 34 33 22 35 21 27 20 28 19 15 5 10 23 1 13 12 17 6 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	9811-0507	●
1	CAP; HUB,FRT AXLE	1-42313-029-0	02	1	0508-0704	●
1	CAP; HUB,FRT AXLE	1-42313-030-0	02	1	0705-	●
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	9811-		●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	9811-0512		●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	0601-		●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-029-0	02	1	9811-9906		●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-2	02	1	9907-		●
5	BOLT; LK WASHER M6X16 FLANGE	8-98084-271-0	04	1	0708-		●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9811-0512	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0708-	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9811-	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9811-0707		●
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	0708-		●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9811-	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	9811-		●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9811-		●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	9811-	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-065-0	02	1	9811-	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-234-0	02	1	9811-		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-0	06	1	9811-9906	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	06	1	9907-	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-0	06	1	9811-9906	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	06	1	9907-	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	9811-0610		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-150-1	08	1	0611-0701		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD TAI	1-42332-109-1	08	1	0702-		●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	9811-0610		●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-150-1	08	1	0611-0701		●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD TAI	1-42331-109-1	08	1	0702-		●
17	HUB; FRT AXLE TAI	1-42312-117-1	02	1	9811-9906	●
17	HUB; FRT AXLE TAI	1-42312-117-3	02	1	9907-	●
17	HUB; FRT AXLE TAI	1-42312-128-2	02	1	9811-		●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	9811-	●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-205-1	02	1	9811-	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-231-0	02	1	9811-		●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	9811-		●
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	9811-	●
21	RING; SNAP,HUB	1-09587-017-0	02	1	9811-		●
22	COVER SET; FRT BRK DRUM	1-47151-458-1	02	1	9811-		●
23	DRUM; BRK,FRT	1-42315-338-1	02	1	9811-9811	●
23	DRUM; BRK,FRT TAI	1-42315-359-1	02	1	9812-	●
23	DRUM; BRK,FRT	1-42315-336-1	02	1	9811-0308		●
23	DRUM; BRK,FRT	1-42315-355-0	02	1	0309-		●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	12	1	9811-9811	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	12	1	9812-	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9811-9904		●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-		●
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	9811-	●
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	9811-		●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9811-0603		●
33	WASHER; LK,DRUM COVER ID=16.2	0-91510-816-0	04	1	0604-		●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9811-		●
35	BOLT; DRUM COVER (A) M10X16 W/LK WASHER	0-50041-016-0	12	1	9811-0011		●
35	BOLT; DRUM COVER (A) M10X12 TAI	1-47159-187-0	12	1	0012-		●
35	BOLT; DRUM COVER (B) M16X52	1-09044-001-2	04	1	9811-		●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9811-9902		●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	9903-0512		●
53	NUT; DRUM COVER M16	0-91110-516-0	04	1	0601-		●

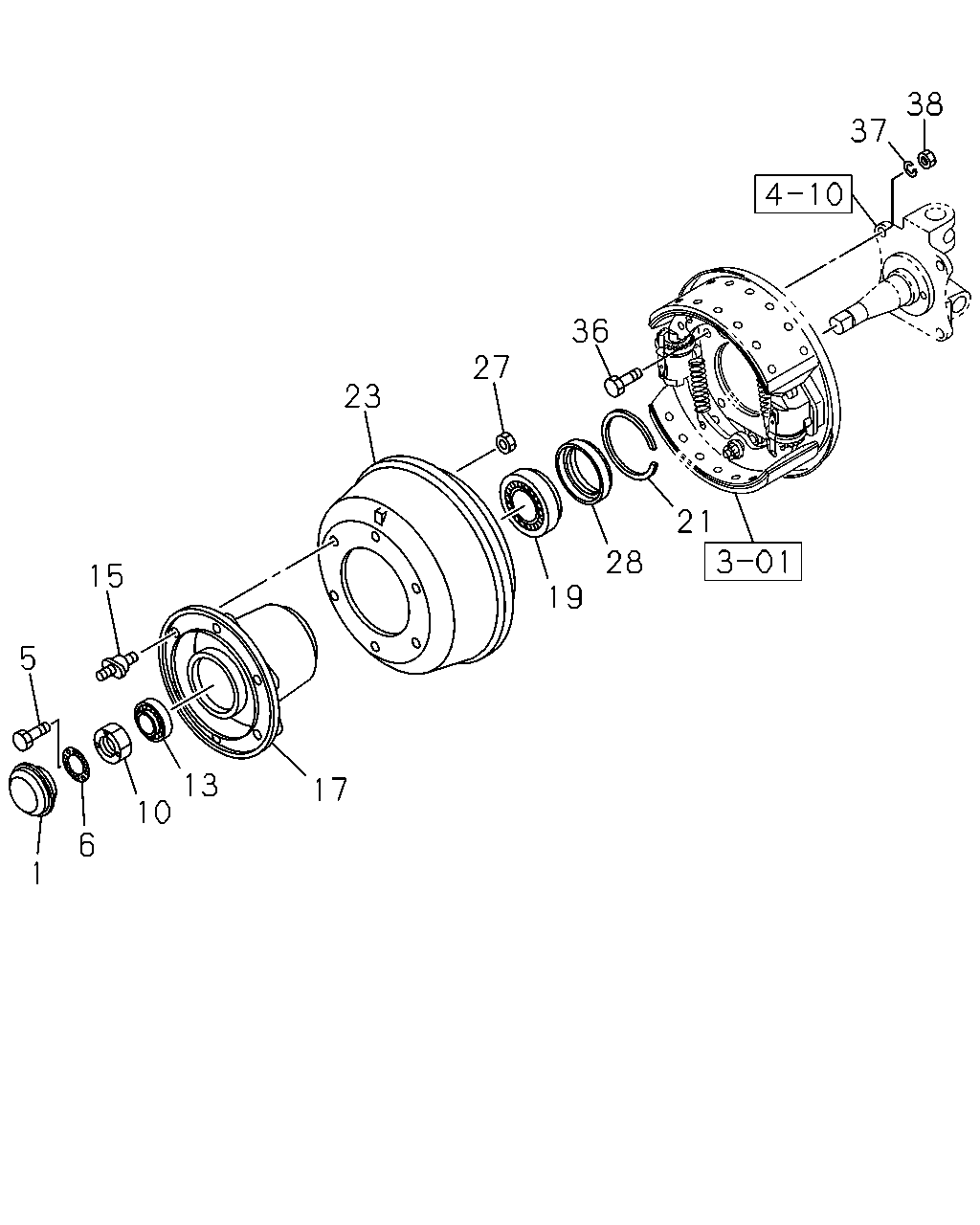

38 37 36 27 23 21 28 15 19 5 13 10 17 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	9811-0507	●
1	CAP; HUB,FRT AXLE	1-42313-029-0	02	1	0508-0704	●
1	CAP; HUB,FRT AXLE	1-42313-030-0	02	1	0705-	●
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	9811-		●
5	BOLT; LK WASHER M6X16 FLANGE	8-98084-271-0	04	1	0708-		●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9811-0512	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0708-	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9811-	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9811-0707		●
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	0708-		●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9811-	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	9811-		●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	9811-	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-065-0	02	1	9811-	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-234-0	02	1	9811-		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-0	06	1	9811-9906	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	06	1	9907-	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-0	06	1	9811-9906	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	06	1	9907-	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	9811-0610		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-150-1	08	1	0611-0701		●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X57.5 RH THREAD TAI	1-42332-109-1	08	1	0702-		●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	9811-0610		●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD	1-42331-150-1	08	1	0611-0701		●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X57.5 RH THREAD TAI	1-42331-109-1	08	1	0702-		●
17	HUB; FRT AXLE TAI	1-42312-117-1	02	1	9811-9906	●
17	HUB; FRT AXLE TAI	1-42312-117-3	02	1	9907-	●
17	HUB; FRT AXLE TAI	1-42312-128-2	02	1	9811-		●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	9811-	●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-205-1	02	1	9811-	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-231-0	02	1	9811-		●
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	9811-	●
21	RING; SNAP,HUB	1-09587-017-0	02	1	9811-		●
23	DRUM; BRK,FRT	1-42315-338-1	02	1	9811-9811	●
23	DRUM; BRK,FRT TAI	1-42315-359-1	02	1	9812-	●
23	DRUM; BRK,FRT	1-42315-336-1	02	1	9811-0308		●
23	DRUM; BRK,FRT	1-42315-355-0	02	1	0309-		●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	12	1	9811-9811	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	12	1	9812-	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9811-9904		●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-		●
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	9811-	●
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	9811-		●
36	BOLT; BACK PLATE M14X45	0-20801-445-0	08	1	9811-9902	●
36	BOLT; BACK PLATE M14X45	9-92061-445-0	08	1	9903-	●
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	9811-0603	●
37	WASHER; LK,BACK PLATE ID=14.2	0-91510-814-0	08	1	0604-	●
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	9811-0512	●
38	NUT; BACK PLATE M14	0-91110-514-0	08	1	0601-	●
