Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#57428) — 54 parça

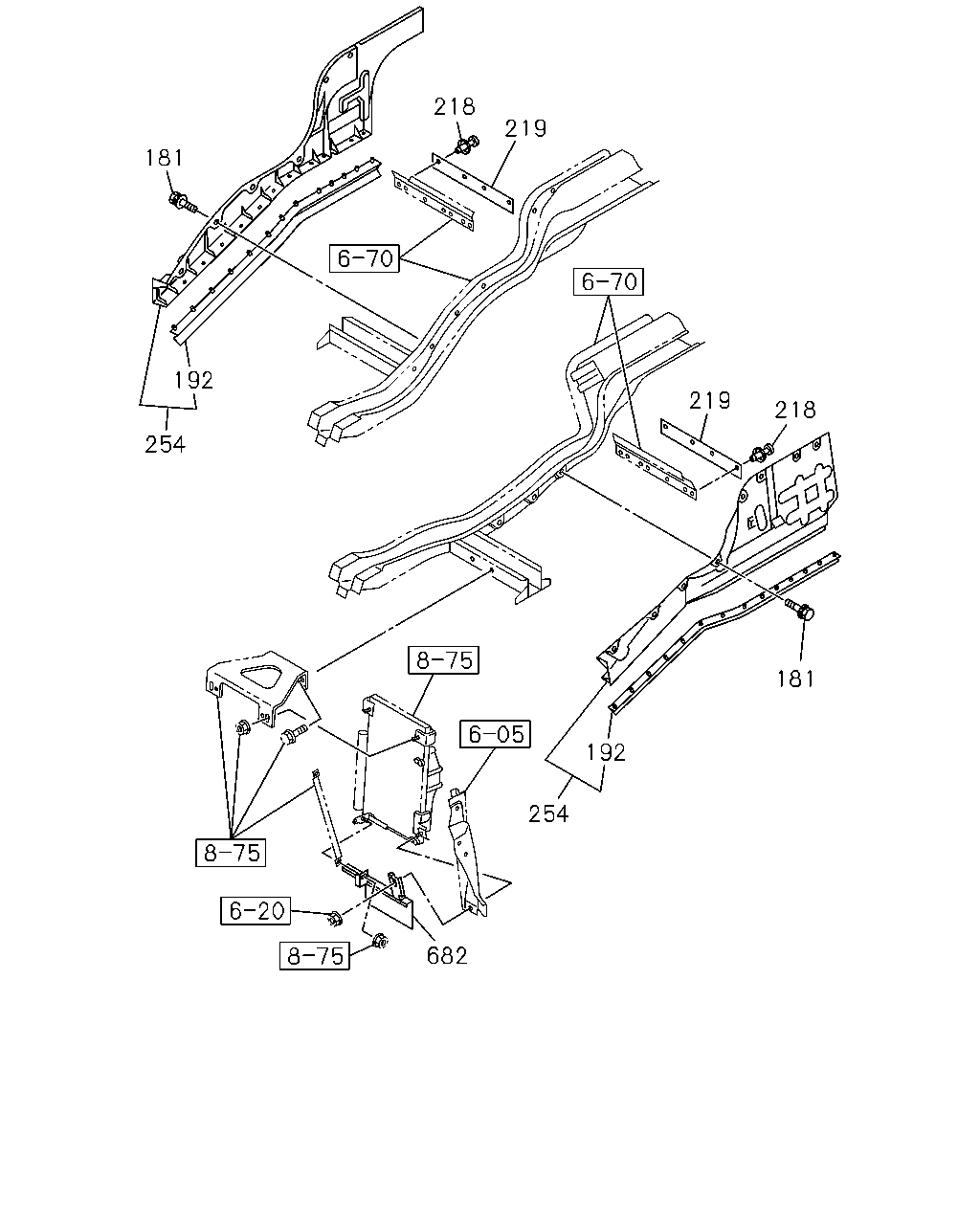

218 219 181 192 219 218 254 181 192 254 682

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	1010-	●	●
192	SEAL; MUD COVER	8-98041-159-2	01	1	1010-	●	●
192	SEAL; MUD COVER	8-98041-158-1	01	1	1010-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	1010-	●	●
219	FLAP; MUD GUARD	8-98041-150-1	02	1	1010-	●	●
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	1010-	●	●
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	1010-	●	●
682	FLAP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) FRONT UNDER RUN PROTECTOR<EBE>	8-98059-228-3	01	1	1108-	●	●

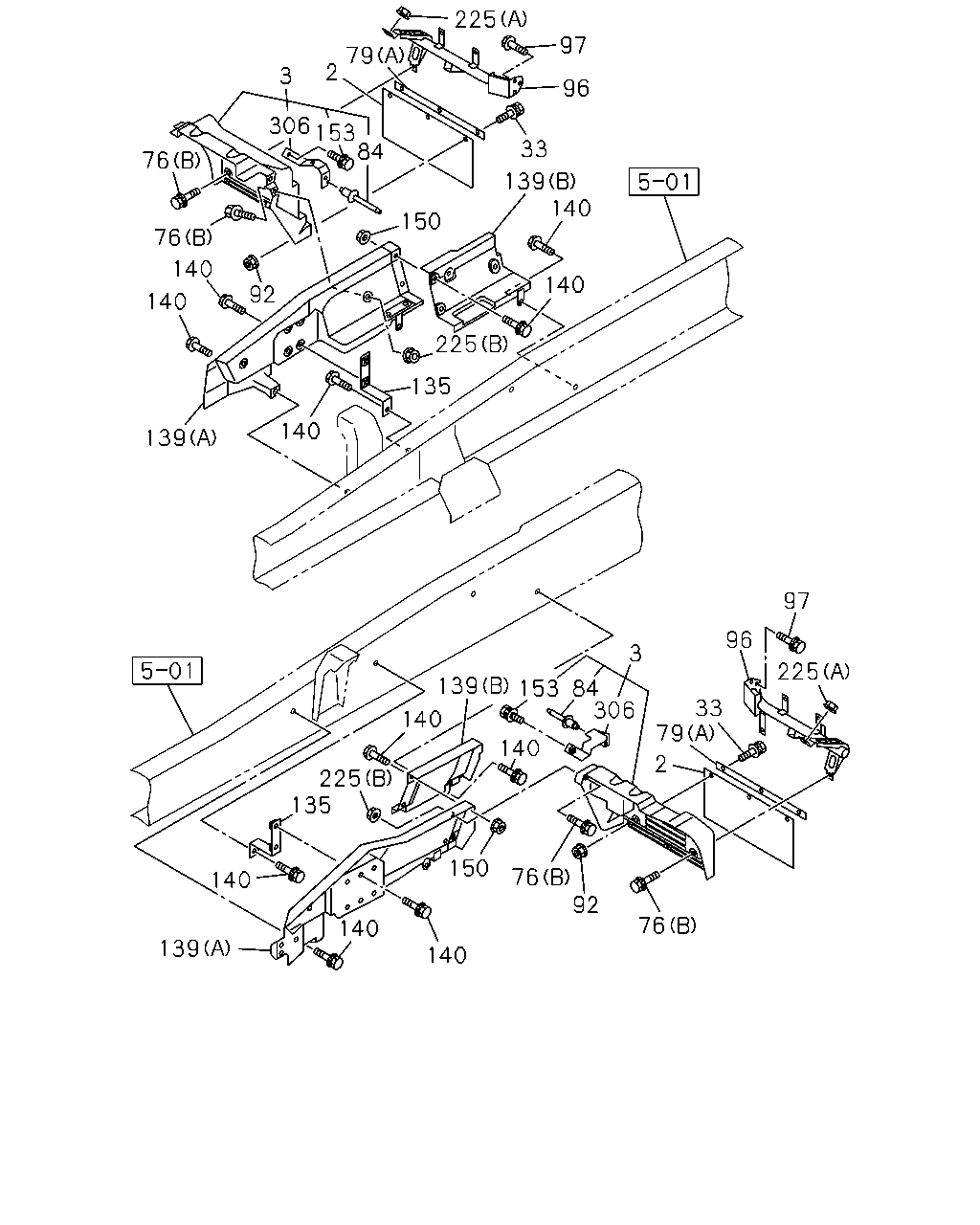

225 79 2 3 97 33 96 139 140 140 150 84 153 306 76 76 140 140 92 139 140 135 225 97 96 225 33 79 306 84 153 139 140 76 92 76 150 140 140 140 135 225 140 139 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR	1-79931-482-0	02	1	1010-	●	●
3	GUARD; MUD,RR	1-79931-471-0	01	1	1010-1212	●	●
3	GUARD; MUD,RR	8-98196-103-0	01	1	1301-	●	●
3	GUARD; MUD,RR	1-79931-475-0	01	1	1010-1212	●	●
3	GUARD; MUD,RR	8-98196-111-0	01	1	1301-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1010-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1010-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	1010-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1010-	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1301-	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1301-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	1010-	●	●
96	STAY; MUD GUARD	8-98066-745-2	01	1	1010-	●	●
96	STAY; MUD GUARD	1-79931-479-3	01	1	1010-	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	07	1	1010-	●	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	1010-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1010-	●	●
139	PANEL; SIDE (A)	8-98090-078-0	01	1	1010-	●	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	1010-	●	●
139	PANEL; SIDE (A)	8-98090-077-0	01	1	1010-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	1010-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	1010-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1010-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1010-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1301-	●	●
306	BRACKET; MUD GUARD	8-98196-126-0	01	1	1301-	●	●

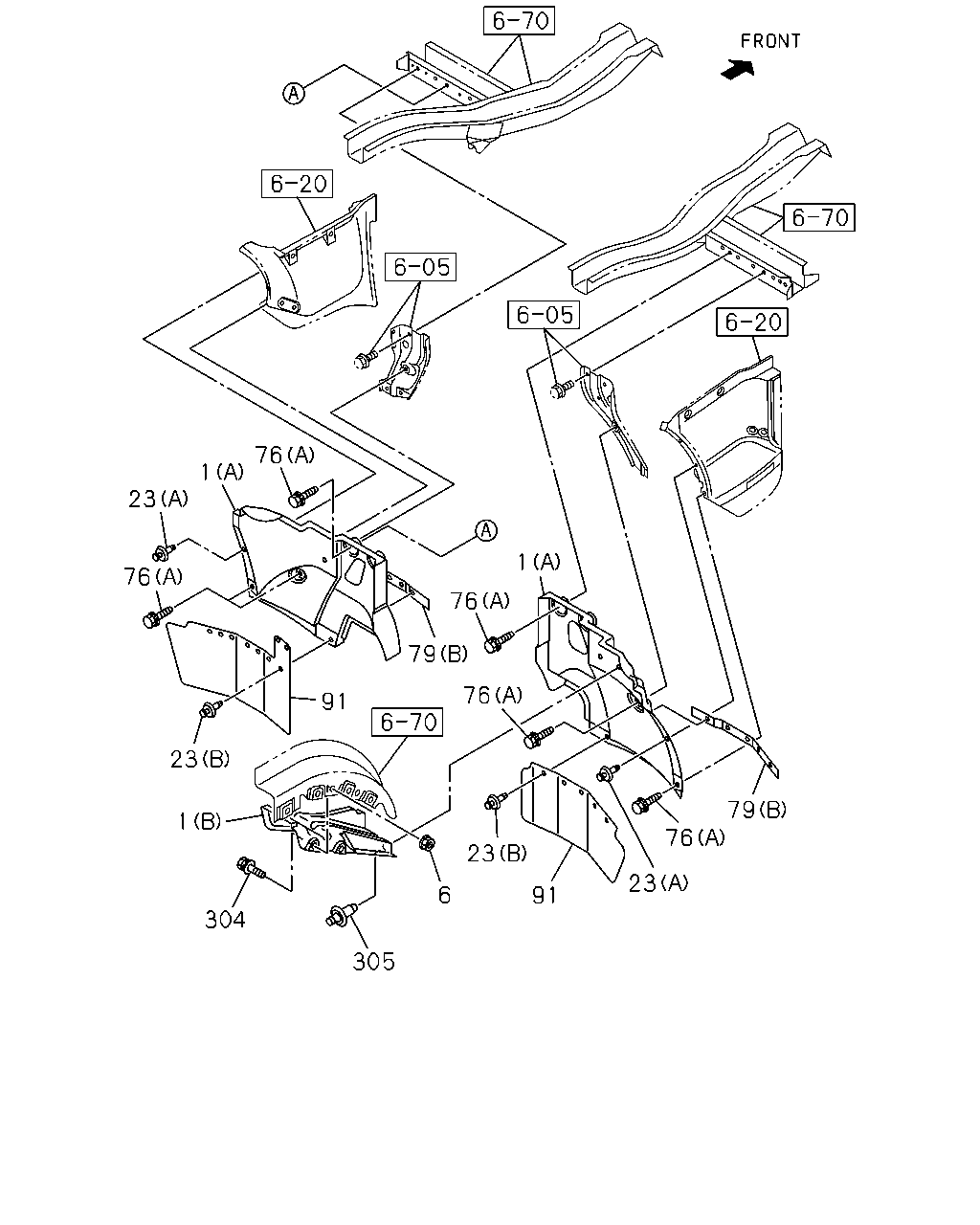

76 1 23 1 76 76 79 76 91 23 79 1 76 23 23 6 91 304 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-188-0	01	1	1010-	●	●
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	1010-	●	●
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	1010-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	1010-	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	1010-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	1010-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1010-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	1010-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1010-	●	●
91	COVER; MUD,FRT	8-98092-836-0	01	1	1010-	●	●
91	COVER; MUD,FRT	8-98092-834-0	01	1	1010-	●	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	1010-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	1010-	●	●
