Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#5742) — 322 parça

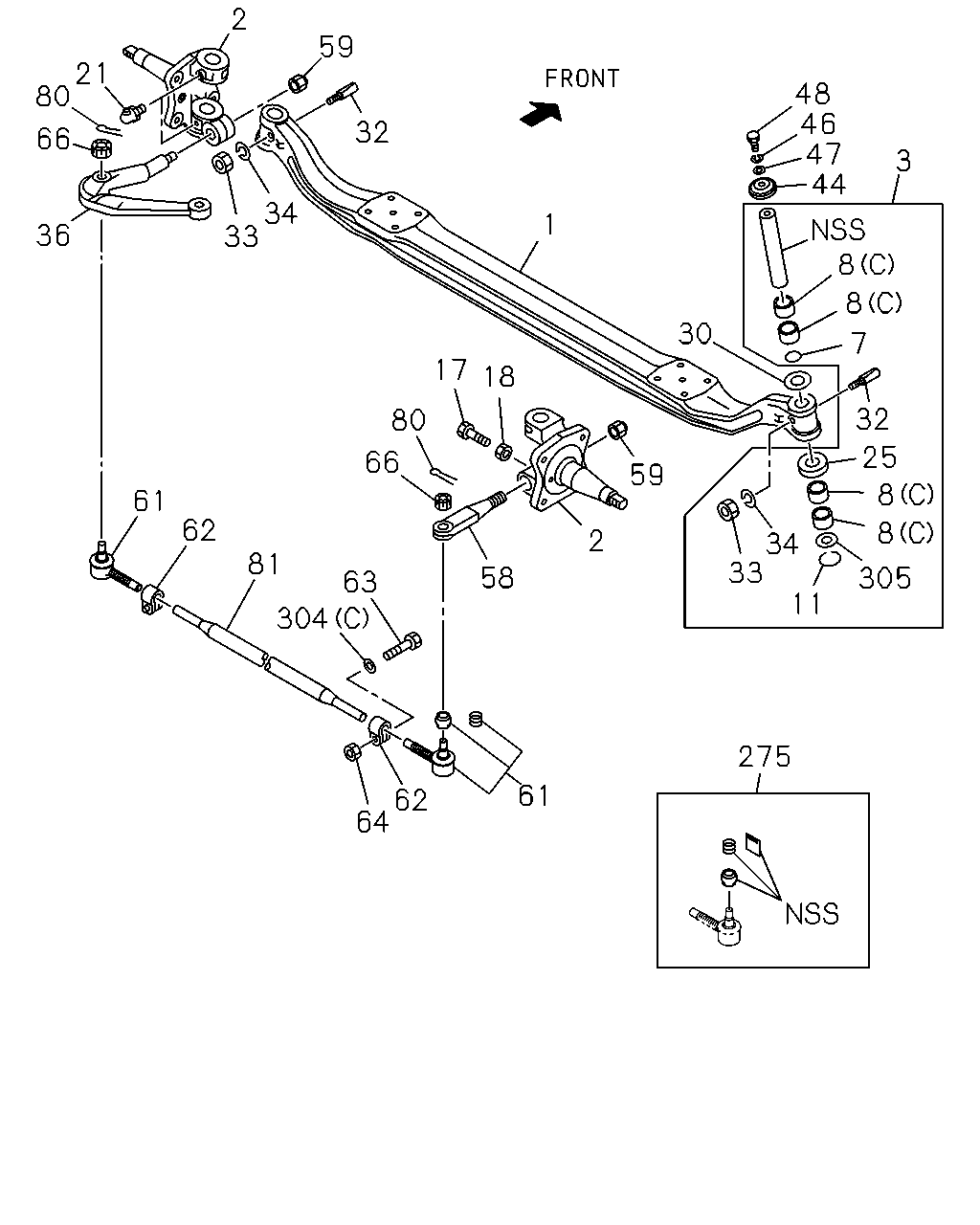

2 59 21 80 48 46 47 44 32 66 3 34 33 1 8 36 8 30 7 17 18 32 80 25 66 59 8 61 62 8 2 34 33 81 58 305 63 304 11 275 61 62 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-138-0	01	1	9811-9905	●
1	AXLE; FRT	1-43111-126-2	01	1	9906-	●
1	AXLE; FRT	1-43111-113-5	01	1	9811-		●
2	KNUCKLE; FRT AXLE	1-43132-097-0	01	1	9811-	●
2	KNUCKLE; FRT AXLE	1-43131-097-0	01	1	9811-	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	9811-		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	9811-		●
3	KING PIN SET	1-87830-716-0	01	1	9811-9906	●
3	KING PIN SET	1-87830-717-0	01	1	9811-9906	●
3	KING PIN SET	1-87831-144-5	01	1	9907-	●
3	KING PIN SET	1-87831-145-5	01	1	9907-	●
3	KING PIN SET	1-87830-738-5	02	1	9811-		●
7	SEAL; OIL,KING PIN	1-09625-005-1	02	1	9811-	●
8	BEARING; NEEDLE,KING PIN (C) NTN	1-09811-001-0	08	1	9811-	●
8	BEARING; NEEDLE,KING PIN (C) NSK	1-09811-339-0	08	1	9811-	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9811-		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9811-		●
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	9811-	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9811-		●
17	BOLT; STOPPER KNUCKLE M14X42.5	1-09009-008-0	02	1	9811-	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9811-0705		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-		●
18	NUT; STOPPER BOLT,KNUCKLE M14	5-09400-034-0	02	1	9811-	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9811-0512		●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9811-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	9811-	●
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	9811-	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9811-		●
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9811-		●
32	BOLT; KEY,KING PIN	1-43116-003-1	02	1	9811-	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9811-		●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9811-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9811-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-055-8	01	1	9811-	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	9811-		●
44	COVER; KING PIN	1-43175-015-0	02	1	9811-0704	●
44	COVER; KING PIN	1-43175-031-0	02	1	0705-	●
44	COVER; KING PIN	1-43175-014-1	02	1	9811-		●
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	9811-0603	●
46	WASHER; LK,COVER ID=12.2	0-91510-512-0	02	1	0604-	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	9811-0605	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0606-	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	9811-	●
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	9811-0512		●
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0601-		●
58	ARM; TIE ROD	1-43134-034-4	01	1	9811-	●
58	ARM; TIE ROD TAI	1-43135-042-3	01	1	9811-		●
58	ARM; TIE ROD TAI	1-43134-042-3	01	1	9811-		●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	9811-0704	●
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0705-	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9811-0704		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-		●
61	ROD END; TIE ROD	1-43150-680-2	01	1	9811-	●
61	ROD END; TIE ROD	1-43150-679-2	01	1	9811-	●
61	ROD END; TIE ROD	1-43150-737-1	01	1	9811-9812		●
61	ROD END; TIE ROD	1-43150-802-0	01	1	9901-		●
61	ROD END; TIE ROD	1-43150-736-1	01	1	9811-9812		●
61	ROD END; TIE ROD	1-43150-801-0	01	1	9901-		●
62	CLAMP; TIE ROD	1-43159-002-3	02	1	9811-	●
63	BOLT; CLAMP TIE ROD M12X45 FLANGE	0-28091-245-0	02	1	9811-0512	●
63	BOLT; CLAMP TIE ROD M12X45 FLANGE	0-28061-245-0	02	1	0601-	●
64	NUT; CLAMP M12	9-99110-512-0	02	1	9811-0512	●
64	NUT; CLAMP M12 TAI	0-91110-512-0	02	1	0601-	●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-021-1	02	1	9811-	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9811-		●
80	PIN; SPLIT,ROD END OD=3.7 L=22	9-08114-022-0	02	1	9811-0606	●
80	PIN; SPLIT,ROD END OD=3.7 L=22	0-81124-022-0	02	1	0607-	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9811-0606		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
81	ROD; TIE	1-43151-109-0	01	1	9811-	●
81	ROD; TIE	1-43151-119-0	01	1	9811-		●
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	9811-	●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9811-9812		●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9811-0610		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0611-0704		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-		●
304	WASHER; PL (C) ID=12.5	9-09164-512-0	02	1	9811-	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	9811-		●
305	COVER; KNUCKLE	1-43175-022-0	02	1	9811-0704	●
305	COVER; KNUCKLE	1-43175-030-0	02	1	0705-	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9811-0704		●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-		●

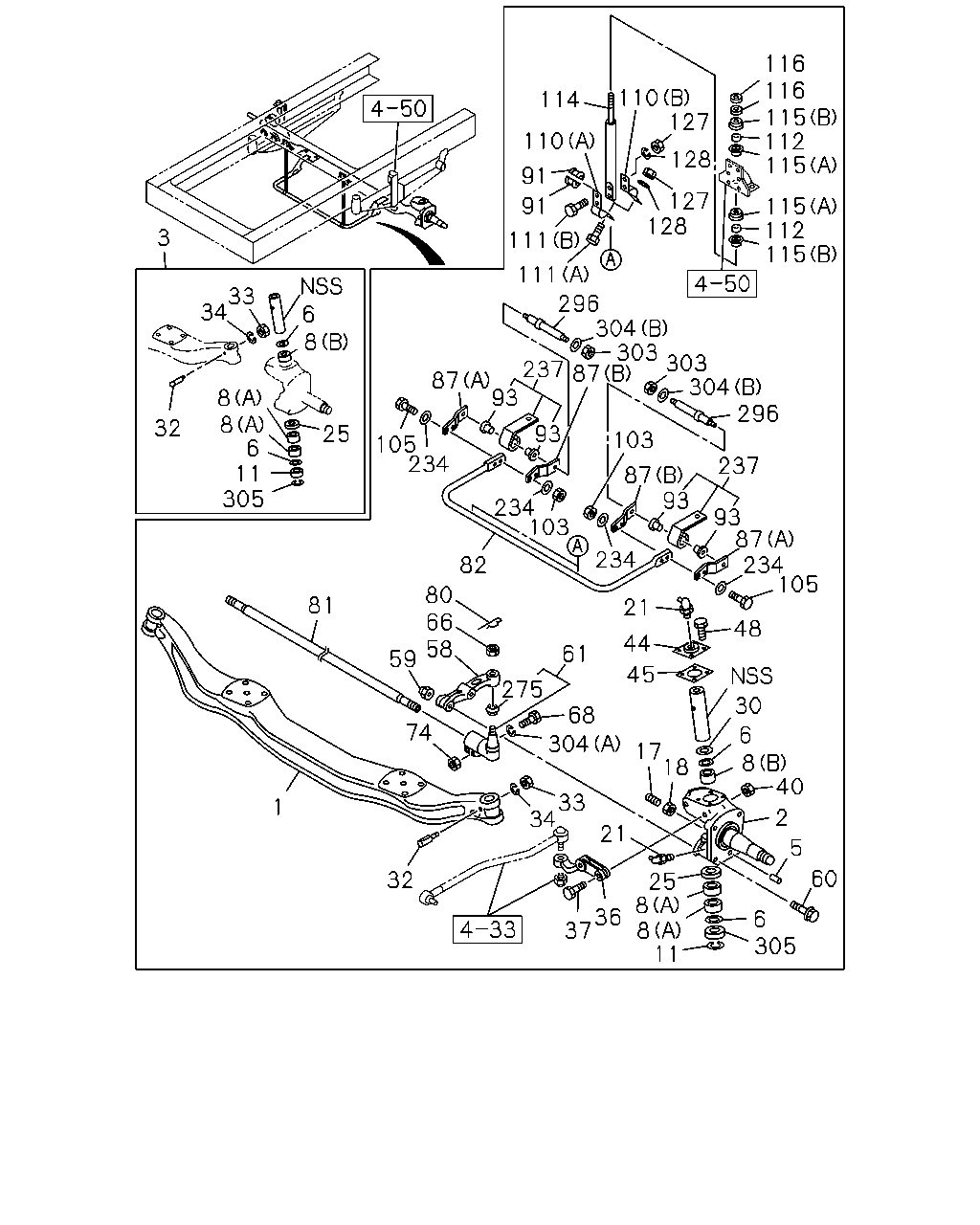

116 116 115 112 115 110 127 114 110 128 91 127 128 91 115 112 115 3 111 111 6 8 33 34 296 304 303 303 237 87 304 296 87 93 93 234 103 8 8 6 11 305 32 25 103 105 234 237 87 93 93 87 234 105 234 82 80 66 58 81 21 48 44 61 59 45 275 30 68 74 6 8 40 304 17 18 33 34 1 2 21 5 60 32 25 8 8 11 36 37 6 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-138-0	01	1	9811-9905	●
1	AXLE; FRT	1-43111-126-2	01	1	9906-	●
1	AXLE; FRT	1-43111-113-5	01	1	9811-		●
2	KNUCKLE; FRT AXLE	1-43132-097-0	01	1	9811-	●
2	KNUCKLE; FRT AXLE	1-43131-097-0	01	1	9811-	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	9811-		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	9811-		●
3	KING PIN SET	1-87830-716-0	01	1	9811-9906	●
3	KING PIN SET	1-87830-717-0	01	1	9811-9906	●
3	KING PIN SET	1-87831-144-5	01	1	9907-	●
3	KING PIN SET	1-87831-145-5	01	1	9907-	●
3	KING PIN SET	1-87830-738-5	02	1	9811-		●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9811-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	9811-		●
8	BEARING; NEEDLE,KING PIN (C) NTN	1-09811-001-0	08	1	9811-	●
8	BEARING; NEEDLE,KING PIN (C) NSK	1-09811-339-0	08	1	9811-	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9811-		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9811-		●
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	9811-	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9811-		●
17	BOLT; STOPPER KNUCKLE M14X42.5	1-09009-008-0	02	1	9811-	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9811-0705		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-		●
18	NUT; STOPPER BOLT,KNUCKLE M14	5-09400-034-0	02	1	9811-	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9811-0512		●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9811-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	9811-	●
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	9811-	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9811-		●
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	9811-	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9811-		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9811-		●
32	BOLT; KEY,KING PIN	1-43116-003-1	02	1	9811-	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9811-		●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9811-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9811-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-055-8	01	1	9811-	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	9811-		●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9811-0704		●
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-		●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9811-0704		●
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-		●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9811-0704		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-		●
44	COVER; KING PIN	1-43175-015-0	02	1	9811-0704	●
44	COVER; KING PIN	1-43175-031-0	02	1	0705-	●
44	COVER; KING PIN	1-43175-014-1	02	1	9811-		●
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	9811-		●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	9811-	●
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	9811-0512		●
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0601-		●
58	ARM; TIE ROD	1-43134-034-4	01	1	9811-	●
58	ARM; TIE ROD TAI	1-43135-042-3	01	1	9811-		●
58	ARM; TIE ROD TAI	1-43134-042-3	01	1	9811-		●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	9811-0704	●
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0705-	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9811-0704		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-		●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9811-0704		●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-		●
61	ROD END; TIE ROD	1-43150-680-2	01	1	9811-	●
61	ROD END; TIE ROD	1-43150-679-2	01	1	9811-	●
61	ROD END; TIE ROD	1-43150-737-1	01	1	9811-9812		●
61	ROD END; TIE ROD	1-43150-802-0	01	1	9901-		●
61	ROD END; TIE ROD	1-43150-736-1	01	1	9811-9812		●
61	ROD END; TIE ROD	1-43150-801-0	01	1	9901-		●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-021-1	02	1	9811-	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9811-		●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0611-0704		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-		●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9811-0610		●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9811-0512		●
74	NUT; TIE ROD END M12 TAI	0-91110-512-0	04	1	0601-		●
80	PIN; SPLIT,ROD END OD=3.7 L=22	9-08114-022-0	02	1	9811-0606	●
80	PIN; SPLIT,ROD END OD=3.7 L=22	0-81124-022-0	02	1	0607-	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9811-0606		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
81	ROD; TIE	1-43151-109-0	01	1	9811-	●
81	ROD; TIE	1-43151-119-0	01	1	9811-		●
82	BAR; STAB,FRT SUSP TAI	8-97530-550-0	01	1	9811-0610		●
82	BAR; STAB,FRT SUSP TAI	1-51771-113-0	01	1	0611-0701		●
82	BAR; STAB,FRT SUSP TAI	8-97530-550-0	01	1	0702-		●
87	BRACKET; STABILIZER (A) TAI	8-97530-551-0	02	1	9811-0610		●
87	BRACKET; STABILIZER (A) TAI	1-51781-083-1	02	1	0611-0701		●
87	BRACKET; STABILIZER (A) TAI	8-97530-551-0	02	1	0702-		●
87	BRACKET; STABILIZER (B) TAI	8-97530-552-0	02	1	9811-0610		●
87	BRACKET; STABILIZER (B) TAI	1-51781-084-1	02	1	0611-0701		●
87	BRACKET; STABILIZER (B) TAI	8-97530-552-0	02	1	0702-		●
91	BUSHING; RUBBER,STAB BAR	1-51779-084-0	04	1	9811-		●
93	BUSHING; STABILIZER	1-51689-015-3	04	1	0702-		●
93	BUSHING; STABILIZER	1-51689-015-1	04	1	9811-0610		●
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	9811-0512		●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0601-		●
105	BOLT; BRKT FIX M14X70	9-91061-470-0	04	1	9811-0206		●
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0207-		●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	9811-		●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	9811-		●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	9811-		●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	9811-		●
112	BUSHING; ROD	9-51631-050-0	04	1	9811-		●
114	ROD; STAB BAR TAI	8-97530-554-1	02	1	9811-0610		●
114	ROD; STAB BAR TAI	1-51773-084-0	02	1	0611-0701		●
114	ROD; STAB BAR TAI	8-97530-554-1	02	1	0702-		●
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.8	1-51631-022-0	04	1	9811-		●
115	WASHER; CENTER,STAB TO FRAME (B) ID=14.5	9-51631-051-0	04	1	9811-		●
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	9811-0512		●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-		●
127	NUT; CLAMP M12	9-99110-412-0	06	1	9811-0512		●
127	NUT; CLAMP M12 TAI	0-91110-512-0	06	1	0601-		●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	9811-0603		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-		●
234	WASHER; STAB ID=15 TAI	9-09651-069-0	08	1	9811-		●
237	SUPPORT; STAB BAR TAI	1-51681-724-0	02	1	9811-0206		●
237	SUPPORT; STAB BAR TAI	8-97530-389-0	02	1	0207-0610		●
237	SUPPORT; STAB BAR TAI	1-51681-724-0	02	1	0611-0701		●
237	SUPPORT; STAB BAR TAI	8-97530-389-0	02	1	0702-		●
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	9811-	●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9811-9812		●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-		●
296	PIN; STAB	1-51682-145-2	02	1	9811-		●
303	NUT; PIN M20 TAI	9-99110-520-0	02	1	9811-0512		●
303	NUT; PIN M20	0-91110-520-0	02	1	0601-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9811-0610		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0611-0704		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-		●
304	WASHER; PL (C) ID=12.5	9-09164-512-0	02	1	9811-	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	9811-		●
305	COVER; KNUCKLE	1-43175-022-0	02	1	9811-0704	●
305	COVER; KNUCKLE	1-43175-030-0	02	1	0705-	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9811-0704		●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
