Isuzu WW
▶
TRUCKS
▶
FSR
▶
11327 - FSR(AUST/NZ)EURO5
▶
5 - Frame, Cab Mounting
▶

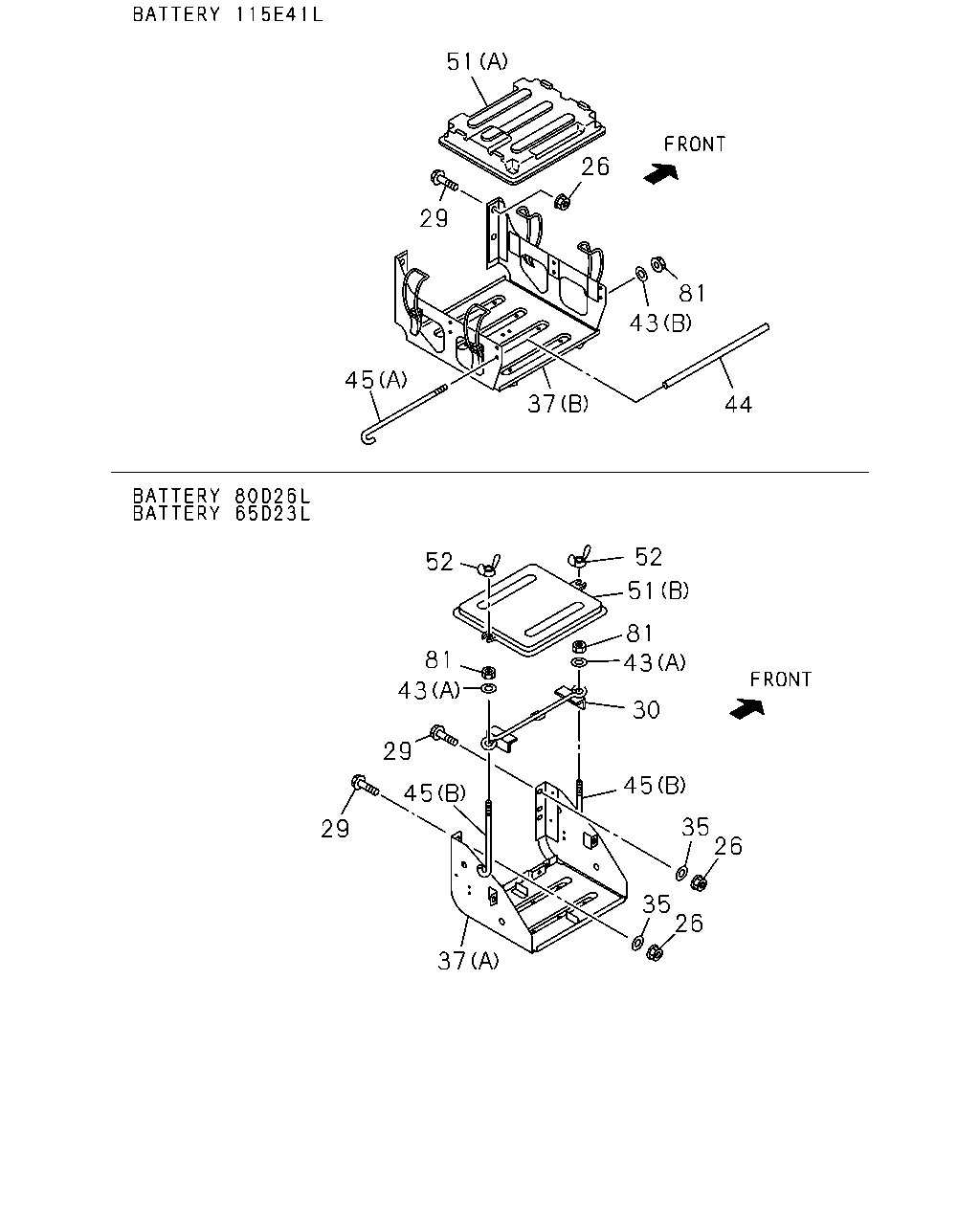

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#57415) — 17 parça
Tümü
A - FCD5MS
B - FCR5MS
37
26
35
26
35
45
30
43
81
52
51
52
81
43
29
45
29
45
37
44
43
81
26
51
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1010-
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1010-
●
●
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1010-
●
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1010-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1010-1405
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1010-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1010-
●
●
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1010-
●
●
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1010-
●
●
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A)
8-97134-740-0
02
1
1010-
●
●
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
9-53616-615-0
02
1
1010-
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1010-
●
●
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1010-
●
●
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1010-
●
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1010-
●
●
