5-01 — FRAME AND OTHER PARTS (#57412) — 145 parça

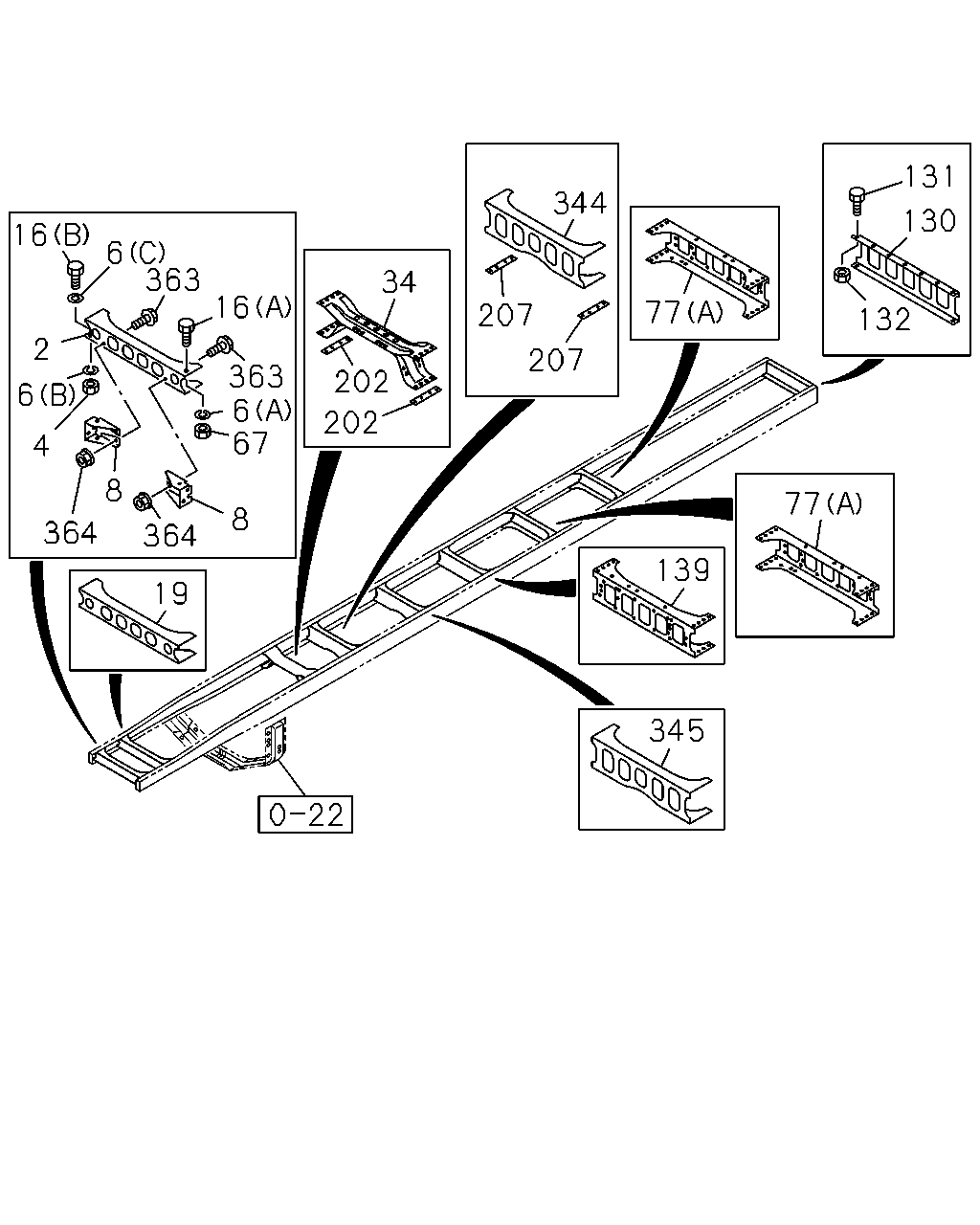

çizim 171336
131 344 130 16 6 363 34 16 77 207 132 2 207 202 363 6 67 6 202 4 8 77 8 364 364 139 19 345
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> EXC. KD PREPARATORY PACK<6HF> 		8-97609-462-9 01 1 1108- ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1010-1107 ● ● ●
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE>,KD PREPARATORY PACK<6HF> 		8-97615-669-3 01 1 1108- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1010-1107 ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1108- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1010- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1010-1107 ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2 		0-91510-814-0 02 1 1108- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1010-1107 ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15 		8-98010-627-1 02 1 1108- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1010- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1010- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1010- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1010-1107 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40 		0-20851-440-0 02 1 1108- ● ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> EXC. KD PREPARATORY PACK<6HF> 		8-97609-463-9 01 1 1108- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1010-1107 ● ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE>,KD PREPARATORY PACK<6HF> 		8-97615-670-4 01 1 1108- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1010- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1010- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (A) REAR 		8-97609-481-4 01 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (B) FRONT 		8-97609-483-0 01 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
(A) FRONT,REAR 		8-97609-481-4 02 1 1010- ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (A) FRONT,REAR 		8-97609-481-4 02 1 1010- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1010- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1010- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1010- ● ● ●
139 MEMBER; CROSS,6TH 8-97609-481-4 01 1 1010- ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1010- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1010- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1010- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1010- ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1010- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1010- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1010- ● ● ●

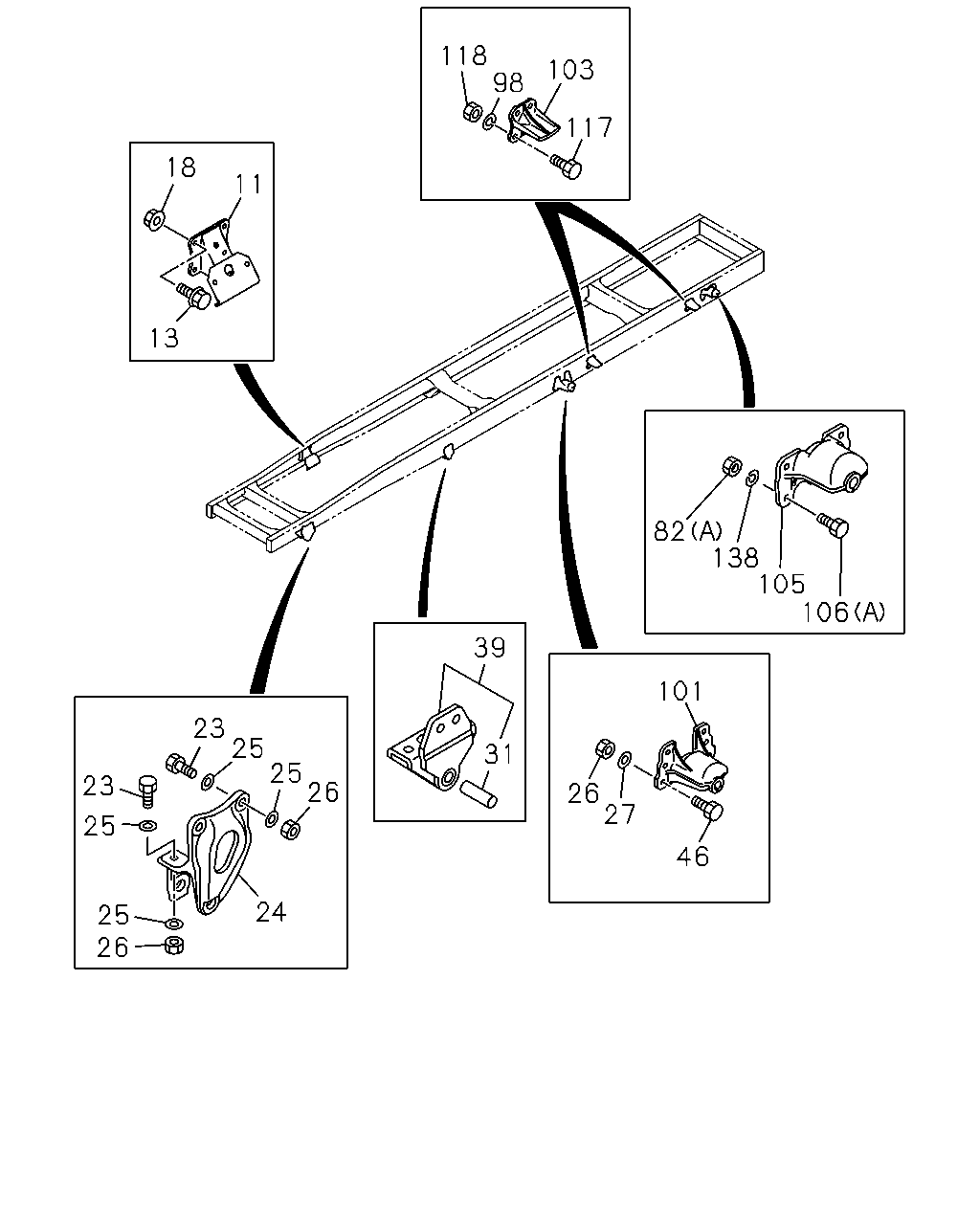

çizim 171337
118 98 103 117 18 11 13 82 138 105 106 39 101 23 25 25 26 31 23 26 27 25 46 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1010- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1010- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1010- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1010- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1010- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1010- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1010- ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1010- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1010- ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1010- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1010- ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1010- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1010- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1010- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1010- ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1010- ●
82 NUT; BRKT
AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 1010- ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 1010- ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 1010- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1010- ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1010- ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1010- ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 1010- ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1010- ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 1010- ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1010- ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 1010- ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1010- ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1010- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1010- ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1010- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1010- ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1010- ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1010- ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1010- ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1010- ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1010- ●

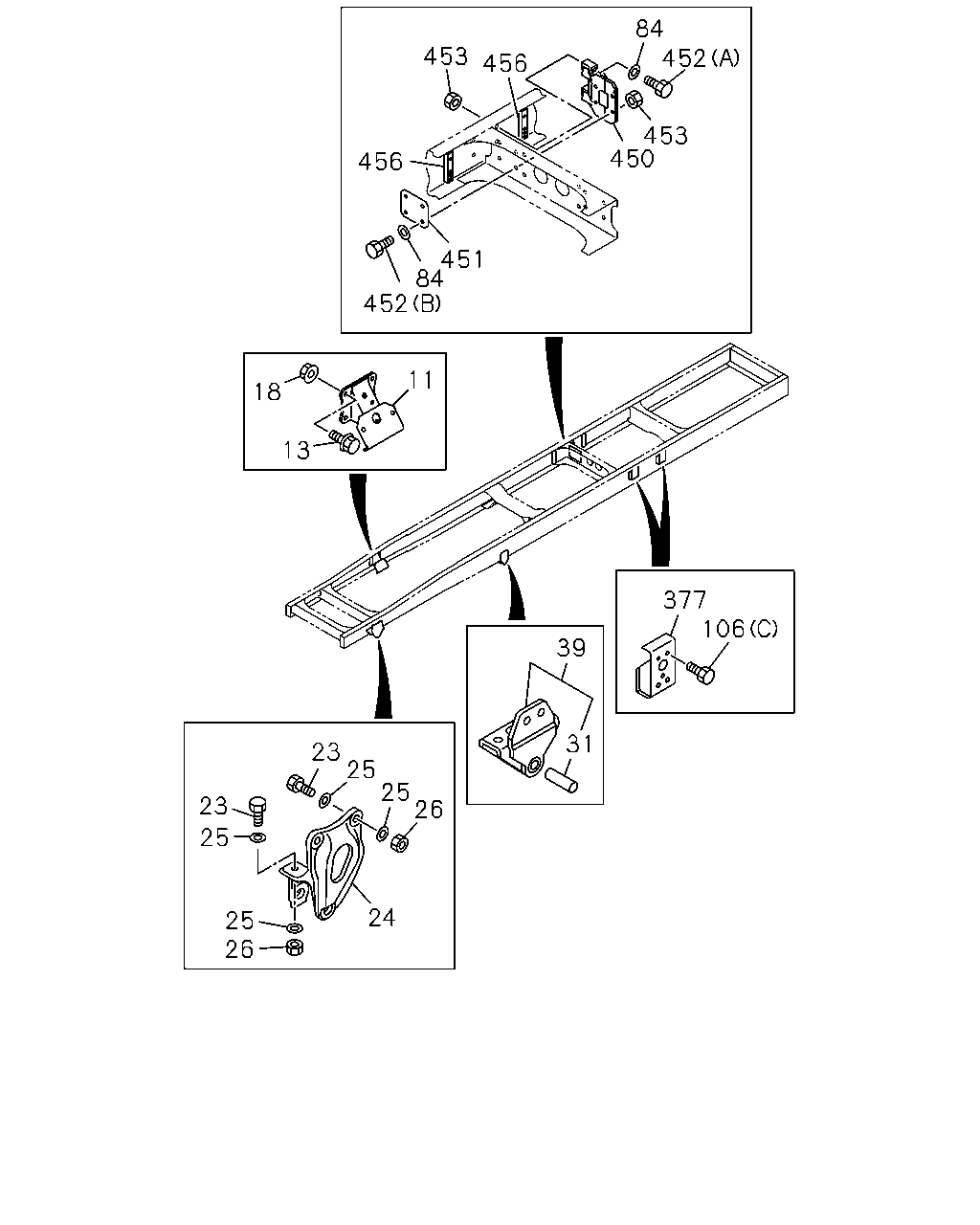

çizim 171359
84 452 453 456 453 450 456 451 84 452 11 18 13 377 106 39 31 23 25 25 26 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1010- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1010- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1010- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1010- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1010- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1010- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1010- ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1010- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1010- ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1010- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1010- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1010- ● ● ●
84 WASHER; PL,BRKT
AIR SUS(FCD***) ID=16.2 		1-09503-316-0 12 1 1010- ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1010- ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1010- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1010- ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1010- ●
377 BRACKET; TOP PLATE
AIR SUS(FCD***) 		8-98061-350-0 04 1 1010- ●
450 BRACKET; V ROD
AIR SUS(FCD***) 		1-53353-121-0 02 1 1010- ●
451 GUSSET; V ROD
AIR SUS(FCD***) 		8-97610-436-0 02 1 1010- ●
452 BOLT; V ROD
AIR SUS(FCD***) (B) M16X50 		1-09000-679-0 08 1 1010- ●
452 BOLT; V ROD
AIR SUS(FCD***) (A) M16X110 		1-09000-738-0 04 1 1010- ●
453 NUT; V ROD
AIR SUS(FCD***) M16 FLANGE 		1-09440-066-0 12 1 1010- ●
456 PATCH; STOPPER
AIR SUS(FCD***) 		8-97610-437-1 04 1 1010- ●

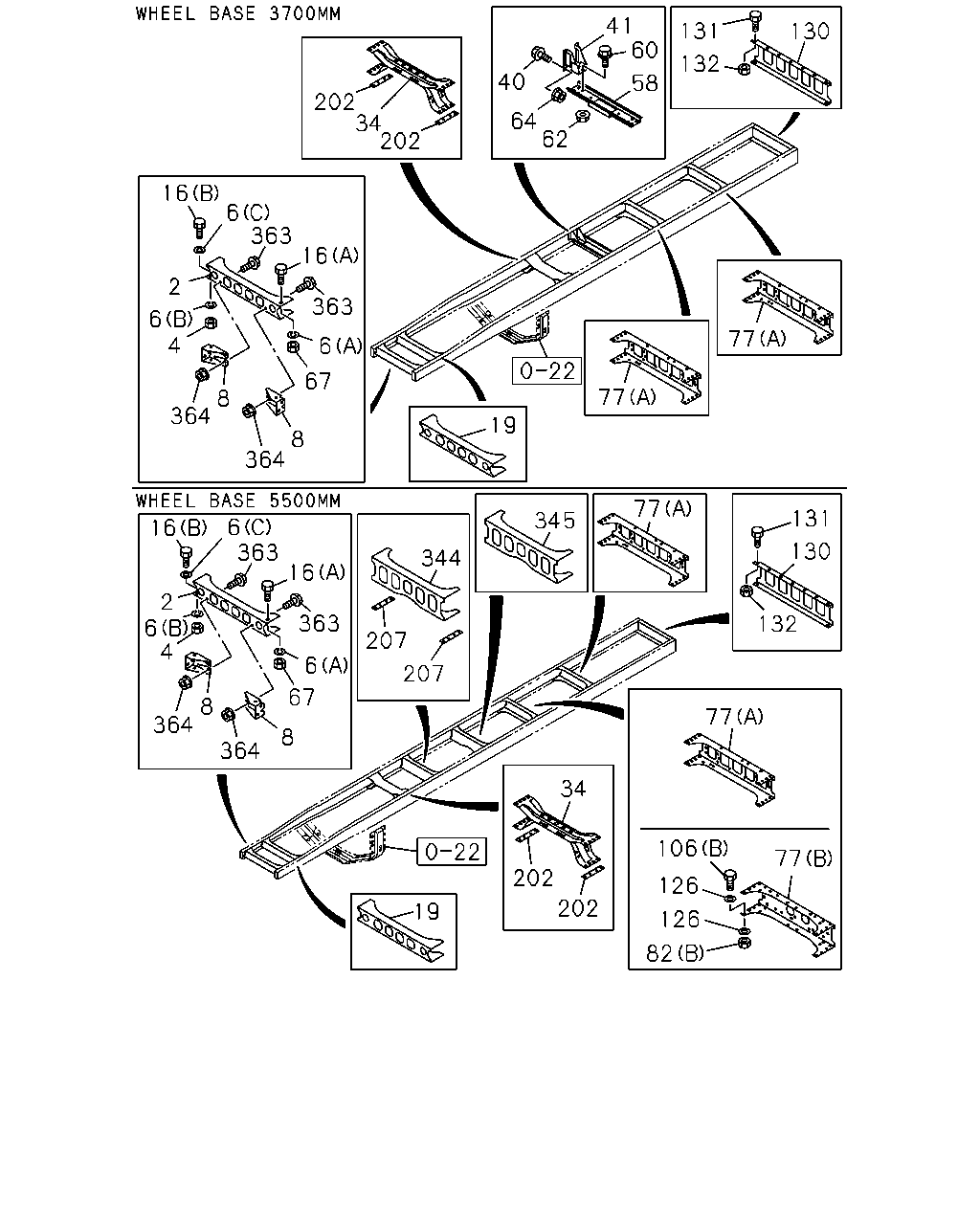

çizim 171382
41 60 131 130 132 40 58 202 34 202 64 62 16 6 363 16 2 363 6 4 77 6 67 77 8 364 19 8 364 6 363 77 131 345 16 130 344 16 2 6 4 363 132 207 6 207 67 8 364 77 8 364 34 106 77 202 126 202 19 126 82
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> EXC. KD PREPARATORY PACK<6HF> 		8-97609-462-9 01 1 1108- ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1010-1107 ● ● ●
2 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE>,KD PREPARATORY PACK<6HF> 		8-97615-669-3 01 1 1108- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1010-1107 ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 		0-91110-514-0 02 1 1108- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1010- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1010-1107 ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2 		0-91510-814-0 02 1 1108- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1010-1107 ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15 		8-98010-627-1 02 1 1108- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1010- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1010- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1010- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1010-1107 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40 		0-20851-440-0 02 1 1108- ● ● ●
19 MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE> EXC. KD PREPARATORY PACK<6HF> 		8-97609-463-9 01 1 1108- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1010-1107 ● ● ●
19 MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE>,KD PREPARATORY PACK<6HF> 		8-97615-670-4 01 1 1108- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1010- ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1010- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1010- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1010- ●
58 MEMBER; CENTER BRG 8-97629-975-0 01 1 1010- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1010- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1010- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1010- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1010- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (A) REAR 		8-97609-481-4 01 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (B) FRONT 		8-97609-483-0 01 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
(A) FRONT,REAR 		8-97609-481-4 02 1 1010- ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (A) FRONT,REAR 		8-97609-481-4 02 1 1010- ●
82 NUT; BRKT
AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 1010- ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 1010- ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 1010- ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1010- ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1010- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1010- ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1010- ●
126 WASHER; PL,BRKT
AIR SUS(FCD***) ID=10.5 OD=22 		0-91614-610-0 08 1 1010- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1010- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1010- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1010- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1010- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1010- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1010- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1010- ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1010- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1010- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1010- ● ● ●
