◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11327 - FSR(AUST/NZ)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-70 - AIR SUSPENSION VALVE AND CONTROL ▶
4-70 — AIR SUSPENSION VALVE AND CONTROL (#57409) — 30 parça

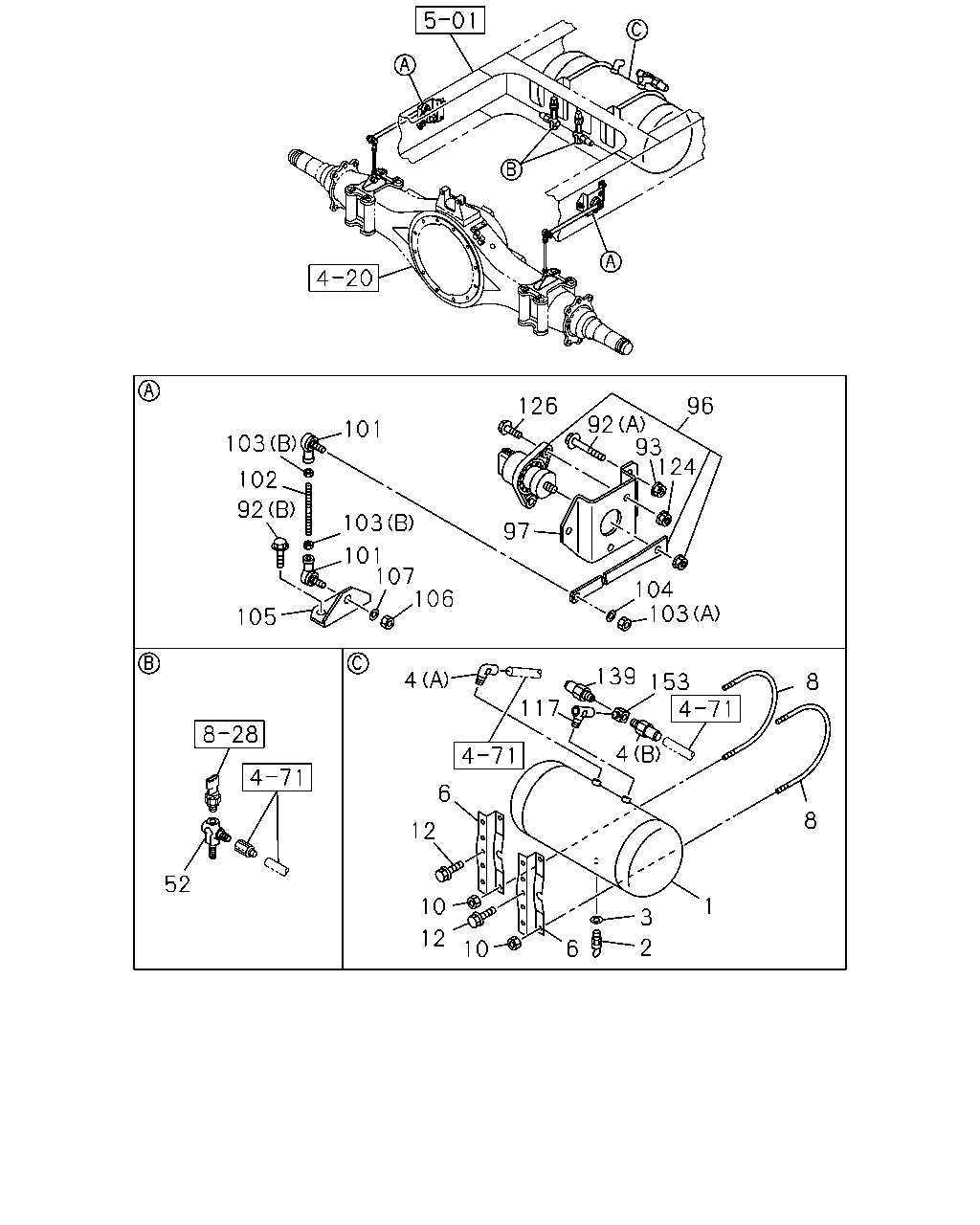

çizim 171334
96 126 92 93 124 101 103 102 92 103 97 101 107 106 104 103 105 139 4 8 153 117 4 6 8 12 52 10 1 3 12 2 6 10
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR 1-48370-841-1 01 1 1010-
2 COCK ASM; DRAIN 1-48312-015-0 01 1 1010-
3 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010-
4 CONNECTOR; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010-
4 CONNECTOR; AIR TANK
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1010-
6 BRACKET; AIR TANK 1-48317-904-0 02 1 1010-
8 U-BOLT; AIR TANK
L=303 		1-48317-087-2 02 1 1010-
10 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1010-
12 BOLT; AIR TANK
M10X25 FLANGE 		0-28651-025-0 04 1 1010-
52 CONNECTOR; ELBOW,UNION 1-09654-430-0 02 1 1010-
92 BOLT; SENSOR
(B) M8X10 FLANGE 		0-28050-810-0 04 1 1010-
92 BOLT; SENSOR
(A) M8X30 FLANGE 		0-28650-830-0 04 1 1010-
93 NUT; SENSOR
M8 FLANGE 		0-91180-108-0 04 1 1010-
96 SENSOR; HEIGHT 8-98101-552-0 01 1 1010-
96 SENSOR; HEIGHT 8-98101-551-0 01 1 1010-
97 BRACKET; HEIGHT SENSOR 8-98119-880-0 02 1 1010-
101 JOINT ASM; BALL
L=45.5 		1-09760-118-1 04 1 1010-
102 ROD; LINK
L=150 		0-84000-815-0 02 1 1010-
103 NUT; LINK ROD
(B) M8 		0-91111-508-0 04 1 1010-
103 NUT; LINK ROD
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-
104 WASHER; LINK ROD
ID=8.2 		8-98019-967-0 02 1 1010-
105 BRACKET; AXLE LINK ROD 1-42129-238-0 02 1 1010-
106 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010-
107 WASHER; BRKT
ID=8.2 		8-98019-967-0 02 1 1010-
117 VALVE; CHECK 1-48320-031-1 01 1 1010-
124 NUT; HEIGHT SENSOR
M6 FLANGE 		0-91180-106-0 04 1 1010-
126 BOLT; HEIGHT SENSOR
M6X25 FLANGE 		0-28650-625-0 04 1 1010-
139 SWITCH; LOW PRESSURE
STAMP 6.5 		8-97609-252-0 01 1 1010-
153 CONNECTOR; 3WAY 1-09656-708-0 01 1 1010-1101
153 CONNECTOR; 3WAY 8-98166-127-0 01 1 1102-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
