Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#5740) — 317 parça

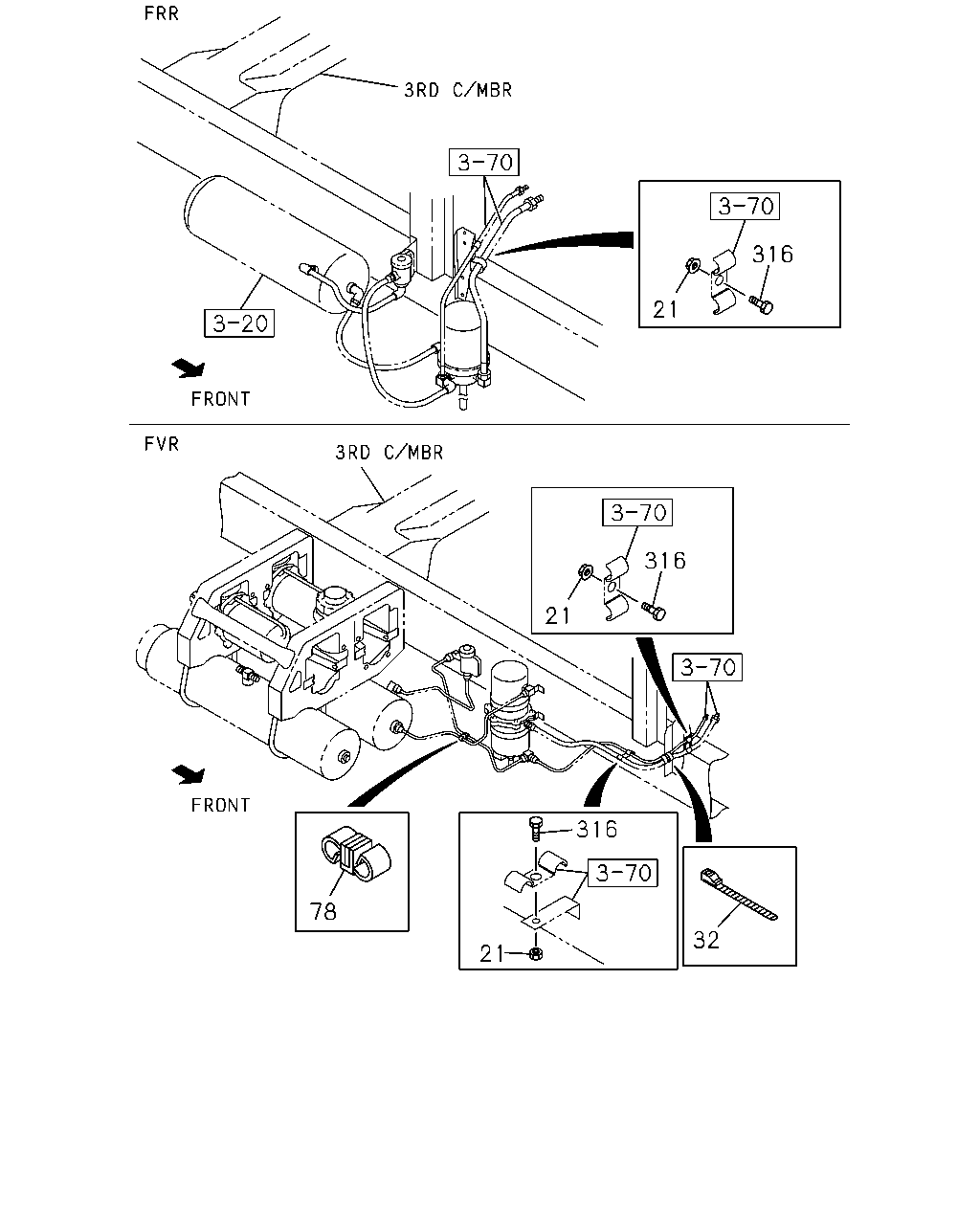

316 21 316 21 316 78 32 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9907-0602	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-0610	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9907-0602		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-0610		●
32	CLIP; BAND,RUBBER SLEEVE L=250 TAI	5-09707-030-1	01	1	9907-0610		●
78	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	9907-0610		●
316	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9907-9907	●
316	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9908-0512	●
316	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-0610	●
316	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9907-9907		●
316	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9908-0512		●
316	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-0610		●

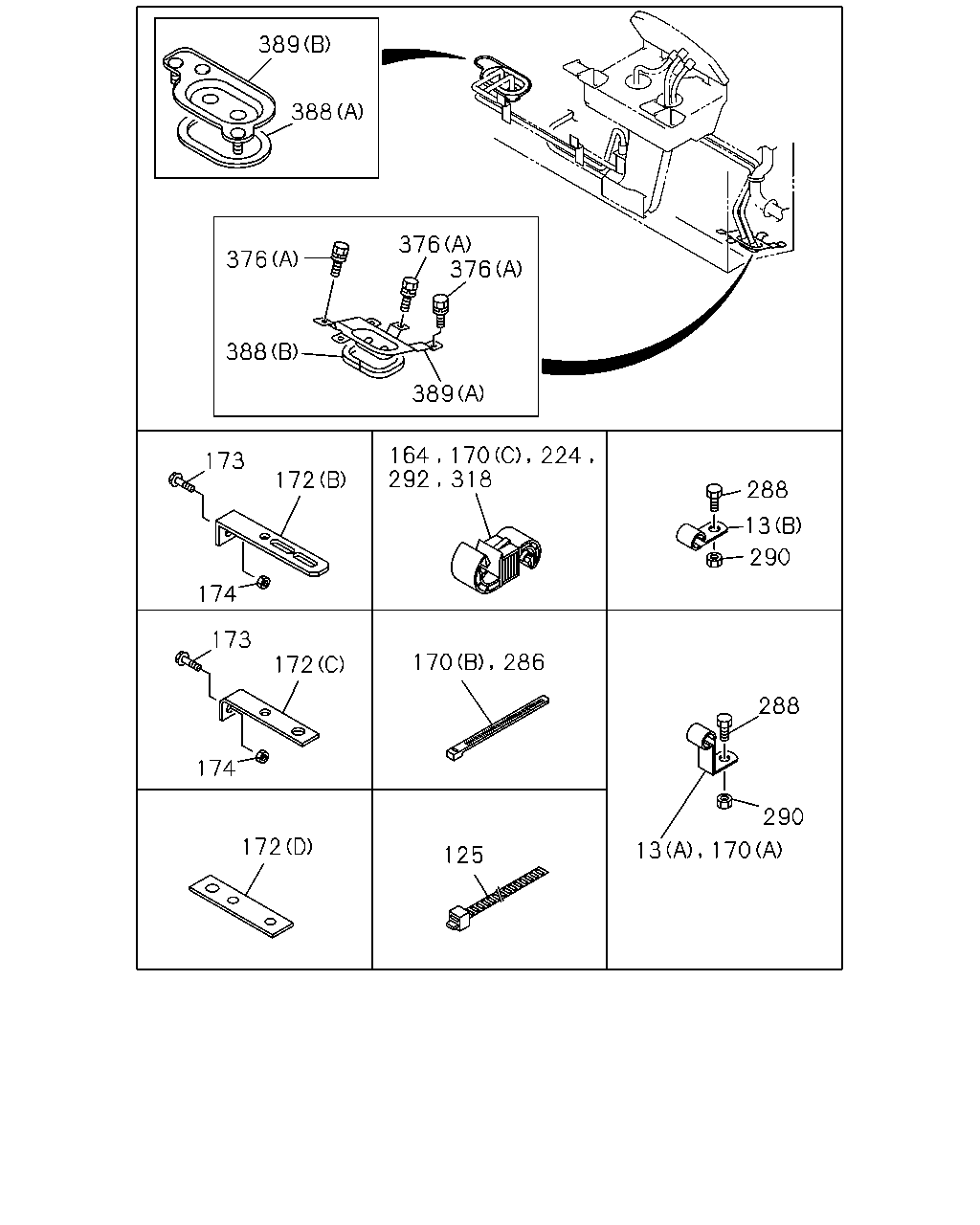

389 388 376 376 376 388 389 173 172 288 13 290 174 173 172 288 174 290 172 13 170 125 164 292 318 170 224 170 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9811-9906	●	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	02	1	9907-0610	●	●
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	9811-0606	●	●
13	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-0610	●	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	9811-9906	●	●
125	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	9811-9906		●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0611-	●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	9811-9906	●
164	CLIP; AIR PIPE ID=12 & 15	1-09709-281-1	01	1	9811-9906		●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9811-9906	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	9907-0610	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0611-	●
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9811-	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9811-9906	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9907-	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9811-9906		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	9907-0610		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	18	1	0611-0612		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	20	1	0701-		●
170	CLIP; NYLON TUBE (C) ID=12 & 15	1-09709-281-1	01	1	9811-9906		●
172	BRACKET; TUBE CLIP (H)	1-47471-471-0	01	1	0701-		●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	9907-0610	●
172	BRACKET; TUBE CLIP (C) L=59 B=20	1-47479-048-0	01	1	0611-	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	9907-0610		●
172	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	01	1	0611-		●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9811-9906	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9907-0610	●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	0611-	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9811-9906	●	●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9907-0610	●	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0611-	●	●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	9811-9906	●	●
172	BRACKET; TUBE CLIP (G) L=55 B=25	1-47478-439-0	01	1	9907-0610	●	●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	0611-	●	●
172	BRACKET; TUBE CLIP (D) L=130	1-47477-975-1	02	1	9811-	●	●
172	BRACKET; TUBE CLIP (E)	1-47477-650-0	01	1	9811-9906		●
172	BRACKET; TUBE CLIP (F) L=100	1-47477-620-1	02	1	9907-0610		●
172	BRACKET; TUBE CLIP (E)	1-47477-650-0	01	1	0611-		●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9811-0512	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	06	1	9811-9906	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	07	1	9907-0512	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	07	1	0601-0610	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	06	1	0611-	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	9907-9910		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9907-9910		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	07	1	9911-0512		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-0610		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	06	1	0611-0612		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	08	1	0701-		●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	0611-		●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	9811-9906	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	07	1	9907-0602	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	07	1	0603-0610	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0611-	●
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0611-	●
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	9811-9906	●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	09	1	9811-9906		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	03	1	9811-9906	●	●
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	03	1	9907-0105	●	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	03	1	0106-0512	●	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	03	1	0601-0610	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	9811-0602	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	0603-0610	●	●
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	9811-9906	●
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	9811-9906		●
318	CLIP; AIR PIPE ID=6.35 & 12.2	1-09709-275-1	01	1	9811-9906	●
318	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9811-9906		●
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	9811-9906		●
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
376	BOLT; BRKT WB 5000MM(50W) (D) M8X25 FLANGE	0-28650-825-0	01	1	0611-		●
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0611-		●
376	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	03	1	9811-	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	9811-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
376	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	02	1	0611-	●
376	BOLT; BRKT WB 5500MM(55W),WB 5800MM(58W) (D) M8X25 FLANGE	0-28650-825-0	02	1	0611-		●
388	SEAL (A) L=280 TAI	1-79738-793-1	01	1	9811-	●	●
388	SEAL (B) L=215	1-79738-794-1	01	1	9811-	●	●
389	BRACKET; UNION (C)	1-47471-361-0	01	1	0611-	●
389	BRACKET; UNION WB 5500MM(55W),WB 5800MM(58W) (C)	1-47471-361-0	01	1	0611-		●
389	BRACKET; UNION WB 5000MM(50W) (D)	1-47471-459-0	01	1	0611-		●
389	BRACKET; UNION (A)	1-79738-795-1	01	1	9811-	●	●
389	BRACKET; UNION (B)	1-79738-811-1	01	1	9811-	●	●

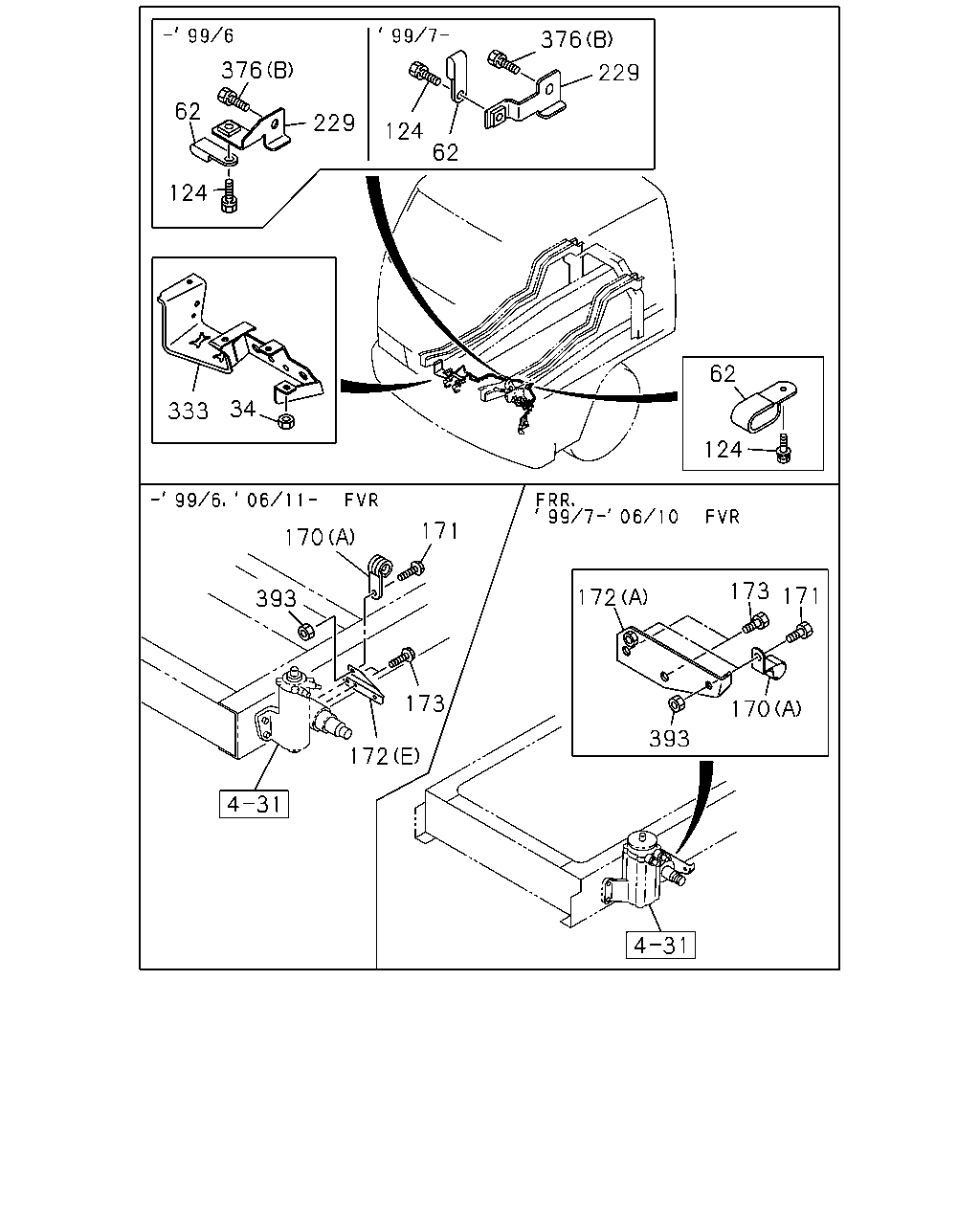

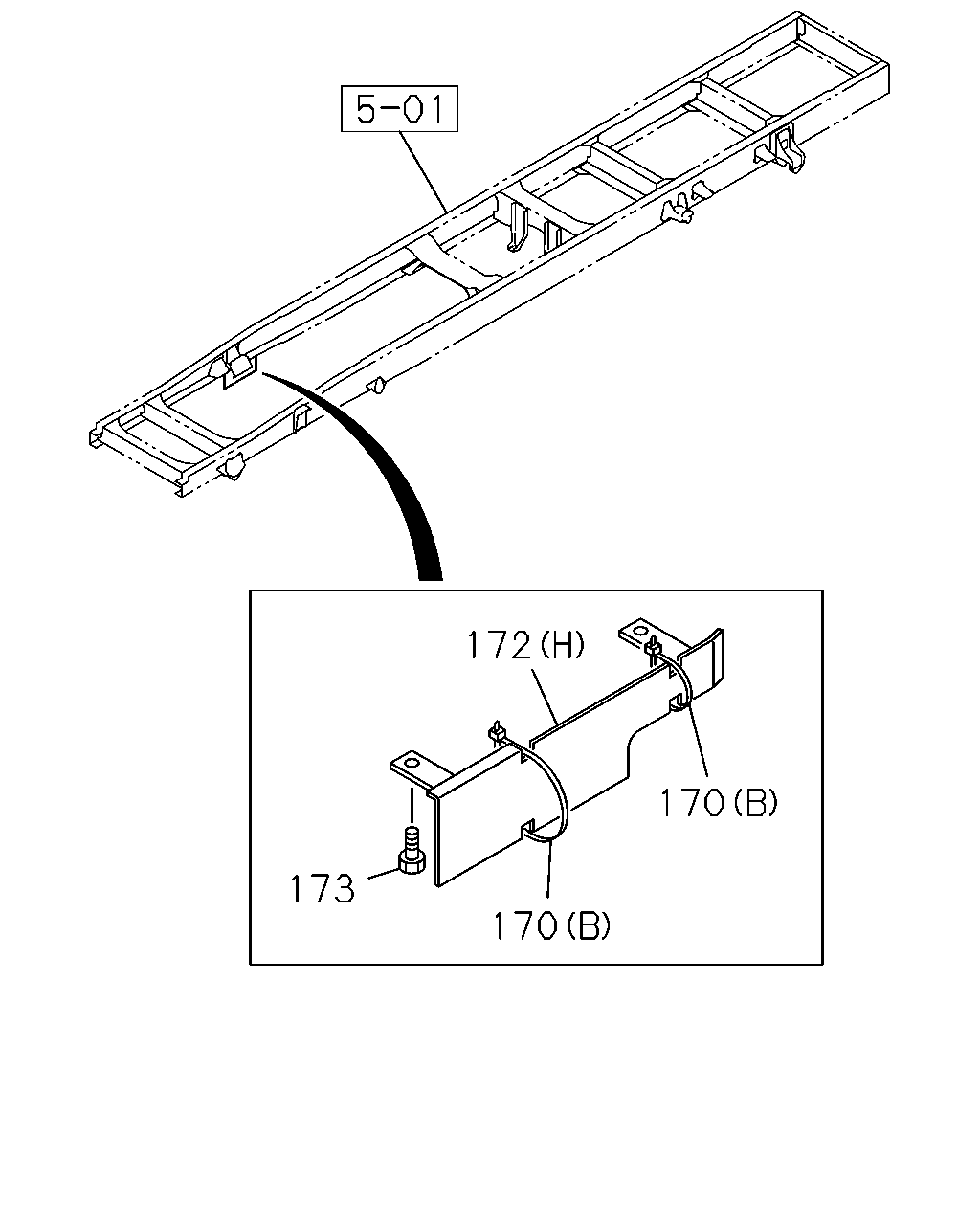

376 376 229 62 229 124 62 124 62 34 333 124 171 170 173 171 172 393 170 173 393 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0611-	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0611-		●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	04	1	9811-	●	●
62	CLIP; AIR PIPE ID=13X2 L=20	9-09535-236-0	02	1	9811-0606	●	●
62	CLIP; AIR PIPE ID=13X2 L=20	0-95325-236-0	02	1	0607-	●	●
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	02	1	9811-	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9811-9906	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	9907-0610	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0611-	●
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9811-	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9811-9906	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9907-	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9811-9906		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	9907-0610		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	18	1	0611-0612		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	20	1	0701-		●
170	CLIP; NYLON TUBE (C) ID=12 & 15	1-09709-281-1	01	1	9811-9906		●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	9811-9906	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9907-0512	●	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9811-9906		●
172	BRACKET; TUBE CLIP (H)	1-47471-471-0	01	1	0701-		●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	9907-0610	●
172	BRACKET; TUBE CLIP (C) L=59 B=20	1-47479-048-0	01	1	0611-	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	9907-0610		●
172	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	01	1	0611-		●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9811-9906	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9907-0610	●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	0611-	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9811-9906	●	●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9907-0610	●	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0611-	●	●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	9811-9906	●	●
172	BRACKET; TUBE CLIP (G) L=55 B=25	1-47478-439-0	01	1	9907-0610	●	●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	0611-	●	●
172	BRACKET; TUBE CLIP (D) L=130	1-47477-975-1	02	1	9811-	●	●
172	BRACKET; TUBE CLIP (E)	1-47477-650-0	01	1	9811-9906		●
172	BRACKET; TUBE CLIP (F) L=100	1-47477-620-1	02	1	9907-0610		●
172	BRACKET; TUBE CLIP (E)	1-47477-650-0	01	1	0611-		●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9811-0512	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	06	1	9811-9906	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	07	1	9907-0512	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	07	1	0601-0610	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	06	1	0611-	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	9907-9910		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9907-9910		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	07	1	9911-0512		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-0610		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	06	1	0611-0612		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	08	1	0701-		●
229	BRACKET; PIPE CLIP	1-79738-819-0	01	1	9811-9906	●	●
229	BRACKET; PIPE CLIP	1-79738-858-0	01	1	9907-	●	●
333	BRACKET; BRK AIR PIPE	1-79738-804-4	01	1	9811-0610	●	●
333	BRACKET; BRK AIR PIPE	1-79738-864-0	01	1	0611-	●	●
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
376	BOLT; BRKT WB 5000MM(50W) (D) M8X25 FLANGE	0-28650-825-0	01	1	0611-		●
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0611-		●
376	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	03	1	9811-	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	9811-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
376	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	02	1	0611-	●
376	BOLT; BRKT WB 5500MM(55W),WB 5800MM(58W) (D) M8X25 FLANGE	0-28650-825-0	02	1	0611-		●
393	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	0611-		●
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	9811-9906	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	9907-0602	●	●
393	NUT; UNION M8 FLANGE	0-91180-108-0	01	1	0603-0610	●	●
393	NUT; UNION M8 FLANGE	0-91180-108-0	01	1	0611-	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	9811-9906		●

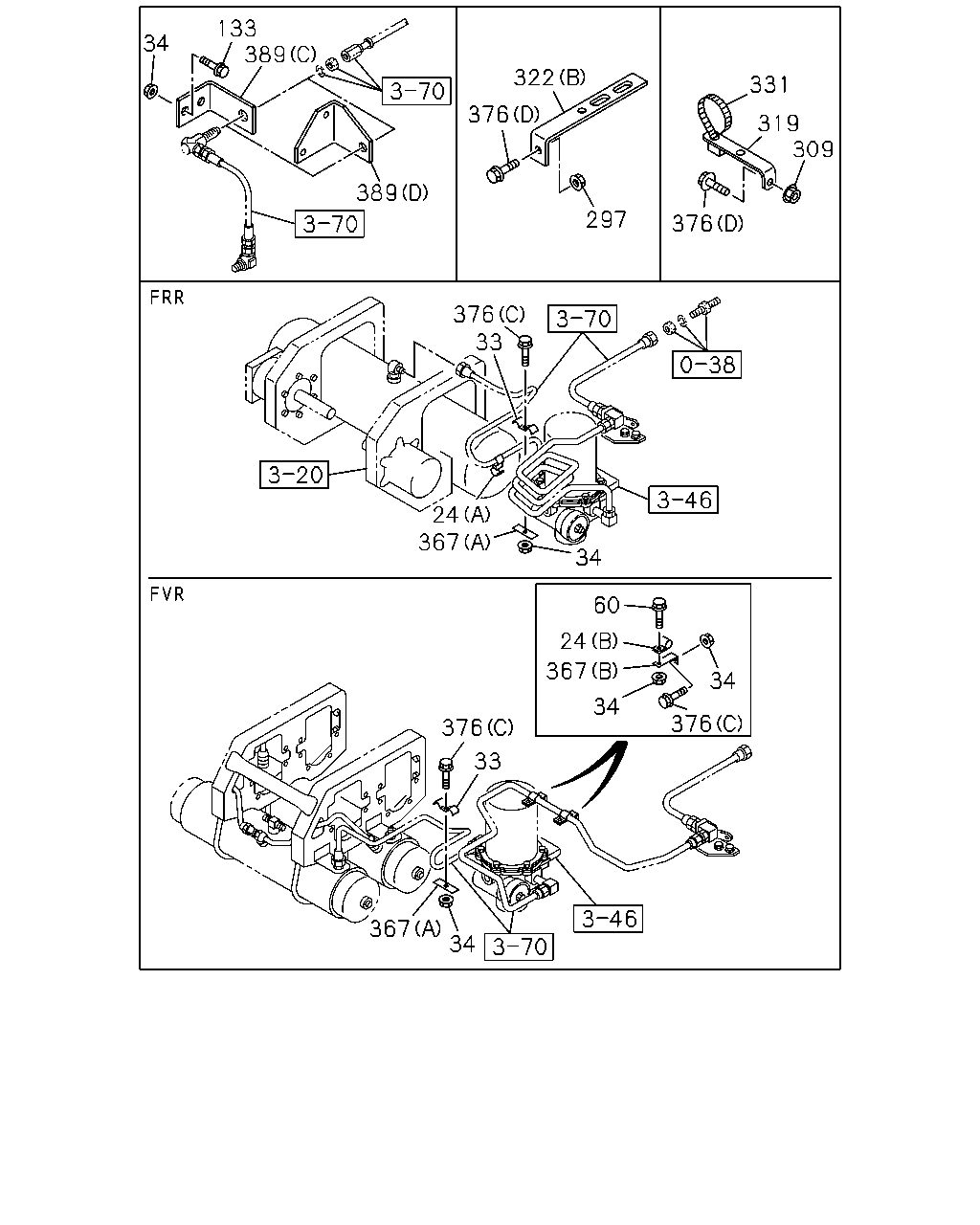

133 389 34 322 331 376 319 309 389 297 376 376 33 24 367 34 60 24 367 34 34 376 376 33 367 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (A) ID=10 & 12	1-09709-278-1	01	1	0611-	●
24	CLIP; PIPE (B) ID=19 L=20	0-95235-836-0	02	1	0611-		●
33	CLIP; BOLT	1-09701-323-0	01	1	0611-	●	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0611-	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0611-		●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	04	1	9811-	●	●
60	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0611-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0611-	●
133	BOLT; BRKT WB 5500MM(55W),WB 5800MM(58W) M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
133	BOLT; BRKT WB 5000MM(50W) M8X25 FLANGE	0-28650-825-0	02	1	0611-		●
297	NUT; BRKT WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0611-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9907-0602	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0610	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0611-	●
297	NUT; BRKT WB 5500MM(55W),WB 5800MM(58W) M8 FLANGE	0-91180-108-0	02	1	0611-		●
309	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0611-		●
319	BRACKET; CLIP L=59 B=20	1-47479-048-0	01	1	0611-		●
322	BRACKET; CLIP WB 5000MM(50W) (B) L=100 H=30	1-47477-645-2	01	1	0611-		●
322	BRACKET; CLIP (A) L=55 B=25	1-47478-439-0	01	1	9907-0610	●	●
322	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0611-	●
322	BRACKET; CLIP WB 5500MM(55W),WB 5800MM(58W) (B) L=100 H=30	1-47477-645-2	02	1	0611-		●
331	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0611-		●
367	BRACKET ASM (A) L=50	1-47475-299-2	01	1	0611-	●	●
367	BRACKET ASM (B) L=90 B=25	1-47475-530-0	02	1	0611-		●
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
376	BOLT; BRKT WB 5000MM(50W) (D) M8X25 FLANGE	0-28650-825-0	01	1	0611-		●
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0611-		●
376	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	03	1	9811-	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	9811-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
376	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	02	1	0611-	●
376	BOLT; BRKT WB 5500MM(55W),WB 5800MM(58W) (D) M8X25 FLANGE	0-28650-825-0	02	1	0611-		●
389	BRACKET; UNION (C)	1-47471-361-0	01	1	0611-	●
389	BRACKET; UNION WB 5500MM(55W),WB 5800MM(58W) (C)	1-47471-361-0	01	1	0611-		●
389	BRACKET; UNION WB 5000MM(50W) (D)	1-47471-459-0	01	1	0611-		●
389	BRACKET; UNION (A)	1-79738-795-1	01	1	9811-	●	●
389	BRACKET; UNION (B)	1-79738-811-1	01	1	9811-	●	●

170 170 170 170 170 170 170 170 170 170 376 172 174 173 172 173 322 375 297 174 170 170 170 173 173 172 174 172 172 173 174 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9811-9906	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	9907-0610	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0611-	●
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9811-	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9811-9906	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9907-	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9811-9906		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	9907-0610		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	18	1	0611-0612		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	20	1	0701-		●
170	CLIP; NYLON TUBE (C) ID=12 & 15	1-09709-281-1	01	1	9811-9906		●
172	BRACKET; TUBE CLIP (H)	1-47471-471-0	01	1	0701-		●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	9907-0610	●
172	BRACKET; TUBE CLIP (C) L=59 B=20	1-47479-048-0	01	1	0611-	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	9907-0610		●
172	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	01	1	0611-		●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9811-9906	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9907-0610	●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	0611-	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9811-9906	●	●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9907-0610	●	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0611-	●	●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	9811-9906	●	●
172	BRACKET; TUBE CLIP (G) L=55 B=25	1-47478-439-0	01	1	9907-0610	●	●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	0611-	●	●
172	BRACKET; TUBE CLIP (D) L=130	1-47477-975-1	02	1	9811-	●	●
172	BRACKET; TUBE CLIP (E)	1-47477-650-0	01	1	9811-9906		●
172	BRACKET; TUBE CLIP (F) L=100	1-47477-620-1	02	1	9907-0610		●
172	BRACKET; TUBE CLIP (E)	1-47477-650-0	01	1	0611-		●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9811-0512	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	06	1	9811-9906	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	07	1	9907-0512	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	07	1	0601-0610	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	06	1	0611-	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	9907-9910		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9907-9910		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	07	1	9911-0512		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-0610		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	06	1	0611-0612		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	08	1	0701-		●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	0611-		●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	9811-9906	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	07	1	9907-0602	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	07	1	0603-0610	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0611-	●
297	NUT; BRKT WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0611-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9907-0602	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0610	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0611-	●
297	NUT; BRKT WB 5500MM(55W),WB 5800MM(58W) M8 FLANGE	0-91180-108-0	02	1	0611-		●
322	BRACKET; CLIP WB 5000MM(50W) (B) L=100 H=30	1-47477-645-2	01	1	0611-		●
322	BRACKET; CLIP (A) L=55 B=25	1-47478-439-0	01	1	9907-0610	●	●
322	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0611-	●
322	BRACKET; CLIP WB 5500MM(55W),WB 5800MM(58W) (B) L=100 H=30	1-47477-645-2	02	1	0611-		●
375	CLIP; AIR PIPE L=250	1-09707-126-0	06	1	0611-		●
375	CLIP; AIR PIPE L=250	1-09707-126-0	01	1	9907-0610	●	●
375	CLIP; AIR PIPE L=250	1-09707-126-0	02	1	0611-	●
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
376	BOLT; BRKT WB 5000MM(50W) (D) M8X25 FLANGE	0-28650-825-0	01	1	0611-		●
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	02	1	0611-		●
376	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	03	1	9811-	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	9811-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
376	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	02	1	0611-	●
376	BOLT; BRKT WB 5500MM(55W),WB 5800MM(58W) (D) M8X25 FLANGE	0-28650-825-0	02	1	0611-		●

172 170 173 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9811-9906	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	9907-0610	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0611-	●
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9811-	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9811-9906	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9907-	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9811-9906		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	9907-0610		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	18	1	0611-0612		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	20	1	0701-		●
170	CLIP; NYLON TUBE (C) ID=12 & 15	1-09709-281-1	01	1	9811-9906		●
172	BRACKET; TUBE CLIP (H)	1-47471-471-0	01	1	0701-		●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	9907-0610	●
172	BRACKET; TUBE CLIP (C) L=59 B=20	1-47479-048-0	01	1	0611-	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	9907-0610		●
172	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	01	1	0611-		●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9811-9906	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9907-0610	●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	0611-	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9811-9906	●	●
172	BRACKET; TUBE CLIP (A)	1-47477-649-0	01	1	9907-0610	●	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0611-	●	●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	9811-9906	●	●
172	BRACKET; TUBE CLIP (G) L=55 B=25	1-47478-439-0	01	1	9907-0610	●	●
172	BRACKET; TUBE CLIP (C) L=45 B=20	1-47477-716-1	01	1	0611-	●	●
172	BRACKET; TUBE CLIP (D) L=130	1-47477-975-1	02	1	9811-	●	●
172	BRACKET; TUBE CLIP (E)	1-47477-650-0	01	1	9811-9906		●
172	BRACKET; TUBE CLIP (F) L=100	1-47477-620-1	02	1	9907-0610		●
172	BRACKET; TUBE CLIP (E)	1-47477-650-0	01	1	0611-		●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9811-0512	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	06	1	9811-9906	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	07	1	9907-0512	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	07	1	0601-0610	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	06	1	0611-	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	9907-9910		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	9907-9910		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	07	1	9911-0512		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-0610		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	06	1	0611-0612		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	08	1	0701-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
