◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#5739) — 34 parça

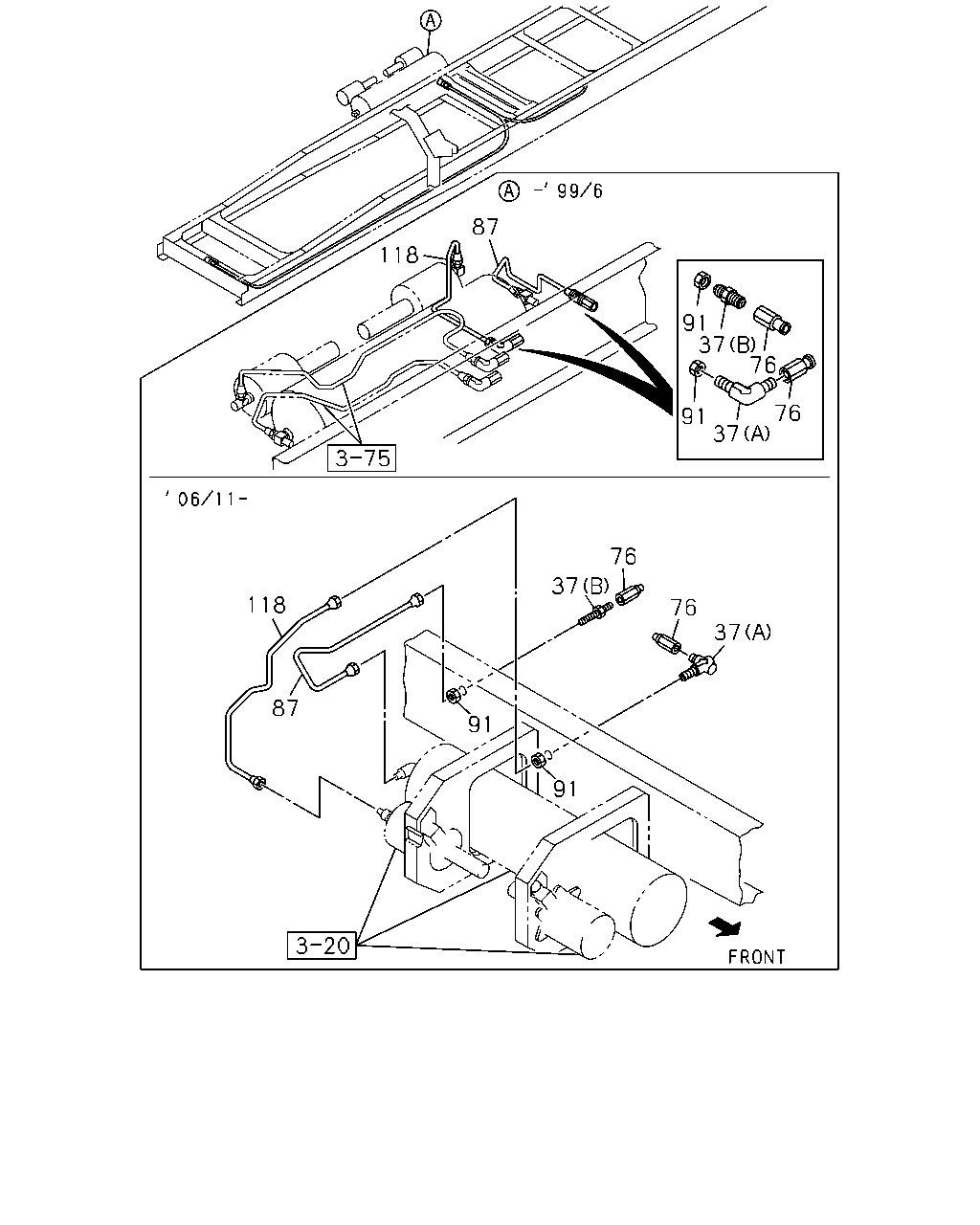

çizim 26212
87 118 91 37 76 76 91 37 76 37 118 76 37 87 91 91
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0611- ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 01 1 0611- ●
37 UNION; AIR PIPE
(B) M16 L=74 		9-09233-310-1 01 1 9811-9906 ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		9-09235-210-1 01 1 9811-9906 ●
76 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0611- ●
76 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 9811-9906 ●
87 PIPE; AIR,AIR TANK TO UNION 1-49123-092-0 01 1 0611- ●
87 PIPE; AIR,AIR TANK TO UNION
TAI 		8-97530-465-0 01 1 9811-9906 ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0611- ●
91 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 9811-9906 ●
118 PIPE; AIR,UNION TO AIR MASTER 1-49123-093-0 01 1 0611- ●
118 PIPE; AIR,UNION TO AIR MASTER
TAI 		8-97530-466-0 01 1 9811-9906 ●

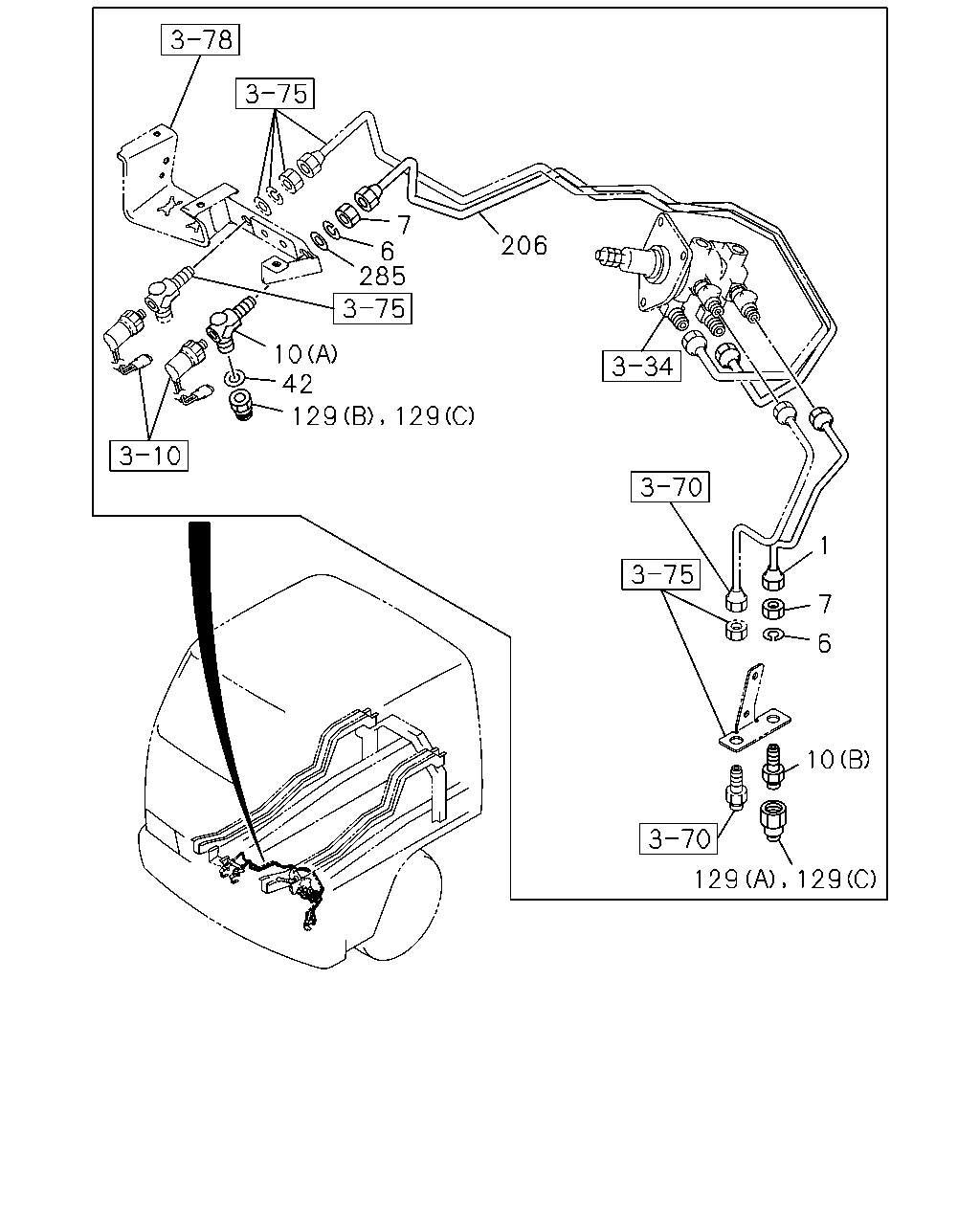

çizim 26468
7 6 285 206 10 42 129 129 1 7 6 10 129 129
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,FLEX HOSE TO BRK VLV
TAI 		1-49116-436-1 01 1 0611- ●
1 PIPE; AIR,FLEX HOSE TO BRK VLV
TAI 		8-97535-059-0 01 1 9811-0108 ● ●
1 PIPE; AIR,FLEX HOSE TO BRK VLV
TAI 		8-97535-142-0 01 1 0109-0610 ● ●
1 PIPE; AIR,FLEX HOSE TO BRK VLV
TAI 		8-97535-142-0 01 1 0611- ●
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9811-0603 ● ●
6 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
7 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9811-0512 ● ●
7 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601- ● ●
10 CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT 		1-09654-380-0 01 1 9811- ● ●
10 CONNECTOR; FLEX HOSE
(A) 		1-09656-700-0 01 1 9811-9811 ● ●
10 CONNECTOR; FLEX HOSE
(A) M16X2 & PT1/4 3WAY 		1-09656-329-1 01 1 9812- ● ●
42 GASKET; CONNECTOR
ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ● ●
129 CONNECTOR; NYLON TUBE
(B) 		1-09660-728-1 01 1 9811-9811 ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9812-9906 ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9811-9906 ● ●
129 CONNECTOR; NYLON TUBE
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 9907- ● ●
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=1267 TAI 		1-49121-665-0 01 1 0611- ●
206 PIPE; AIR,BRK VLV TO FLEX HOSE
TAI 		8-97535-061-0 01 1 9811-9906 ● ●
206 PIPE; AIR,BRK VLV TO FLEX HOSE
TAI 		8-97535-129-0 01 1 9907-0610 ● ●
206 PIPE; AIR,BRK VLV TO FLEX HOSE
TAI 		8-97535-129-0 01 1 0611- ●
285 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0611-0611 ●

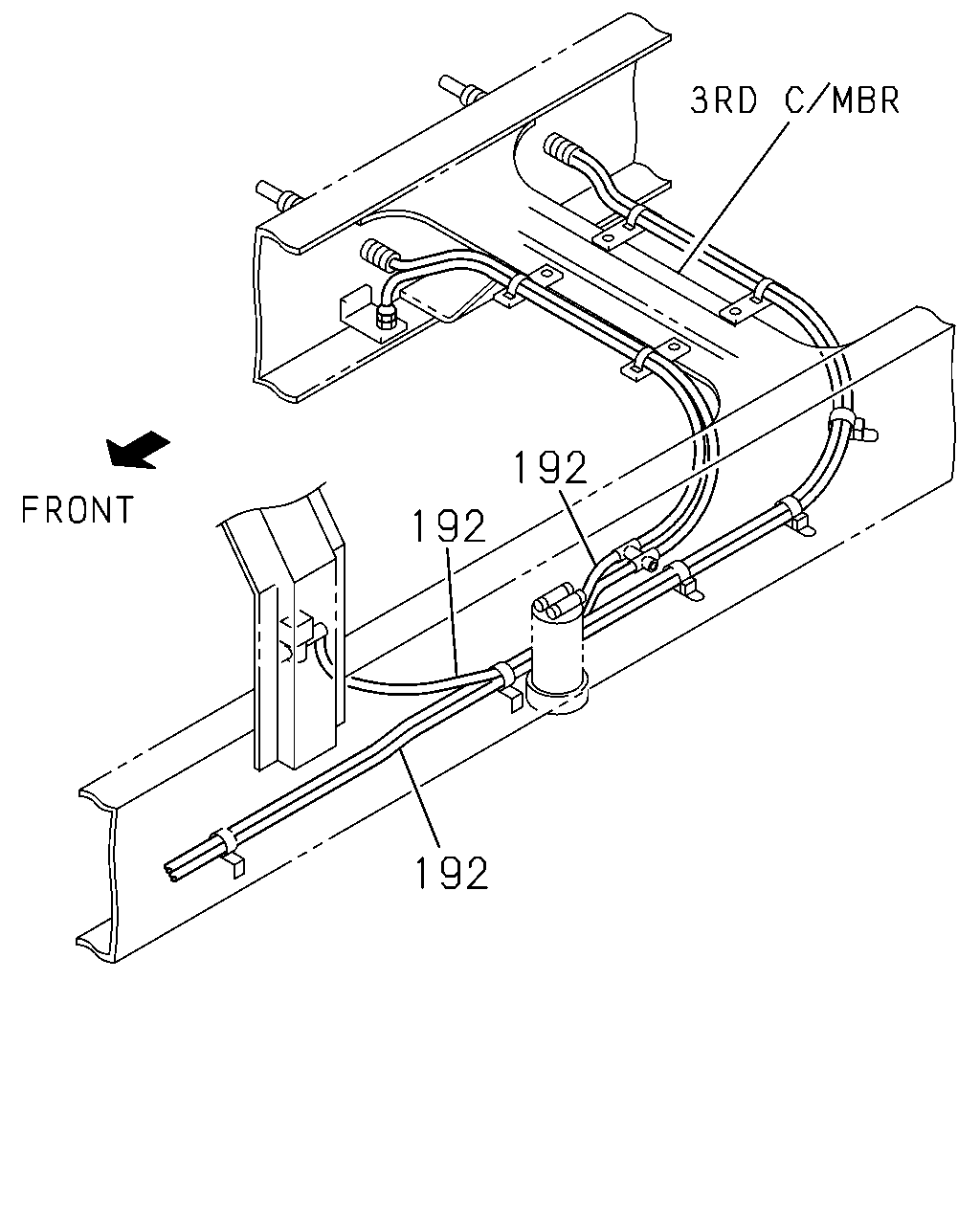

çizim 98976
192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 9907-0610 ● ●
