3-55 — BRAKE PIPING; OIL,REAR
(#57385) — 47 parça
Tümü
A - FCD5MS
B - FCR5MS
◀

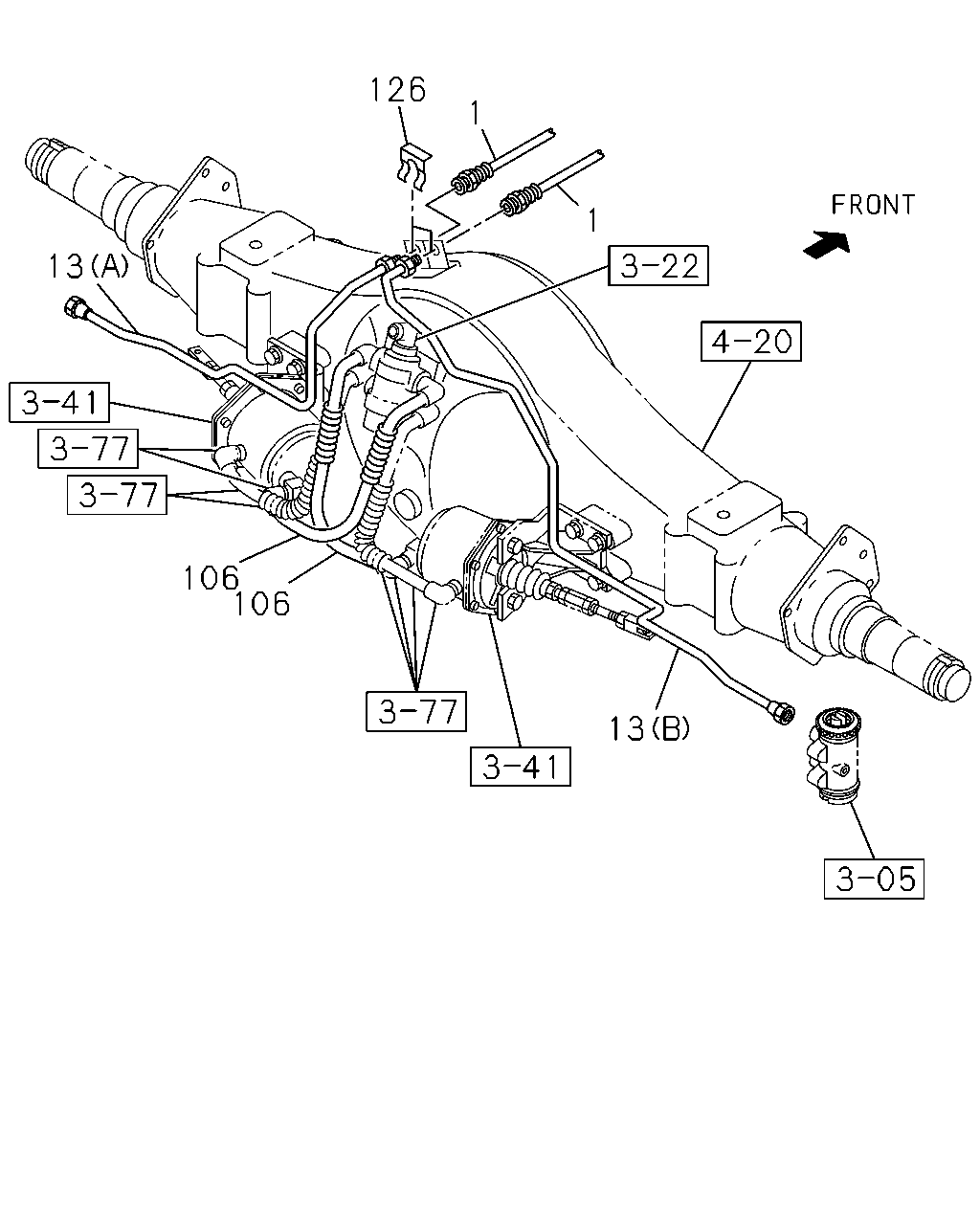

[355A] REAR AXLE SIDE (12 parça)
[355A] AIR TANK SIDE (12 parça)

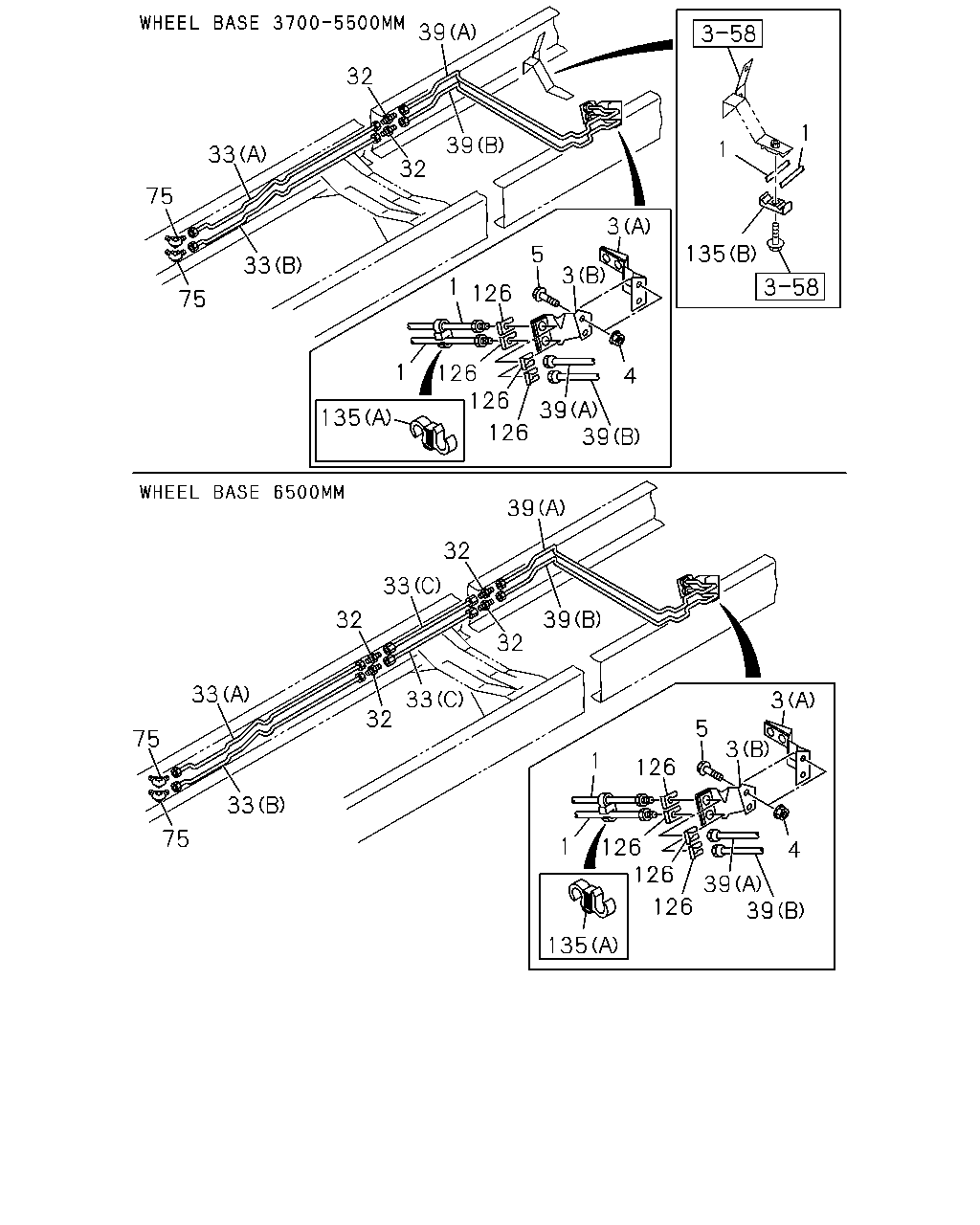

[355A] FRAME SIDE (23 parça)
▶
126
13
106
106
1
1
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
L=480
8-98067-398-0
02
1
1010-
●
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1010-
●
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98059-745-0
01
1
1010-1302
●
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98207-109-0
01
1
1303-
●
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98059-747-0
01
1
1010-1302
●
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98207-110-0
01
1
1303-
●
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98066-082-1
01
1
1010-1302
●
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98207-113-0
01
1
1303-
●
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98066-083-0
01
1
1010-1302
●
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98207-114-0
01
1
1303-
●
106
TUBE; NYLON
8-98061-971-0
02
1
1010-
●
●
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1010-
●
●
33
75
33
46
75
46
138
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=2822
8-98069-815-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) LH LINE L=2822
8-98069-815-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=2778
8-98069-816-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) RH LINE L=2778
8-98069-816-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1126
8-98116-677-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1055
8-98116-678-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 6500MM(65W) (C) L=994
8-98076-998-0
02
1
1010-
●
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
1010-
●
●
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1010-
●
●
138
PIPE; HYDRAULIC UNIT
(C) L=296
8-98066-107-0
01
1
1010-
●
●
138
PIPE; HYDRAULIC UNIT
(A) LH LINE L=657
8-98012-129-0
01
1
1010-
●
●
138
PIPE; HYDRAULIC UNIT
(B) RH LINE L=703
8-98012-146-0
01
1
1010-
●
●
39
32
1
39
1
33
32
75
3
135
5
3
33
1
126
75
1
126
126
4
39
39
135
126
39
32
33
39
32
32
33
33
3
32
5
3
75
1
126
33
75
1
126
126
4
39
39
126
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
L=480
8-98067-398-0
02
1
1010-
●
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1010-
●
3
BRACKET; FLEX HOSE,RR BRK
(A)
8-98012-144-1
01
1
1010-
●
3
BRACKET; FLEX HOSE,RR BRK
(B)
8-98065-999-2
01
1
1010-
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1010-
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE
0-28650-820-0
02
1
1010-
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1010-
●
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
02
1
1010-
●
●
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=2822
8-98069-815-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) LH LINE L=2822
8-98069-815-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=2778
8-98069-816-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) RH LINE L=2778
8-98069-816-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1126
8-98116-677-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1055
8-98116-678-0
01
1
1010-
●
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 6500MM(65W) (C) L=994
8-98076-998-0
02
1
1010-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169
8-98076-353-0
01
1
1010-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178
8-98076-354-0
01
1
1010-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710
8-98106-485-0
01
1
1010-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772
8-98106-486-0
01
1
1010-
●
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1010-
●
●
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1010-
●
●
135
CLIP; FLEX HOSE
(B)
1-09701-278-2
01
1
1010-
●
135
CLIP; FLEX HOSE
(A) ID=10 & 10
1-09709-277-1
01
1
1010-
●
●
