Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#5738) — 220 parça

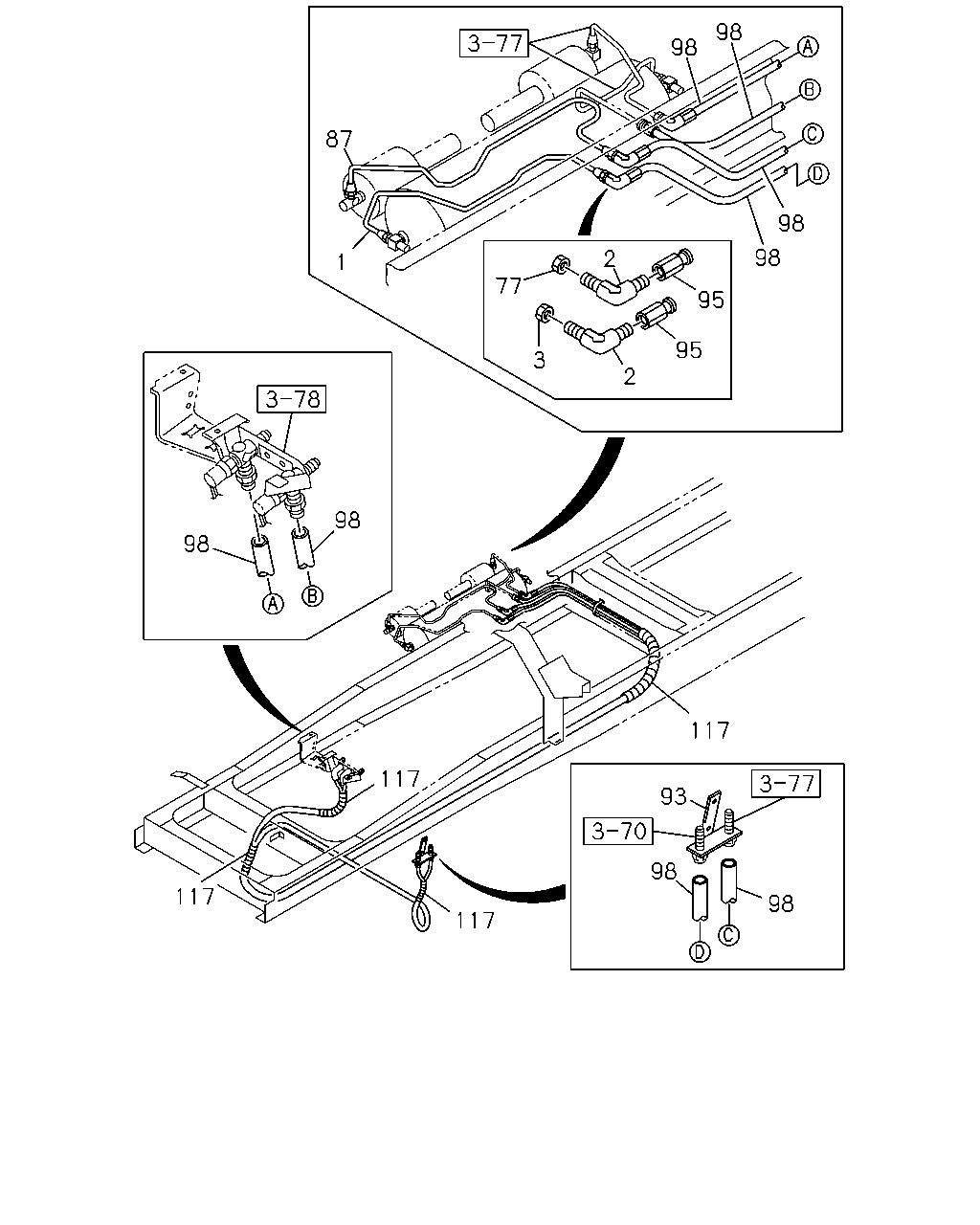

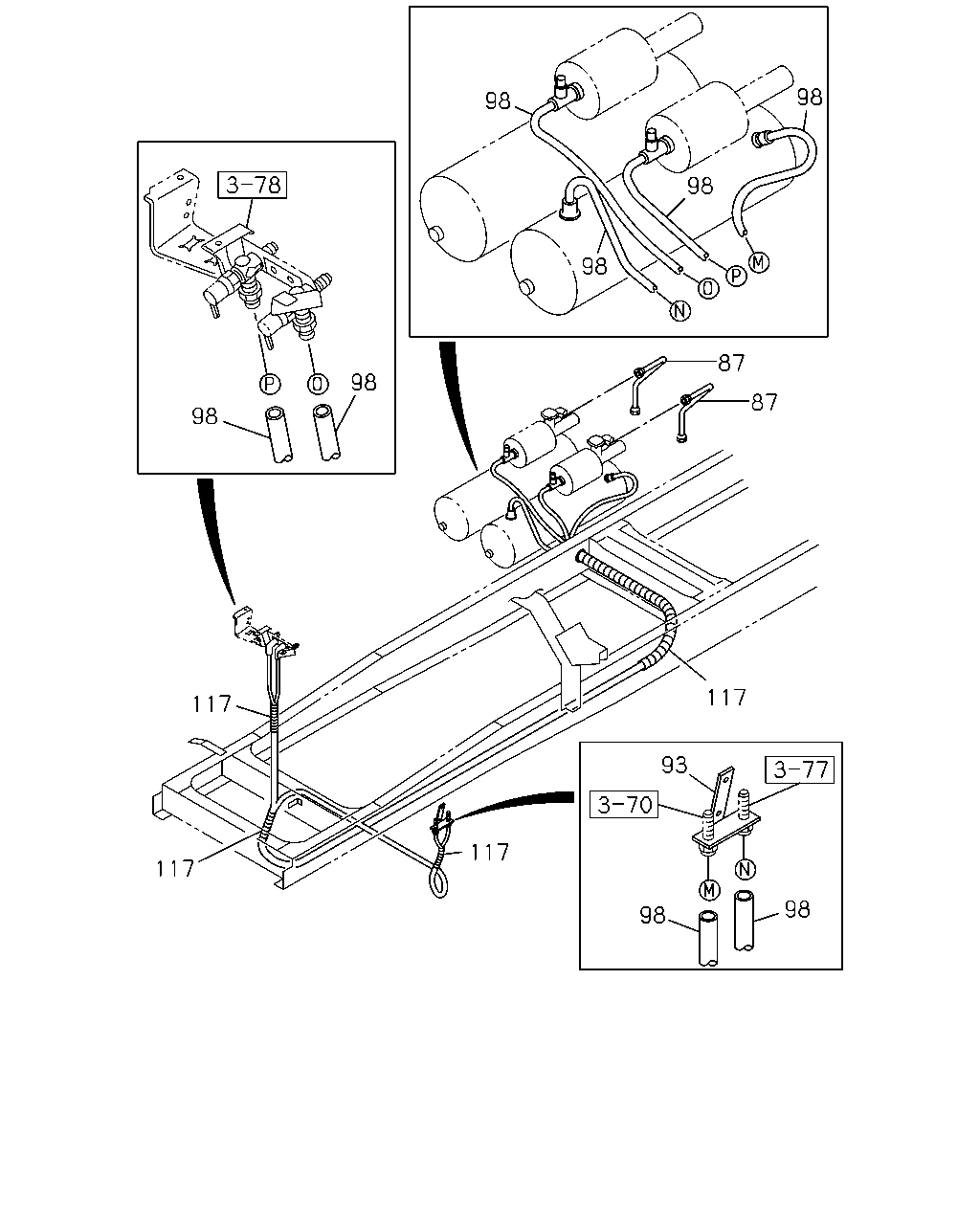

98 98 98 98 87 98 87 98 117 117 93 117 117 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	PIPE; AIR,UNION TO AIR MASTER TAI	8-97530-515-0	01	1	9811-9906	●
87	PIPE; AIR,UNION TO AIR MASTER TAI	8-97530-560-0	02	1	9907-0610		●
87	PIPE; AIR,UNION TO AIR MASTER L=607	1-49123-213-0	01	1	0611-0612	●
87	PIPE; AIR,UNION TO AIR MASTER L=662 SERVICED BY L=700	1-47428-785-0	01	1	0701-	●
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9811-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	04	1	9811-0610	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0611-	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8 TAI	1-87410-073-0	02	1	9907-0610	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8 TAI	1-87410-074-0	01	1	9811-0610	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0611-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	03	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	03	1	0611-		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	01	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 TAI	1-87410-100-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	0611-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 TAI	1-87410-091-0	02	1	9811-9906	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	03	1	9907-0610	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	01	1	9811-9906		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	02	1	0611-		●

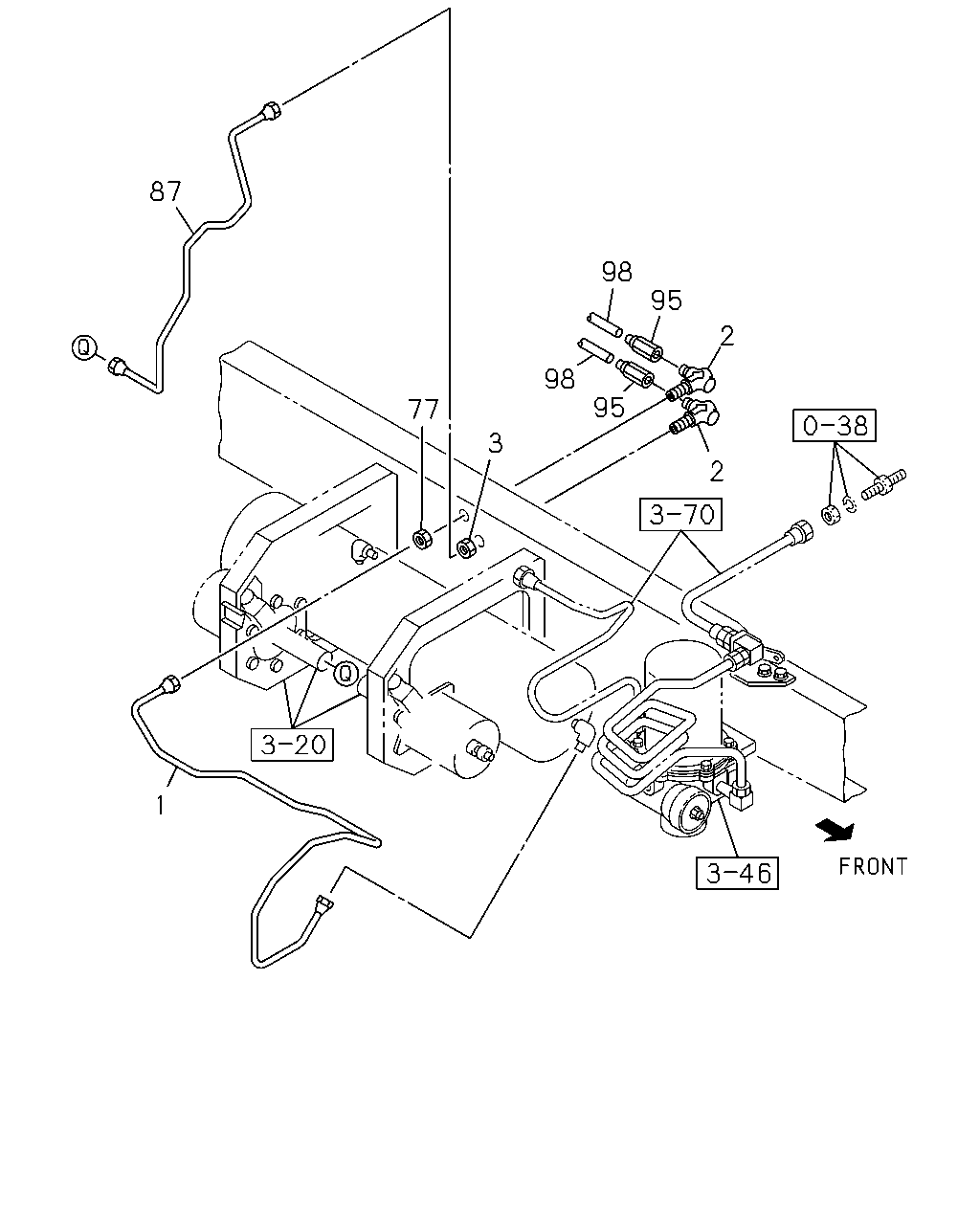

98 98 87 98 98 2 1 77 95 95 3 2 98 98 117 117 93 98 117 98 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION L=969	1-49124-964-0	01	1	0611-0612	●
1	PIPE; AIR,AIR TANK TO UNION L=1019 SERVICED BY L=1100	1-47428-790-0	01	1	0701-	●
1	PIPE; AIR,AIR TANK TO UNION TAI	8-97530-514-0	01	1	9811-9906	●
2	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	02	1	0611-	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	9811-9906	●
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0611-	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9811-9906	●
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0611-	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9811-9906	●
87	PIPE; AIR,UNION TO AIR MASTER TAI	8-97530-515-0	01	1	9811-9906	●
87	PIPE; AIR,UNION TO AIR MASTER TAI	8-97530-560-0	02	1	9907-0610		●
87	PIPE; AIR,UNION TO AIR MASTER L=607	1-49123-213-0	01	1	0611-0612	●
87	PIPE; AIR,UNION TO AIR MASTER L=662 SERVICED BY L=700	1-47428-785-0	01	1	0701-	●
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9811-	●	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0611-	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9811-9906	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	04	1	9811-0610	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0611-	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8 TAI	1-87410-073-0	02	1	9907-0610	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8 TAI	1-87410-074-0	01	1	9811-0610	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0611-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	03	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	03	1	0611-		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	01	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 TAI	1-87410-100-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	0611-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 TAI	1-87410-091-0	02	1	9811-9906	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	03	1	9907-0610	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	01	1	9811-9906		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	02	1	0611-		●

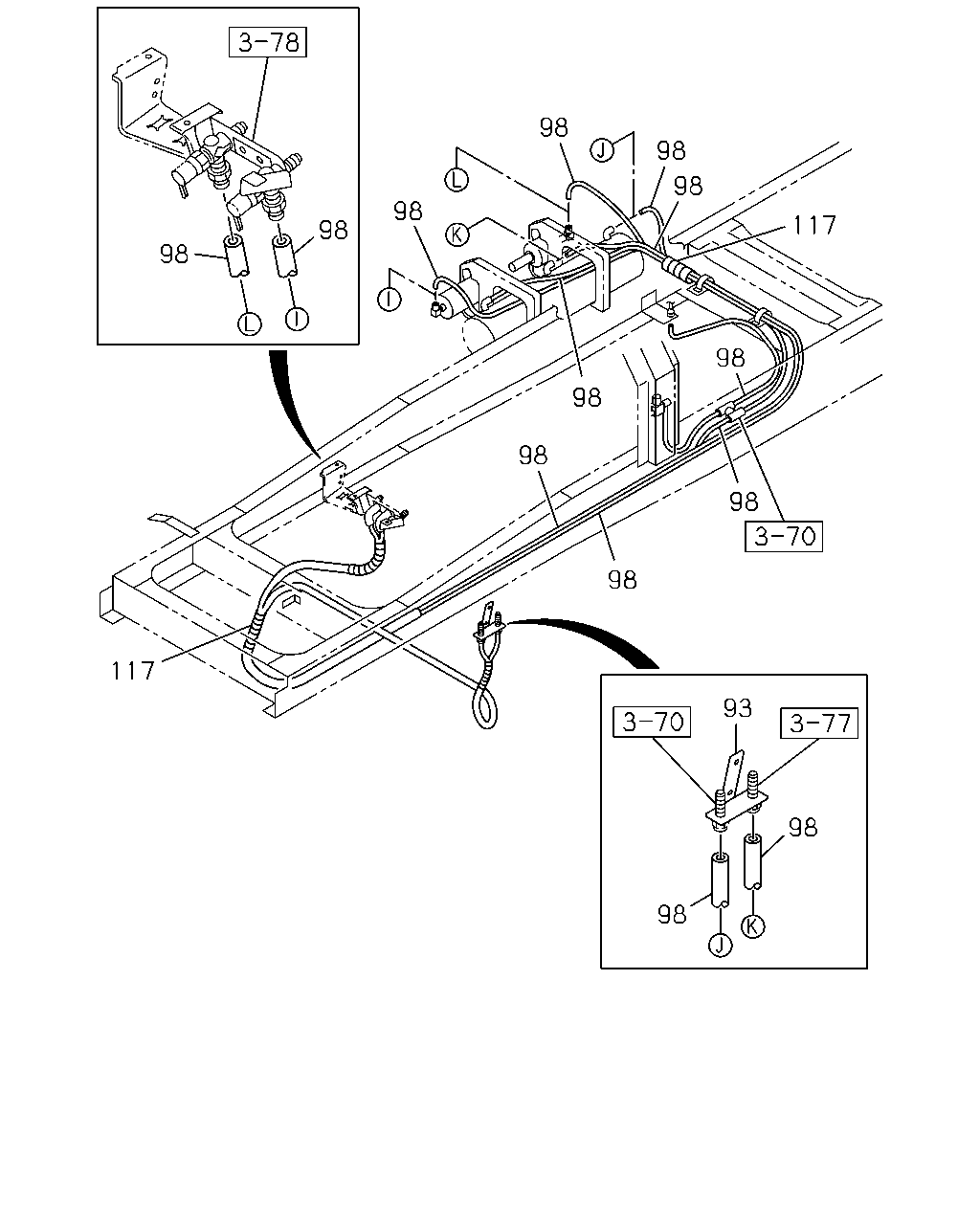

98 98 98 98 117 98 98 98 98 98 98 98 117 93 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9811-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	04	1	9811-0610	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0611-	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8 TAI	1-87410-073-0	02	1	9907-0610	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8 TAI	1-87410-074-0	01	1	9811-0610	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0611-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	03	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	03	1	0611-		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	01	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 TAI	1-87410-100-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	0611-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 TAI	1-87410-091-0	02	1	9811-9906	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	03	1	9907-0610	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	01	1	9811-9906		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	02	1	0611-		●

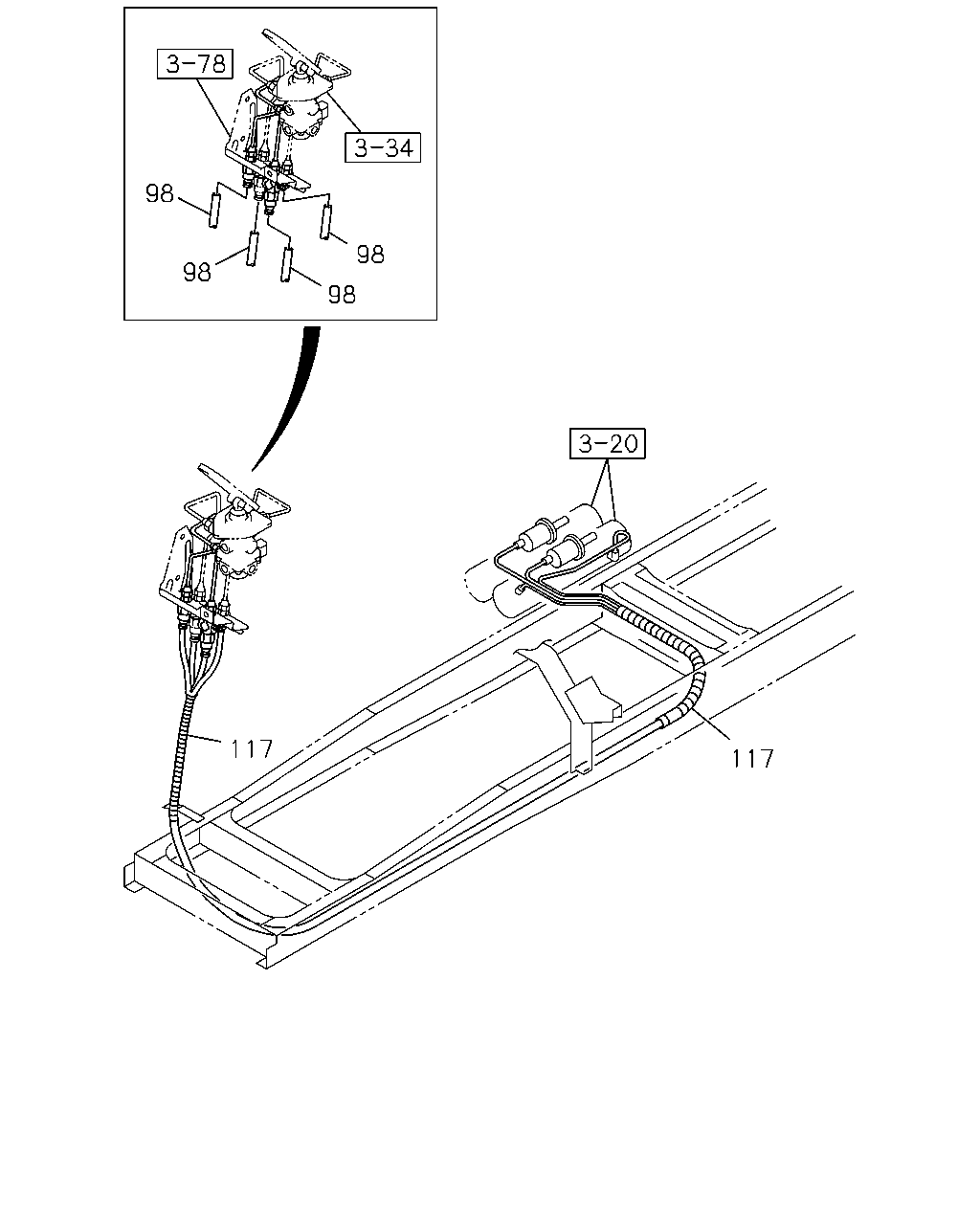

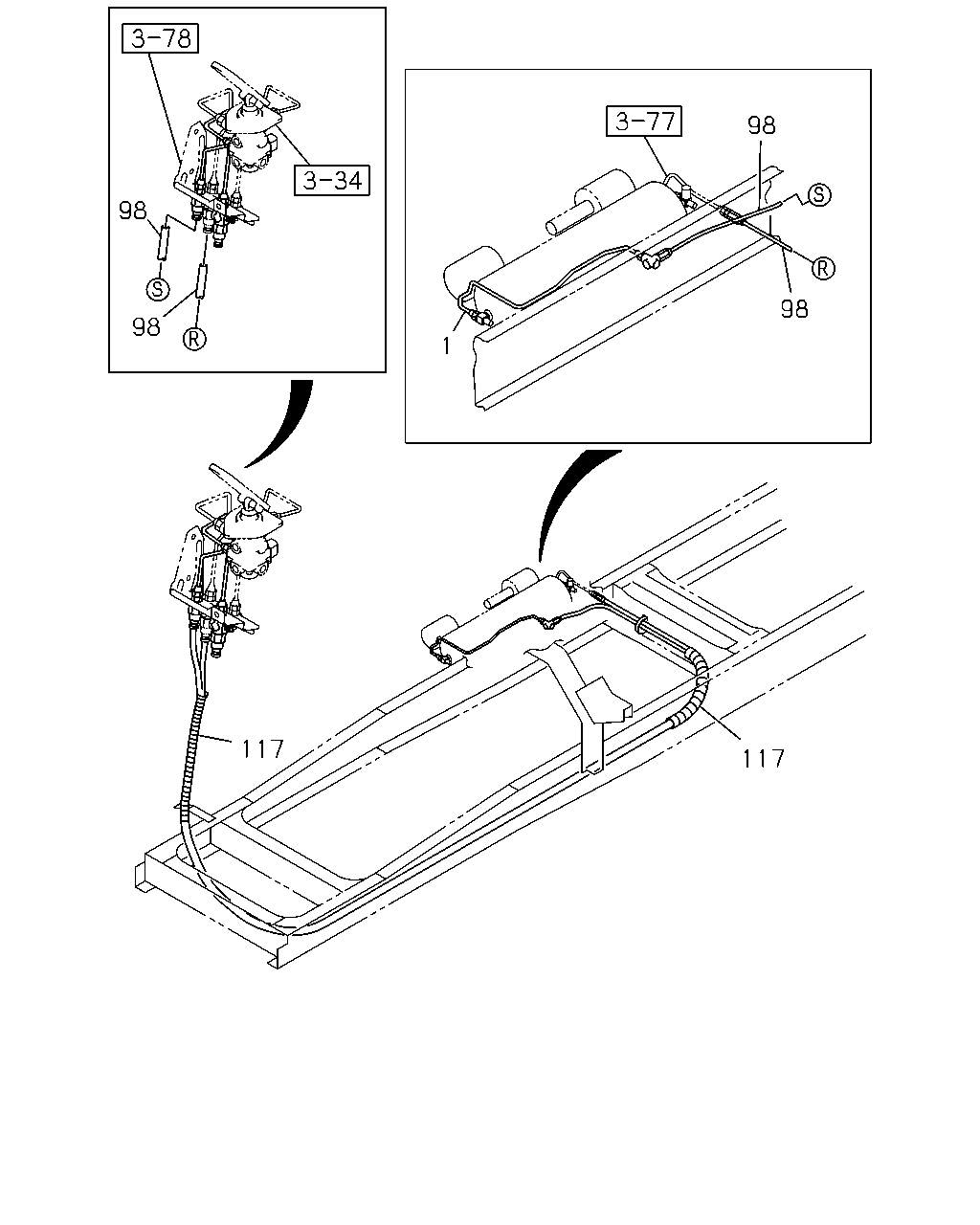

98 98 98 98 1 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION L=969	1-49124-964-0	01	1	0611-0612	●
1	PIPE; AIR,AIR TANK TO UNION L=1019 SERVICED BY L=1100	1-47428-790-0	01	1	0701-	●
1	PIPE; AIR,AIR TANK TO UNION TAI	8-97530-514-0	01	1	9811-9906	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	04	1	9811-0610	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0611-	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8 TAI	1-87410-073-0	02	1	9907-0610	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8 TAI	1-87410-074-0	01	1	9811-0610	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0611-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	03	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	03	1	0611-		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	01	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 TAI	1-87410-100-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	0611-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 TAI	1-87410-091-0	02	1	9811-9906	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	03	1	9907-0610	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	01	1	9811-9906		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	02	1	0611-		●

87 98 95 2 98 95 77 3 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION L=969	1-49124-964-0	01	1	0611-0612	●
1	PIPE; AIR,AIR TANK TO UNION L=1019 SERVICED BY L=1100	1-47428-790-0	01	1	0701-	●
1	PIPE; AIR,AIR TANK TO UNION TAI	8-97530-514-0	01	1	9811-9906	●
2	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	02	1	0611-	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	9811-9906	●
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0611-	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9811-9906	●
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0611-	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9811-9906	●
87	PIPE; AIR,UNION TO AIR MASTER TAI	8-97530-515-0	01	1	9811-9906	●
87	PIPE; AIR,UNION TO AIR MASTER TAI	8-97530-560-0	02	1	9907-0610		●
87	PIPE; AIR,UNION TO AIR MASTER L=607	1-49123-213-0	01	1	0611-0612	●
87	PIPE; AIR,UNION TO AIR MASTER L=662 SERVICED BY L=700	1-47428-785-0	01	1	0701-	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0611-	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9811-9906	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	04	1	9811-0610	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0611-	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8 TAI	1-87410-073-0	02	1	9907-0610	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8 TAI	1-87410-074-0	01	1	9811-0610	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0611-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	03	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	03	1	0611-		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	01	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0611-		●

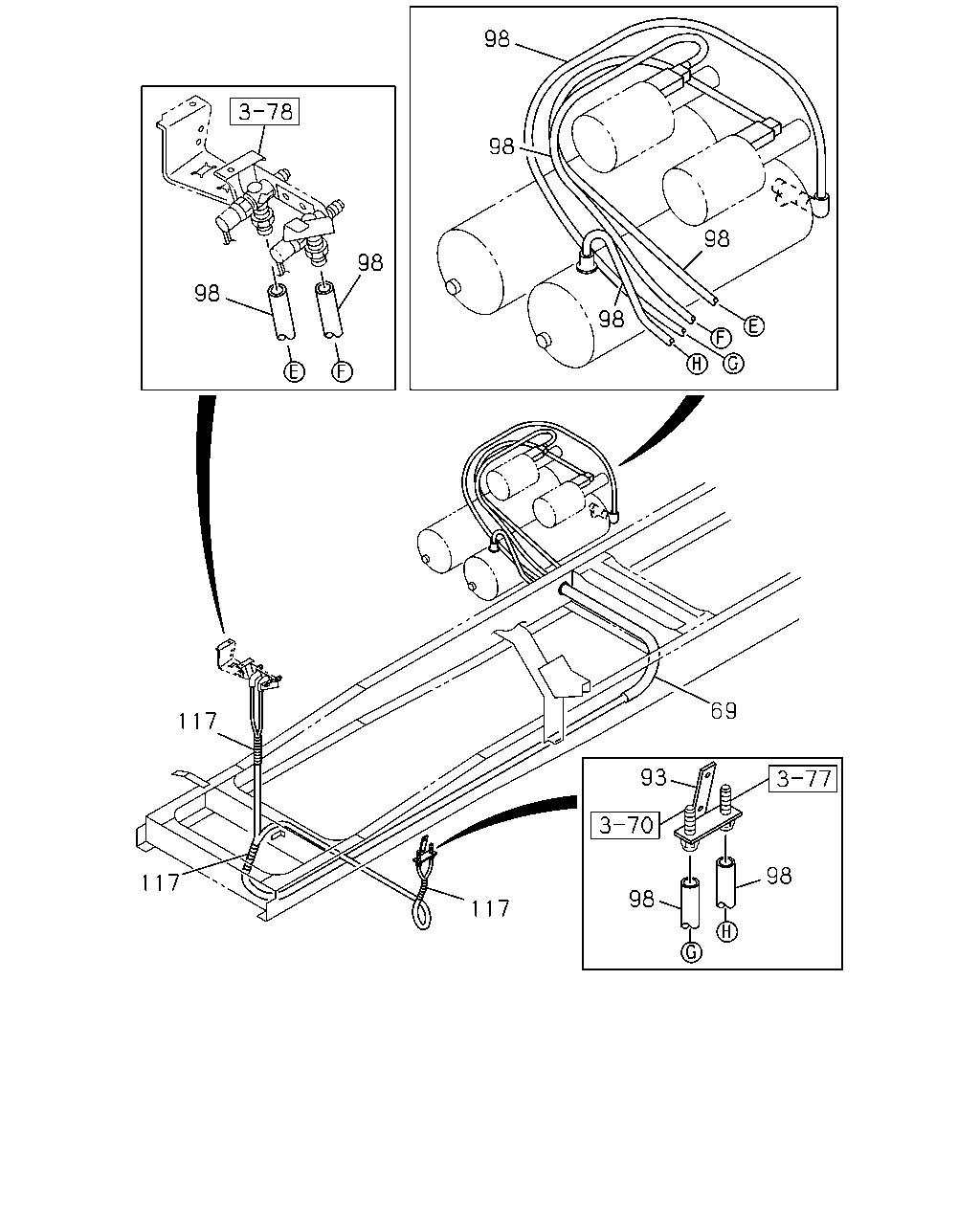

98 98 98 98 98 98 69 117 93 98 117 98 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	SLEEVE; RUBBER,FLEX HOSE L=1300	1-09360-677-1	01	1	9811-9906		●
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9811-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	04	1	9811-0610	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0611-	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8 TAI	1-87410-073-0	02	1	9907-0610	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8 TAI	1-87410-074-0	01	1	9811-0610	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0611-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	03	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	03	1	0611-		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	01	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 TAI	1-87410-100-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	0611-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 TAI	1-87410-091-0	02	1	9811-9906	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	03	1	9907-0610	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	01	1	9811-9906		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	02	1	0611-		●

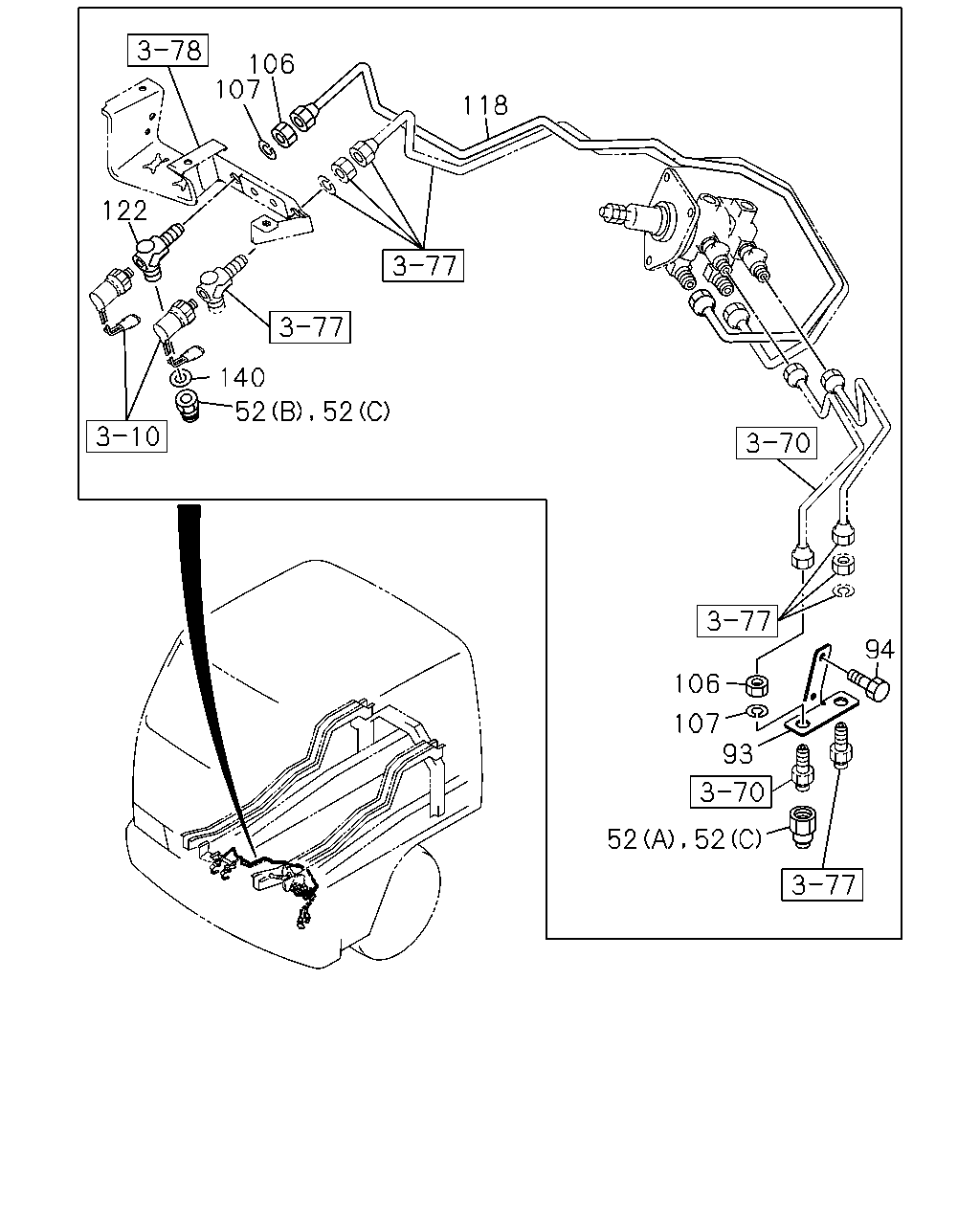

106 107 118 122 140 94 106 107 93 52 52 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	CONNECTOR; NYLON TUBE (B)	1-09660-728-1	01	1	9811-9811	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-9906	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9811-9906	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9907-	●	●
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9811-	●	●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	02	1	9811-	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9811-0512	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9811-0603	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=989 TAI	1-49121-666-0	01	1	0611-	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE TAI	8-97535-060-0	01	1	9811-9906	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE TAI	8-97535-128-0	01	1	9907-0610	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE TAI	8-97535-128-0	01	1	0611-		●
122	CONNECTOR; FLEX HOSE	1-09656-700-0	01	1	9811-9811	●	●
122	CONNECTOR; FLEX HOSE M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9811-9811	●	●

98 98 98 98 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	04	1	9811-0610	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	04	1	0611-	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8 TAI	1-87410-073-0	02	1	9907-0610	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8 TAI	1-87410-074-0	01	1	9811-0610	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0611-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	03	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12 TAI	1-87410-071-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	03	1	0611-		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	01	1	9811-9906		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12 TAI	1-87410-072-0	02	1	9907-0610		●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25 TAI	1-87410-100-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	0611-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9811-9906	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	02	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0611-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13 TAI	1-87410-091-0	02	1	9811-9906	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	03	1	9907-0610	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	02	1	0611-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32 TAI	1-87410-104-0	01	1	9811-9906		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28 TAI	1-87410-098-0	01	1	9907-0610		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	02	1	0611-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
