3-70 — BRAKE PIPING; AIR,AIR MASTER (#5737) — 542 parça

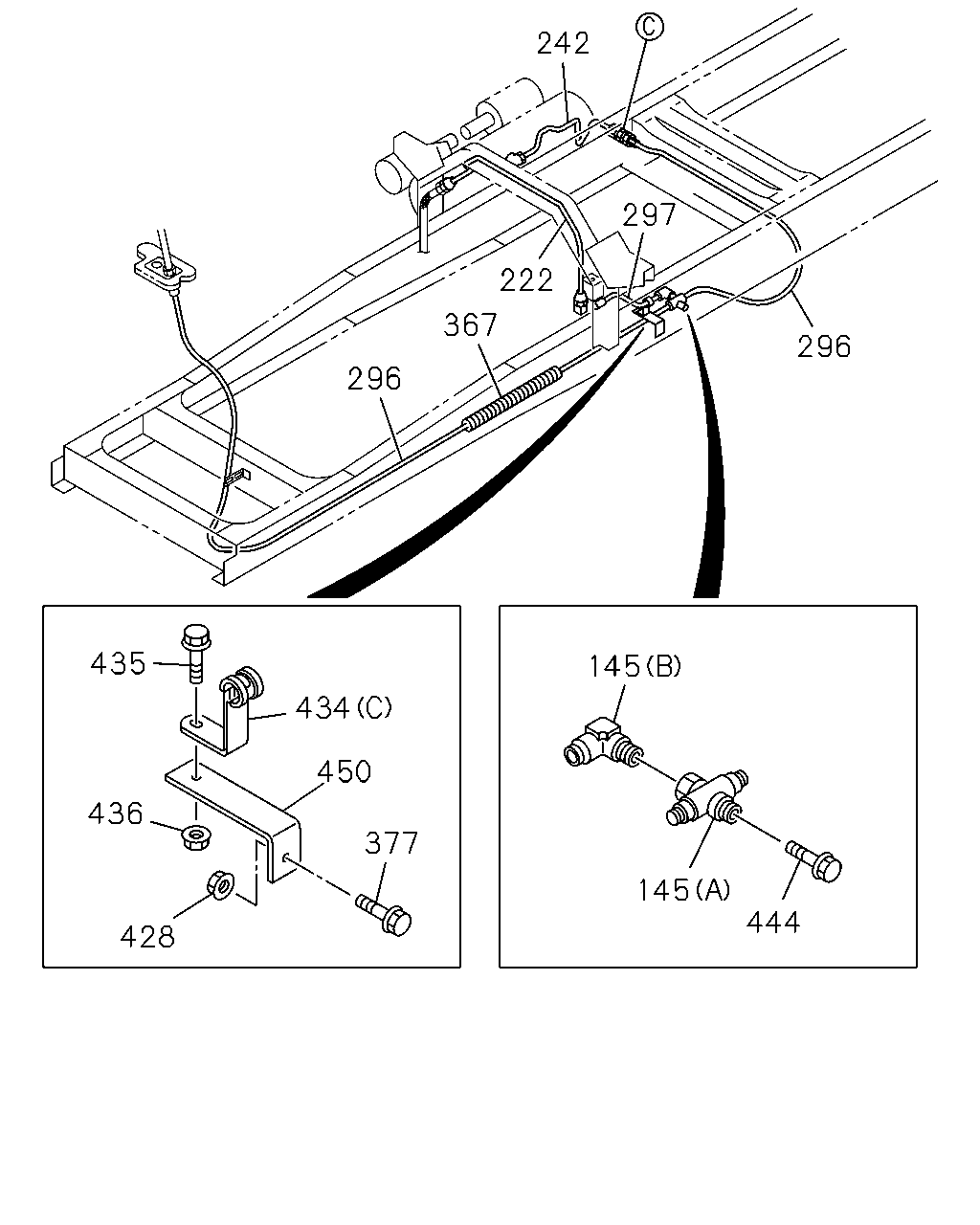

çizim 26003
242 297 222 367 296 296 435 145 434 450 436 377 145 444 428
BalonParca AdiParca NoAdetTipApplied Date A B
145 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9811-9906 ● ●
145 UNION; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9811-9906 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97530-512-0 01 1 9811-9906 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97531-014-0 01 1 9907-0610 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97530-511-0 01 1 9811-9906 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97531-015-0 01 1 9907-0610 ●
242 PIPE; AIR,AIR TANK TO UNION
TAI 		8-97530-467-0 01 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 02 1 9907-0610 ● ●
296 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
NISSAN DIESEL MPS62B M/T(Y2Z) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 03 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 TAI 		1-87410-069-0 01 1 9907-0610 ●
296 TUBE; NYLON
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 0611- ●
297 TUBE; NYLON
WB 4200MM(42W),WB 4800MM(48W),WB 5500MM(55W) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0611- ●
297 TUBE; NYLON
WB 5800MM(58W) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0611- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ● ●
297 TUBE; NYLON
WB 5500MM(55W) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
297 TUBE; NYLON
WB 5500MM(55W),WB 5800MM(58W) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
297 TUBE; NYLON
WB 5000MM(50W) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 02 1 0611- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
367 TUBE; CORRUGATE
WB 5000MM(50W) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0611- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 TAI 		1-87410-088-0 02 1 9811-9906 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 TAI 		1-87410-088-0 01 1 9907-0610 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 TAI 		1-87410-088-0 01 1 0611- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 01 1 9811-9906 ●
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9811-9906 ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 03 1 0611- ●
434 CLIP
WB 5000MM(50W) (E) L=250 		1-09707-126-0 01 1 0611- ●
434 CLIP
WB 5800MM(58W) (E) L=250 		1-09707-126-0 09 1 0611- ●
434 CLIP
(C) D=9 T=45 		5-09700-021-0 01 1 9811-9906 ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 01 1 9907-0610 ●
434 CLIP
(E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
(A) ID=17 TAI 		1-09987-105-1 01 1 9811- ● ●
434 CLIP
(B) TAI 		8-94297-486-0 02 1 9811- ● ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 02 1 9907-0610 ●
434 CLIP
WB 4800MM(48W) (E) L=250 		1-09707-126-0 04 1 0611- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9811-9906 ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9811-9906 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9811-9811 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9812-9906 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0611- ●
450 BRACKET; CLIP
L=90 B=25 		1-47475-530-0 01 1 9811-9906 ●
çizim 26042
244 243 202 272 403
BalonParca AdiParca NoAdetTipApplied Date A B
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0611- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 03 1 0611- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9811-9906 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9811-9906 ●
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0611- ● ●
243 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 9811-9906 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0611- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9811-9906 ● ●
272 PIPE; AIR,MAG VLV TO UNION
L=374 		1-49124-854-0 01 1 0611- ●
403 PIPE; AIR,AIR TANK TO MAG VLV
L=617 SERVICED BY L=650 		1-47428-810-0 01 1 0611- ●

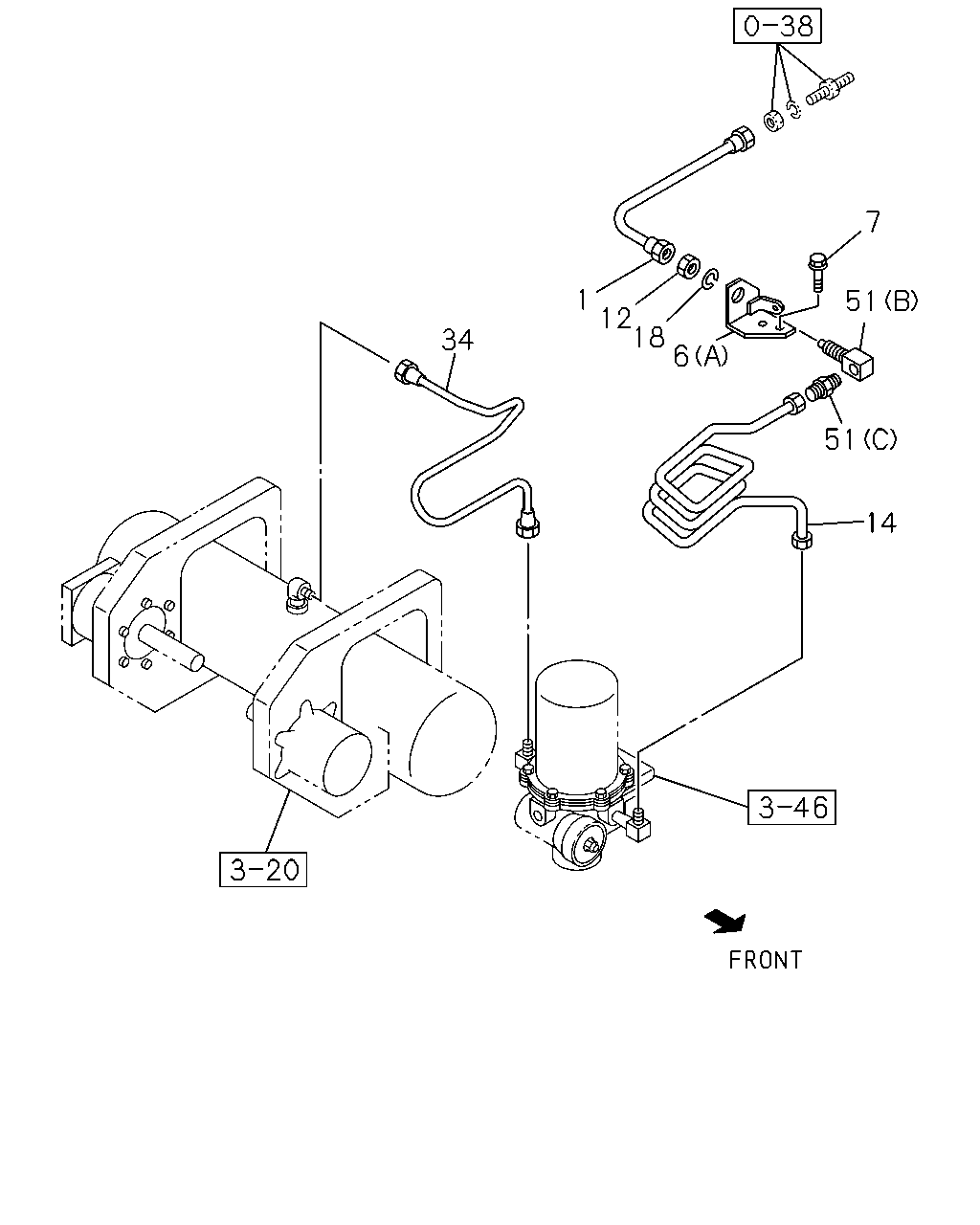

çizim 26043
7 1 51 12 18 6 34 51 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-706-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 0611- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-750-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK
L=300 		1-09363-760-0 01 1 0611- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47477-264-2 01 1 9811-9906 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47478-402-0 01 1 9907-0610 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-463-0 01 1 0611-0703 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-472-0 01 1 0704- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47478-140-0 01 1 9907-0610 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 01 1 9907-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0610 ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 0611- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=2009 		1-49124-955-0 01 1 0611- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1640 		1-49124-951-0 01 1 0611- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
TAI 		8-97530-459-0 01 1 9811-9906 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
TAI 		8-97530-460-0 01 1 9811-9906 ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0611- ● ●
34 PIPE; AIR
L=830 		1-49124-956-0 01 1 0611-0612 ●
34 PIPE; AIR
L=837 SERVICED BY L=900 		1-49115-461-0 01 1 0701- ●
34 PIPE; AIR
TAI 		8-97530-462-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-461-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-558-0 01 1 9907-0610 ●
34 PIPE; AIR
L=1024 		1-49124-957-0 01 1 0611- ●
51 UNION
(A) M12 & PT1/4 ELBOW TAI 		1-09650-430-0 01 1 0611- ● ●
51 UNION
(B) 		1-09654-433-0 01 1 0611- ● ●
51 UNION
(C) 		1-09661-810-0 01 1 0611- ● ●

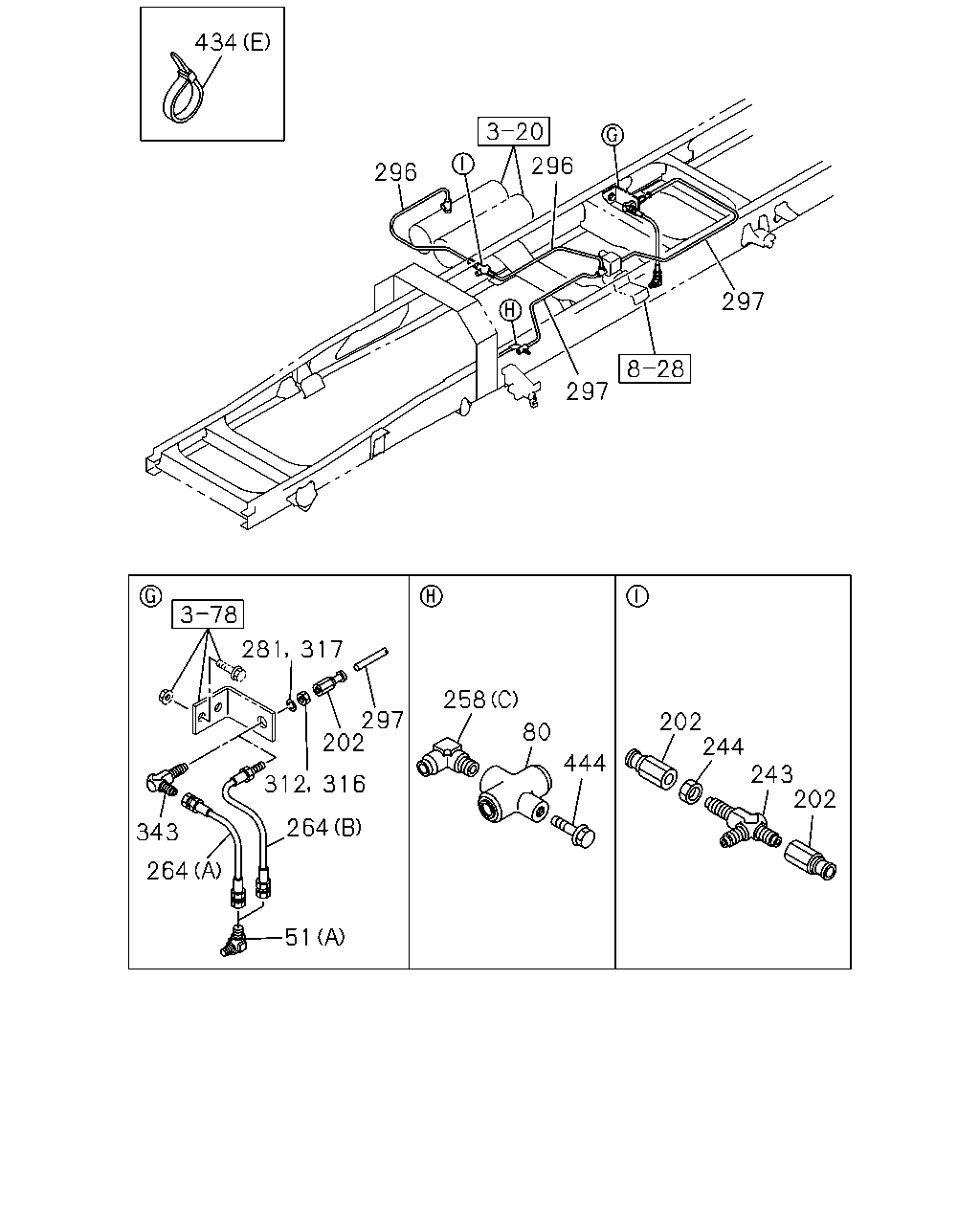

çizim 26167
434 296 296 297 297 281 317 258 297 202 202 244 243 202 80 444 312 316 264 343 264 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
(A) M12 & PT1/4 ELBOW TAI 		1-09650-430-0 01 1 0611- ● ●
51 UNION
(B) 		1-09654-433-0 01 1 0611- ● ●
51 UNION
(C) 		1-09661-810-0 01 1 0611- ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9907- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0611- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 03 1 0611- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9811-9906 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9811-9906 ●
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0611- ● ●
243 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 9811-9906 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0611- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9811-9906 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9811-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 9907-0610 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0611- ● ●
264 HOSE; FLEX
(A) L=300 		1-09363-611-0 01 1 0611- ●
264 HOSE; FLEX
WB 5000MM(50W) (B) L=340 		1-09363-622-0 01 1 0611- ●
264 HOSE; FLEX
WB 5500MM(55W),WB 5800MM(58W) (A) L=400 		1-09363-743-0 01 1 0611- ●
281 WASHER; LK UNION
ID=12.2 		0-91510-512-0 01 1 0611- ●
281 WASHER; LK UNION
WB 5500MM(55W),WB 5800MM(58W) ID=12.2 		0-91510-512-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 02 1 9907-0610 ● ●
296 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
NISSAN DIESEL MPS62B M/T(Y2Z) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 03 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 TAI 		1-87410-069-0 01 1 9907-0610 ●
296 TUBE; NYLON
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 0611- ●
297 TUBE; NYLON
WB 4200MM(42W),WB 4800MM(48W),WB 5500MM(55W) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0611- ●
297 TUBE; NYLON
WB 5800MM(58W) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0611- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ● ●
297 TUBE; NYLON
WB 5500MM(55W) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
297 TUBE; NYLON
WB 5500MM(55W),WB 5800MM(58W) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
297 TUBE; NYLON
WB 5000MM(50W) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 02 1 0611- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
312 NUT; UNION
M12 		9-09840-280-0 01 1 0611- ●
312 NUT; UNION
WB 5500MM(55W),WB 5800MM(58W) M12 		9-09840-280-0 01 1 0611- ●
316 NUT; FLEX HOSE
WB 5000MM(50W) M12 		9-09840-280-0 01 1 0611- ●
317 WASHER; LK,FLEX HOSE
WB 5000MM(50W) ID=12.2 		0-91510-512-0 01 1 0611- ●
343 UNION; NYLON TUBE
M12 ELBOW 		0-92125-206-0 01 1 0611- ●
343 UNION; NYLON TUBE
WB 5500MM(55W),WB 5800MM(58W) M12 ELBOW 		0-92125-206-0 01 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 03 1 0611- ●
434 CLIP
WB 5000MM(50W) (E) L=250 		1-09707-126-0 01 1 0611- ●
434 CLIP
WB 5800MM(58W) (E) L=250 		1-09707-126-0 09 1 0611- ●
434 CLIP
(C) D=9 T=45 		5-09700-021-0 01 1 9811-9906 ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 01 1 9907-0610 ●
434 CLIP
(E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
(A) ID=17 TAI 		1-09987-105-1 01 1 9811- ● ●
434 CLIP
(B) TAI 		8-94297-486-0 02 1 9811- ● ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 02 1 9907-0610 ●
434 CLIP
WB 4800MM(48W) (E) L=250 		1-09707-126-0 04 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9811-9811 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9812-9906 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0611- ●

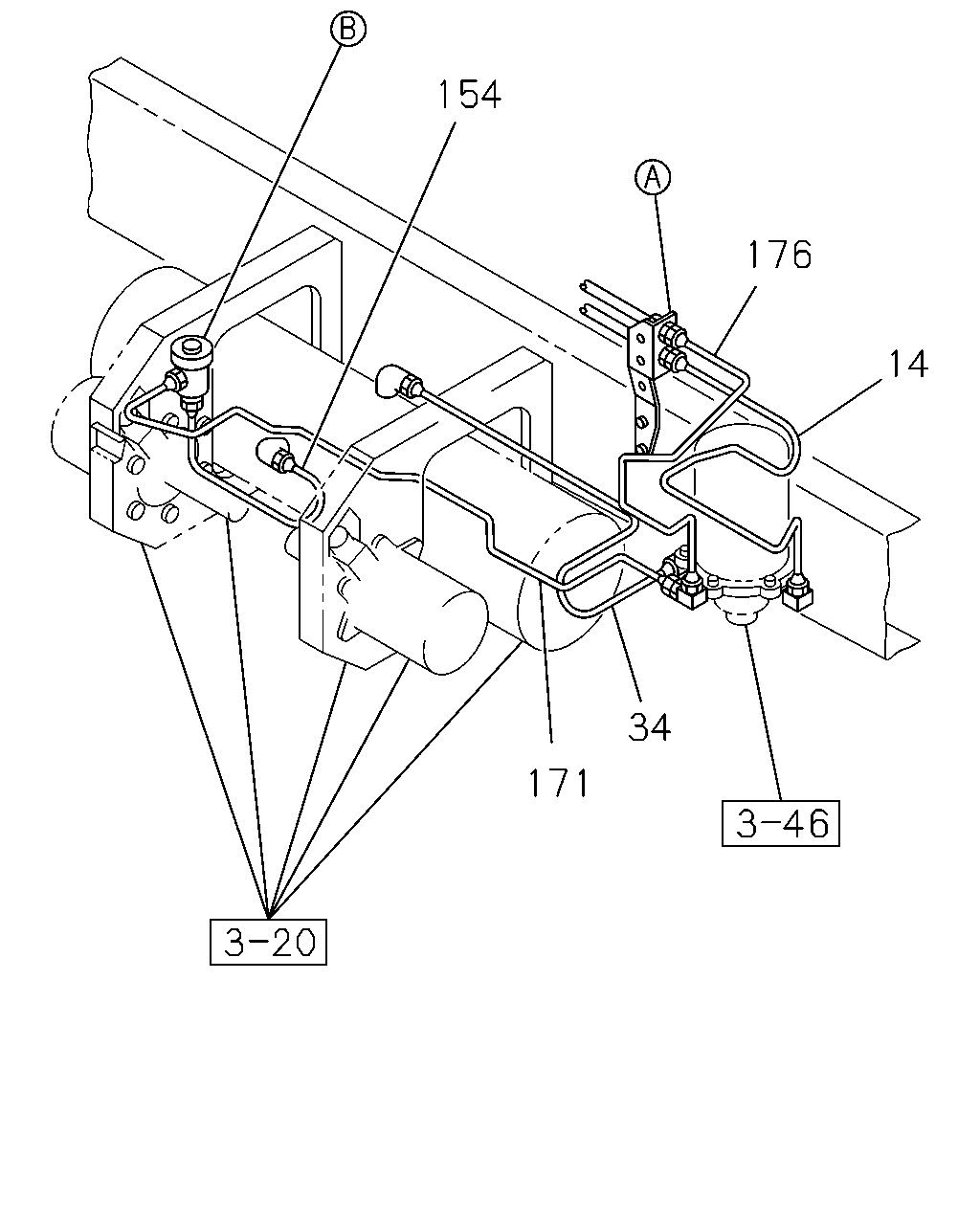

çizim 26219
154 176 14 34 171
BalonParca AdiParca NoAdetTipApplied Date A B
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=2009 		1-49124-955-0 01 1 0611- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1640 		1-49124-951-0 01 1 0611- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
TAI 		8-97530-459-0 01 1 9811-9906 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
TAI 		8-97530-460-0 01 1 9811-9906 ●
34 PIPE; AIR
L=830 		1-49124-956-0 01 1 0611-0612 ●
34 PIPE; AIR
L=837 SERVICED BY L=900 		1-49115-461-0 01 1 0701- ●
34 PIPE; AIR
TAI 		8-97530-462-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-461-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-558-0 01 1 9907-0610 ●
34 PIPE; AIR
L=1024 		1-49124-957-0 01 1 0611- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
TAI 		8-97530-468-0 01 1 9811-9906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
TAI 		8-97530-469-0 01 1 9811-9906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
TAI 		8-97530-563-0 01 1 9907-0610 ●
171 PIPE; AIR,GOV TO AIR DRYER
TAI 		8-97530-470-0 01 1 9811-9906 ●
171 PIPE; AIR,GOV TO AIR DRYER
TAI 		8-97530-471-0 01 1 9811-9906 ●
171 PIPE; AIR,GOV TO AIR DRYER
TAI 		8-97530-564-0 01 1 9907-0610 ●
176 PIPE; AIR,AIR DRYER TO UNION
TAI 		8-97530-472-0 01 1 9811-9906 ●
176 PIPE; AIR,AIR DRYER TO UNION
TAI 		8-97530-473-0 01 1 9811-9906 ●

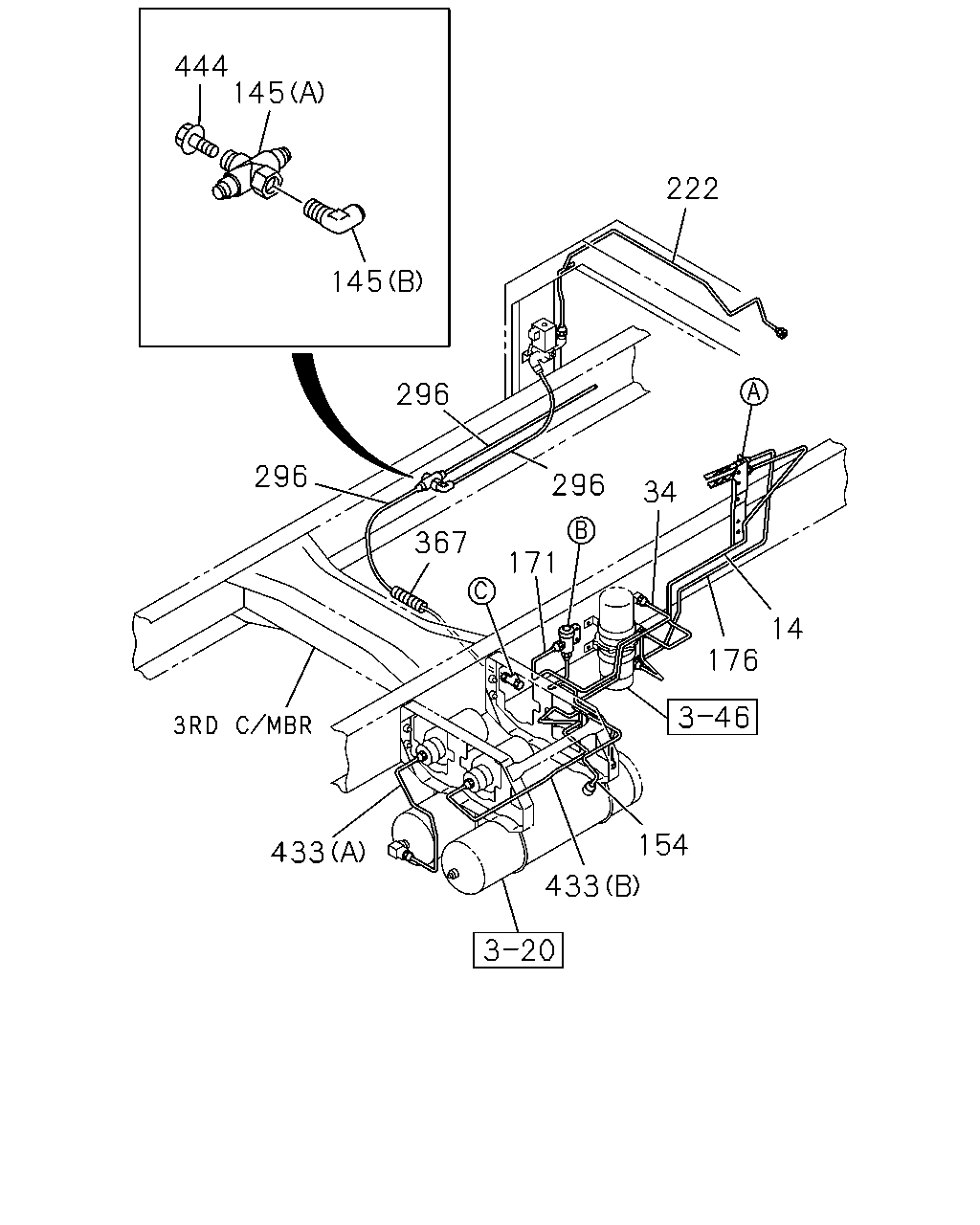

çizim 26253
444 145 222 145 296 296 296 34 367 171 14 176 154 433 433
BalonParca AdiParca NoAdetTipApplied Date A B
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=2009 		1-49124-955-0 01 1 0611- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1640 		1-49124-951-0 01 1 0611- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
TAI 		8-97530-459-0 01 1 9811-9906 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
TAI 		8-97530-460-0 01 1 9811-9906 ●
34 PIPE; AIR
L=830 		1-49124-956-0 01 1 0611-0612 ●
34 PIPE; AIR
L=837 SERVICED BY L=900 		1-49115-461-0 01 1 0701- ●
34 PIPE; AIR
TAI 		8-97530-462-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-461-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-558-0 01 1 9907-0610 ●
34 PIPE; AIR
L=1024 		1-49124-957-0 01 1 0611- ●
145 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9811-9906 ● ●
145 UNION; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9811-9906 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
TAI 		8-97530-468-0 01 1 9811-9906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
TAI 		8-97530-469-0 01 1 9811-9906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
TAI 		8-97530-563-0 01 1 9907-0610 ●
171 PIPE; AIR,GOV TO AIR DRYER
TAI 		8-97530-470-0 01 1 9811-9906 ●
171 PIPE; AIR,GOV TO AIR DRYER
TAI 		8-97530-471-0 01 1 9811-9906 ●
171 PIPE; AIR,GOV TO AIR DRYER
TAI 		8-97530-564-0 01 1 9907-0610 ●
176 PIPE; AIR,AIR DRYER TO UNION
TAI 		8-97530-472-0 01 1 9811-9906 ●
176 PIPE; AIR,AIR DRYER TO UNION
TAI 		8-97530-473-0 01 1 9811-9906 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97530-512-0 01 1 9811-9906 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97531-014-0 01 1 9907-0610 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97530-511-0 01 1 9811-9906 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97531-015-0 01 1 9907-0610 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 02 1 9907-0610 ● ●
296 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
NISSAN DIESEL MPS62B M/T(Y2Z) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 03 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 TAI 		1-87410-069-0 01 1 9907-0610 ●
296 TUBE; NYLON
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 0611- ●
367 TUBE; CORRUGATE
WB 5000MM(50W) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0611- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 TAI 		1-87410-088-0 02 1 9811-9906 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 TAI 		1-87410-088-0 01 1 9907-0610 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 TAI 		1-87410-088-0 01 1 0611- ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
(A) TAI 		8-97530-463-0 01 1 9811-9906 ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
(B) TAI 		8-97530-464-0 01 1 9811-9906 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9811-9811 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9812-9906 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0611- ●

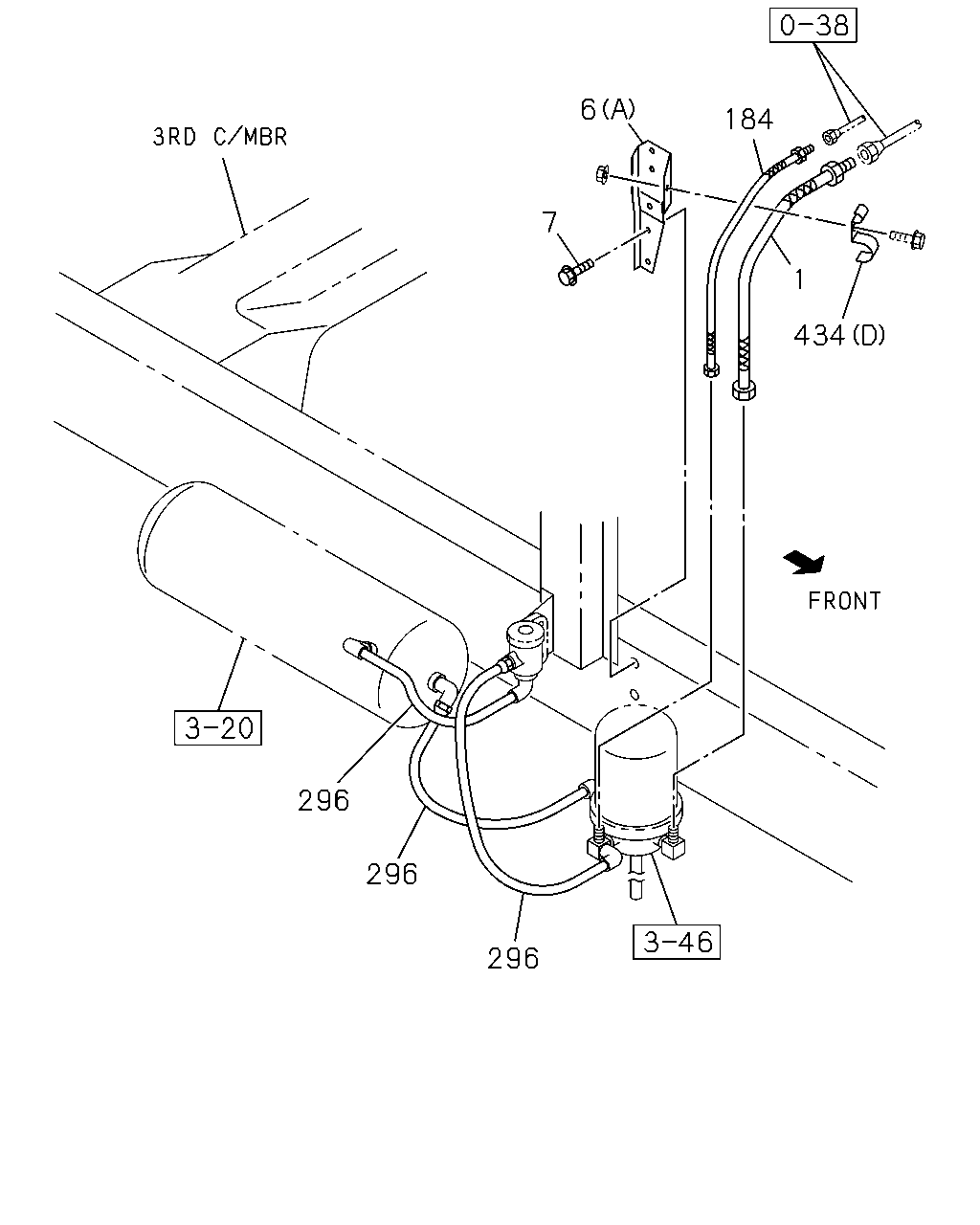

çizim 26254
6 184 7 1 434 296 296 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-706-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 0611- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-750-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK
L=300 		1-09363-760-0 01 1 0611- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47477-264-2 01 1 9811-9906 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47478-402-0 01 1 9907-0610 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-463-0 01 1 0611-0703 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-472-0 01 1 0704- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47478-140-0 01 1 9907-0610 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 01 1 9907-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0610 ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9811-9906 ● ●
184 HOSE; FLEX,AIR GOV
L=660 		1-09363-719-0 01 1 9907-0610 ●
184 HOSE; FLEX,AIR GOV
L=1050 		1-09363-729-0 01 1 9907-0610 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 02 1 9907-0610 ● ●
296 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
NISSAN DIESEL MPS62B M/T(Y2Z) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 03 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 TAI 		1-87410-069-0 01 1 9907-0610 ●
296 TUBE; NYLON
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 03 1 0611- ●
434 CLIP
WB 5000MM(50W) (E) L=250 		1-09707-126-0 01 1 0611- ●
434 CLIP
WB 5800MM(58W) (E) L=250 		1-09707-126-0 09 1 0611- ●
434 CLIP
(C) D=9 T=45 		5-09700-021-0 01 1 9811-9906 ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 01 1 9907-0610 ●
434 CLIP
(E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
(A) ID=17 TAI 		1-09987-105-1 01 1 9811- ● ●
434 CLIP
(B) TAI 		8-94297-486-0 02 1 9811- ● ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 02 1 9907-0610 ●
434 CLIP
WB 4800MM(48W) (E) L=250 		1-09707-126-0 04 1 0611- ●

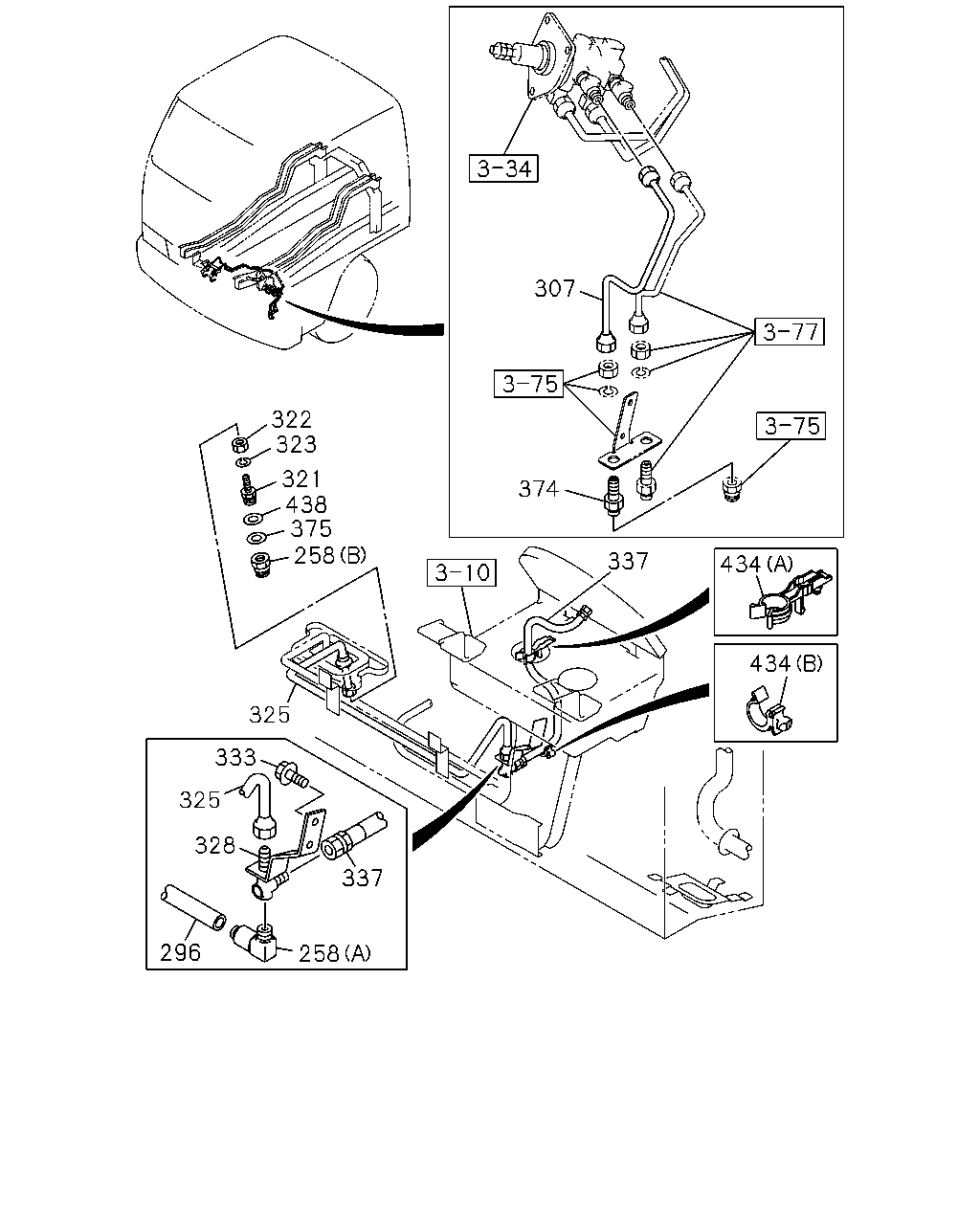

çizim 26425
307 322 323 321 438 375 258 374 337 434 434 325 333 325 328 337 296 258
BalonParca AdiParca NoAdetTipApplied Date A B
258 CONNECTOR; NYLON TUBE
(A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9811-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 9907-0610 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0611- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 02 1 9907-0610 ● ●
296 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
NISSAN DIESEL MPS62B M/T(Y2Z) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 03 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 TAI 		1-87410-069-0 01 1 9907-0610 ●
296 TUBE; NYLON
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 0611- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=434 TAI 		1-49116-435-1 01 1 0611- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
TAI 		8-97535-058-0 01 1 9811-0610 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
TAI 		8-97535-058-0 01 1 0611- ●
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 9811-9811 ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 9812- ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 TAI 		1-09400-029-0 01 1 9811- ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 9811-0603 ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
L=791 TAI 		1-49116-077-0 01 1 0611- ●
325 PIPE; AIR,FLEX HOSE TO UNION
TAI 		8-97535-062-0 01 1 9811-0610 ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
TAI 		8-97535-062-0 01 1 0611- ●
328 UNION; AIR PIPE 1-47470-473-0 01 1 9811- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 02 1 9811- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 9811-0605 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606- ● ●
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 9811- ● ●
375 GASKET
ID=11 OD=18 		9-09572-510-0 01 1 9811-9811 ● ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 03 1 0611- ●
434 CLIP
WB 5000MM(50W) (E) L=250 		1-09707-126-0 01 1 0611- ●
434 CLIP
WB 5800MM(58W) (E) L=250 		1-09707-126-0 09 1 0611- ●
434 CLIP
(C) D=9 T=45 		5-09700-021-0 01 1 9811-9906 ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 01 1 9907-0610 ●
434 CLIP
(E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
(A) ID=17 TAI 		1-09987-105-1 01 1 9811- ● ●
434 CLIP
(B) TAI 		8-94297-486-0 02 1 9811- ● ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 02 1 9907-0610 ●
434 CLIP
WB 4800MM(48W) (E) L=250 		1-09707-126-0 04 1 0611- ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 TAI 		1-09985-184-0 01 1 9811- ● ●

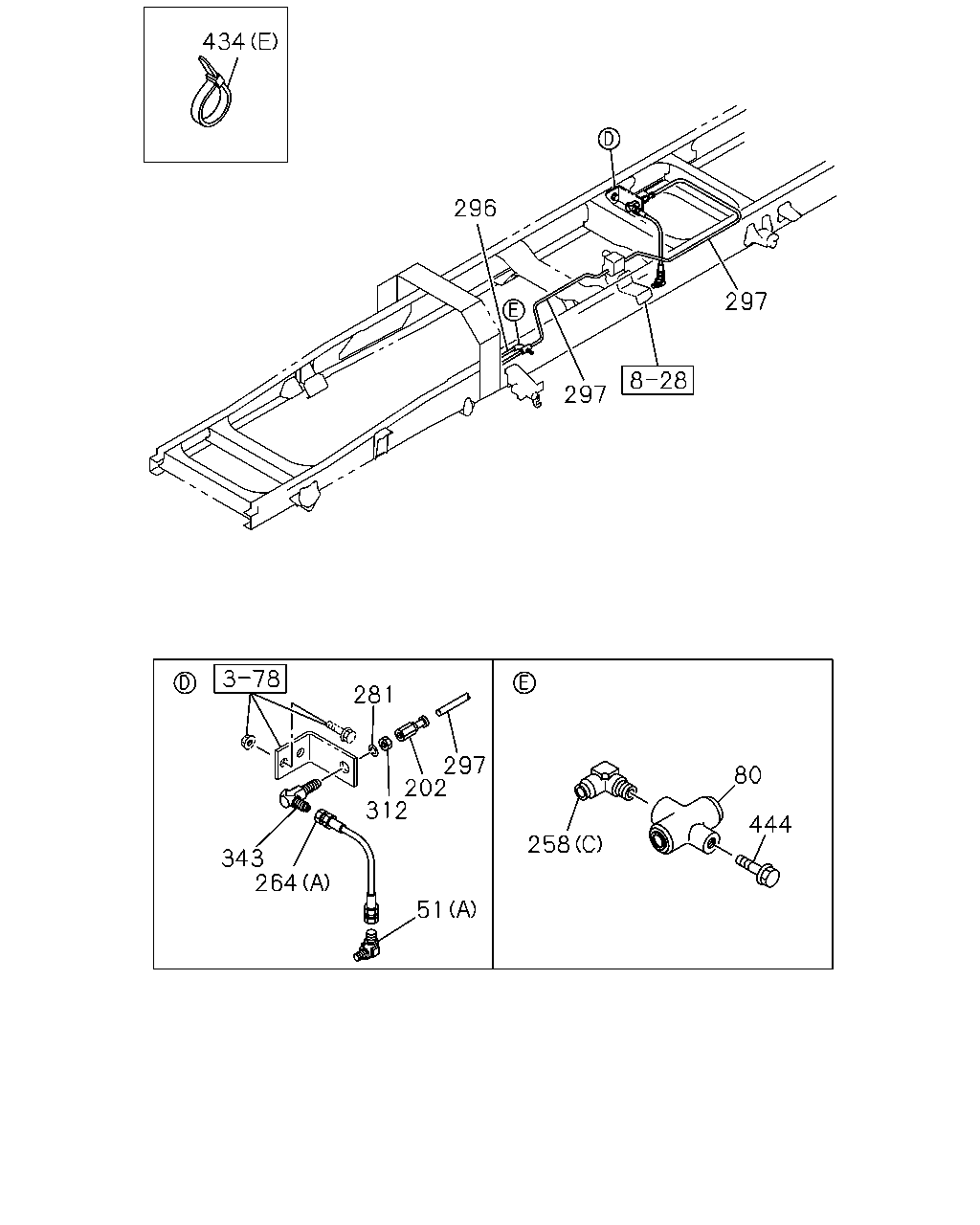

çizim 26557
434 296 297 297 281 297 202 312 80 444 258 343 264 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
(A) M12 & PT1/4 ELBOW TAI 		1-09650-430-0 01 1 0611- ● ●
51 UNION
(B) 		1-09654-433-0 01 1 0611- ● ●
51 UNION
(C) 		1-09661-810-0 01 1 0611- ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9907- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0611- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 03 1 0611- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9811-9906 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9811-9906 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9811-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 9907-0610 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0611- ● ●
264 HOSE; FLEX
(A) L=300 		1-09363-611-0 01 1 0611- ●
264 HOSE; FLEX
WB 5000MM(50W) (B) L=340 		1-09363-622-0 01 1 0611- ●
264 HOSE; FLEX
WB 5500MM(55W),WB 5800MM(58W) (A) L=400 		1-09363-743-0 01 1 0611- ●
281 WASHER; LK UNION
ID=12.2 		0-91510-512-0 01 1 0611- ●
281 WASHER; LK UNION
WB 5500MM(55W),WB 5800MM(58W) ID=12.2 		0-91510-512-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 02 1 9907-0610 ● ●
296 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
NISSAN DIESEL MPS62B M/T(Y2Z) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 03 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 TAI 		1-87410-069-0 01 1 9907-0610 ●
296 TUBE; NYLON
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 0611- ●
297 TUBE; NYLON
WB 4200MM(42W),WB 4800MM(48W),WB 5500MM(55W) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0611- ●
297 TUBE; NYLON
WB 5800MM(58W) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0611- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ● ●
297 TUBE; NYLON
WB 5500MM(55W) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
297 TUBE; NYLON
WB 5500MM(55W),WB 5800MM(58W) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
297 TUBE; NYLON
WB 5000MM(50W) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 02 1 0611- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
312 NUT; UNION
M12 		9-09840-280-0 01 1 0611- ●
312 NUT; UNION
WB 5500MM(55W),WB 5800MM(58W) M12 		9-09840-280-0 01 1 0611- ●
343 UNION; NYLON TUBE
M12 ELBOW 		0-92125-206-0 01 1 0611- ●
343 UNION; NYLON TUBE
WB 5500MM(55W),WB 5800MM(58W) M12 ELBOW 		0-92125-206-0 01 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 03 1 0611- ●
434 CLIP
WB 5000MM(50W) (E) L=250 		1-09707-126-0 01 1 0611- ●
434 CLIP
WB 5800MM(58W) (E) L=250 		1-09707-126-0 09 1 0611- ●
434 CLIP
(C) D=9 T=45 		5-09700-021-0 01 1 9811-9906 ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 01 1 9907-0610 ●
434 CLIP
(E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
(A) ID=17 TAI 		1-09987-105-1 01 1 9811- ● ●
434 CLIP
(B) TAI 		8-94297-486-0 02 1 9811- ● ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 02 1 9907-0610 ●
434 CLIP
WB 4800MM(48W) (E) L=250 		1-09707-126-0 04 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9811-9811 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9812-9906 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0611- ●

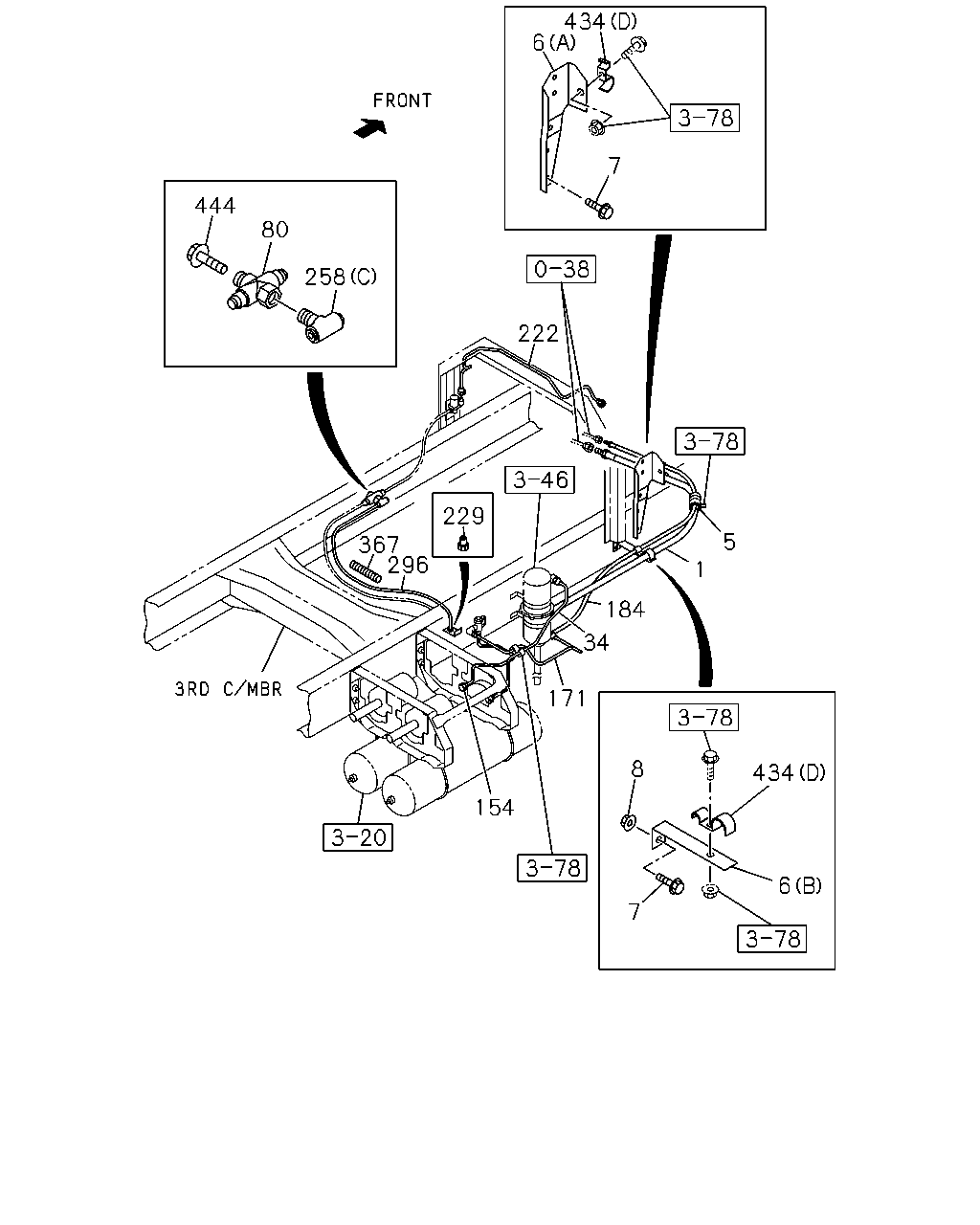

çizim 26583
434 6 7 444 80 258 222 229 5 367 296 1 184 34 171 8 434 154 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-706-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 0611- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-750-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK
L=300 		1-09363-760-0 01 1 0611- ●
5 SLEEVE; FLEX HOSE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 9907-0610 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47477-264-2 01 1 9811-9906 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47478-402-0 01 1 9907-0610 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-463-0 01 1 0611-0703 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-472-0 01 1 0704- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47478-140-0 01 1 9907-0610 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 01 1 9907-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0610 ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 01 1 9907-0602 ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 01 1 0603-0610 ●
34 PIPE; AIR
L=830 		1-49124-956-0 01 1 0611-0612 ●
34 PIPE; AIR
L=837 SERVICED BY L=900 		1-49115-461-0 01 1 0701- ●
34 PIPE; AIR
TAI 		8-97530-462-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-461-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-558-0 01 1 9907-0610 ●
34 PIPE; AIR
L=1024 		1-49124-957-0 01 1 0611- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9907- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
TAI 		8-97530-468-0 01 1 9811-9906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
TAI 		8-97530-469-0 01 1 9811-9906 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
TAI 		8-97530-563-0 01 1 9907-0610 ●
171 PIPE; AIR,GOV TO AIR DRYER
TAI 		8-97530-470-0 01 1 9811-9906 ●
171 PIPE; AIR,GOV TO AIR DRYER
TAI 		8-97530-471-0 01 1 9811-9906 ●
171 PIPE; AIR,GOV TO AIR DRYER
TAI 		8-97530-564-0 01 1 9907-0610 ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9811-9906 ● ●
184 HOSE; FLEX,AIR GOV
L=660 		1-09363-719-0 01 1 9907-0610 ●
184 HOSE; FLEX,AIR GOV
L=1050 		1-09363-729-0 01 1 9907-0610 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97530-512-0 01 1 9811-9906 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97531-014-0 01 1 9907-0610 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97530-511-0 01 1 9811-9906 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97531-015-0 01 1 9907-0610 ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9907-0007 ● ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0610 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9811-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 9907-0610 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0611- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 02 1 9907-0610 ● ●
296 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
NISSAN DIESEL MPS62B M/T(Y2Z) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 03 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 TAI 		1-87410-069-0 01 1 9907-0610 ●
296 TUBE; NYLON
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 0611- ●
367 TUBE; CORRUGATE
WB 5000MM(50W) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0611- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 TAI 		1-87410-088-0 02 1 9811-9906 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 TAI 		1-87410-088-0 01 1 9907-0610 ●
367 TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 TAI 		1-87410-088-0 01 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 03 1 0611- ●
434 CLIP
WB 5000MM(50W) (E) L=250 		1-09707-126-0 01 1 0611- ●
434 CLIP
WB 5800MM(58W) (E) L=250 		1-09707-126-0 09 1 0611- ●
434 CLIP
(C) D=9 T=45 		5-09700-021-0 01 1 9811-9906 ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 01 1 9907-0610 ●
434 CLIP
(E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
WB 5500MM(55W) (E) L=250 		1-09707-126-0 05 1 0611- ●
434 CLIP
(A) ID=17 TAI 		1-09987-105-1 01 1 9811- ● ●
434 CLIP
(B) TAI 		8-94297-486-0 02 1 9811- ● ●
434 CLIP
(D) ID=12 & 24 		1-09701-248-0 02 1 9907-0610 ●
434 CLIP
WB 4800MM(48W) (E) L=250 		1-09707-126-0 04 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9811-9811 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9812-9906 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0611- ●

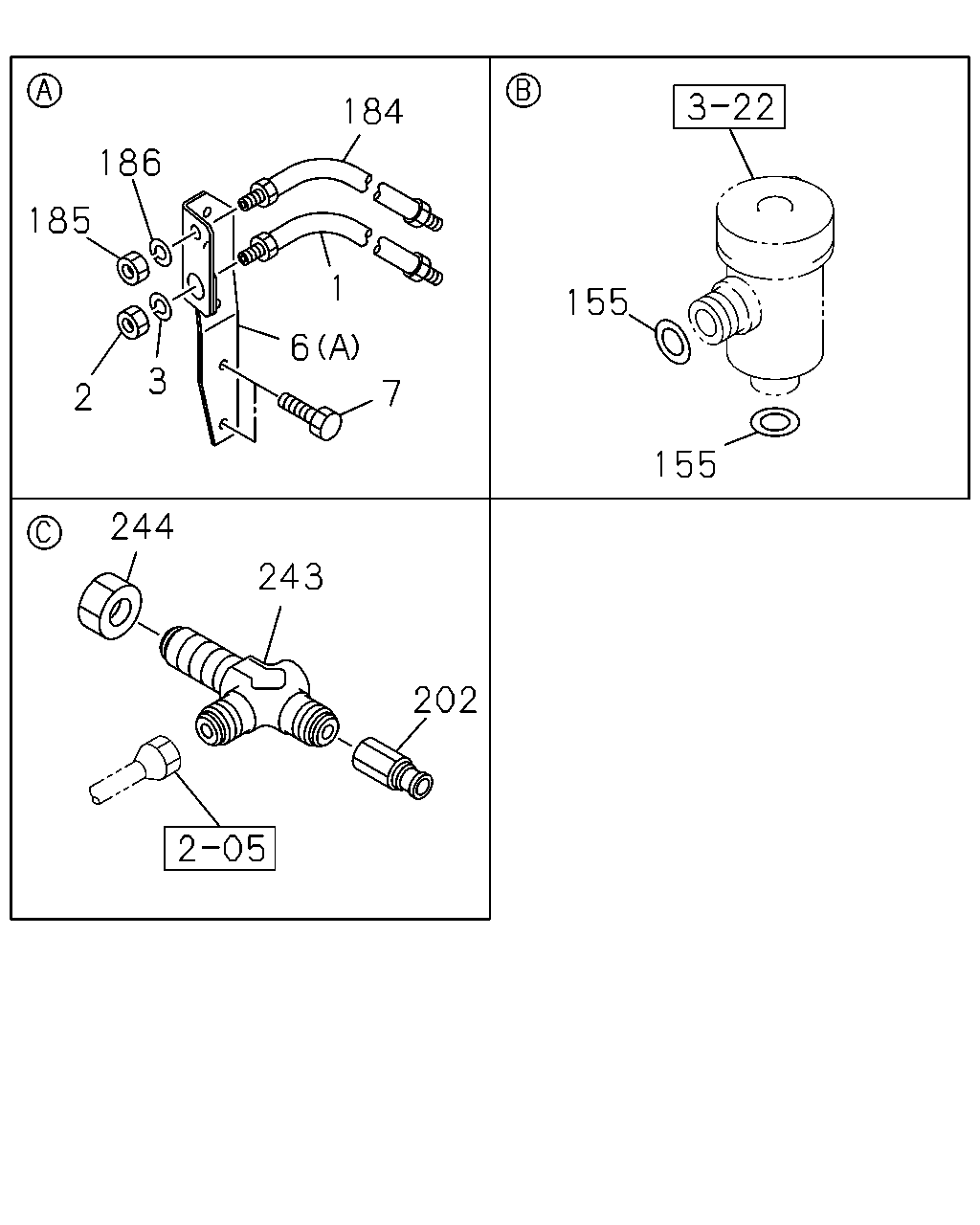

çizim 26599
184 186 185 1 155 6 3 7 2 155 244 243 202
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-706-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 0611- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-750-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK
L=300 		1-09363-760-0 01 1 0611- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9811-9906 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9811-9906 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47477-264-2 01 1 9811-9906 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47478-402-0 01 1 9907-0610 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-463-0 01 1 0611-0703 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-472-0 01 1 0704- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47478-140-0 01 1 9907-0610 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 01 1 9907-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0610 ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9811-9906 ● ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 9811-9906 ● ●
184 HOSE; FLEX,AIR GOV
L=660 		1-09363-719-0 01 1 9907-0610 ●
184 HOSE; FLEX,AIR GOV
L=1050 		1-09363-729-0 01 1 9907-0610 ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9811-9906 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9811-9906 ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0611- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 03 1 0611- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9811-9906 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9811-9906 ●
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0611- ● ●
243 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 9811-9906 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0611- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9811-9906 ● ●

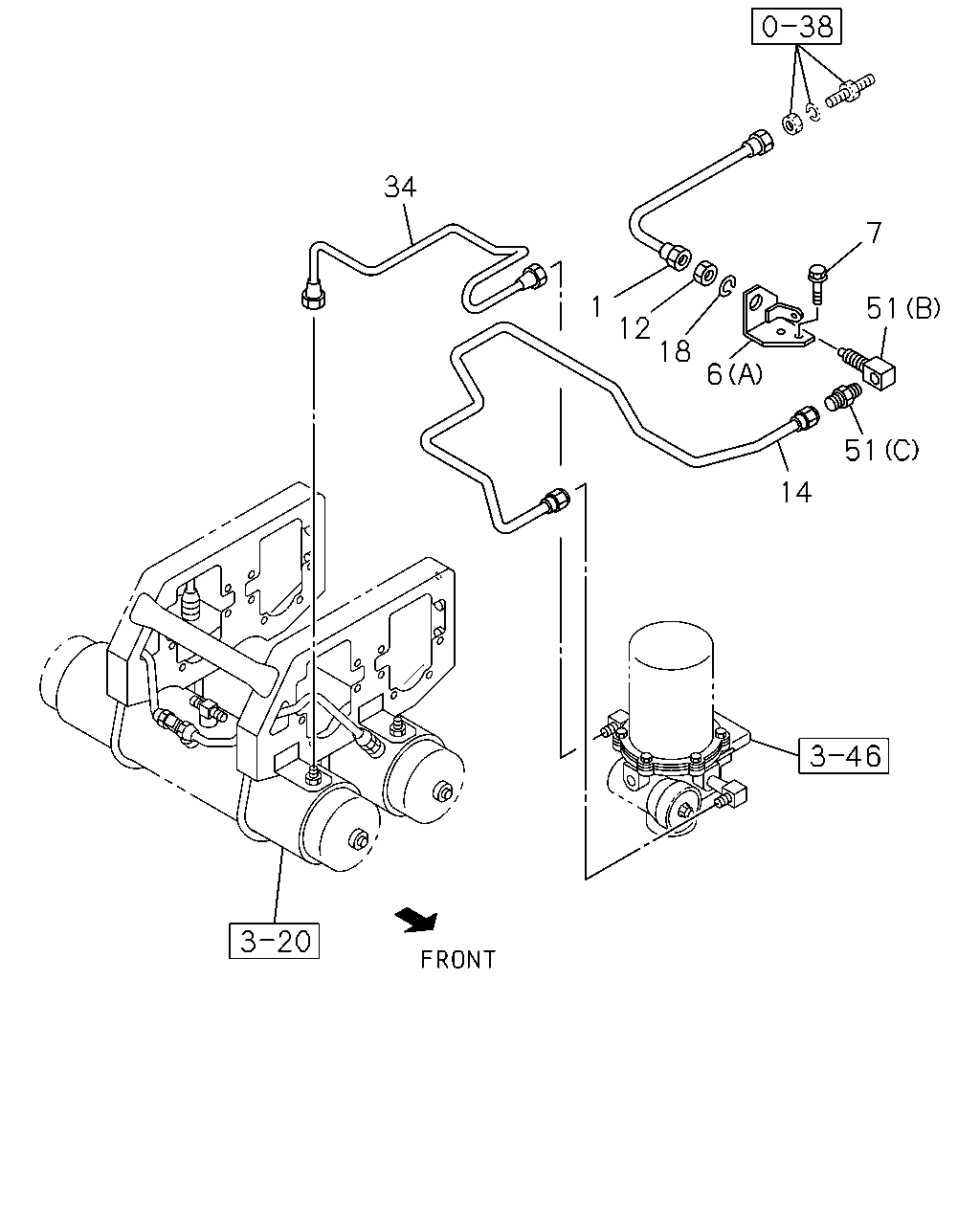

çizim 98910
34 7 1 51 12 18 6 51 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=350 		1-09363-558-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-706-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 0611- ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 9811-9906 ●
1 HOSE; FLEX,AIR TANK 1-09363-750-0 01 1 9907-0610 ●
1 HOSE; FLEX,AIR TANK
L=300 		1-09363-760-0 01 1 0611- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47477-264-2 01 1 9811-9906 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47478-402-0 01 1 9907-0610 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-463-0 01 1 0611-0703 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-472-0 01 1 0704- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47478-140-0 01 1 9907-0610 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 01 1 9907-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0610 ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 0611- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=2009 		1-49124-955-0 01 1 0611- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1640 		1-49124-951-0 01 1 0611- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
TAI 		8-97530-459-0 01 1 9811-9906 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
TAI 		8-97530-460-0 01 1 9811-9906 ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0611- ● ●
34 PIPE; AIR
L=830 		1-49124-956-0 01 1 0611-0612 ●
34 PIPE; AIR
L=837 SERVICED BY L=900 		1-49115-461-0 01 1 0701- ●
34 PIPE; AIR
TAI 		8-97530-462-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-461-0 01 1 9811-9906 ●
34 PIPE; AIR
TAI 		8-97530-558-0 01 1 9907-0610 ●
34 PIPE; AIR
L=1024 		1-49124-957-0 01 1 0611- ●
51 UNION
(A) M12 & PT1/4 ELBOW TAI 		1-09650-430-0 01 1 0611- ● ●
51 UNION
(B) 		1-09654-433-0 01 1 0611- ● ●
51 UNION
(C) 		1-09661-810-0 01 1 0611- ● ●

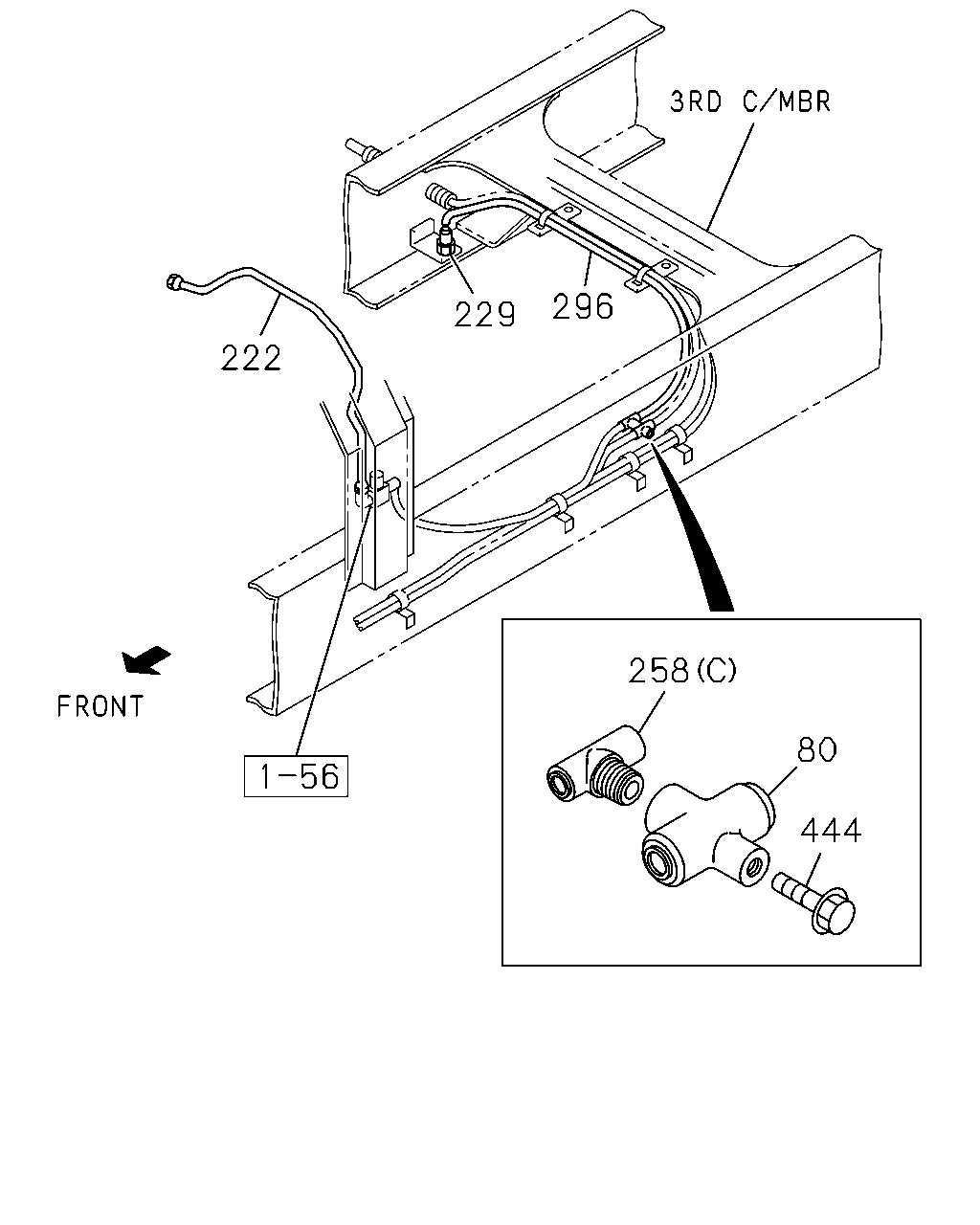

çizim 98911
296 229 222 258 80 444
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9907- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97530-512-0 01 1 9811-9906 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97531-014-0 01 1 9907-0610 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97530-511-0 01 1 9811-9906 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
TAI 		8-97531-015-0 01 1 9907-0610 ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9907-0007 ● ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0610 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9811-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-0007 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 9907-0610 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0611- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 02 1 9907-0610 ● ●
296 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
NISSAN DIESEL MPS62B M/T(Y2Z) SERVICED BY L=2000 OD=8 TAI 		1-87411-006-0 01 1 0611- ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 03 1 9811-9906 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 TAI 		1-87410-069-0 01 1 9907-0610 ●
296 TUBE; NYLON
EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 TAI 		1-87410-073-0 01 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9811-9811 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9812-9906 ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0611- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9907-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0610 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
