◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11327 - FSR(AUST/NZ)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56B - AUTO TRANS CONTROL LINK ▶
2-56B — AUTO TRANS CONTROL LINK (#57368) — 15 parça

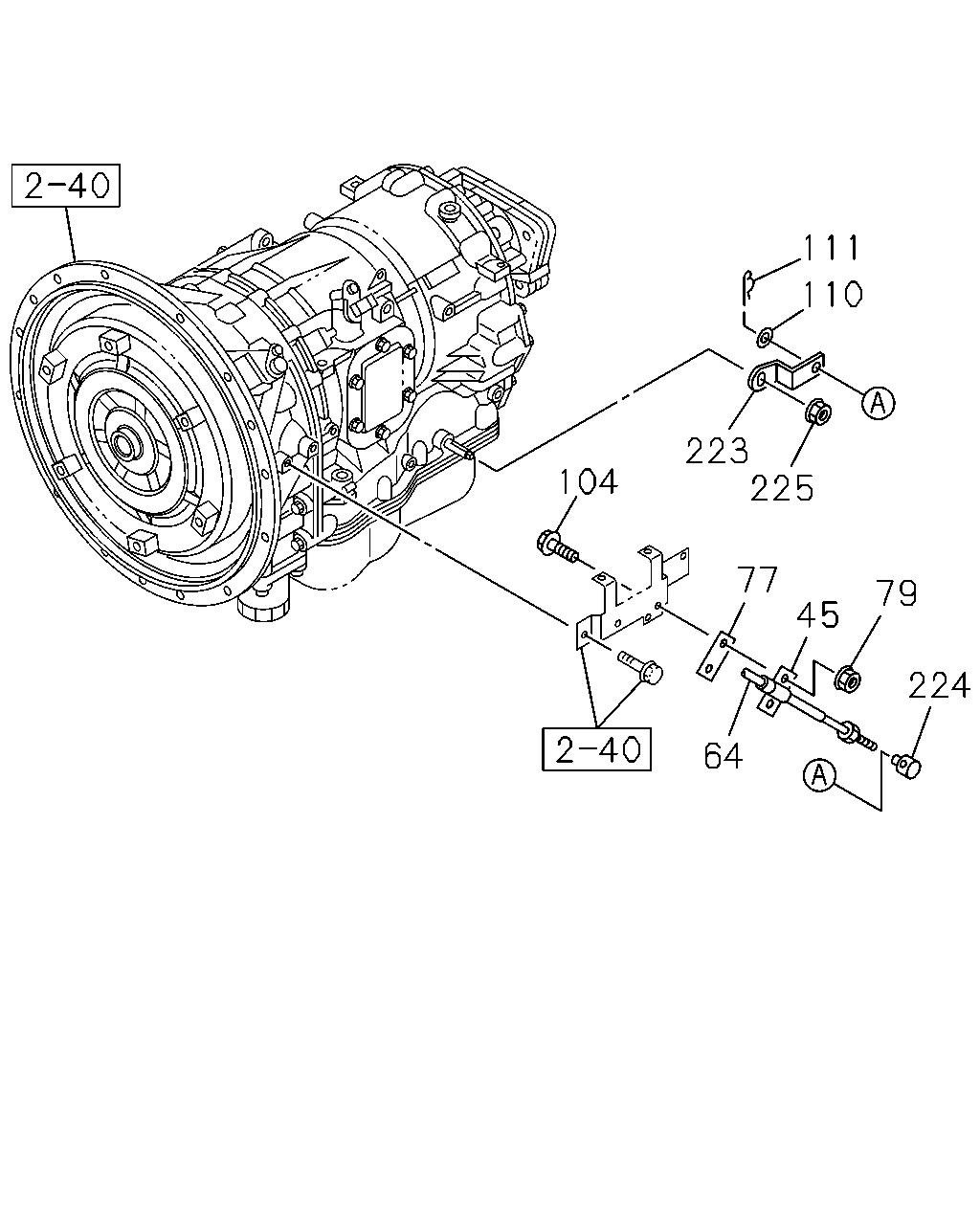

çizim 171625
111 110 223 225 104 77 79 45 224 64
BalonParca AdiParca NoAdetTipApplied Date
45 CLIP; CONT CABLE 1-09709-308-0 01 1 1010-
64 CABLE; A/T CONT
VIN MODEL YEAR 2013<VZD> 		8-98228-814-0 01 1 1210-
64 CABLE; A/T CONT 8-98017-519-2 01 1 1010-1209
64 CABLE; A/T CONT
EXC. VIN MODEL YEAR 2013<VZD> 		8-98017-519-2 01 1 1210-
77 SHIM; A/T CONT CABLE 1-34659-018-0 01 1 1010-
79 NUT; CONT CABLE 1-09400-158-0 02 1 1010-
104 BOLT; CLIP
M6X25 FLANGE 		0-28050-625-0 02 1 1010-1209
104 BOLT; CLIP
EXC. VIN MODEL YEAR 2013<VZD> M6X25 FLANGE 		0-28050-625-0 02 1 1210-
110 WASHER; PL,CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 1010-
111 PIN; SNAP,CONT CABLE
L=27.7 		1-09747-005-0 01 1 1010-
223 LEVER; SELECT
LEAF SUS(FCR***) VIN MODEL YEAR 2013<VZD> 		8-98225-663-1 01 1 1210-
223 LEVER; SELECT 1-34651-014-1 01 1 1010-1209
223 LEVER; SELECT
EXC. VIN MODEL YEAR 2013<VZD> 		1-34651-014-1 01 1 1210-
224 PIVOT; A/T CONT 1-34659-019-0 01 1 1010-
225 NUT; SELECT LEVER 1-09464-034-0 01 1 1010-
