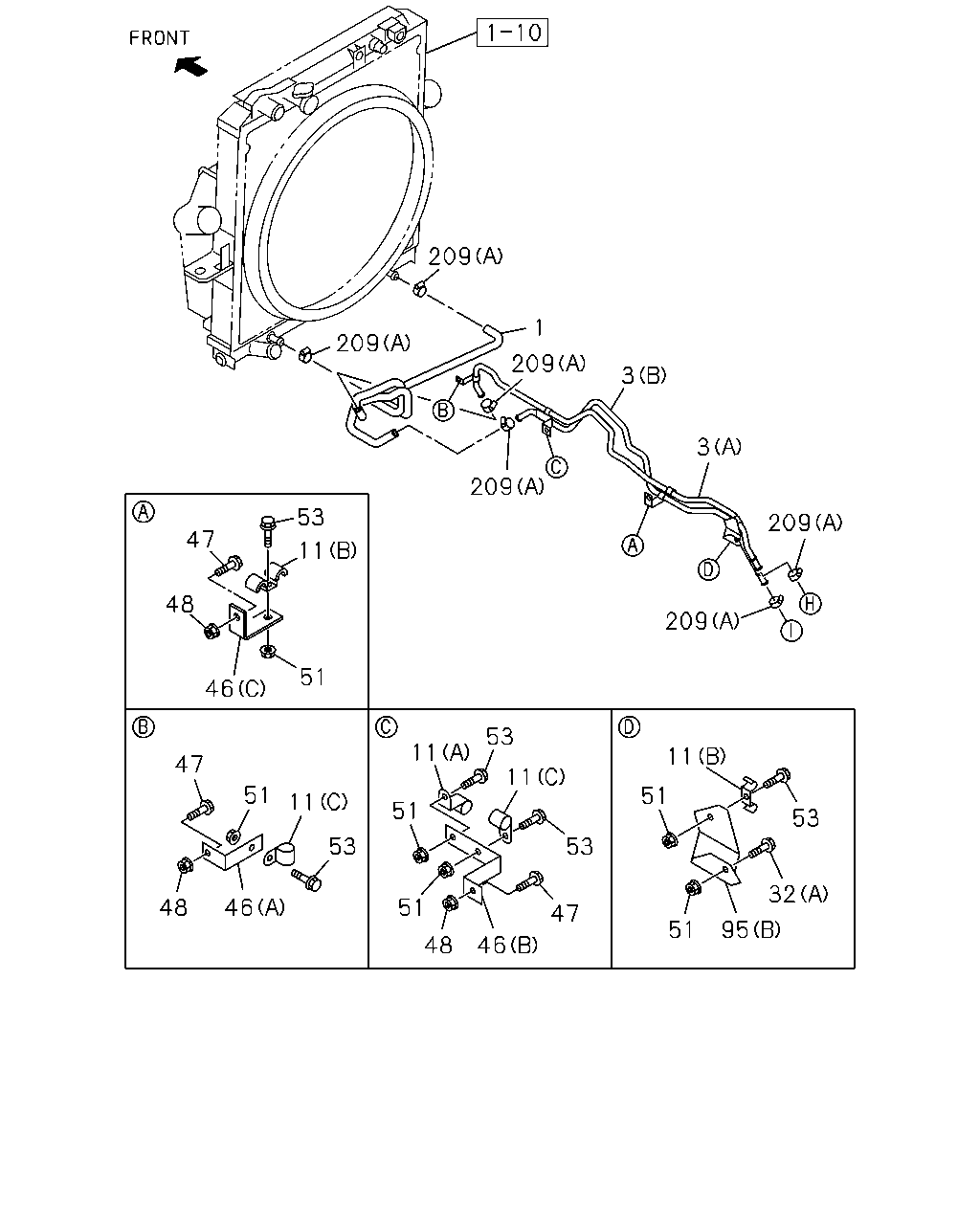

2-53 — TRANSMISSION OIL COOLER SYSTEM (#57366) — 125 parça

209 1 209 209 3 3 209 53 209 47 11 48 209 51 46 53 11 11 47 11 51 51 11 51 53 53 53 32 51 48 46 47 95 51 48 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	1010-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1010-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1010-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1010-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1010-	●	●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	03	1	1010-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	1010-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1010-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1010-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1010-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	1010-		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	02	1	1010-		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1010-	●	●
51	NUT; CLIP TO BRKT A/T<X9D> M8 FLANGE	0-91180-108-0	05	1	1010-		●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1010-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T A/T<X9D> M8X20 FLANGE	0-28650-820-0	05	1	1010-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1010-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1010-	●	●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	1010-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	1010-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98099-124-0	01	1	1010-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1010-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1010-		●

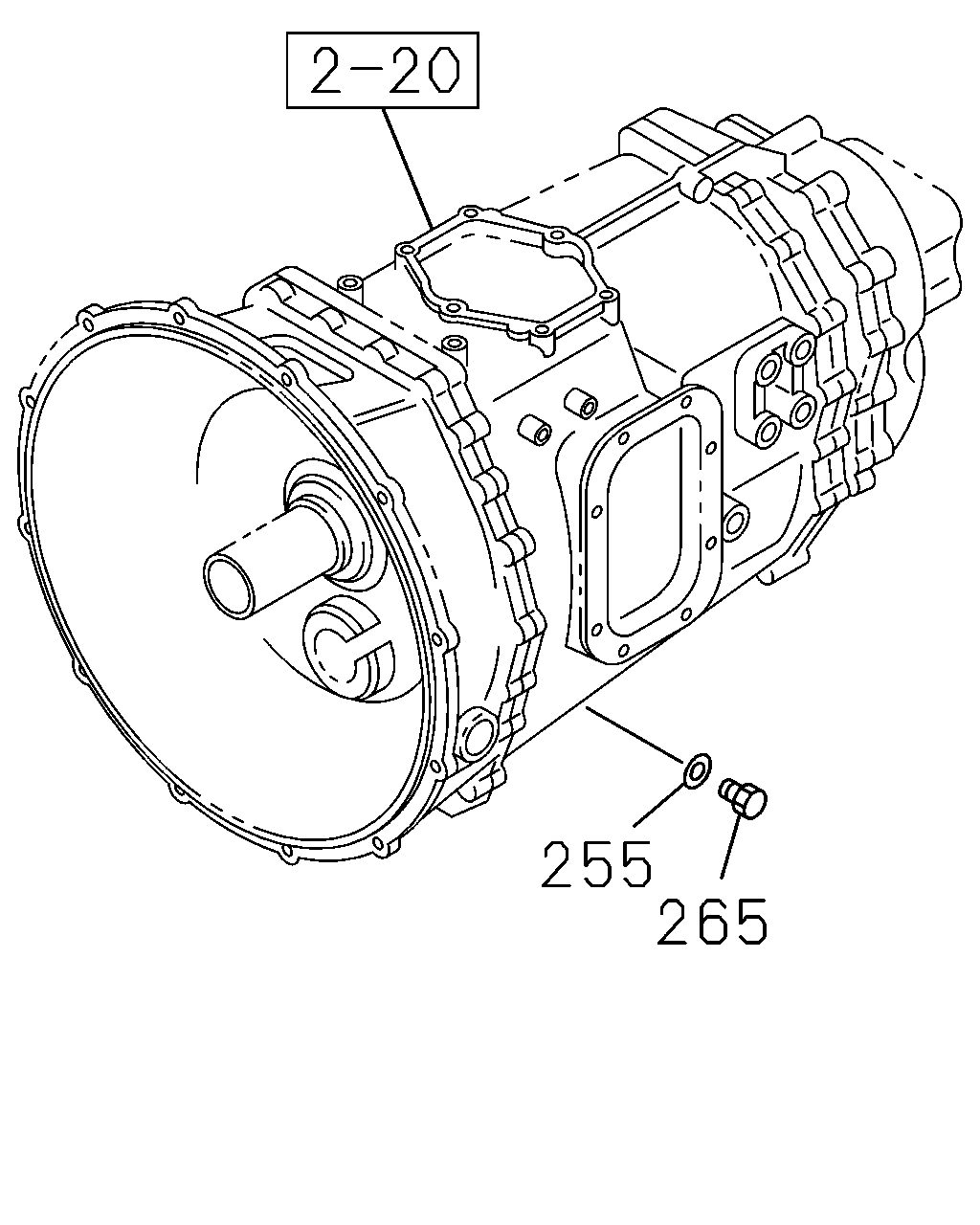

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1405-	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1405-	●	●

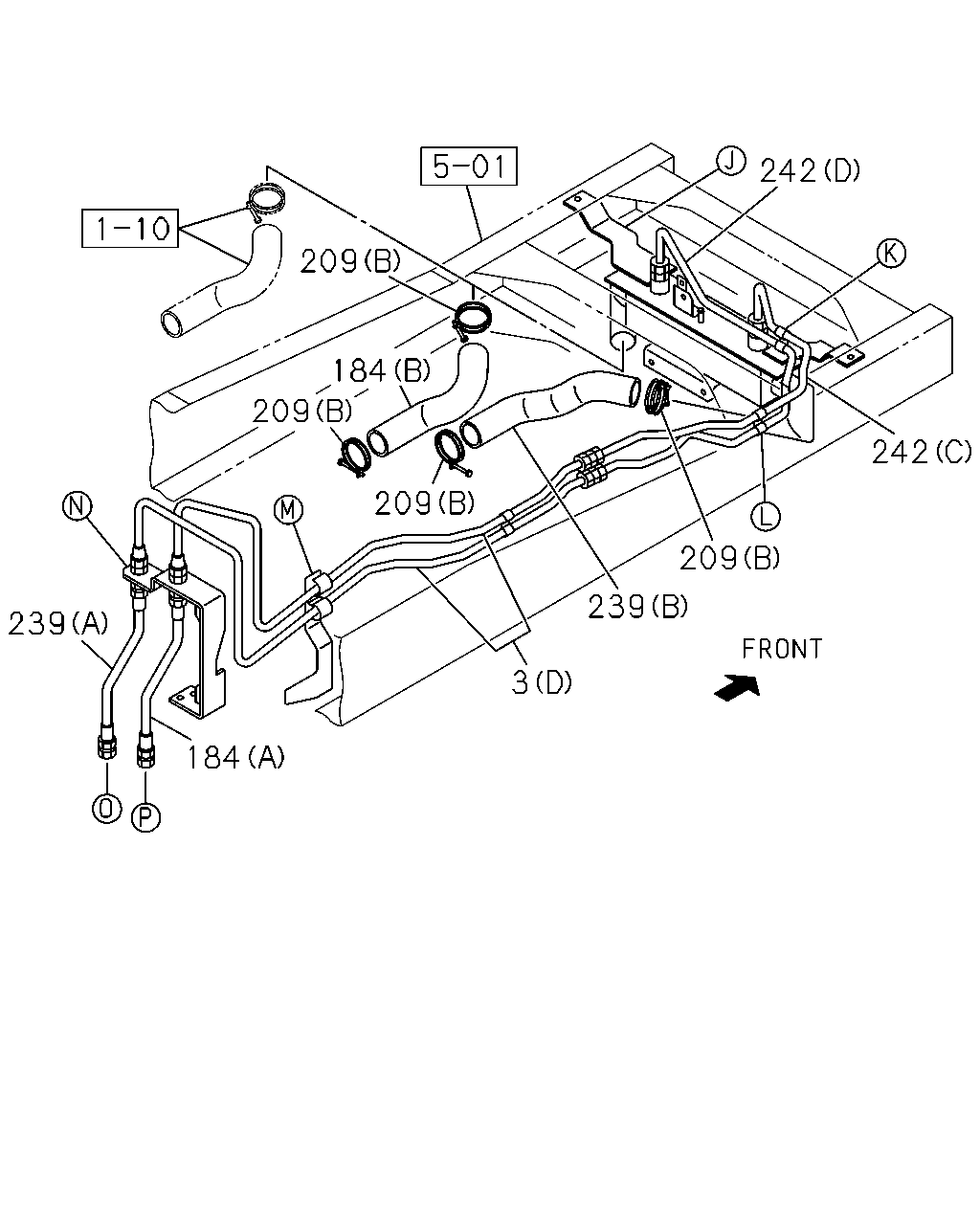

209 184 209 209 239 184 3 239 209 242 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	1010-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1010-		●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-583-2	01	1	1010-		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	1010-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1010-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1010-		●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-582-2	01	1	1010-		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	1010-		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1010-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1010-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98099-106-0	01	1	1010-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98099-108-0	01	1	1010-		●

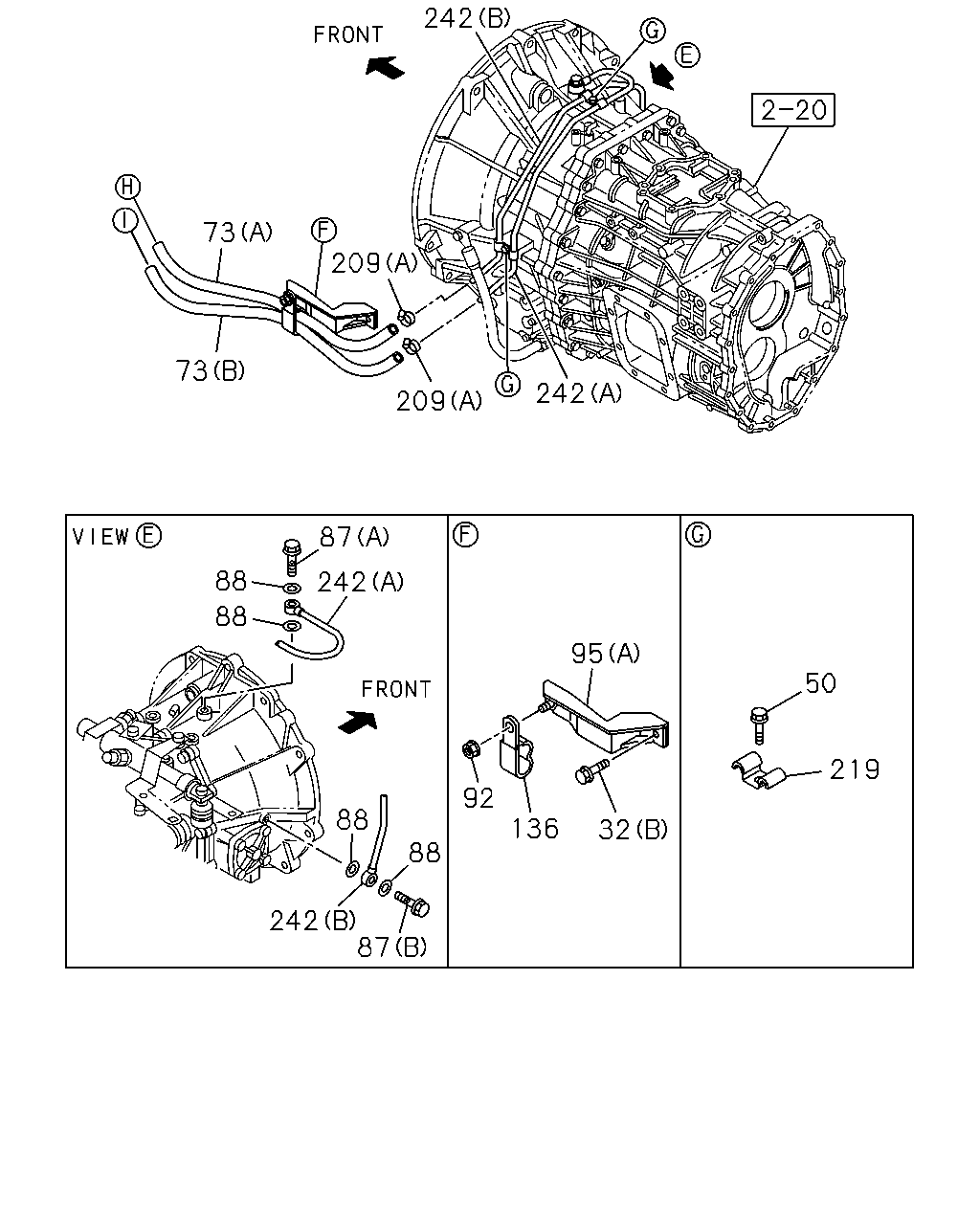

242 73 209 73 242 209 87 88 242 88 95 50 219 92 88 136 32 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	1010-		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1010-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1010-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1010-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1010-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1010-	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1010-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1010-	●	●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	1010-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	1010-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98099-124-0	01	1	1010-		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-148-0	01	1	1010-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1010-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1010-		●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1010-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1010-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1010-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98099-106-0	01	1	1010-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98099-108-0	01	1	1010-		●

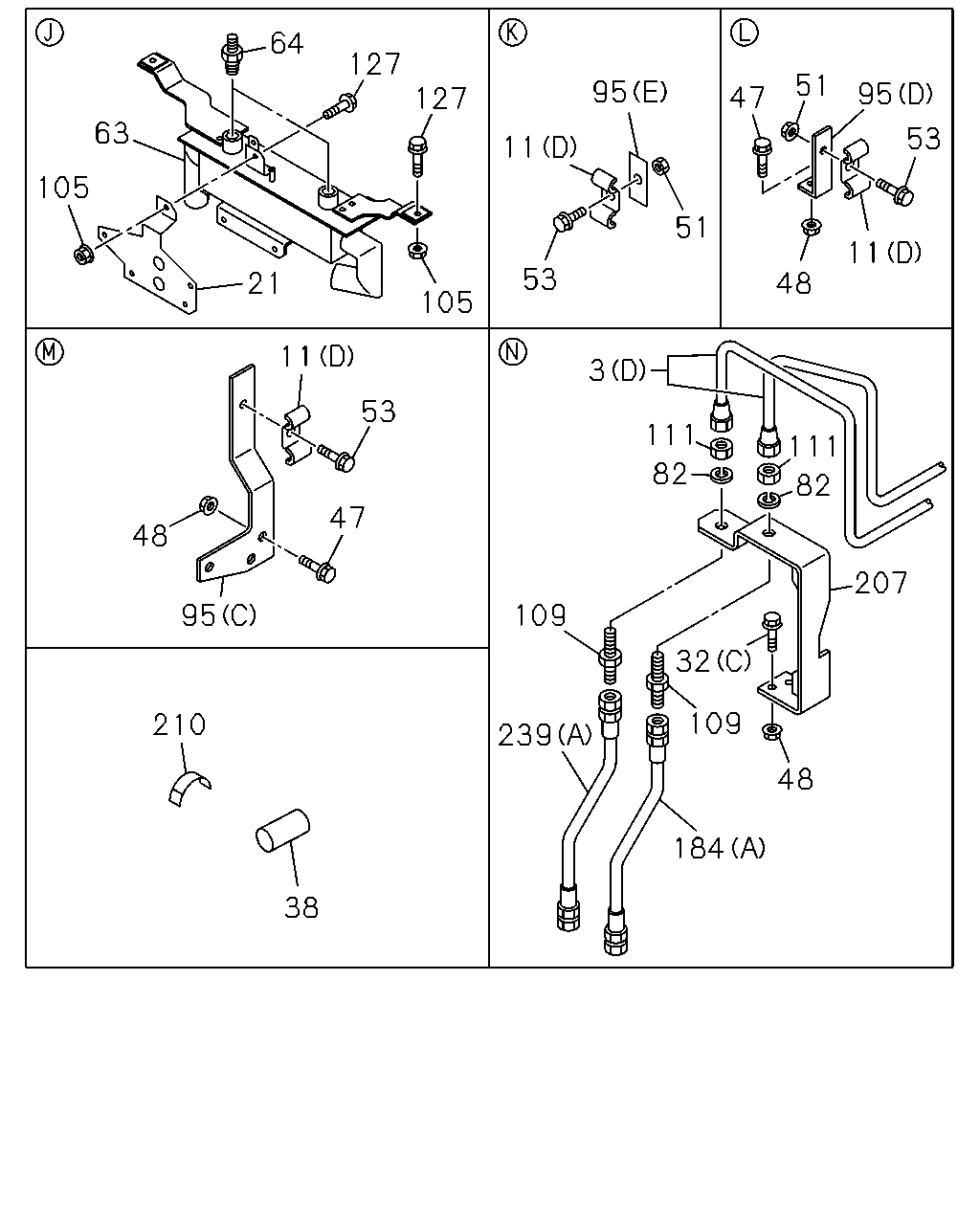

63 105 21 64 127 127 105 11 53 47 48 95 210 38 109 239 32 109 184 48 207 82 111 82 111 3 51 53 11 95 47 51 95 53 11 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	1010-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1010-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1010-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1010-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1010-	●	●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	03	1	1010-		●
21	BRACKET; COOLER A/T<X9D>	8-98087-647-1	01	1	1010-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	1010-		●
38	SLEEVE; RUBBER,FLEX HOSE A/T<X9D> ID=17 OD=21 L=40	1-09337-012-0	01	1	1010-		●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	1010-		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	02	1	1010-		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1010-	●	●
51	NUT; CLIP TO BRKT A/T<X9D> M8 FLANGE	0-91180-108-0	05	1	1010-		●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1010-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T A/T<X9D> M8X20 FLANGE	0-28650-820-0	05	1	1010-		●
63	COOLER; OIL A/T<X9D>	8-98025-665-2	01	1	1010-		●
64	CONNECTOR; OIL COOLER LCT2000 A/T ALLISON(Y4F)	1-09660-210-0	02	1	1010-		●
82	WASHER; LK,UNION LCT2000 A/T ALLISON(Y4F) ID=30.5	9-09150-530-0	02	1	1010-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1010-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1010-	●	●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	1010-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	1010-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98099-124-0	01	1	1010-		●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	07	1	1010-		●
109	UNION LCT2000 A/T ALLISON(Y4F) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1010-		●
111	NUT; UNION LCT2000 A/T ALLISON(Y4F) M30	9-09840-252-1	02	1	1010-		●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	07	1	1010-		●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-583-2	01	1	1010-		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	1010-		●
207	BRACKET; UNION LCT2000 A/T ALLISON(Y4F)	8-98098-725-1	01	1	1010-		●
210	BAND; FLEX HOSE LCT2000 A/T ALLISON(Y4F) L=175	1-09707-178-0	01	1	1010-		●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-582-2	01	1	1010-		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	1010-		●

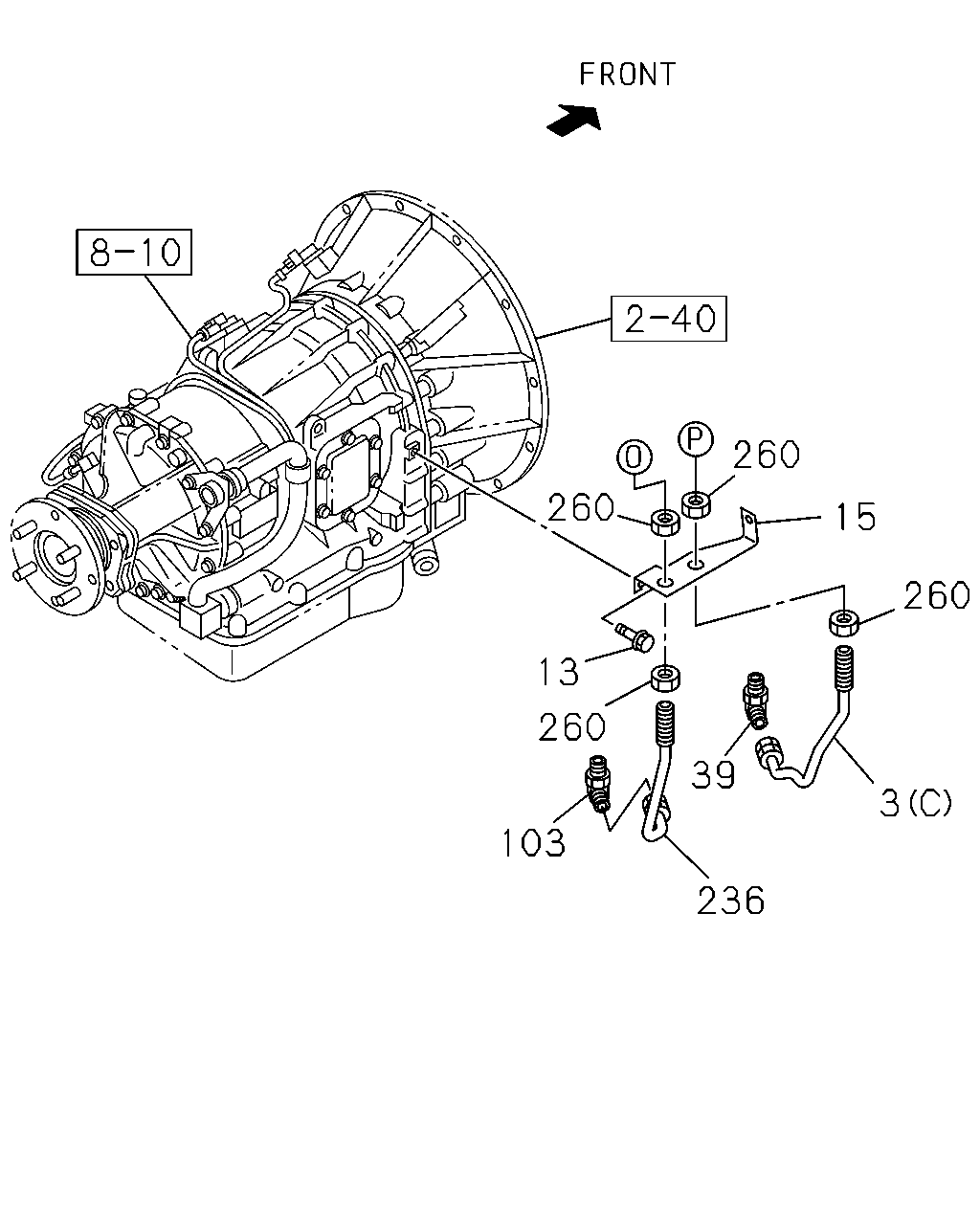

260 260 15 260 3 39 236 13 260 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	1010-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1010-		●
13	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	8-98105-048-0	01	1	1010-		●
15	BRACKET; ATF PIPE LCT2000 A/T ALLISON(Y4F)	8-98075-836-0	01	1	1010-		●
39	CONNECTOR; FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F)	1-09661-766-1	01	1	1010-		●
103	CONNECTOR; OIL PIPE LCT2000 A/T ALLISON(Y4F)	1-09661-766-1	01	1	1010-		●
236	PIPE; OIL,OIL COOLER TO A/T LCT2000 A/T ALLISON(Y4F)	8-98158-384-1	01	1	1010-		●
260	NUT LCT2000 A/T ALLISON(Y4F) M30	1-09400-166-0	04	1	1010-		●
