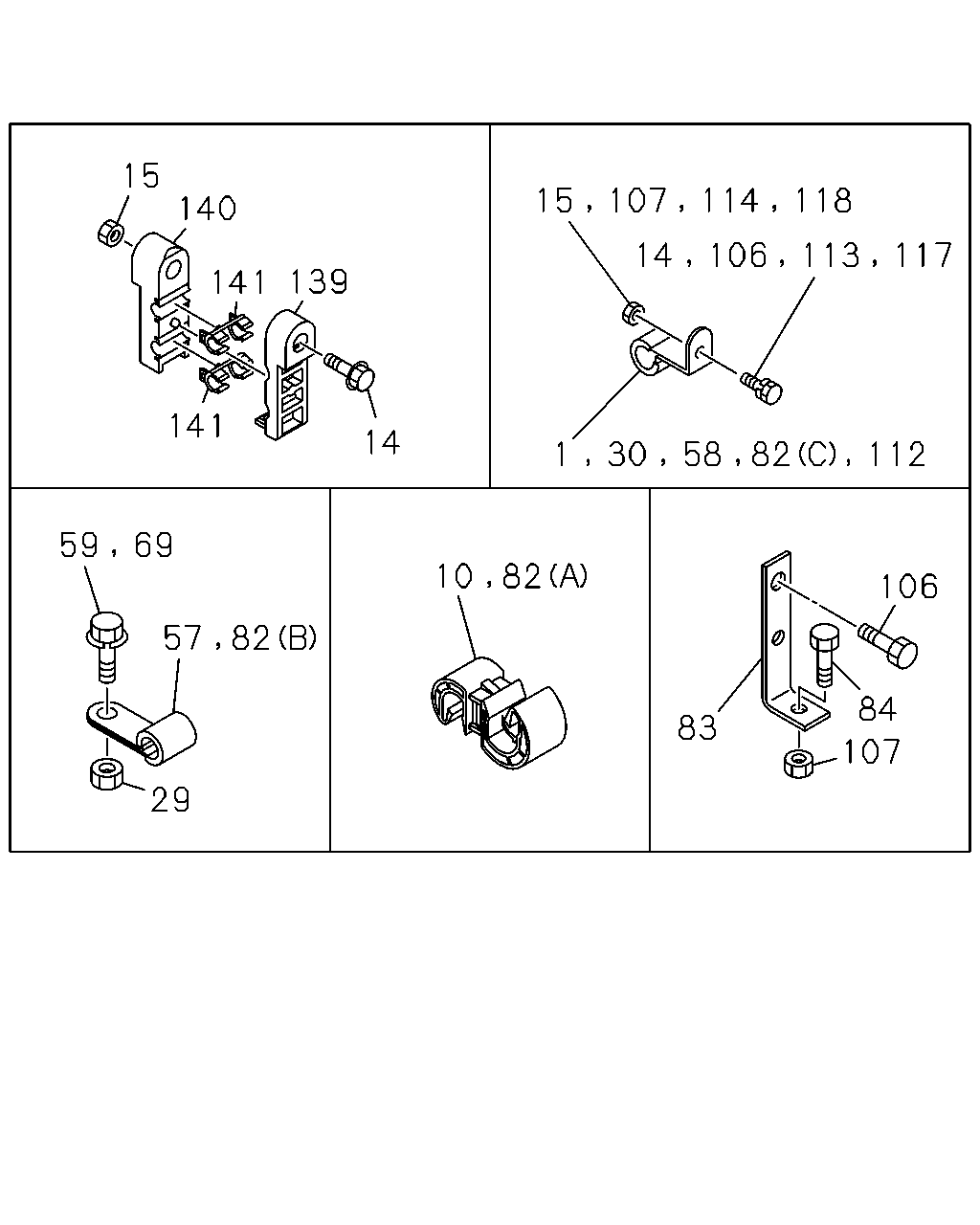

3-58 — FIXING PARTS; OIL PIPING (#5736) — 143 parça

15 15 107 118 114 140 106 113 117 14 139 141 141 14 30 112 1 59 69 106 84 83 107 29 57 82 10 82 58 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	02	1	0611-	●
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	01	1	9811-		●
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20	1-09700-603-0	02	1	9811-9906	●
10	CLIP; OIL PIPE ID=6.35 & 12.2	1-09709-275-1	01	1	0611-		●
10	CLIP; OIL PIPE ID=6.35 & 12.2	1-09709-275-1	01	1	9811-9906		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0611-	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	02	1	9811-9906		●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	9907-0512	●	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28050-850-0	01	1	0601-0610	●	●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28050-850-0	02	1	0611-0611		●
14	BOLT; CLIP,OIL PIPE M8X60 FLANGE	0-28050-860-0	02	1	0611-		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9811-0512		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
14	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	9811-9906	●
14	BOLT; CLIP,OIL PIPE M8X60 FLANGE	0-28080-860-0	01	1	9907-0512	●
14	BOLT; CLIP,OIL PIPE M8X60 FLANGE	0-28050-860-0	01	1	0601-	●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9811-9906	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9811-9906	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9907-0602	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-0610	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0611-	●	●
29	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0611-	●
29	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9811-9906	●
30	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	06	1	9811-		●
30	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	9811-9906	●
30	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	05	1	9907-	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9811-0606	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	04	1	0607-	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	05	1	0611-	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	9811-0610	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	04	1	0611-		●
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9811-9911	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	9912-0512	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	04	1	0601-	●	●
69	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9811-9906	●
69	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9907-0512	●
69	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-0610	●
69	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
82	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	03	1	9811-9906		●
82	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	02	1	9907-0610		●
82	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	04	1	0611-		●
82	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	9811-	●
82	CLIP; OIL PIPE (B) ID=7 L=20	9-09524-635-0	01	1	9811-9906	●
82	CLIP; OIL PIPE (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9907-0610	●
82	CLIP; OIL PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0611-	●
83	BRACKET; PIPE CLIP L=90	1-47477-755-1	01	1	9811-9906	●
84	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9811-9906	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9811-0512		●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
106	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	9907-0512		●
106	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28050-850-0	01	1	0601-0610		●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9811-9906	●	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9907-0512		●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0601-0610		●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0611-	●	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	05	1	9907-0512	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	05	1	0601-0610	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0611-	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	9811-9906		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	07	1	9907-0602		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	07	1	0603-0610		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0611-		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9811-9906	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	05	1	9907-0602	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	0603-	●
112	CLIP; OIL PIPE WB 4200MM(42W) ID=6 H=20 L=20	1-09700-603-0	03	1	9811-		●
112	CLIP; OIL PIPE WB 4800MM(48W) ID=6 H=20 L=20	1-09700-603-0	04	1	9811-		●
112	CLIP; OIL PIPE WB 5000MM(50W) ID=6 H=20 L=20	1-09700-603-0	04	1	9811-	●
112	CLIP; OIL PIPE WB 5500MM(55W) ID=6 H=20 L=20	1-09700-603-0	06	1	9811-9906		●
112	CLIP; OIL PIPE WB 5500MM(55W) ID=6 H=20 L=20	1-09700-603-0	06	1	9907-		●
112	CLIP; OIL PIPE WB 5800MM(58W) ID=6 H=20 L=20	1-09700-603-0	06	1	9907-	●
112	CLIP; OIL PIPE WB 5500MM(55W) ID=6 H=20 L=20	1-09700-603-0	05	1	9811-	●
113	BOLT; CLIP,OIL PIPE WB 4800MM(48W) M8X25 FLANGE	0-28650-825-0	04	1	0611-		●
113	BOLT; CLIP,OIL PIPE WB 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	0611-		●
113	BOLT; CLIP,OIL PIPE WB 4200MM(42W) M8X25 FLANGE	0-28680-825-0	03	1	9811-9906		●
113	BOLT; CLIP,OIL PIPE WB 4200MM(42W) M8X30 FLANGE	0-28680-830-0	03	1	9907-0512		●
113	BOLT; CLIP,OIL PIPE WB 4200MM(42W) M8X30 FLANGE	0-28650-830-0	03	1	0601-0610		●
113	BOLT; CLIP,OIL PIPE WB 4200MM(42W) M8X25 FLANGE	0-28650-825-0	03	1	0611-		●
113	BOLT; CLIP,OIL PIPE WB 4800MM(48W) M8X25 FLANGE	0-28680-825-0	04	1	9811-9906		●
113	BOLT; CLIP,OIL PIPE WB 5500MM(55W) M8X30 FLANGE	0-28680-830-0	06	1	9907-0512		●
113	BOLT; CLIP,OIL PIPE WB 5800MM(58W) M8X30 FLANGE	0-28680-830-0	06	1	9907-0512	●
113	BOLT; CLIP,OIL PIPE WB 5500MM(55W) M8X30 FLANGE	0-28650-830-0	06	1	0601-0610		●
113	BOLT; CLIP,OIL PIPE WB 5800MM(58W) M8X30 FLANGE	0-28650-830-0	06	1	0601-0610	●
113	BOLT; CLIP,OIL PIPE WB 5800MM(58W) M8X30 FLANGE	0-28650-830-0	06	1	0611-	●
113	BOLT; CLIP,OIL PIPE WB 5500MM(55W) M8X25 FLANGE	0-28680-825-0	06	1	9811-9906		●
113	BOLT; CLIP,OIL PIPE WB 5000MM(50W) M8X30 FLANGE	0-28680-830-0	04	1	9811-9906	●
113	BOLT; CLIP,OIL PIPE WB 4800MM(48W) M8X30 FLANGE	0-28680-830-0	04	1	9907-0512		●
113	BOLT; CLIP,OIL PIPE WB 5000MM(50W) M8X30 FLANGE	0-28680-830-0	04	1	9907-0512	●
113	BOLT; CLIP,OIL PIPE WB 4800MM(48W) M8X30 FLANGE	0-28650-830-0	04	1	0601-0610		●
113	BOLT; CLIP,OIL PIPE WB 5000MM(50W) M8X30 FLANGE	0-28650-830-0	04	1	0601-0610	●
113	BOLT; CLIP,OIL PIPE WB 5000MM(50W) M8X30 FLANGE	0-28650-830-0	04	1	0611-	●
113	BOLT; CLIP,OIL PIPE WB 5500MM(55W) M8X30 FLANGE	0-28680-830-0	05	1	9811-0512	●
113	BOLT; CLIP,OIL PIPE WB 5500MM(55W) M8X30 FLANGE	0-28650-830-0	05	1	0601-	●
114	NUT; CLIP,OIL PIPE WB 4200MM(42W) M8 FLANGE	0-91150-108-0	03	1	9811-0602		●
114	NUT; CLIP,OIL PIPE WB 4200MM(42W) M8 FLANGE	0-91180-108-0	03	1	0603-		●
114	NUT; CLIP,OIL PIPE WB 4800MM(48W) M8 FLANGE	0-91150-108-0	04	1	9811-0602		●
114	NUT; CLIP,OIL PIPE WB 5000MM(50W) M8 FLANGE	0-91150-108-0	04	1	9811-0602	●
114	NUT; CLIP,OIL PIPE WB 4800MM(48W) M8 FLANGE	0-91180-108-0	04	1	0603-		●
114	NUT; CLIP,OIL PIPE WB 5000MM(50W) M8 FLANGE	0-91180-108-0	04	1	0603-	●
114	NUT; CLIP,OIL PIPE WB 5500MM(55W) M8 FLANGE	0-91150-108-0	06	1	9811-9906		●
114	NUT; CLIP,OIL PIPE WB 5500MM(55W) M8 FLANGE	0-91150-108-0	06	1	9907-0602		●
114	NUT; CLIP,OIL PIPE WB 5800MM(58W) M8 FLANGE	0-91150-108-0	06	1	9907-0602	●
114	NUT; CLIP,OIL PIPE WB 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	0603-		●
114	NUT; CLIP,OIL PIPE WB 5800MM(58W) M8 FLANGE	0-91180-108-0	06	1	0603-	●
114	NUT; CLIP,OIL PIPE WB 5500MM(55W) M8 FLANGE	0-91150-108-0	05	1	9811-0602	●
114	NUT; CLIP,OIL PIPE WB 5500MM(55W) M8 FLANGE	0-91180-108-0	05	1	0603-	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0611-	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	04	1	9811-9906	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	04	1	0611-		●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9907-0512	●	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-0610	●	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0611-	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	0611-	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9811-0602	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-0610	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0611-		●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	9907-0610		●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0611-		●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	9907-0610	●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0611-	●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	9811-9906		●
139	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	9811-9906	●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	04	1	9907-0610	●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	0611-	●
140	CLIP; LWR ID=6 & 6	1-09709-244-0	01	1	9907-0610		●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	9811-9906		●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	01	1	9811-9906	●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	9907-0610		●
140	CLIP; LWR ID=10 & 10	1-09709-243-0	04	1	0611-		●
141	COLLAR ID=6	1-47459-010-0	04	1	9907-0610	●
141	COLLAR ID=6	1-47459-010-0	02	1	0611-	●
141	COLLAR ID=8	1-47459-011-0	04	1	9907-0610	●
141	COLLAR ID=8	1-47459-011-0	02	1	0611-	●
141	COLLAR ID=6	1-47459-010-0	02	1	9811-9906		●
141	COLLAR ID=8	1-47459-011-0	02	1	9811-9906		●
141	COLLAR ID=6	1-47459-010-0	01	1	9811-9906	●
141	COLLAR ID=6	1-47459-010-0	02	1	9907-0610		●
141	COLLAR ID=6	1-47459-010-0	04	1	0611-		●
141	COLLAR ID=8	1-47459-011-0	01	1	9811-9906	●
141	COLLAR ID=8	1-47459-011-0	02	1	9907-0610		●
141	COLLAR ID=8	1-47459-011-0	04	1	0611-		●
