3-55 — BRAKE PIPING; OIL,REAR (#5735) — 103 parça

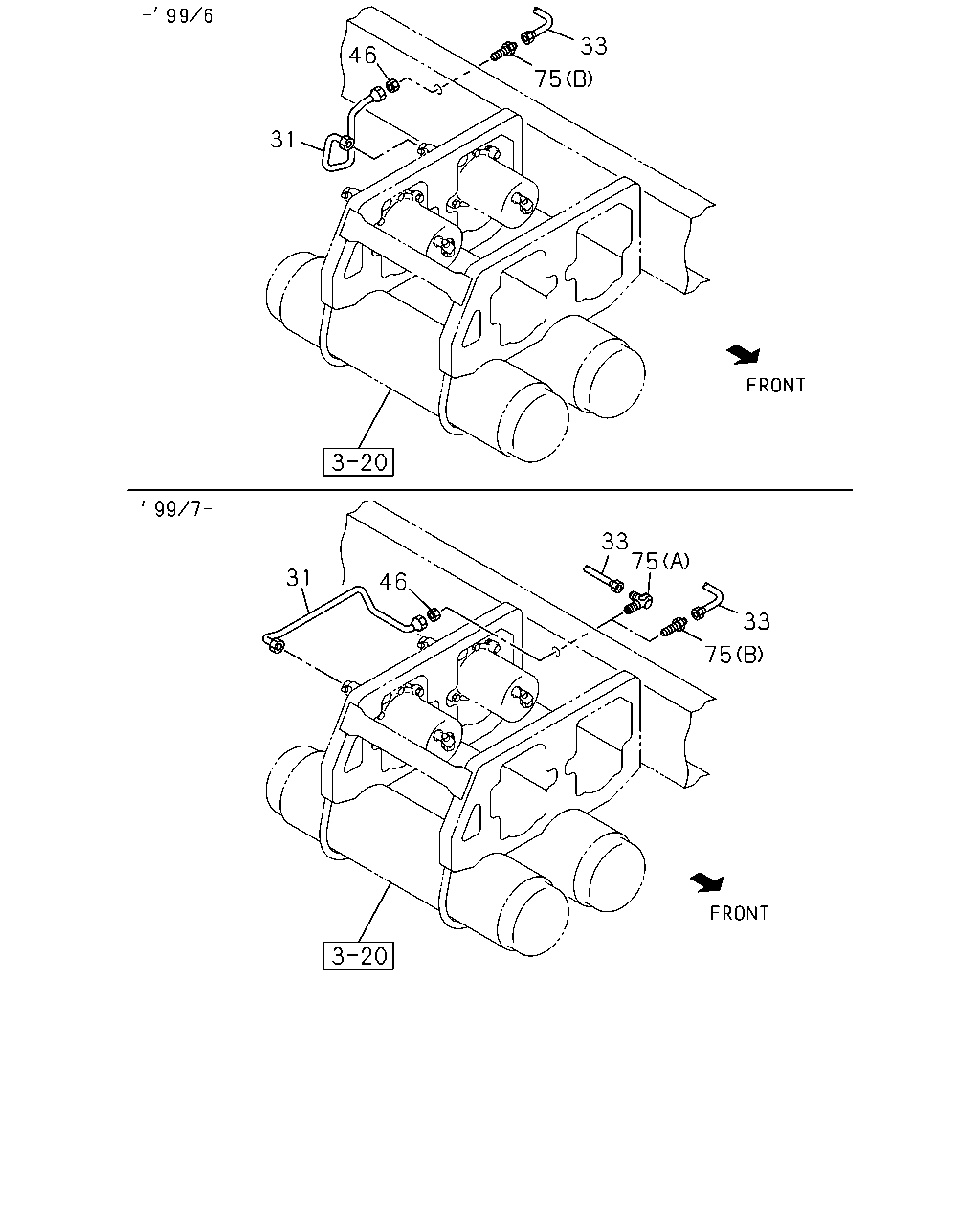

33 46 75 31 33 75 31 46 33 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97530-481-0	01	1	9811-9906	●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97531-032-0	01	1	9907-9907	●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97531-147-0	01	1	9907-9911	●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97531-219-0	01	1	9912-0610	●
31	PIPE; OIL,AIR MASTER TO UNION L=890	1-49161-560-0	01	1	0611-	●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97530-480-0	01	1	9811-9906		●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97530-568-0	01	1	9907-0610		●
31	PIPE; OIL,AIR MASTER TO UNION L=417	1-49167-872-0	01	1	0611-		●
33	PIPE; OIL,UNION TO UNION WB 4200MM(42W) TAI	8-97530-484-0	01	1	9811-9906	●
33	PIPE; OIL,UNION TO UNION WB 5800MM(58W) TAI	8-97530-567-0	01	1	9907-0610		●
33	PIPE; OIL,UNION TO UNION WB 5800MM(58W) L=2700 SERVICED BY L=2900	1-47426-364-0	01	1	0611-		●
33	PIPE; OIL,UNION TO UNION WB 4200MM(42W) TAI	8-97531-119-0	01	1	9907-0610	●
33	PIPE; OIL,UNION TO UNION WB 4200MM(42W) L=1580 SERVICED BY L=1620	1-47426-356-0	01	1	0611-	●
33	PIPE; OIL,UNION TO UNION WB 4800MM(48W) TAI	8-97530-485-0	01	1	9811-9906	●
33	PIPE; OIL,UNION TO UNION WB 4800MM(48W) TAI	8-97531-120-0	01	1	9907-0610	●
33	PIPE; OIL,UNION TO UNION WB 4800MM(48W) L=2195 SERVICED BY L=2200	1-47426-360-0	01	1	0611-	●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) TAI	8-97530-486-0	01	1	9811-9906	●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) TAI	8-97531-121-0	01	1	9907-0610	●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) L=2926 SERVICED BY L=3200	1-47426-365-0	01	1	0611-	●
33	PIPE; OIL,UNION TO UNION WB 5000MM(50W) TAI	8-97530-482-0	01	1	9811-9906		●
33	PIPE; OIL,UNION TO UNION WB 5000MM(50W) TAI	8-97530-569-0	01	1	9907-0610		●
33	PIPE; OIL,UNION TO UNION WB 5000MM(50W) L=1937 SERVICED BY L=2000	1-47426-359-0	01	1	0611-		●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) TAI	8-97530-483-0	01	1	9811-9906		●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) TAI	8-97530-570-0	01	1	9907-0610		●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) L=2450 SERVICED BY L=2500	1-47426-362-0	01	1	0611-		●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	9811-	●	●
75	UNION; OIL PIPE (B) M12 L=66.5	0-92113-306-0	01	1	0611-		●
75	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	9811-9906	●
75	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	9907-0607	●	●
75	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0608-0610	●	●
75	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0611-	●
75	UNION; OIL PIPE (B) M12 L=66.5	9-09223-306-1	01	1	9811-9906		●

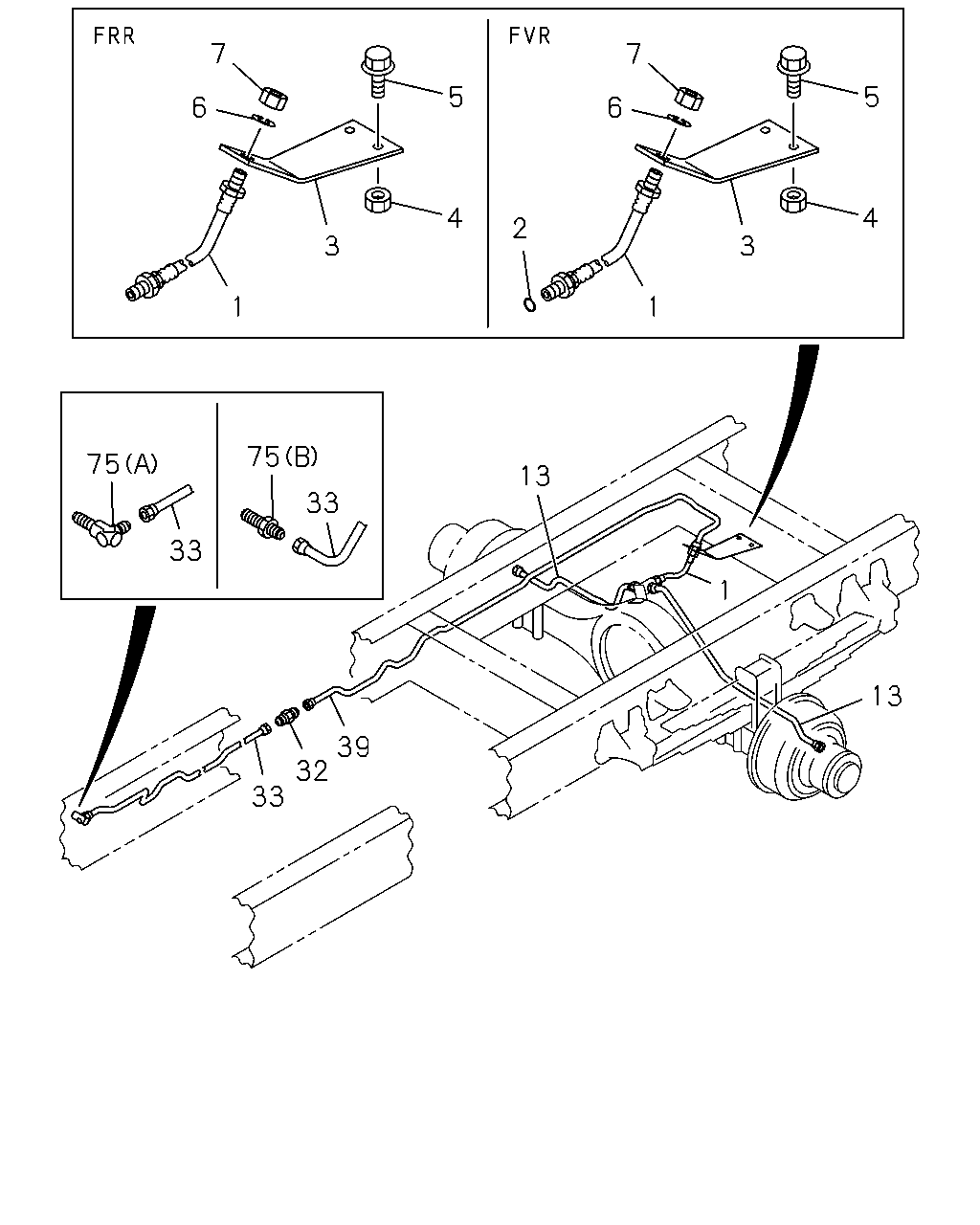

7 7 5 5 6 6 4 4 2 3 3 1 1 75 75 13 33 33 1 13 39 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=610	0-05313-610-0	01	1	9811-0511	●
1	HOSE; FLEX,RR BRK L=610	0-05213-610-0	01	1	0512-	●
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	9811-		●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	9811-		●
3	BRACKET; FLEX HOSE,RR BRK TAI	8-97530-373-0	01	1	9811-0610	●	●
3	BRACKET; FLEX HOSE,RR BRK TAI	1-47465-251-0	01	1	0611-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	9811-0512	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9811-0603	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9811-	●	●
13	PIPE; BRK,RR AXLE L=847	1-47427-106-0	01	1	9811-	●
13	PIPE; BRK,RR AXLE L=675	1-47427-105-0	01	1	9811-	●
13	PIPE; BRK,RR AXLE L=1215	1-47428-959-0	01	1	9811-9906		●
13	PIPE; BRK,RR AXLE L=1215	1-47428-959-0	01	1	9907-0610		●
13	PIPE; BRK,RR AXLE L=1212	8-98003-971-0	01	1	0611-		●
13	PIPE; BRK,RR AXLE L=938	1-47428-958-0	01	1	9811-9906		●
13	PIPE; BRK,RR AXLE L=938	1-47428-958-0	01	1	9907-0610		●
13	PIPE; BRK,RR AXLE L=935	8-98003-970-0	01	1	0611-		●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	9811-0607	●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0608-	●	●
33	PIPE; OIL,UNION TO UNION WB 4200MM(42W) TAI	8-97530-484-0	01	1	9811-9906	●
33	PIPE; OIL,UNION TO UNION WB 5800MM(58W) TAI	8-97530-567-0	01	1	9907-0610		●
33	PIPE; OIL,UNION TO UNION WB 5800MM(58W) L=2700 SERVICED BY L=2900	1-47426-364-0	01	1	0611-		●
33	PIPE; OIL,UNION TO UNION WB 4200MM(42W) TAI	8-97531-119-0	01	1	9907-0610	●
33	PIPE; OIL,UNION TO UNION WB 4200MM(42W) L=1580 SERVICED BY L=1620	1-47426-356-0	01	1	0611-	●
33	PIPE; OIL,UNION TO UNION WB 4800MM(48W) TAI	8-97530-485-0	01	1	9811-9906	●
33	PIPE; OIL,UNION TO UNION WB 4800MM(48W) TAI	8-97531-120-0	01	1	9907-0610	●
33	PIPE; OIL,UNION TO UNION WB 4800MM(48W) L=2195 SERVICED BY L=2200	1-47426-360-0	01	1	0611-	●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) TAI	8-97530-486-0	01	1	9811-9906	●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) TAI	8-97531-121-0	01	1	9907-0610	●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) L=2926 SERVICED BY L=3200	1-47426-365-0	01	1	0611-	●
33	PIPE; OIL,UNION TO UNION WB 5000MM(50W) TAI	8-97530-482-0	01	1	9811-9906		●
33	PIPE; OIL,UNION TO UNION WB 5000MM(50W) TAI	8-97530-569-0	01	1	9907-0610		●
33	PIPE; OIL,UNION TO UNION WB 5000MM(50W) L=1937 SERVICED BY L=2000	1-47426-359-0	01	1	0611-		●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) TAI	8-97530-483-0	01	1	9811-9906		●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) TAI	8-97530-570-0	01	1	9907-0610		●
33	PIPE; OIL,UNION TO UNION WB 5500MM(55W) L=2450 SERVICED BY L=2500	1-47426-362-0	01	1	0611-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WB 4200MM(42W) EXC. FRAME EQUIPMENT HVY DUTY<F01> L=2040 SERVICED BY L=2200	1-47426-360-0	01	1	0611-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WB 4200MM(42W) TAI	8-97530-488-0	01	1	9811-9906	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WB 4800MM(48W),WB 5500MM(55W) TAI	8-97530-489-0	01	1	9811-9906	●
39	PIPE; OIL,UNION TO RR FLEX HOSE TAI	8-97530-489-0	01	1	9907-0610	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WB 4200MM(42W) FRAME EQUIPMENT HVY DUTY<F01> L=1961 SERVICED BY L=2000	1-47426-359-0	01	1	0611-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WB 4800MM(48W),WB 5500MM(55W) L=1961 SERVICED BY L=2000	1-47426-359-0	01	1	0611-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE TAI	8-97530-487-0	01	1	9811-9906		●
39	PIPE; OIL,UNION TO RR FLEX HOSE TAI	8-97531-117-0	01	1	9907-0610		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2141 SERVICED BY L=2200	1-47426-360-0	01	1	0611-		●
75	UNION; OIL PIPE (B) M12 L=66.5	0-92113-306-0	01	1	0611-		●
75	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	9811-9906	●
75	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	9907-0607	●	●
75	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0608-0610	●	●
75	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0611-	●
75	UNION; OIL PIPE (B) M12 L=66.5	9-09223-306-1	01	1	9811-9906		●

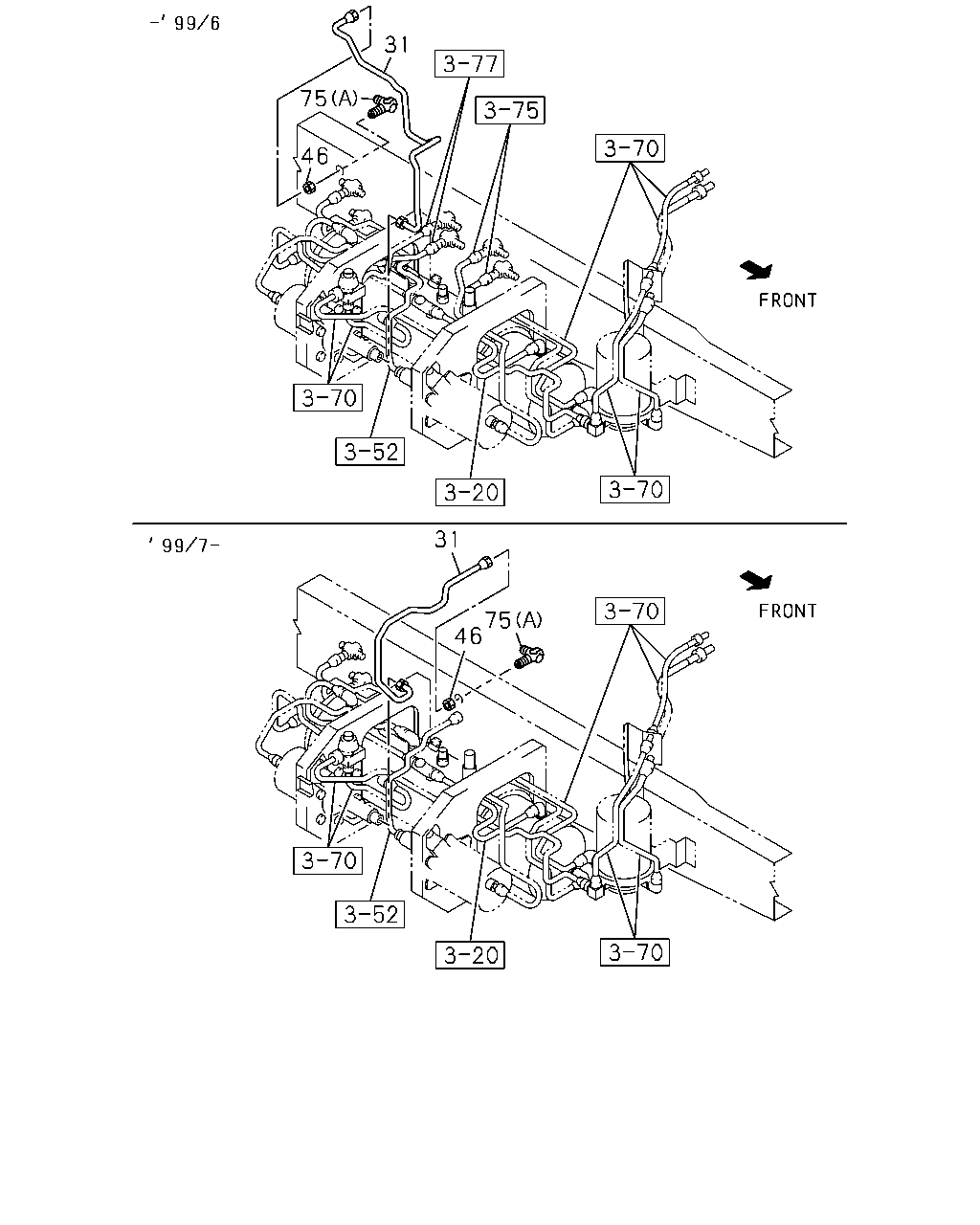

31 7 46 31 75 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9811-	●	●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97530-481-0	01	1	9811-9906	●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97531-032-0	01	1	9907-9907	●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97531-147-0	01	1	9907-9911	●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97531-219-0	01	1	9912-0610	●
31	PIPE; OIL,AIR MASTER TO UNION L=890	1-49161-560-0	01	1	0611-	●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97530-480-0	01	1	9811-9906		●
31	PIPE; OIL,AIR MASTER TO UNION TAI	8-97530-568-0	01	1	9907-0610		●
31	PIPE; OIL,AIR MASTER TO UNION L=417	1-49167-872-0	01	1	0611-		●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	9811-	●	●
75	UNION; OIL PIPE (B) M12 L=66.5	0-92113-306-0	01	1	0611-		●
75	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	9811-9906	●
75	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	9907-0607	●	●
75	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0608-0610	●	●
75	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0611-	●
75	UNION; OIL PIPE (B) M12 L=66.5	9-09223-306-1	01	1	9811-9906		●
