2-05 — CLUTCH PIPING (#57349) — 41 parça

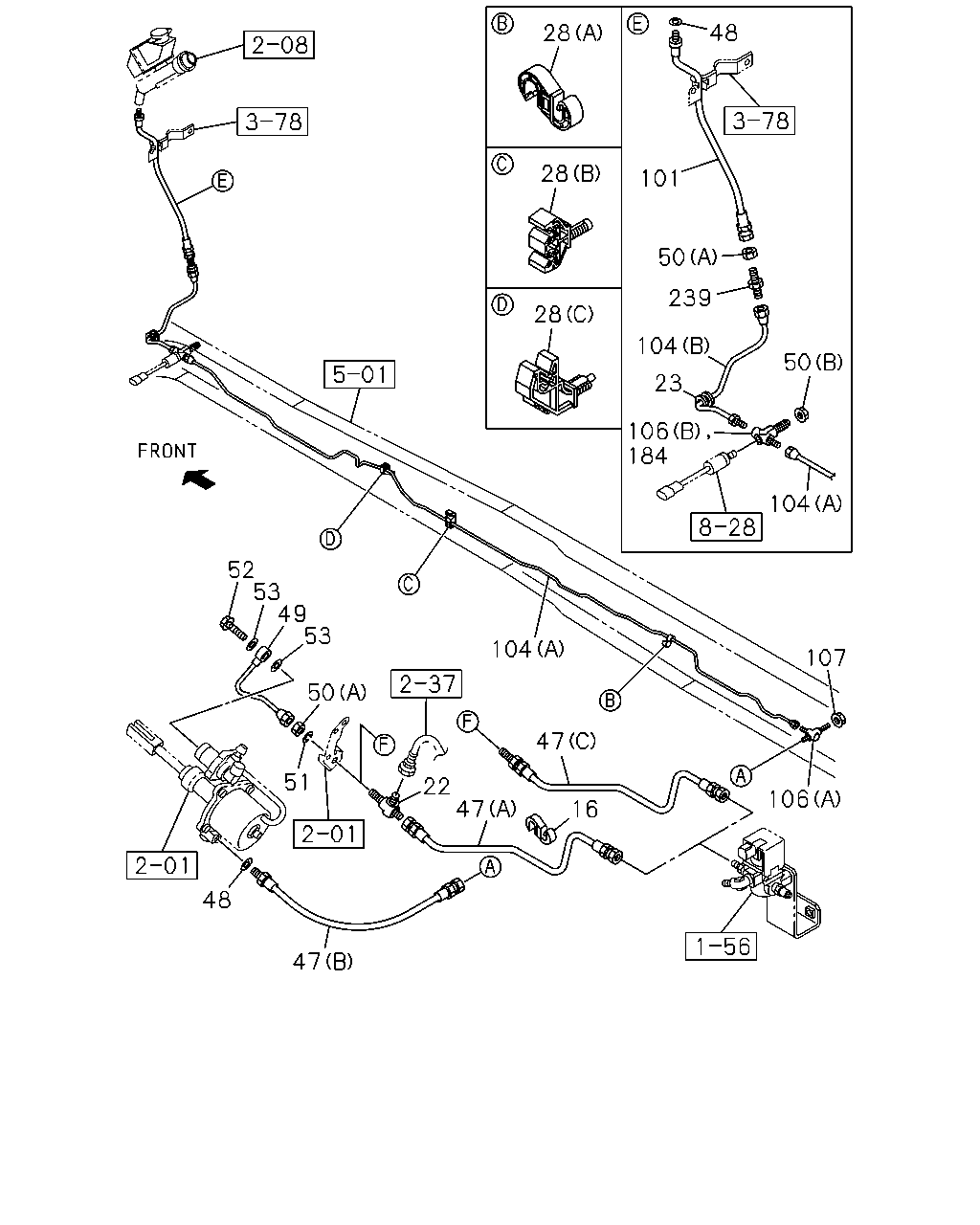

çizim 171576
48 28 28 101 50 239 28 104 50 23 106 184 104 52 53 49 53 104 107 50 47 51 22 47 106 16 48 47
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12 		1-09709-278-1 01 1 1010- ● ●
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1010- ● ●
23 GROMMET; CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1010- ●
23 GROMMET; CLU PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1010- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 1010- ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 1010- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1010- ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1010- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 1010- ●
28 CLIP; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 1010- ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=540 		1-09363-612-1 01 1 1010- ● ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 1010- ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,A/T<X9D>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 1010- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 1010- ●
47 HOSE; FLEX,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 1010- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1010- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1010- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010- ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010- ●
50 NUT; UNION
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
50 NUT; UNION
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
51 WASHER; LK
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 1010- ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1010- ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1010-1312 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 1010- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 1010- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 1010- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 1010- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1010- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1010- ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 1010- ● ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 1010- ●
106 UNION; OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 1010- ●
107 NUT; UNION,OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1010- ●
107 NUT; UNION,OIL PIPE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1010- ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 1010- ●
184 UNION; FLEX HOSE
EXC. A/T<X9D>,H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 1010- ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 1010- ●
239 UNION; CLU HOSE
EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 1010- ●
