◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#5734) — 87 parça

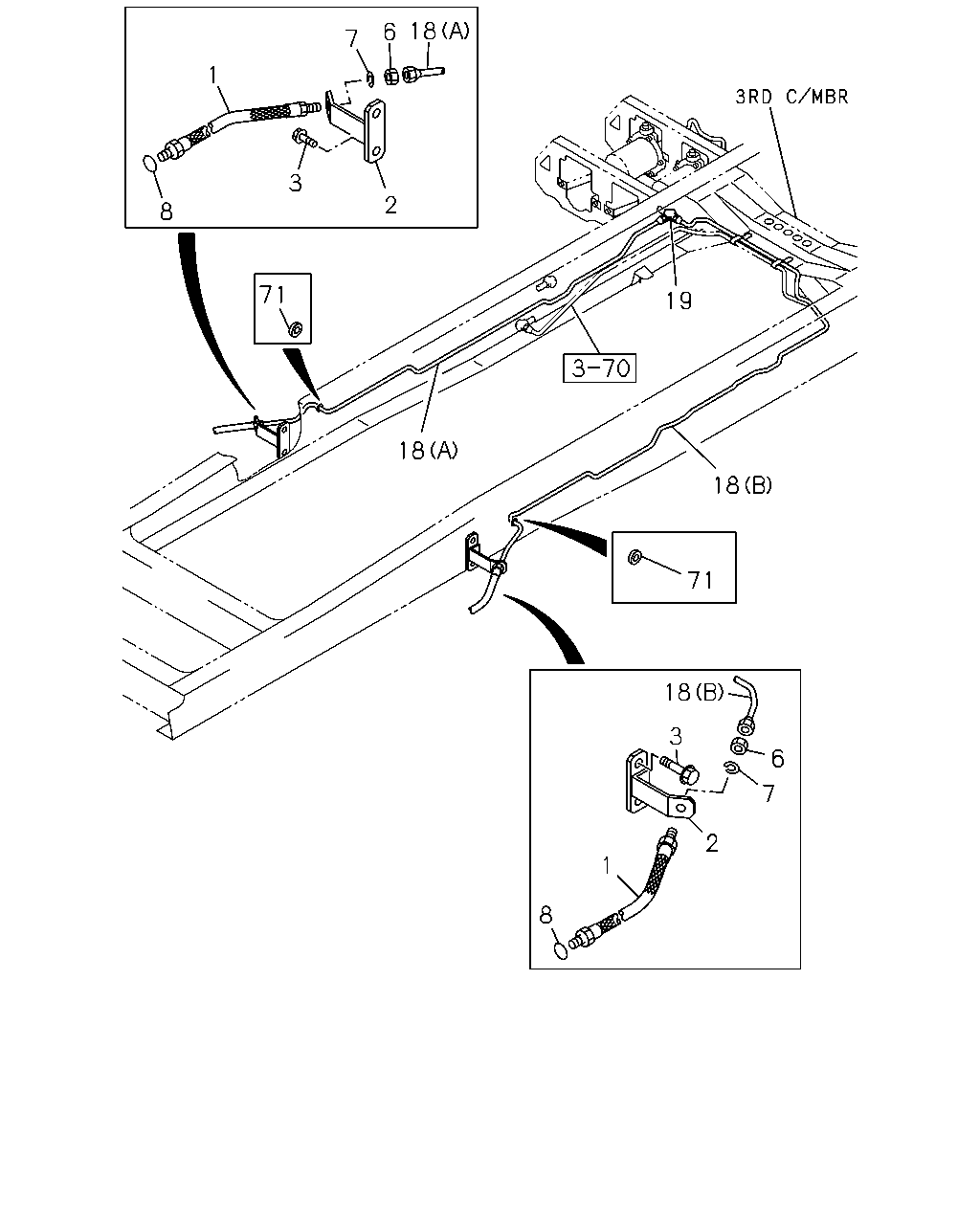

çizim 26377
18 6 7 1 3 2 8 71 19 18 18 71 18 3 6 7 2 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 9811-0511 ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05213-530-0 02 1 0512- ●
1 HOSE; FLEX,FRT BRK
L=650 		0-05312-650-0 02 1 9811- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-497-1 02 1 9811- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-817-0 02 1 9811- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 9811-0512 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9811- ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 9811-0603 ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 9811- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-476-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-578-0 01 1 9907-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2965 SERVICED BY L=3200 		1-47426-365-0 01 1 0611- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97530-479-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97531-118-0 01 1 9907-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1805 SERVICED BY L=1820 		1-47426-358-0 01 1 0611- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-477-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-580-0 01 1 9907-9908 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97531-158-0 01 1 9909-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2771 SERVICED BY L=2900 		1-47426-364-0 01 1 0611- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97530-478-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97530-581-0 01 1 9907-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=2032 SERVICED BY L=2200 		1-47426-360-0 01 1 0611- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 9811-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 9811-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9811- ● ●

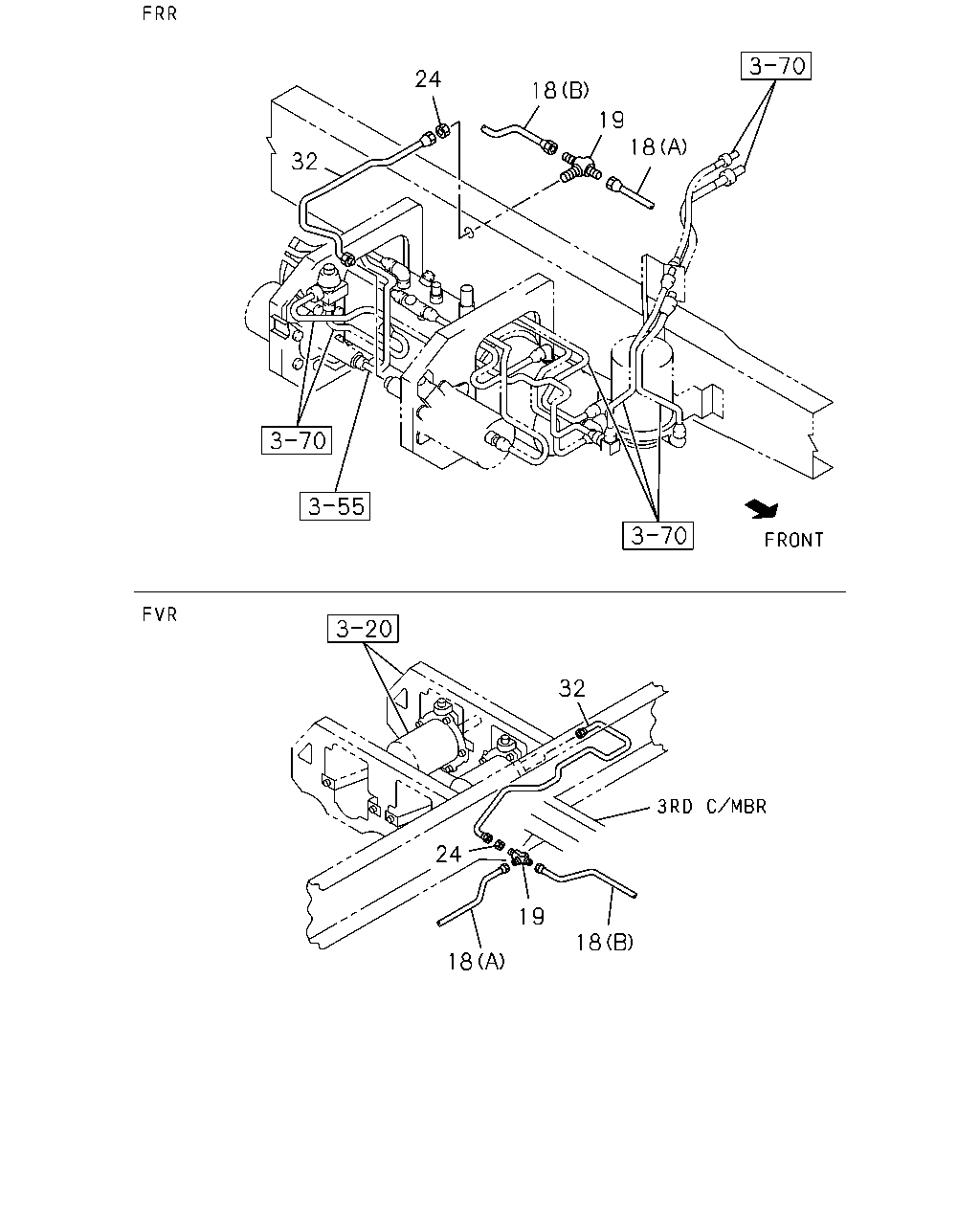

çizim 26550
24 18 1 18 32 32 24 19 18 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 9811-0511 ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05213-530-0 02 1 0512- ●
1 HOSE; FLEX,FRT BRK
L=650 		0-05312-650-0 02 1 9811- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-476-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-578-0 01 1 9907-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2965 SERVICED BY L=3200 		1-47426-365-0 01 1 0611- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97530-479-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97531-118-0 01 1 9907-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1805 SERVICED BY L=1820 		1-47426-358-0 01 1 0611- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-477-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-580-0 01 1 9907-9908 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97531-158-0 01 1 9909-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2771 SERVICED BY L=2900 		1-47426-364-0 01 1 0611- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97530-478-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97530-581-0 01 1 9907-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=2032 SERVICED BY L=2200 		1-47426-360-0 01 1 0611- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 9811-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 9811-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9811- ● ●
32 PIPE; OIL,AIR MASTER TO UNION
TAI 		8-97530-474-0 01 1 9811-9906 ●
32 PIPE; OIL,AIR MASTER TO UNION
TAI 		8-97531-031-0 01 1 9907-9907 ●
32 PIPE; OIL,AIR MASTER TO UNION
TAI 		8-97531-146-0 01 1 9907-0610 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1027 SERVICED BY L=1000 		1-47426-350-0 01 1 0611- ●
32 PIPE; OIL,AIR MASTER TO UNION
TAI 		8-97530-475-0 01 1 9811-9906 ●
32 PIPE; OIL,AIR MASTER TO UNION
TAI 		8-97530-577-0 01 1 9907-0610 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1218 SERVICED BY L=1200 		1-47426-352-0 01 1 0611- ●

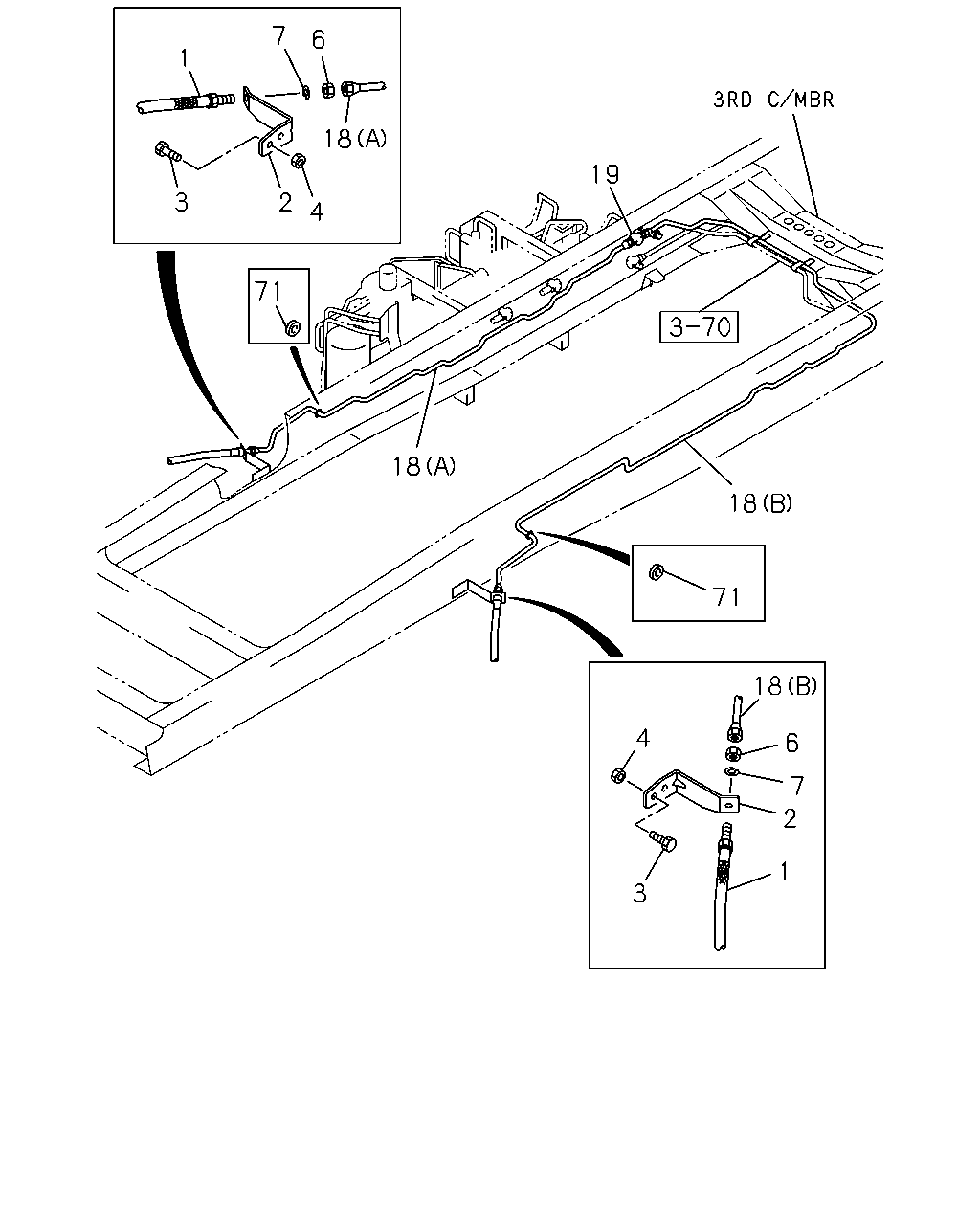

çizim 26551
7 6 1 18 19 3 2 4 71 18 18 71 18 4 6 7 2 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 9811-0511 ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05213-530-0 02 1 0512- ●
1 HOSE; FLEX,FRT BRK
L=650 		0-05312-650-0 02 1 9811- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-497-1 02 1 9811- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-817-0 02 1 9811- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 9811-0512 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 9811-0602 ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9811- ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 9811-0603 ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-476-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-578-0 01 1 9907-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2965 SERVICED BY L=3200 		1-47426-365-0 01 1 0611- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97530-479-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97531-118-0 01 1 9907-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1805 SERVICED BY L=1820 		1-47426-358-0 01 1 0611- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-477-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97530-580-0 01 1 9907-9908 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) TAI 		8-97531-158-0 01 1 9909-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2771 SERVICED BY L=2900 		1-47426-364-0 01 1 0611- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97530-478-0 01 1 9811-9906 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) TAI 		8-97530-581-0 01 1 9907-0610 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=2032 SERVICED BY L=2200 		1-47426-360-0 01 1 0611- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 9811-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 9811-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9811- ● ●
