0-05 — ENGINE GASKET KIT (#57321) — 14 parça

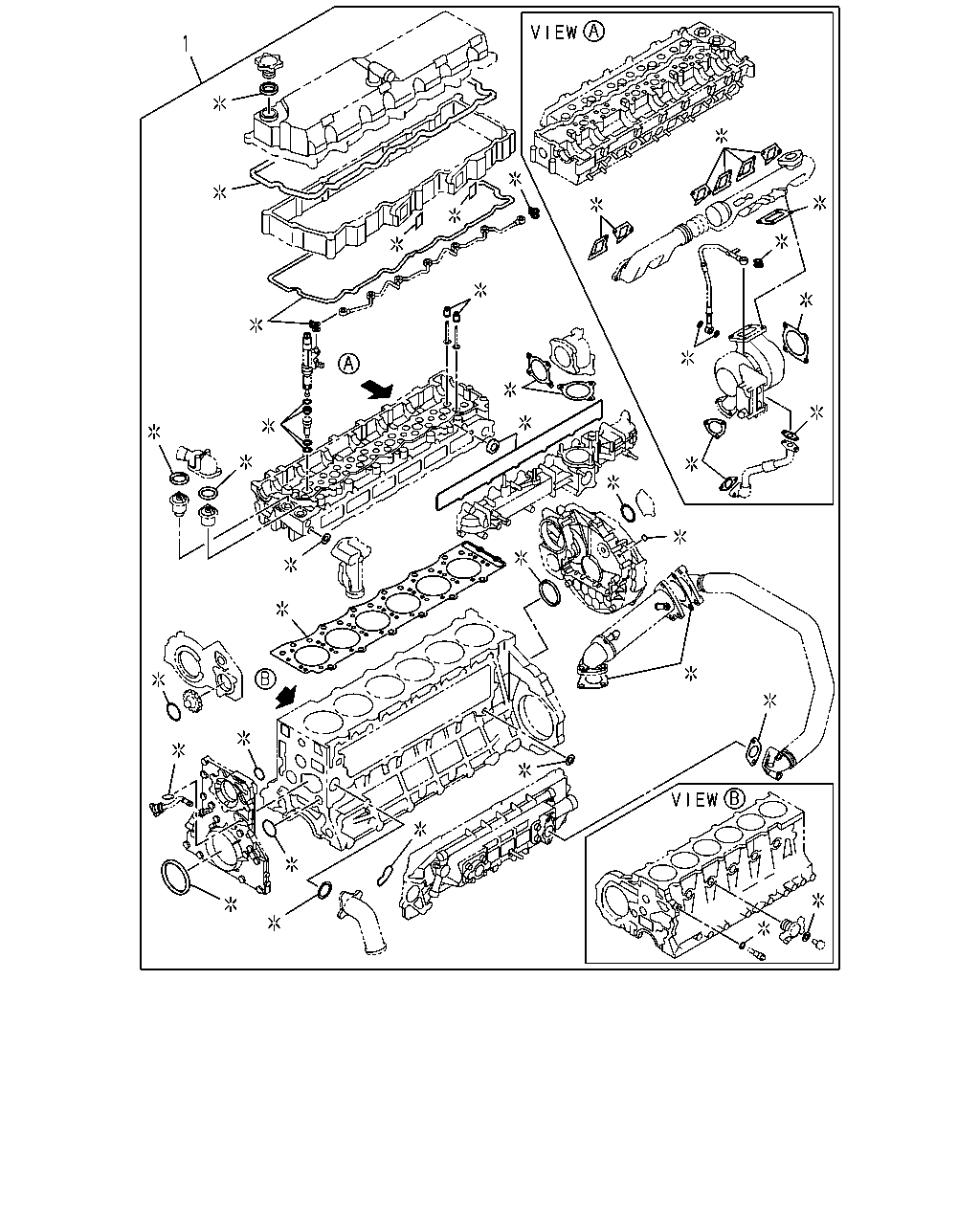

çizim 165956
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-548-3 01 1 0906-1106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-768-0 01 1 1107-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-066-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-272-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-798-0 01 1 1409- ● ●

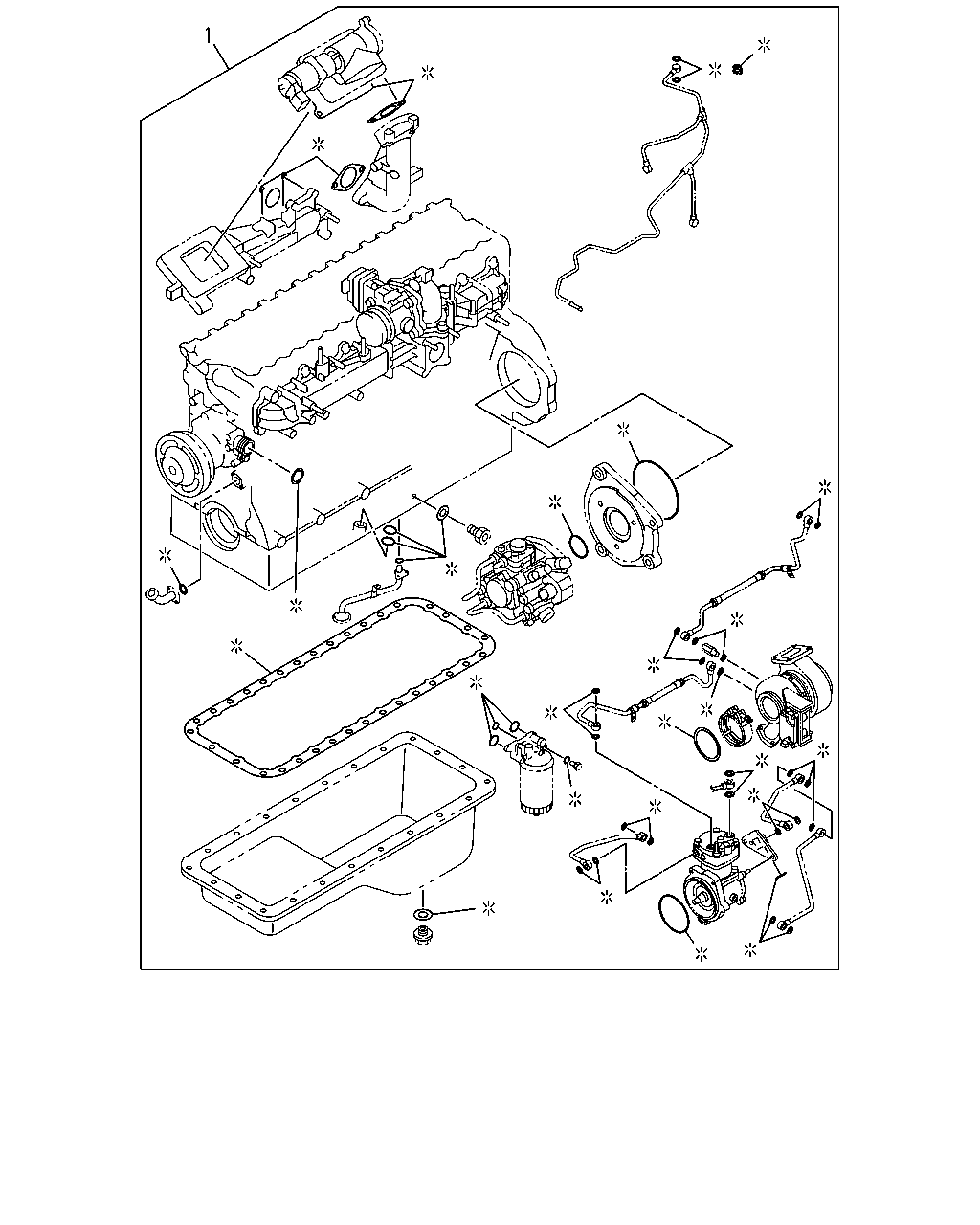

çizim 165987
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-548-3 01 1 0906-1106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-768-0 01 1 1107-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-066-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-272-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-798-0 01 1 1409- ● ●

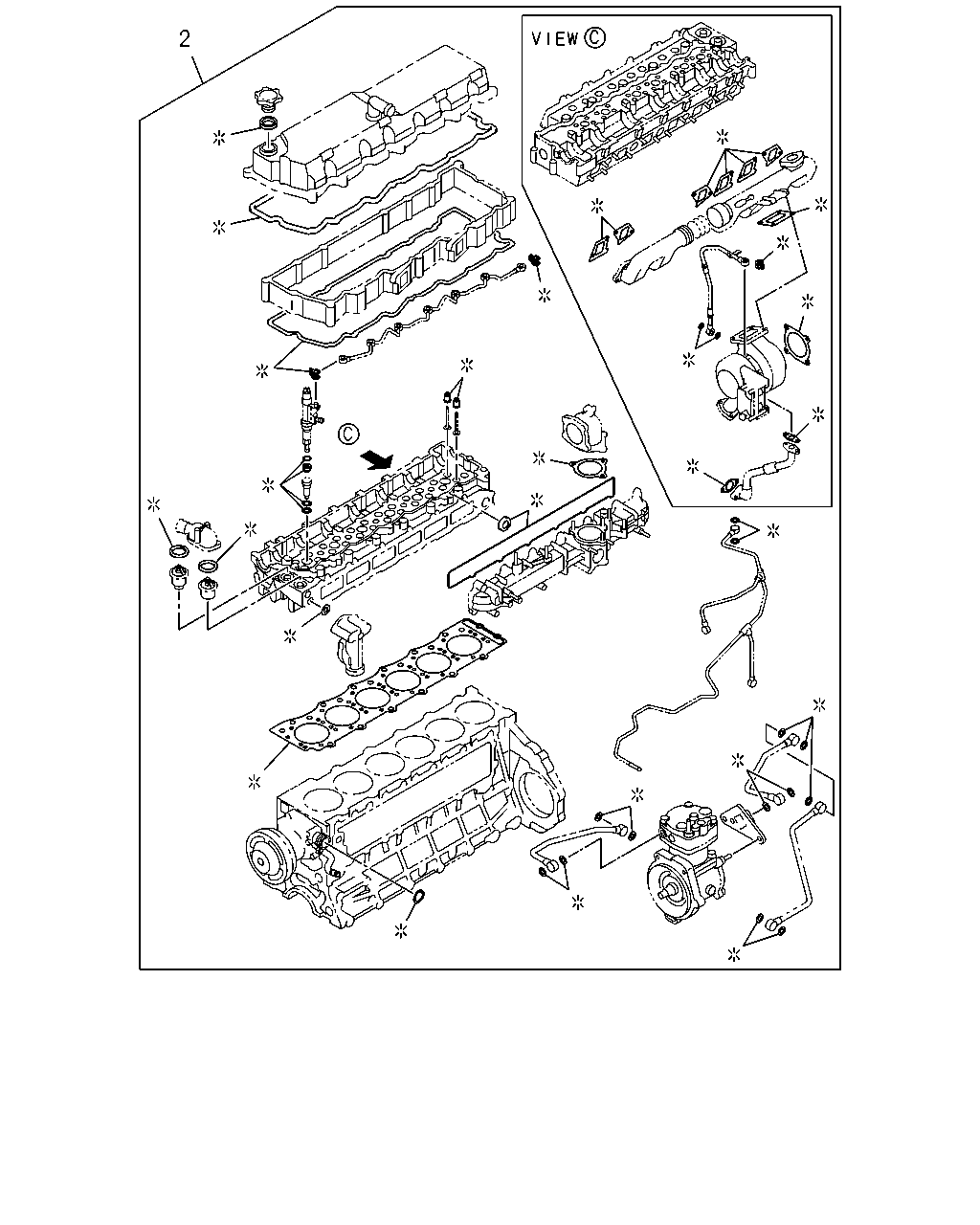

çizim 166010
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87813-434-4 01 1 0906-1301 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-056-0 01 1 1302-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-274-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-782-0 01 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
