Isuzu WW
▶
TRUCKS
▶
FSR
▶
11238 - FSR-RHD(EU)SPACE EU5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#57309) — 16 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

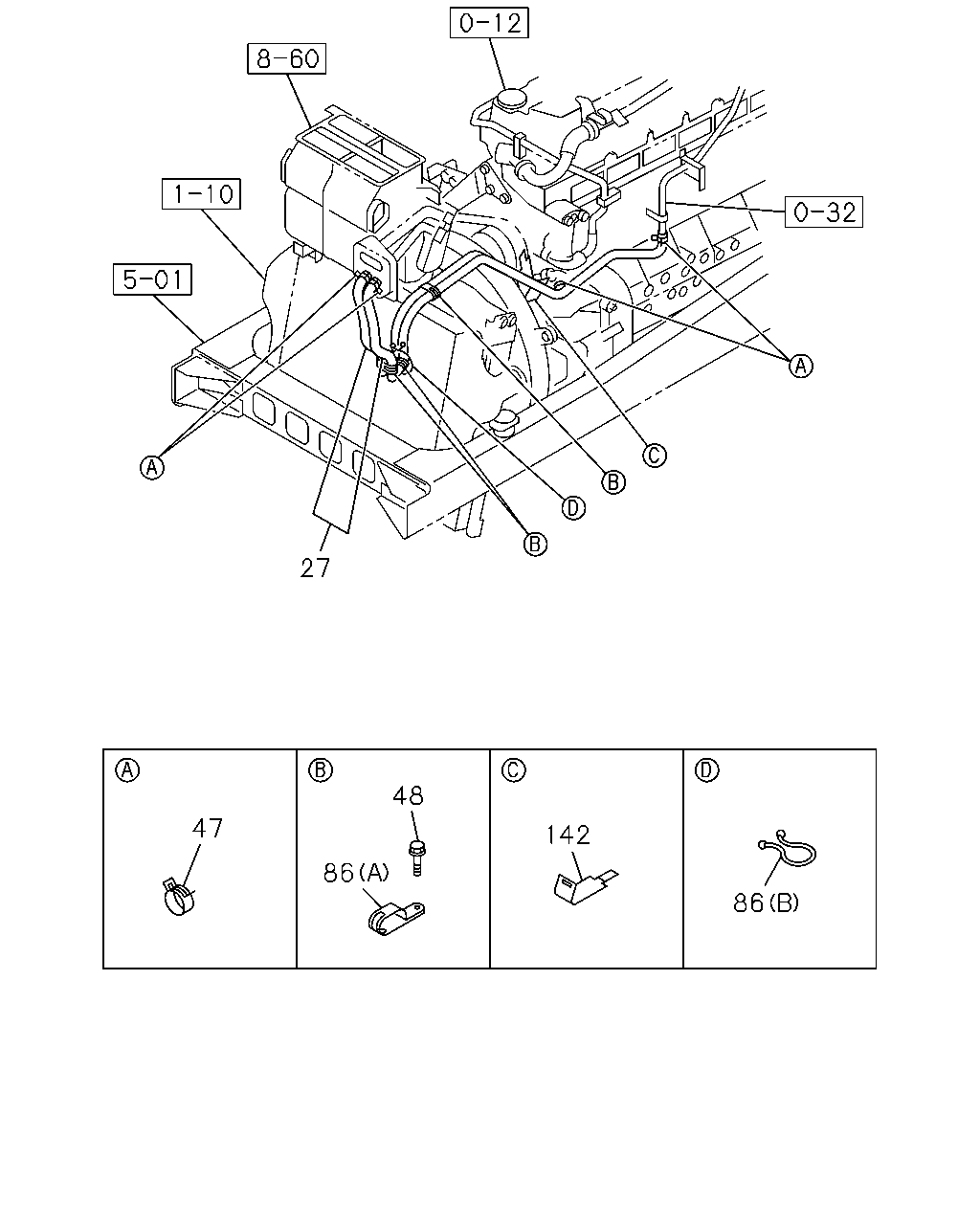

[845A] NO.1 (10 parça)
[845A] NO.2 (6 parça)
▶
27
48
47
142
86
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98010-680-4
01
1
0906-
●
●
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0906-
●
●
48
BOLT; CLIP FIX
M8X16 FLANGE
0-28050-816-0
01
1
0906-
●
●
48
BOLT; CLIP FIX
M8X16 FLANGE
0-28050-816-0
01
1
0906-
●
●
48
BOLT; CLIP FIX
M8X25 FLANGE
0-28650-825-0
01
1
0906-
●
●
48
BOLT; CLIP FIX
M8X25 FLANGE
0-28650-825-0
02
1
0906-
●
●
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
03
1
0906-
●
●
86
CLIP; HTR HOSE
(B)
8-94463-508-0
01
1
0906-
●
●
142
CLIP; BAND
L=170
1-83574-139-0
01
1
0906-1205
●
●
142
CLIP; BAND
L=170
8-98166-021-0
01
1
1206-
●
●
27
63
63
56
103
56
56
103
56
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98010-680-4
01
1
0906-
●
●
56
CLAMP; HTR HOSE
ID=22
8-97359-141-0
04
1
0906-
●
●
63
HOSE; WATER
(A)
8-98117-226-0
01
1
0906-
●
●
63
HOSE; WATER
(B)
8-98117-227-0
01
1
0906-
●
●
63
HOSE; WATER
(C)
8-98117-228-0
01
1
0906-
●
●
103
CONNECTOR; HOSE
9-09703-048-0
02
1
0906-
●
●
