◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11238 - FSR-RHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#57308) — 38 parça
çizim 165871
223 50 476 206 407 247
BalonParca AdiParca NoAdetTipApplied Date A B
50 VALVE ASM; HTR 8-98080-998-1 01 1 0906- ● ●
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 0906- ● ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 0906- ● ●
247 SEAL; COVER,BLOWER MOTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ●
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-758-0 01 1 0906- ● ●
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 0906- ● ●
çizim 165873
207 258 261
BalonParca AdiParca NoAdetTipApplied Date A B
207 SENSOR; AMBIENT
FULLAUTO AIR CONDITIONER(C68) 		8-98008-687-0 01 1 0906- ● ●
258 SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68) 		8-97386-826-0 01 1 0906- ● ●
261 SENSOR; IN CAR
FULLAUTO AIR CONDITIONER(C68) 		8-97386-701-0 01 1 0906- ● ●

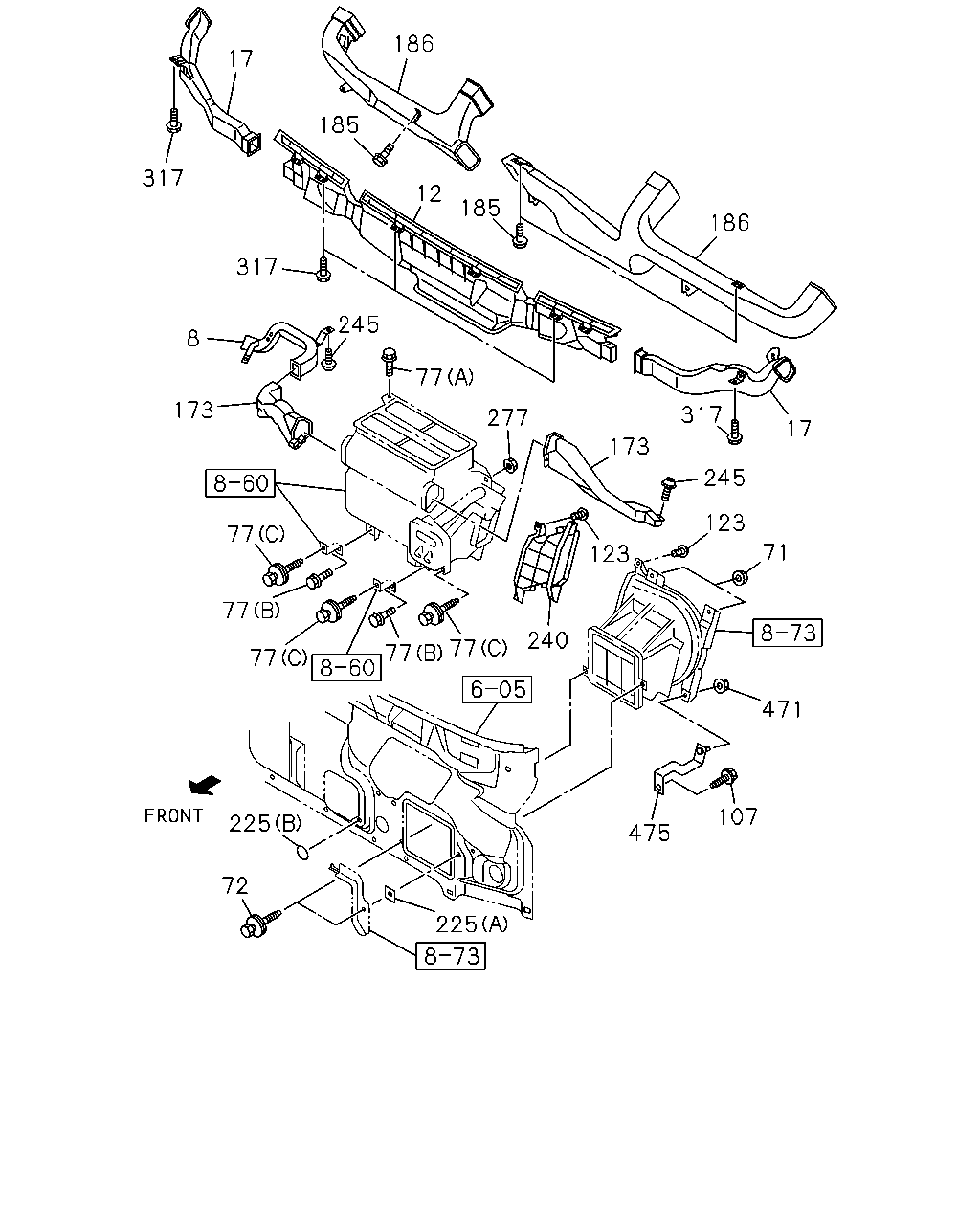

çizim 165875
186 17 185 317 12 185 186 317 245 8 77 173 317 277 17 173 245 123 77 71 123 77 240 77 77 77 471 225 475 72 225 107
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT 8-97585-499-1 01 1 0906-1410 ● ●
8 DUCT; HTR AIR,DRIVER FOOT 8-98290-098-0 01 1 1411- ● ●
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 0906- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-98040-016-1 01 1 0906- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-98040-011-1 01 1 0906- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		0-91180-106-0 02 1 0906- ● ●
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 0906- ● ●
77 BOLT; HTR UNIT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0906- ● ●
77 BOLT; HTR UNIT
(B) M6X20 FLANGE 		0-28650-620-0 02 1 0906- ● ●
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 0906- ● ●
107 BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906- ● ●
123 SCREW; DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0906- ● ●
173 DUCT; FOOT,HTR 8-97585-506-2 01 1 0906- ● ●
173 DUCT; FOOT,HTR 8-98011-459-2 01 1 0906-1410 ● ●
173 DUCT; FOOT,HTR 8-98290-096-0 01 1 1411- ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 05 1 0906-1008 ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009- ● ●
186 DUCT; VENTILATOR 8-97585-488-4 01 1 0906- ● ●
186 DUCT; VENTILATOR 8-98035-579-2 01 1 0906-1007 ● ●
186 DUCT; VENTILATOR 8-98174-737-0 01 1 1008- ● ●
225 SEAL; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=25 BLACK 		1-76798-019-0 01 1 1006- ● ●
225 SEAL; WATER
(A) 		8-97856-616-0 01 1 0906- ● ●
240 DUCT; AIR,HTR 8-98041-402-1 01 1 0906- ● ●
245 CLIP; FOOT DUCT 8-98056-059-0 03 1 0906- ● ●
277 NUT; HTR
M6 FLANGE 		0-91180-106-0 01 1 0906- ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0906- ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0906- ● ●
471 NUT; BLOWER
M6 FLANGE 		0-91180-106-0 01 1 0906- ● ●
475 BRACKET; BLOWER 8-98043-500-1 01 1 0906- ● ●
