◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11238 - FSR-RHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#57301) — 289 parça

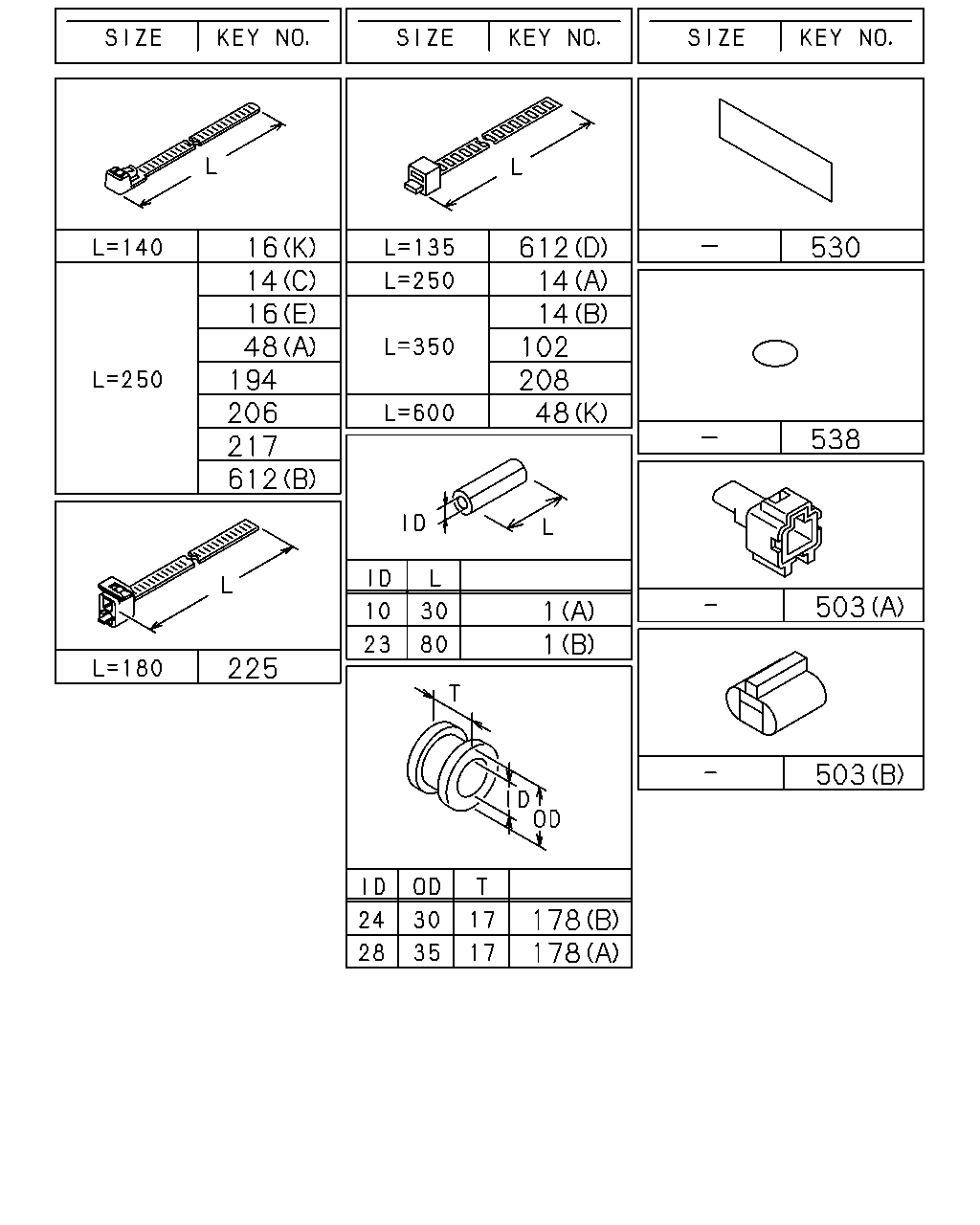

çizim 165817
16 14 16 48 194 206 217 612 612 14 14 102 208 48 530 538 503 1 1 225 503 178 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0906- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0906- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0906- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0906- ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 14 1 0906-1205 ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		8-98216-430-0 14 1 1206- ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 30 1 0906-1205 ● ●
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (C) L=250 		5-09707-030-1 30 1 1206- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0906- ●
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 02 1 0906- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0906- ● ●
16 CLIP; HARNESS
(G) ID=26 L=26 		1-09701-236-0 01 1 0906- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0906- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0906-0911 ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(H) ID=10 & 12 		1-09709-278-1 01 1 0906- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0906- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906- ● ●
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 0906- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (N) ID=14 L=44 		9-09917-427-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0906-0908 ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=20 		0-95235-035-0 02 1 0909- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0906- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 16 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0906- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0906- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0906-1201 ● ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 1202- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 08 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (N) ID=14 L=44 		9-09917-427-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 14 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 14 1 1008- ●
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0906-0911 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0906- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0906- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0906- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0906- ● ●
194 CLIP; BAND
WHEEL BASE 4900MM(49W) L=250 		5-09707-030-1 02 1 0906- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 0906- ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0906- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1101- ● ●
217 CLIP; RR BODY HARNESS
EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 0906- ● ●
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 01 1 0906- ● ●
503 CONNECTOR
(A) 		1-82691-191-0 01 1 0906- ● ●
503 CONNECTOR
HEATER & DEFROSTER(C41) (B) 		1-82690-668-0 01 1 0906- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0906-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0906-1305 ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0906- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0906- ● ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 0906- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0906- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0906- ● ●

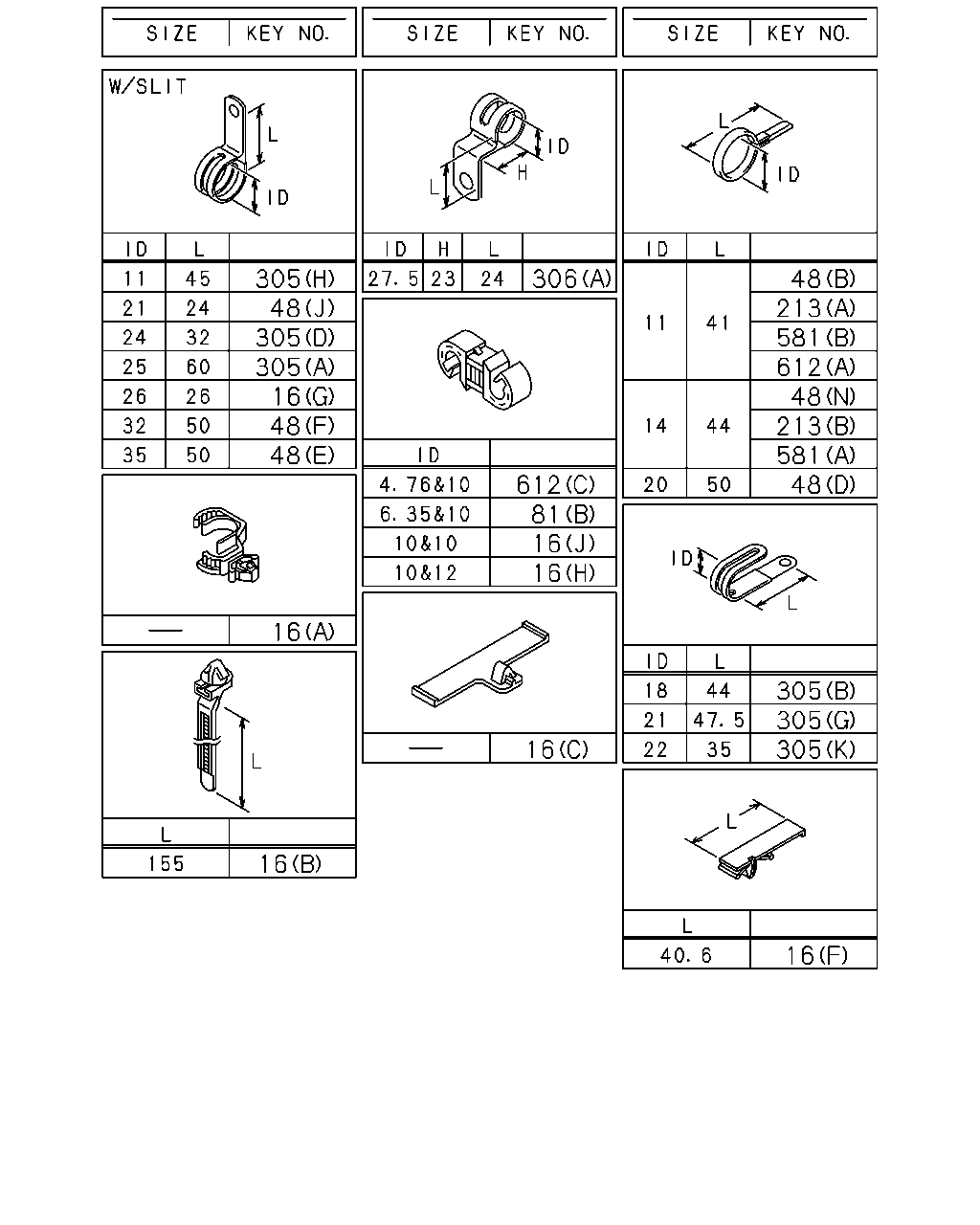

çizim 165821
305 48 305 305 16 48 48 306 48 213 581 612 48 213 581 48 612 81 16 16 16 305 305 305 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0906- ●
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 02 1 0906- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0906- ● ●
16 CLIP; HARNESS
(G) ID=26 L=26 		1-09701-236-0 01 1 0906- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0906- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0906-0911 ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(H) ID=10 & 12 		1-09709-278-1 01 1 0906- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0906- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906- ● ●
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 0906- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (N) ID=14 L=44 		9-09917-427-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0906-0908 ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=20 		0-95235-035-0 02 1 0909- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0906- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 16 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0906- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0906- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0906-1201 ● ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 1202- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 08 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (N) ID=14 L=44 		9-09917-427-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 14 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 14 1 1008- ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
(B) ID=6.35 & 15 		1-09709-276-1 01 1 0906- ● ●
213 CLIP; END CROSS HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0906- ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 07 1 0906- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0906- ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(K) ID=22 L=35 		8-97375-643-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0906- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0906- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0906- ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=14 L=44 		9-09917-427-0 03 1 0906-0908 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=41 		1-09700-403-0 03 1 0909-0910 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=41 		1-09700-403-0 02 1 0911- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0906- ● ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 0906- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0906- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0906- ● ●

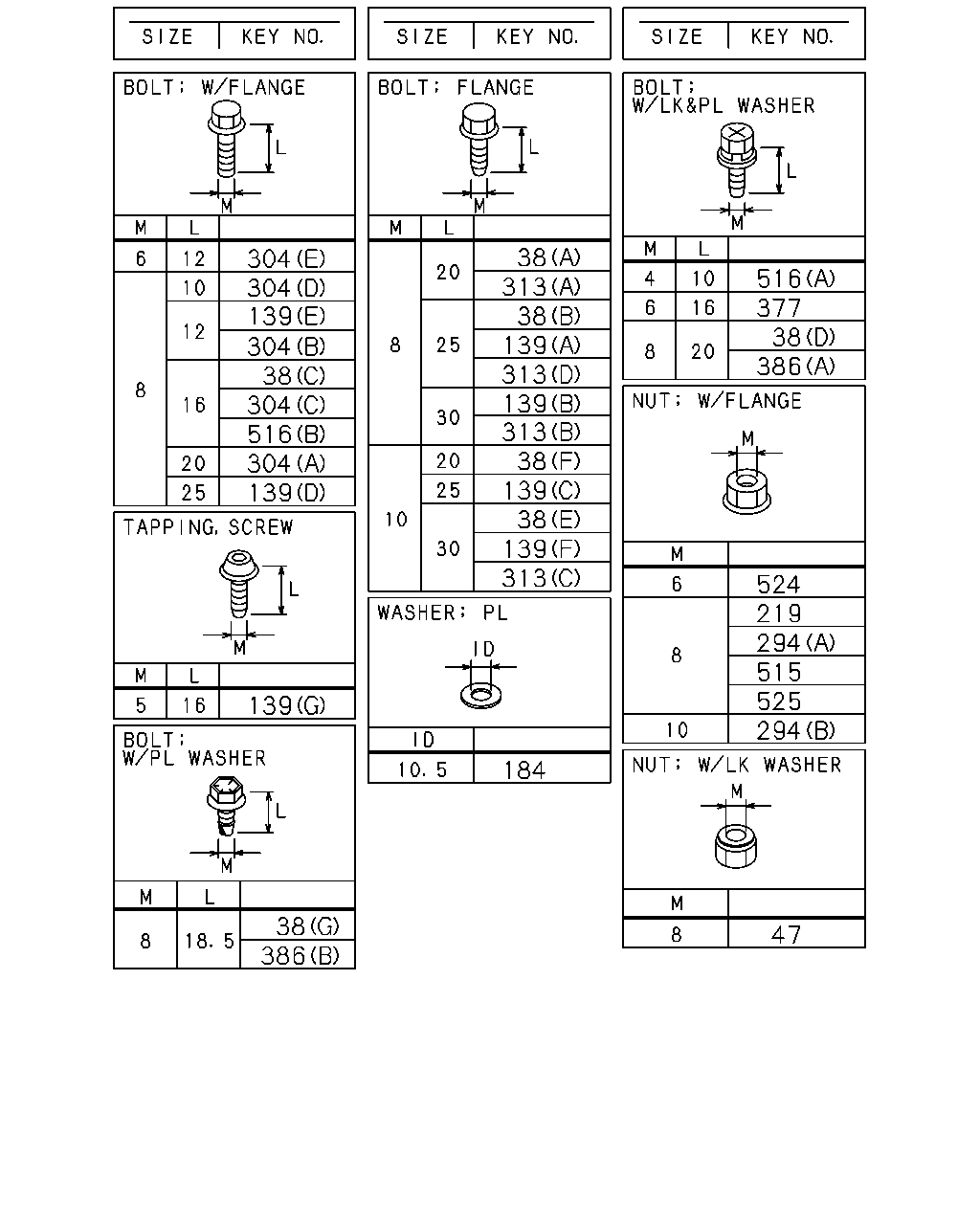

çizim 165828
304 139 304 304 304 38 516 139 304 139 38 386 38 313 139 38 313 313 139 38 38 139 139 313 184 516 377 386 524 219 294 515 525 294 47 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0906- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0906- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0906- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0906- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0906- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0906- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 0906- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0906-1201 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
MLD6W M/T(Y2C) (F) M10X20 FLANGE 		0-28751-020-0 01 1 0906- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1101- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0906- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0906- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0906- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 0906- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 0906- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0906- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0906- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0906- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0906- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0906- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0908- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-0907 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-0907 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-0907 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1001- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-0907 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-0907 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-0907 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0908-0912 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0908-0912 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1001- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1001- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1001- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0906- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0906-1010 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0906-1010 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0906- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0906-1010 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0906- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0906- ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906- ●
313 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0906- ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0906- ● ●
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0906- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0906- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0906-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906- ●
516 BOLT; HARNESS
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0906- ● ●
516 BOLT; HARNESS
MLD6W M/T(Y2C) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0906- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0906- ● ●

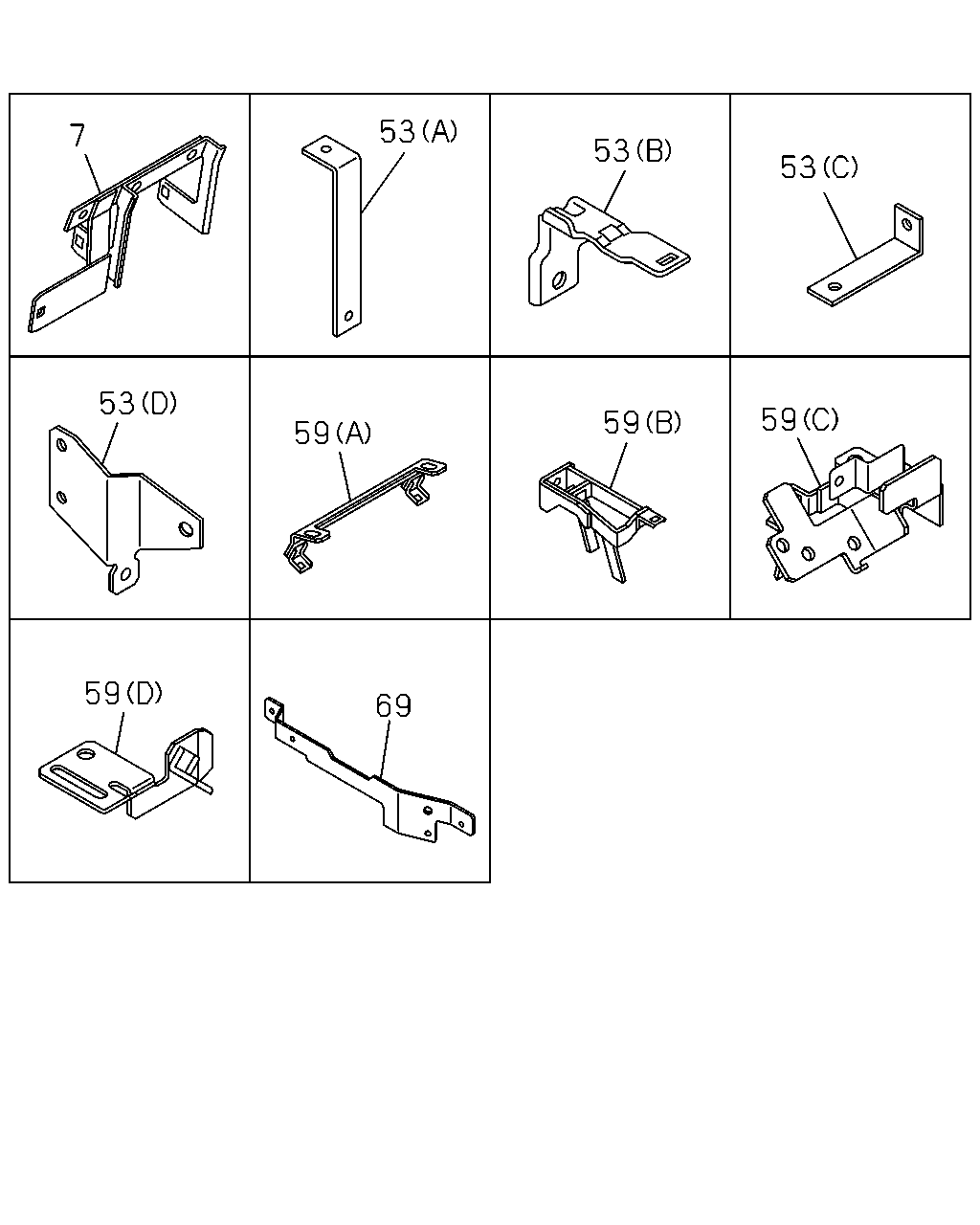

çizim 165831
53 7 53 53 53 59 59 59 59 69
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0906- ● ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0906- ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0906- ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 01 1 0906- ●
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 0906- ● ●
53 BRACKET; HARNESS
(D) 		8-98047-891-0 01 1 0906- ● ●
53 BRACKET; HARNESS
(D) 		8-98047-890-0 01 1 0906- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0906- ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97619-533-0 01 1 0906- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97619-534-0 01 1 0906- ● ●
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (B) 		8-97627-325-0 01 1 0906- ● ●
59 BRACKET; FRAME HARNESS
MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 0906- ● ●
69 BRACKET; CLIP 8-97614-738-0 01 1 0906- ● ●

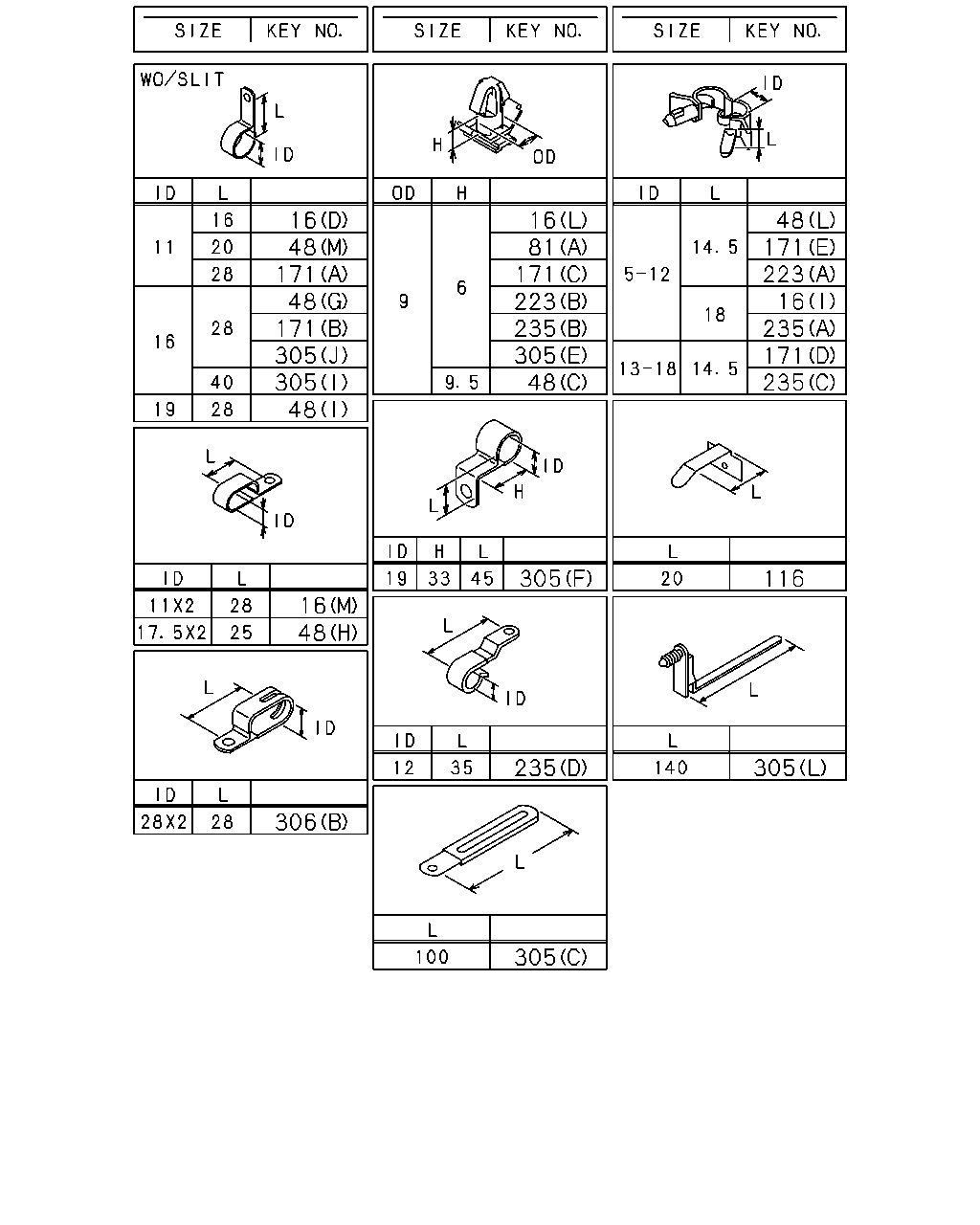

çizim 165834
16 48 171 48 171 305 305 48 16 81 171 223 235 305 48 48 171 223 16 235 171 235 305 116 16 48 235 305 306 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0906- ●
16 CLIP; HARNESS
(D) ID=11 L=16 		0-95235-025-0 02 1 0906- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0906- ● ●
16 CLIP; HARNESS
(G) ID=26 L=26 		1-09701-236-0 01 1 0906- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0906- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0906-0911 ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(H) ID=10 & 12 		1-09709-278-1 01 1 0906- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0906- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906- ● ●
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 0906- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (N) ID=14 L=44 		9-09917-427-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0906-0908 ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=20 		0-95235-035-0 02 1 0909- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0906- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 16 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0906- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0906- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0906- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0906-1201 ● ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 1202- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 08 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (N) ID=14 L=44 		9-09917-427-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 14 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 14 1 1008- ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
(B) ID=6.35 & 15 		1-09709-276-1 01 1 0906- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0906- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0906- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0906- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0906- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0906- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0906- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1002- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0906- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 01 1 0906- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=5-12 L=18 		1-09709-287-0 02 1 0906- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=13-18 L=14.5 		1-09709-290-0 01 1 0906- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (D) ID=12 L=35 		5-09700-206-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0906- ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(K) ID=22 L=35 		8-97375-643-0 01 1 0906- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0906- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0906- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0906- ● ●

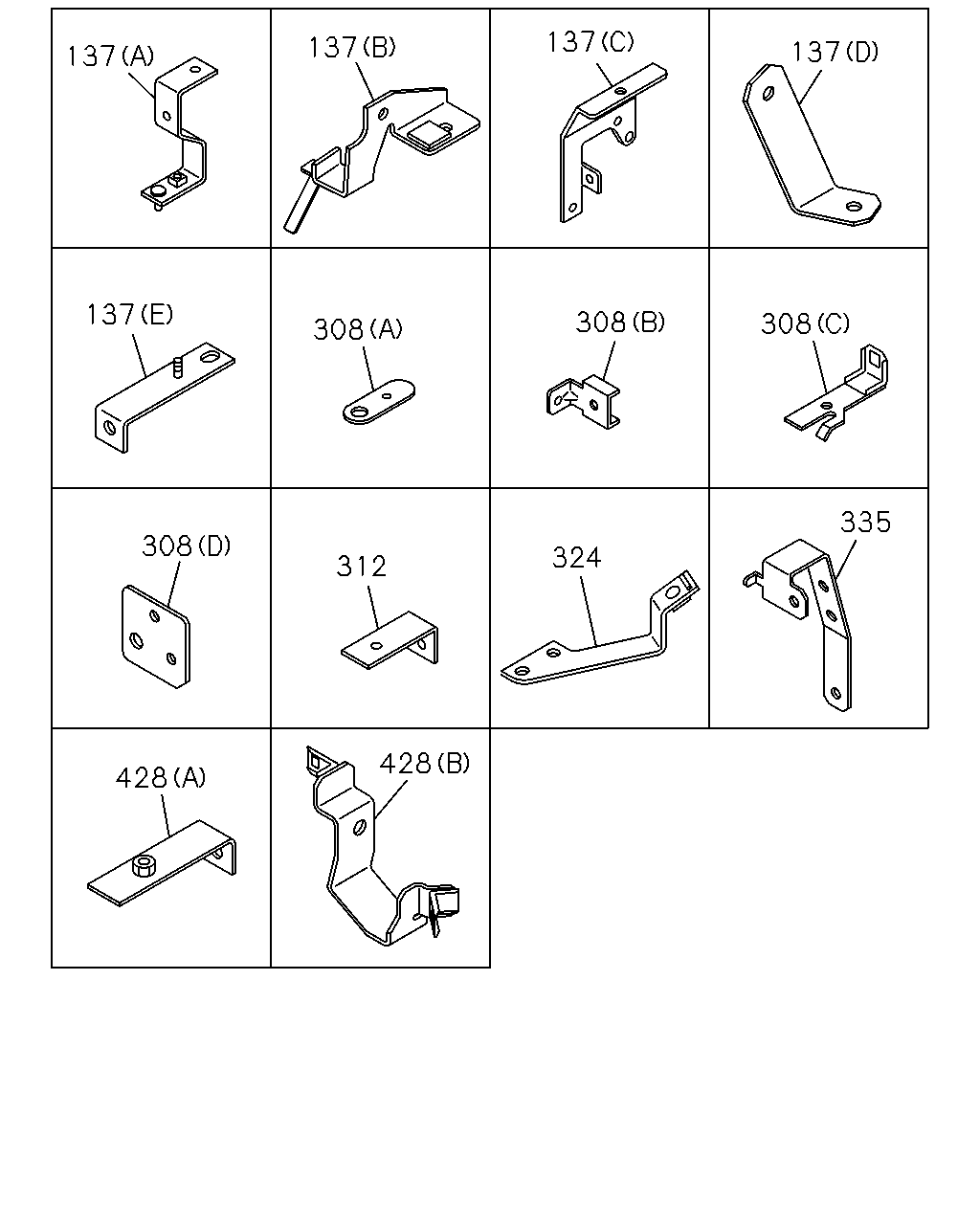

çizim 165835
137 137 137 137 137 308 308 308 335 308 324 312 428 428
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(D) 		8-97614-728-1 01 1 0906- ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-013-0 01 1 0906- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0906- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-98047-324-0 01 1 0906- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 0906- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0906-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0906- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0906- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0906- ● ●
312 BRACKET; CLIP HARNESS
L=55 		1-47475-304-0 01 1 0906- ● ●
324 BRACKET; CLIP 8-98051-649-1 01 1 0906- ● ●
324 BRACKET; CLIP 8-98051-648-1 01 1 0906- ● ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0906- ● ●
428 BRACKET
(A) 		1-47475-519-0 01 1 0906- ● ●
428 BRACKET
(B) 		8-98090-952-0 01 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
