Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#57300) — 438 parça

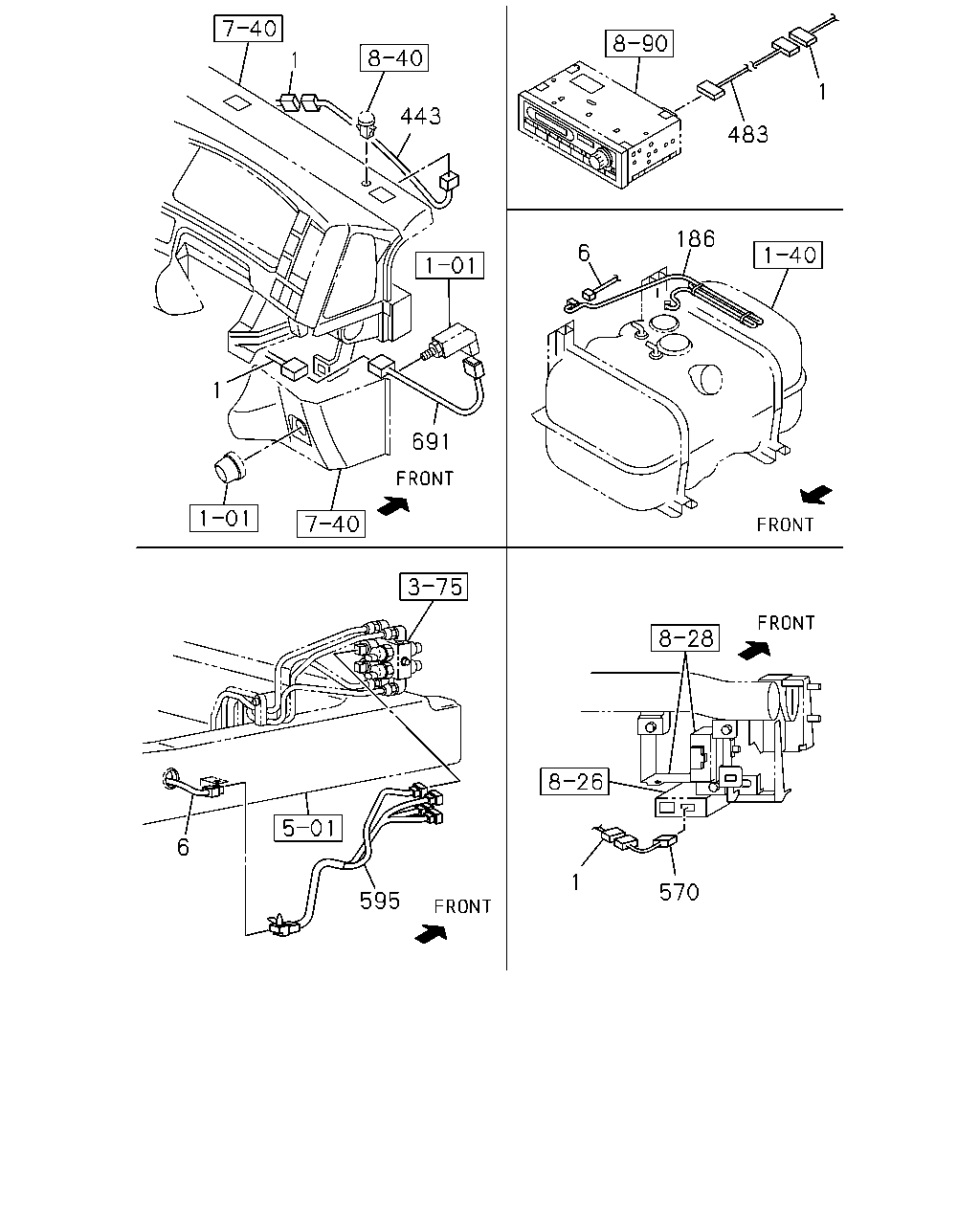

1 1 443 483 186 6 1 691 6 1 570 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-908-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-908-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-908-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-912-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-912-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-912-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-909-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-909-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-909-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-913-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-913-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-913-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-906-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-906-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-910-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-910-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-907-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-907-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-911-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-911-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-652-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-655-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-646-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-649-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-653-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-647-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-065-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-065-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-061-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-061-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-064-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-064-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-060-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-060-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-063-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-059-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-062-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-058-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203		●
6	HARNESS; FRAME	8-98139-624-1	01	1	0906-	●
6	HARNESS; FRAME	8-98139-623-1	01	1	0906-		●
186	HARNESS; FUEL TANK WHEEL BASE 3700MM(37W)	8-97619-079-0	01	1	0906-		●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	0906-	●	●
483	HARNESS; EXT,RADIO	8-98116-875-0	01	1	0906-	●	●
570	HARNESS; SPEED SENSOR	8-98058-327-1	01	1	0906-1109	●	●
570	HARNESS; SPEED SENSOR TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98091-562-0	01	1	1206-	●	●
595	HARNESS; WARNING,BRK	8-97621-003-3	01	1	0906-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	0906-	●	●

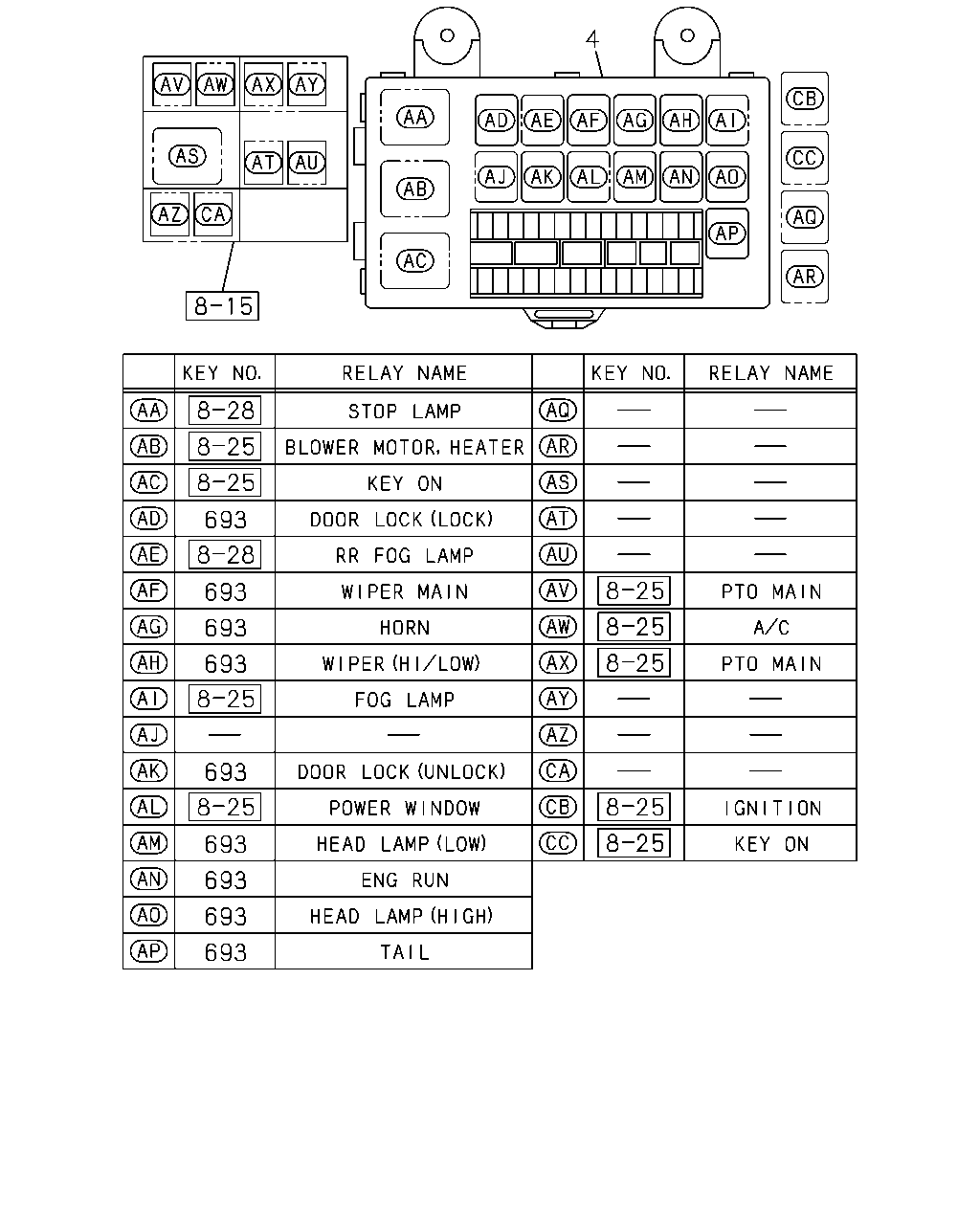

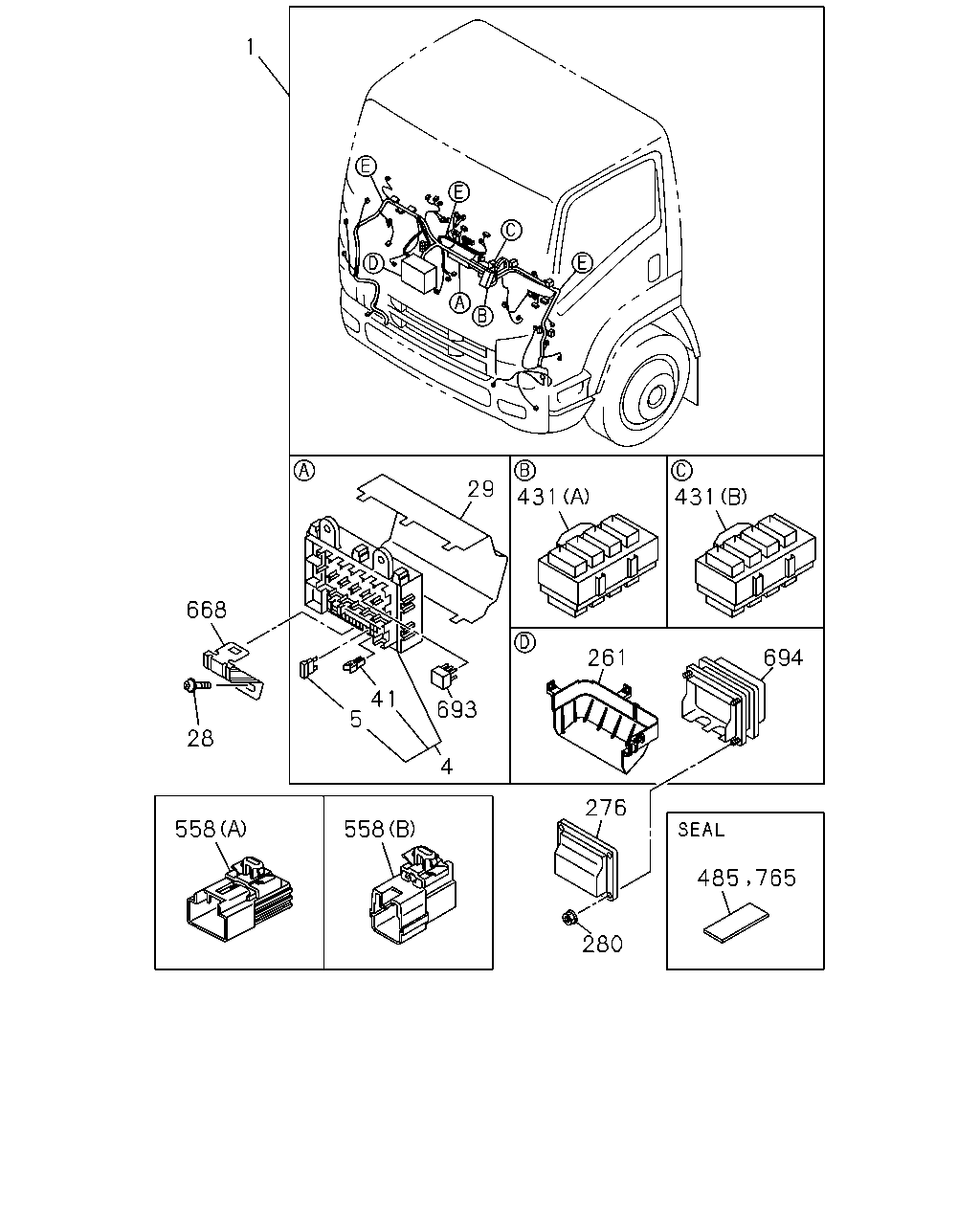

4 693 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-1205	●	●
4	BOX ASM; FUSE,HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98065-666-0	01	1	1206-	●	●
4	BOX ASM; FUSE,HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98065-666-0	01	1	1206-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0906-1205	●	●
693	RELAY; FUSE BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> 24V 10A PANASONIC	8-97173-035-1	AR	1	1206-	●	●
693	RELAY; FUSE BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> 24V 10A PANASONIC	8-97173-035-1	AR	1	1206-	●	●

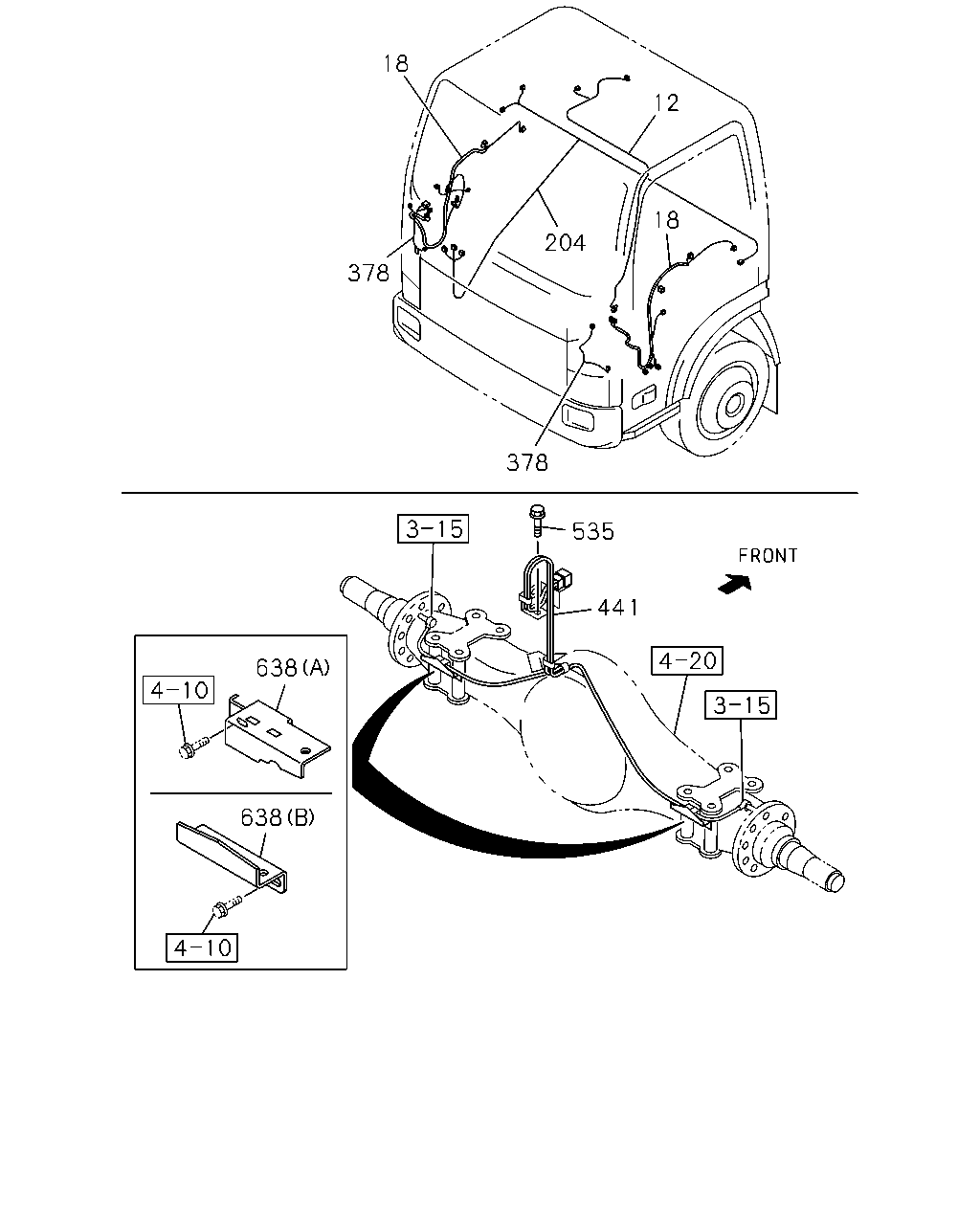

18 12 18 204 378 378 535 441 638 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98079-071-1	01	1	0906-	●	●
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98084-247-0	01	1	0906-	●	●
18	HARNESS; DOOR	8-98084-283-3	01	1	0906-	●	●
18	HARNESS; DOOR	8-98084-288-3	01	1	0906-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5)	8-98084-202-1	01	1	0906-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3)	8-98084-197-1	01	1	0906-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5)	8-98084-200-2	01	1	0906-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3)	8-98084-195-1	01	1	0906-		●
378	HARNESS; EXT,MIRROR O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98125-653-0	02	1	0906-	●	●
378	HARNESS; EXT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98125-654-0	02	1	0906-	●	●
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	0906-	●	●
535	BOLT; BRKT FIX M8X10 W/LK WASHER	8-98029-928-0	02	1	0906-	●	●
638	BRACKET; SPD SENSOR (A)	8-98012-540-0	01	1	0906-	●
638	BRACKET; SPD SENSOR (A)	8-98012-539-0	01	1	0906-	●
638	BRACKET; SPD SENSOR (B)	8-98012-580-1	02	1	0906-		●

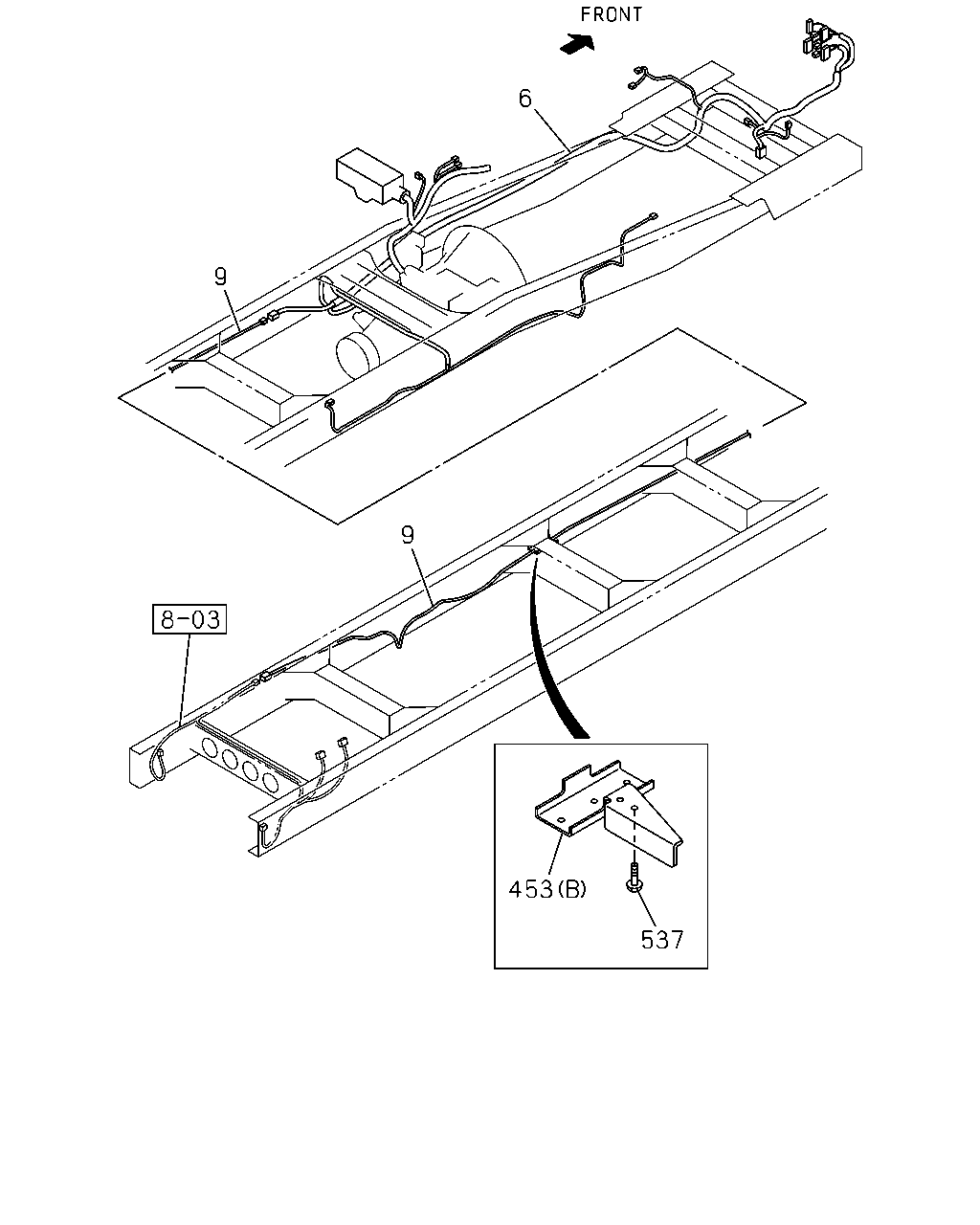

6 9 9 453 537

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME	8-98139-624-1	01	1	0906-	●
6	HARNESS; FRAME	8-98139-623-1	01	1	0906-		●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98114-797-4	01	1	0906-1007	●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98168-618-0	01	1	1008-	●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98114-790-0	01	1	0906-1007		●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98168-612-0	01	1	1008-		●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98114-792-2	01	1	0906-1007		●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98168-614-0	01	1	1008-		●
453	PROTECTOR; HARNESS (B)	8-98042-155-0	01	1	0906-	●
453	PROTECTOR; HARNESS (A)	1-82699-709-0	01	1	0906-	●	●
537	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0906-	●

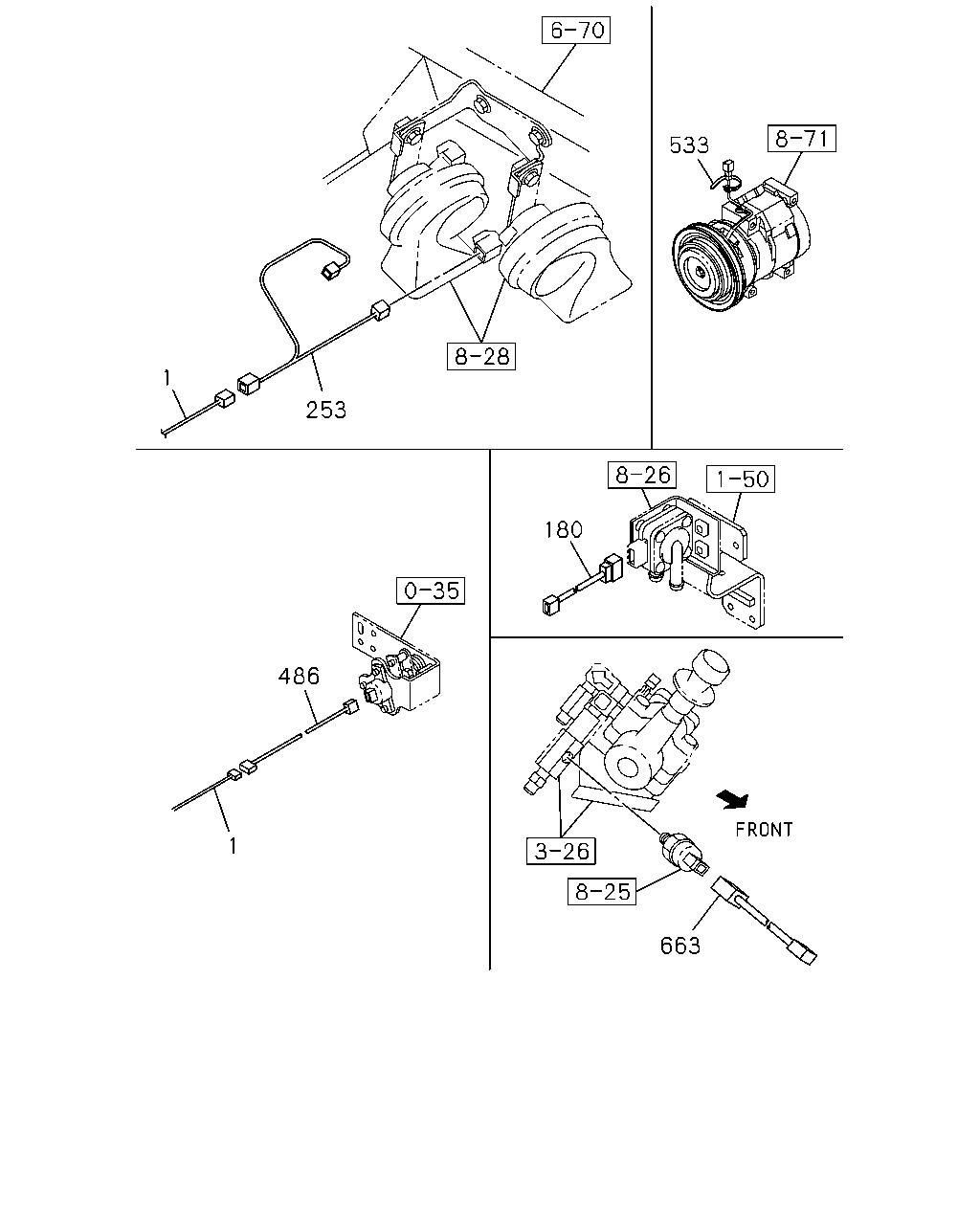

533 1 253 180 486 1 663

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-908-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-908-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-908-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-912-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-912-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-912-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-909-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-909-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-909-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-913-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-913-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-913-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-906-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-906-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-910-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-910-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-907-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-907-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-911-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-911-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-652-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-655-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-646-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-649-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-653-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-647-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-065-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-065-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-061-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-061-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-064-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-064-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-060-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-060-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-063-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-059-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-062-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-058-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203		●
180	HARNESS; CABLE WHEEL BASE 4900MM(49W)	8-97620-958-0	01	1	0906-	●
180	HARNESS; CABLE WHEEL BASE 4600MM(46W)	8-97620-958-0	01	1	0906-		●
180	HARNESS; CABLE WHEEL BASE 3700MM(37W)	8-97620-962-0	01	1	0906-1010		●
180	HARNESS; CABLE WHEEL BASE 3700MM(37W)	8-98173-177-0	01	1	1011-		●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	0906-	●	●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	0906-	●	●
533	CLIP L=180	1-09707-162-1	01	1	0906-1206	●	●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=180	1-09707-162-1	01	1	1207-	●	●
663	HARNESS; EXTENSION,RR WHEEL PARKING	8-98126-779-2	01	1	1008-		●

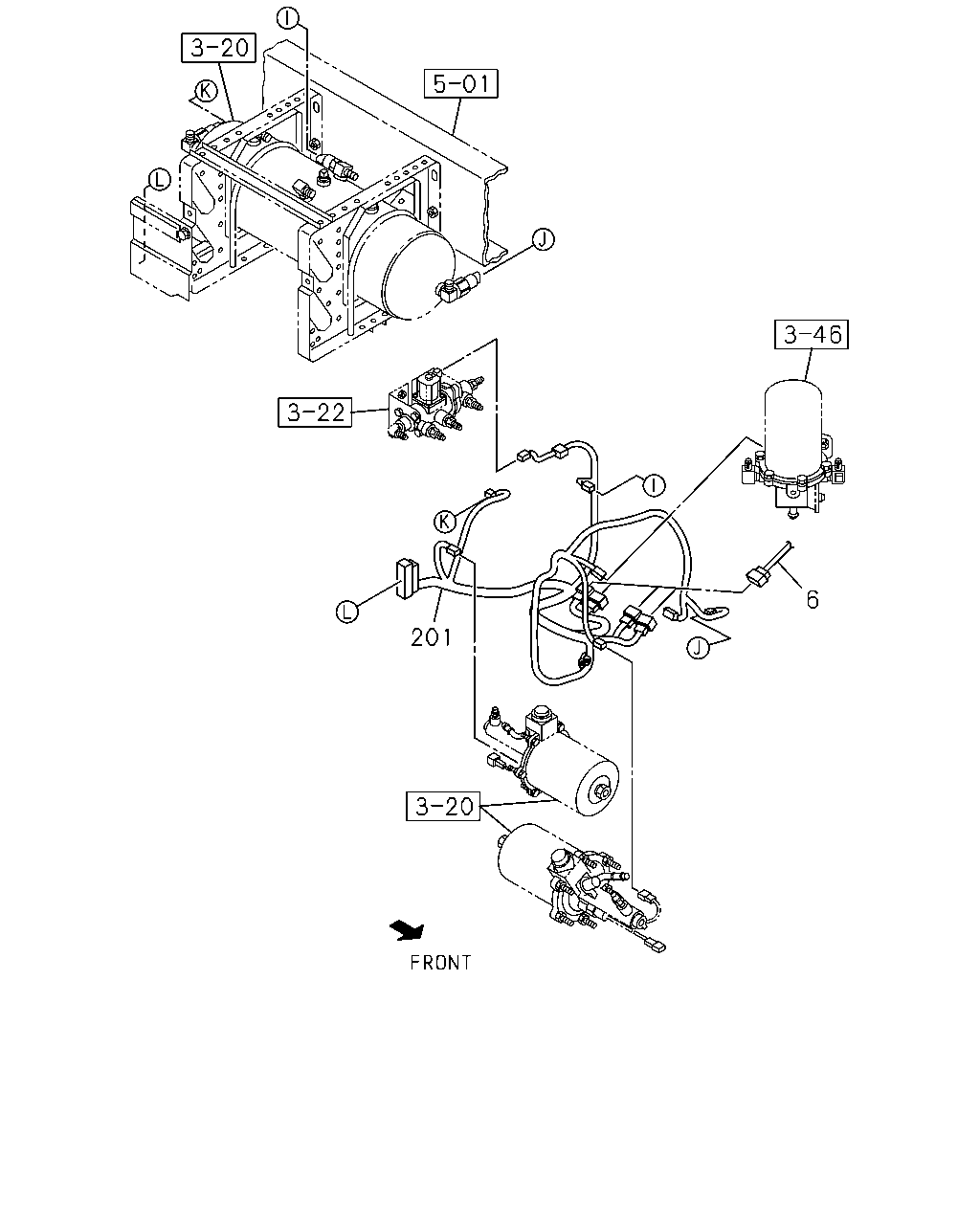

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME	8-98139-624-1	01	1	0906-	●
6	HARNESS; FRAME	8-98139-623-1	01	1	0906-		●
201	HARNESS; AIR TANK	8-98090-507-1	01	1	0906-1001	●	●
201	HARNESS; AIR TANK	8-98156-705-2	01	1	1002-	●	●

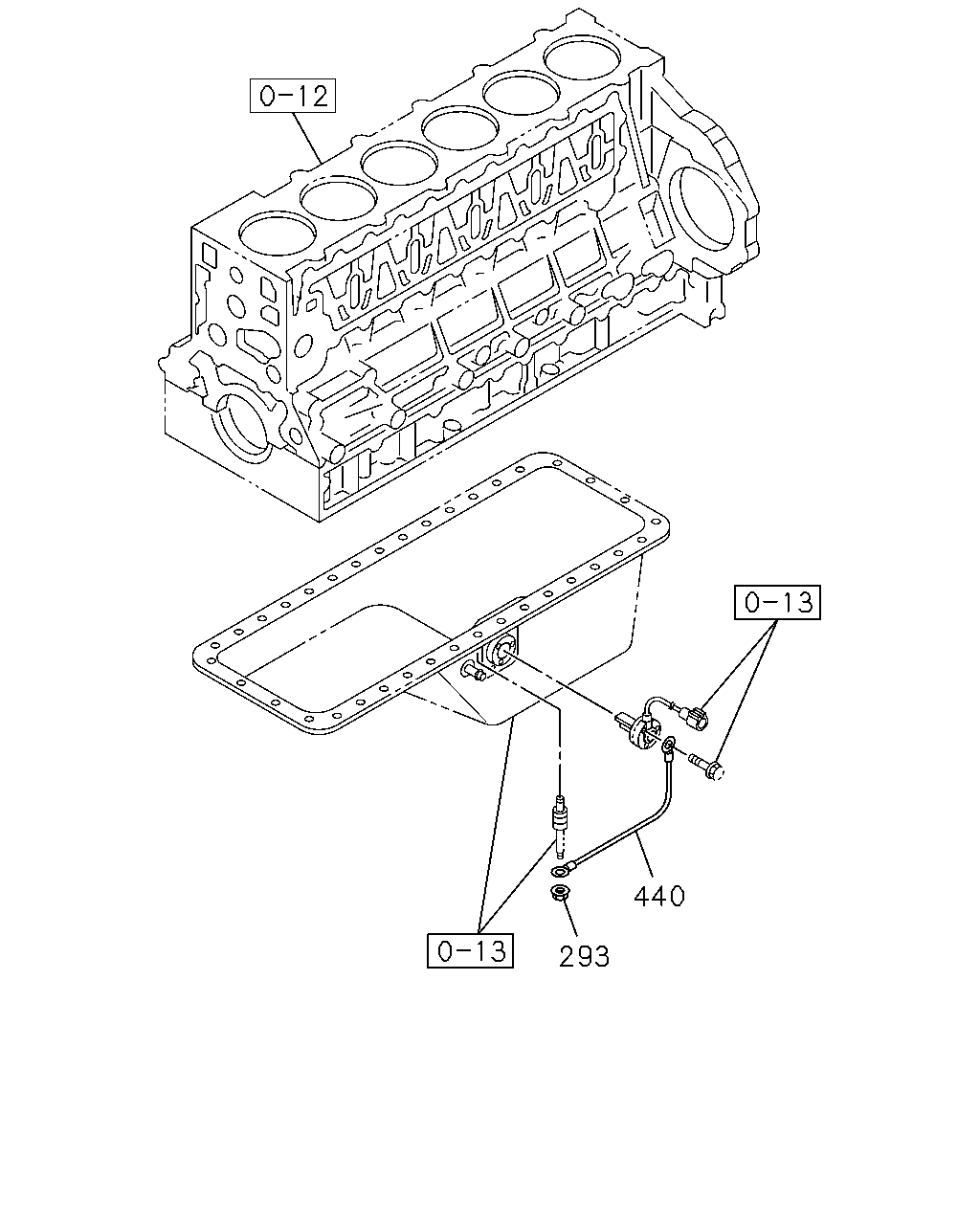

440 293

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	293	NUT M8 FLANGE	0-91180-108-0	01	1	0906-	●	●
	440	CABLE; EARTH	8-97606-639-0	01	1	0906-	●	●

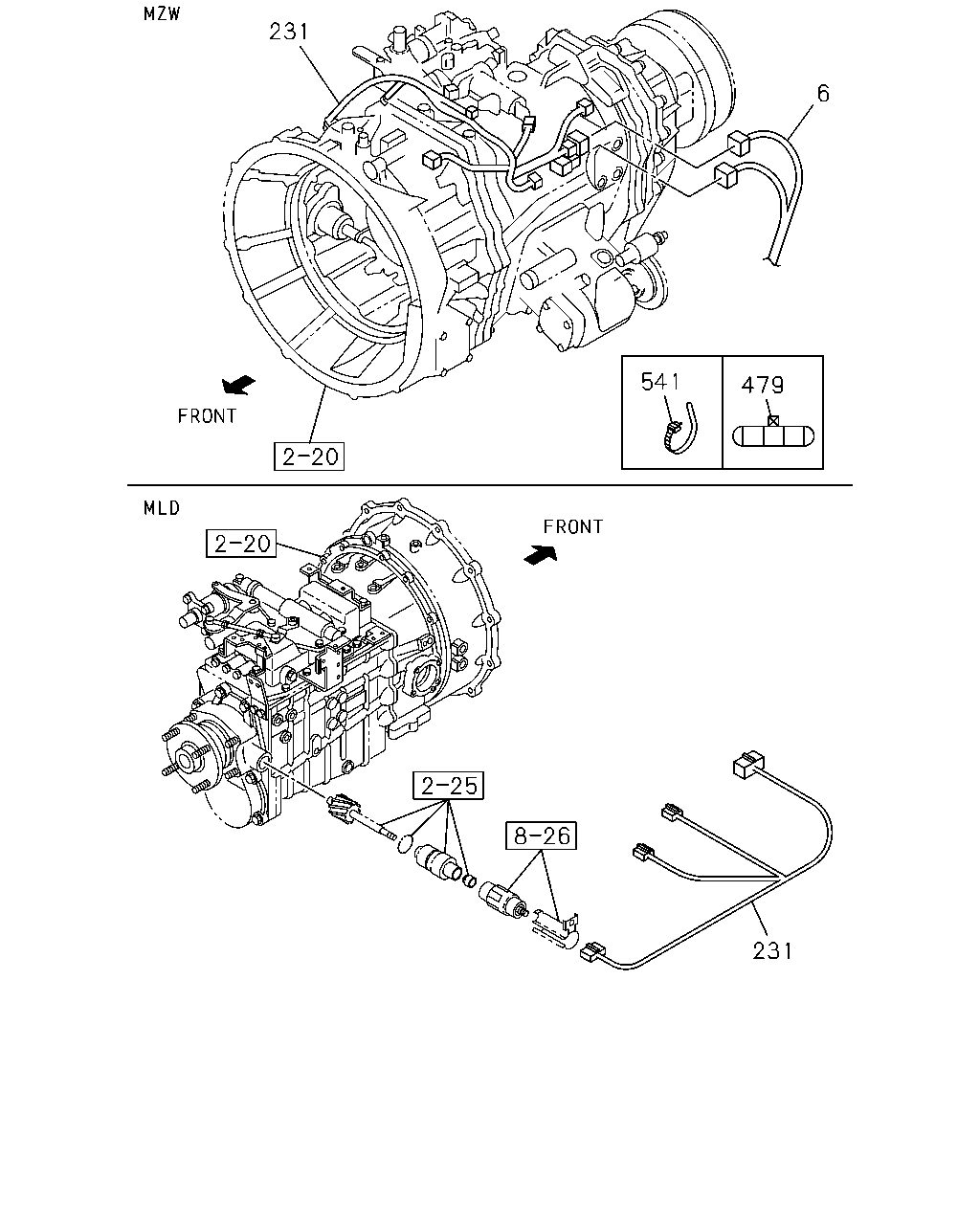

231 6 541 479 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME	8-98139-624-1	01	1	0906-	●
6	HARNESS; FRAME	8-98139-623-1	01	1	0906-		●
231	HARNESS; TRANS MLD6W M/T(Y2C)	8-97626-769-1	01	1	0906-	●	●
231	HARNESS; TRANS MZW6P M/T(RSZ)	8-97618-932-1	01	1	0906-0908	●	●
231	HARNESS; TRANS MZW6P M/T(RSZ)	8-98151-321-1	01	1	0909-	●	●
479	CAP; CONNECTOR MZW6P M/T(RSZ)	1-82690-667-0	01	1	0909-1205	●	●
479	CAP; CONNECTOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	1-82690-667-0	01	1	1206-	●	●
541	CLIP MZW6P M/T(RSZ) L=180	1-09707-162-1	01	1	0909-1205	●	●
541	CLIP MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> L=180	1-09707-162-1	01	1	1206-	●	●

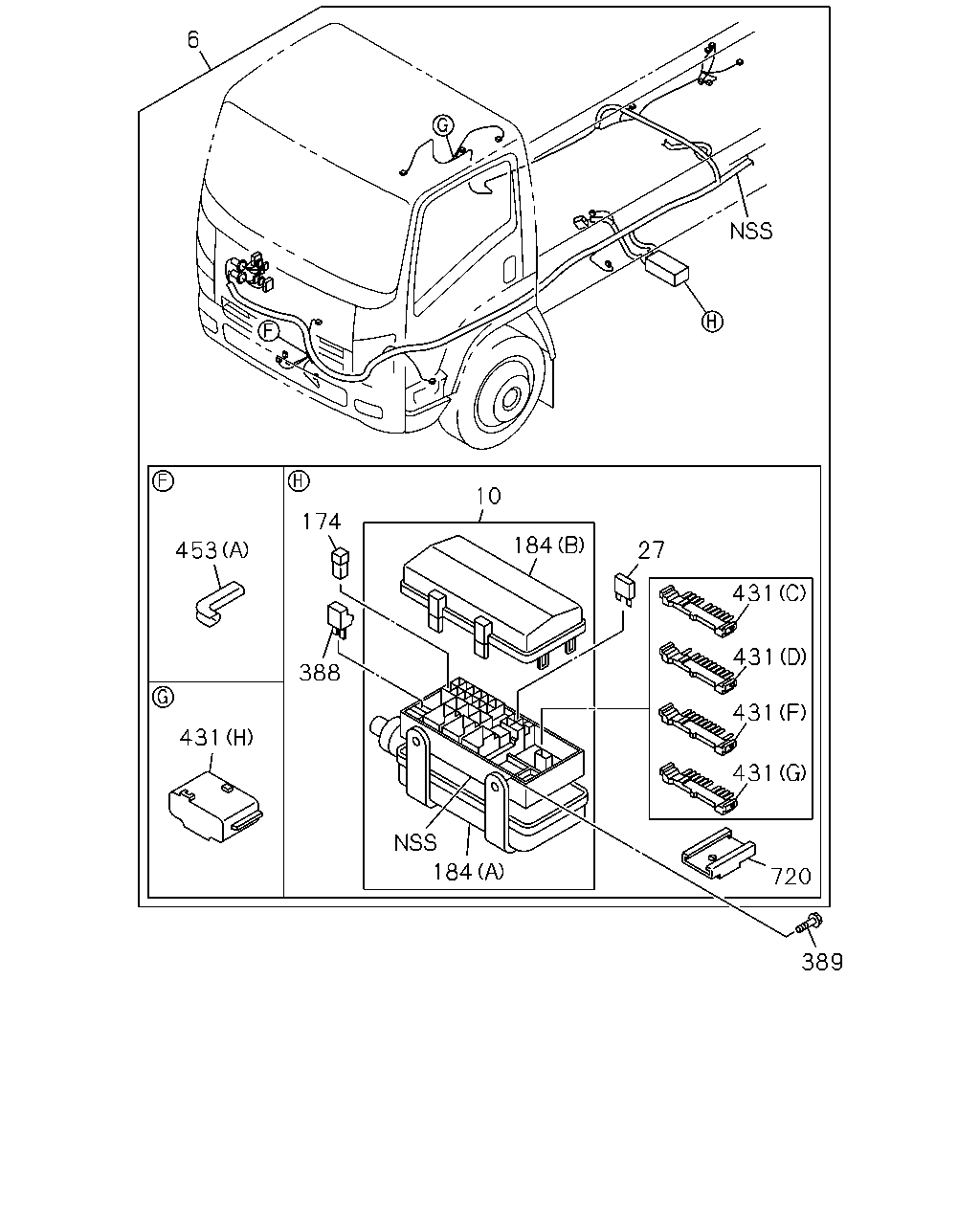

6 10 174 184 27 453 431 431 388 431 431 431 184 720 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME	8-98139-624-1	01	1	0906-	●
6	HARNESS; FRAME	8-98139-623-1	01	1	0906-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	0906-	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	0906-	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	0906-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	0906-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	0906-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	0906-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	03	1	0906-1106	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1107-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	0906-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-0	01	1	0906-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	0906-	●	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0906-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1206-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1206-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0906-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-	●	●
453	PROTECTOR; HARNESS (B)	8-98042-155-0	01	1	0906-	●
453	PROTECTOR; HARNESS (A)	1-82699-709-0	01	1	0906-	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	0906-	●	●

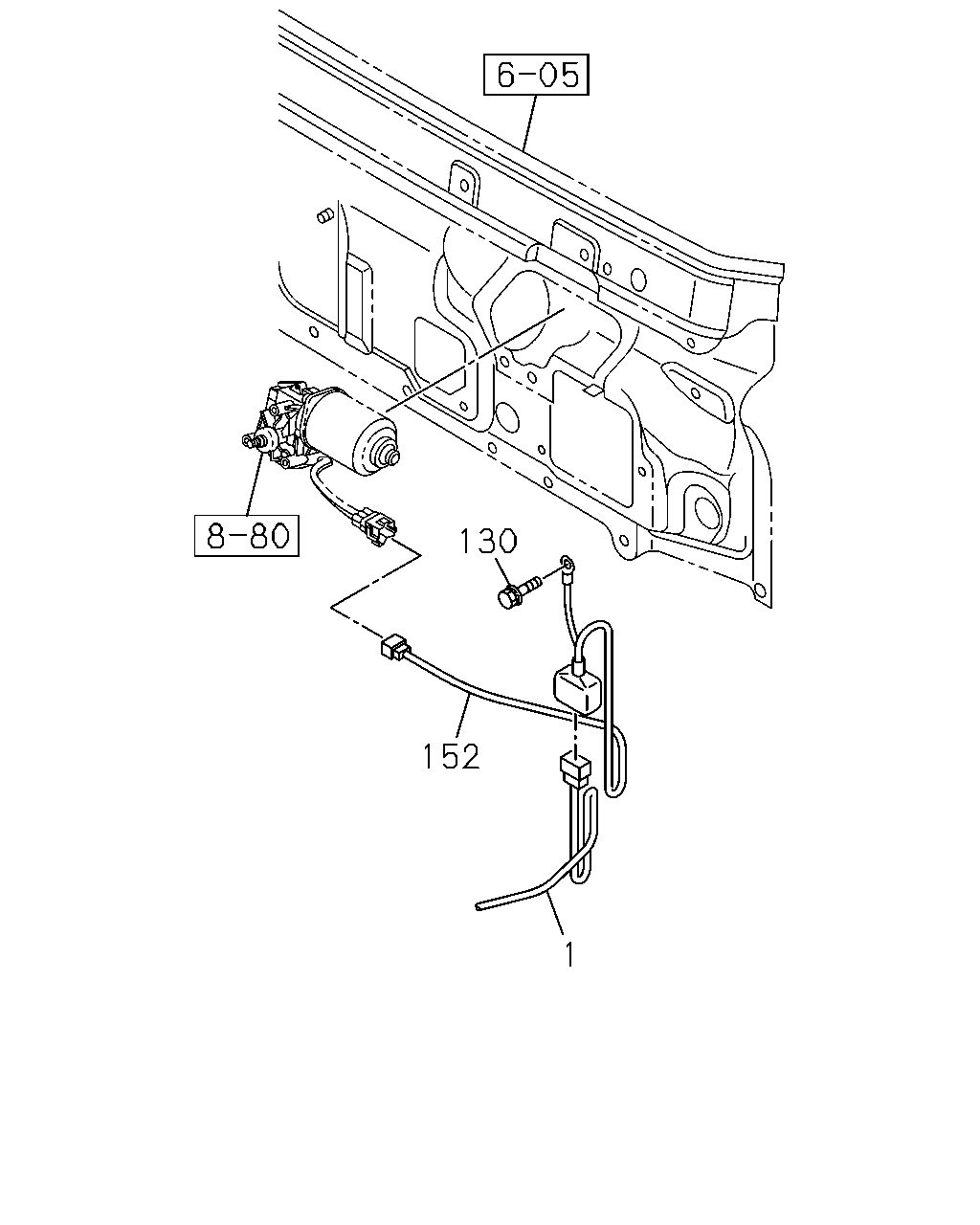

130 152 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-908-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-908-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-908-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-912-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-912-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-912-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-909-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-909-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-909-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-913-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-913-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-913-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-906-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-906-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-910-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-910-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-907-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-907-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-911-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-911-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-652-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-655-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-646-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-649-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-653-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-647-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-065-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-065-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-061-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-061-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-064-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-064-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-060-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-060-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-063-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-059-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-062-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-058-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203		●
130	BOLT; HARNESS EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0906-1205	●	●
130	BOLT; HARNESS EARTH EXC. VIN MODEL YEAR 2012<VZC> M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	1206-1309	●	●
130	BOLT; HARNESS EARTH EXC. VIN MODEL YEAR 2012<VZC> M8X14 W/PL WASHER	8-98164-837-0	01	1	1310-	●	●
152	HARNESS; WIPER	8-98148-961-0	01	1	0906-1205	●	●
152	HARNESS; WIPER EXC. VIN MODEL YEAR 2012<VZC>	8-98148-961-0	01	1	1206-	●	●

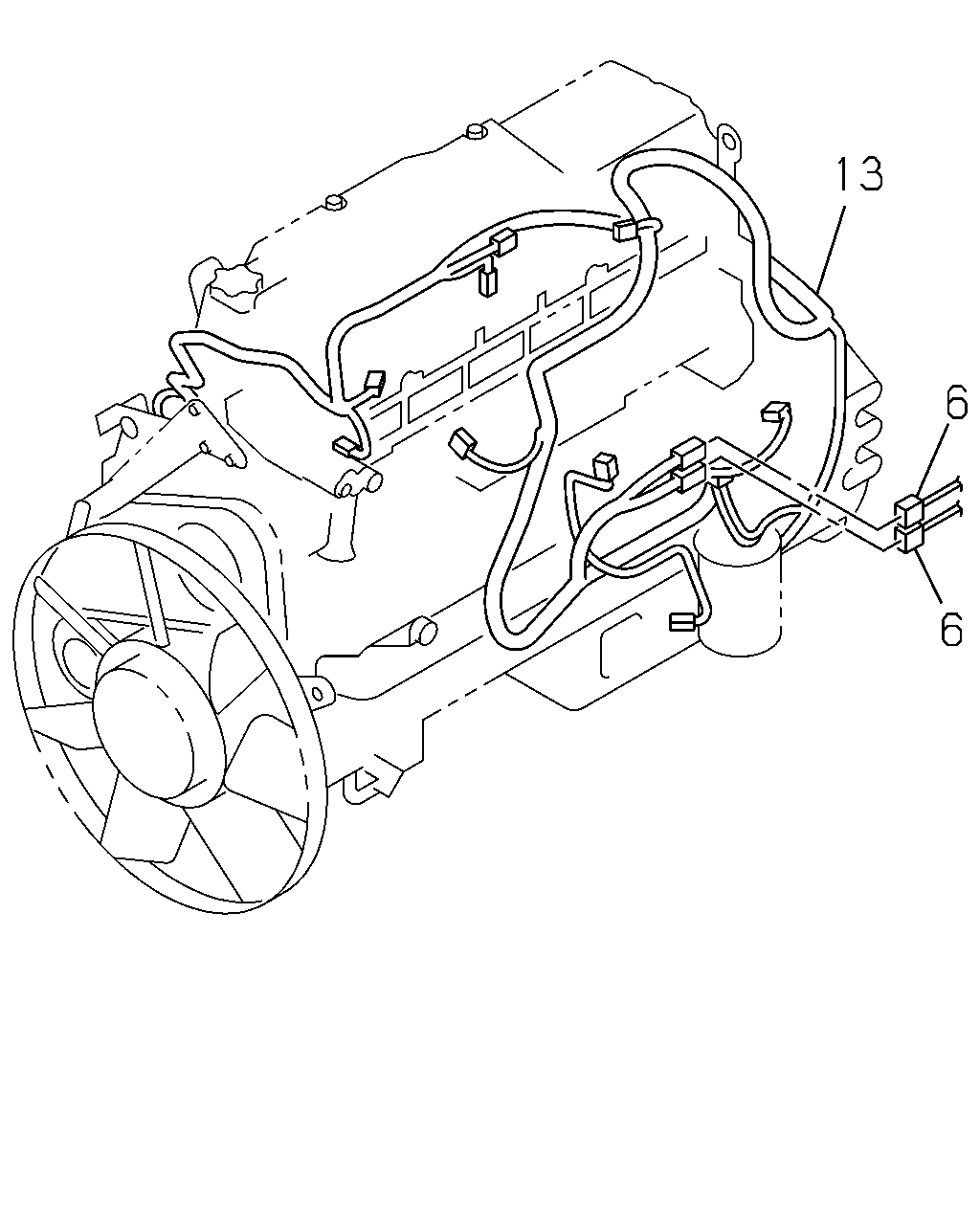

13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME	8-98139-624-1	01	1	0906-	●
6	HARNESS; FRAME	8-98139-623-1	01	1	0906-		●
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98088-064-1	01	1	0906-1010	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98177-204-0	01	1	1011-	●	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98088-065-1	01	1	0906-1010	●	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-205-0	01	1	1011-	●	●

1 668 28 558 558 5 41 4 693 29 431 261 431 694 276 280 485 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-908-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-908-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-908-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-912-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-912-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-912-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-909-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-909-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-909-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-913-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-913-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-913-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-906-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-906-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-910-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-910-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-907-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-907-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-911-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-911-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-652-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-655-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-646-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-649-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-653-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-647-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-065-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-065-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-061-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-061-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-064-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-064-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-060-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-060-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-063-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-059-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-062-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-058-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203		●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-1205	●	●
4	BOX ASM; FUSE,HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98065-666-0	01	1	1206-	●	●
4	BOX ASM; FUSE,HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98065-666-0	01	1	1206-	●	●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> 25A WHITE	8-98062-982-0	AR	1	1206-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0906-1205	●	●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> 10A RED	8-98054-257-0	AR	1	1206-	●	●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> 10A RED	8-98054-257-0	AR	1	1206-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0906-1205	●	●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> 15A BLUE	8-98054-258-0	AR	1	1206-	●	●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> 15A BLUE	8-98054-258-0	AR	1	1206-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0906-1205	●	●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> 20A YELLOW	8-98054-259-0	AR	1	1206-	●	●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> 20A YELLOW	8-98054-259-0	AR	1	1206-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	0906-1205	●	●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> 25A WHITE	8-98062-982-0	01	1	1206-	●	●
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE	0-28650-616-0	01	1	1006-	●	●
28	SCREW; FUSE BOX T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0906-1005	●	●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1006-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	0906-1205	●	●
29	COVER; FUSE BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98056-968-0	01	1	1206-	●	●
29	COVER; FUSE BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98056-968-0	01	1	1206-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	0906-1205	●	●
41	PULLER; FUSE AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98054-260-0	01	1	1206-	●	●
41	PULLER; FUSE AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98054-260-0	01	1	1206-	●	●
261	COVER; CONNECTOR BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98065-986-1	01	1	1206-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0906-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0906-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1206-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1206-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0906-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-	●	●
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	0909-1205	●	●
485	SEAL; CONNECTOR EXC. VIN MODEL YEAR 2012<VZC> 180X40	1-72498-019-1	01	1	1206-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	0908-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	0908-	●	●
668	BRACKET; HARNESS	8-98095-653-2	01	1	0906-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0906-1205	●	●
693	RELAY; FUSE BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> 24V 10A PANASONIC	8-97173-035-1	AR	1	1206-	●	●
693	RELAY; FUSE BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> 24V 10A PANASONIC	8-97173-035-1	AR	1	1206-	●	●
694	BOX ASM; CONNECTOR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98057-771-0	01	1	1206-	●	●
694	BOX ASM; CONNECTOR	8-98063-269-0	01	1	0906-1205	●	●
694	BOX ASM; CONNECTOR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98063-269-0	01	1	1206-	●	●
765	TAPE 100X40	1-72498-022-1	01	1	1409-	●	●

1 2 2 314 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-908-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-908-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-908-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-912-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-912-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-912-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-909-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-909-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-909-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-913-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-913-0	01	1	1204-1205	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-913-0	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-906-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-906-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-910-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-910-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98187-907-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98187-907-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-911-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98187-911-0	01	1	1204-1205		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-652-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-655-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-646-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-649-1	01	1	1206-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-653-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC>	8-98205-647-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-065-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-065-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-061-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-061-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-064-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-064-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-060-0	01	1	0906-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-060-0	01	1	1110-1203	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98108-063-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-059-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98108-062-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98108-058-0	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203		●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1206-	●	●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0906-1205	●	●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (A) BLACK 10P	1-82699-703-0	01	1	1206-	●	●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (A) BLACK 10P	1-82699-703-0	01	1	1206-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0906-1205	●	●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1206-	●	●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0906-1205	●	●
314	RESISTOR; HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> BLUE	1-82691-204-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1206-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1206-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0906-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-1205	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
