◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#573) — 34 parça

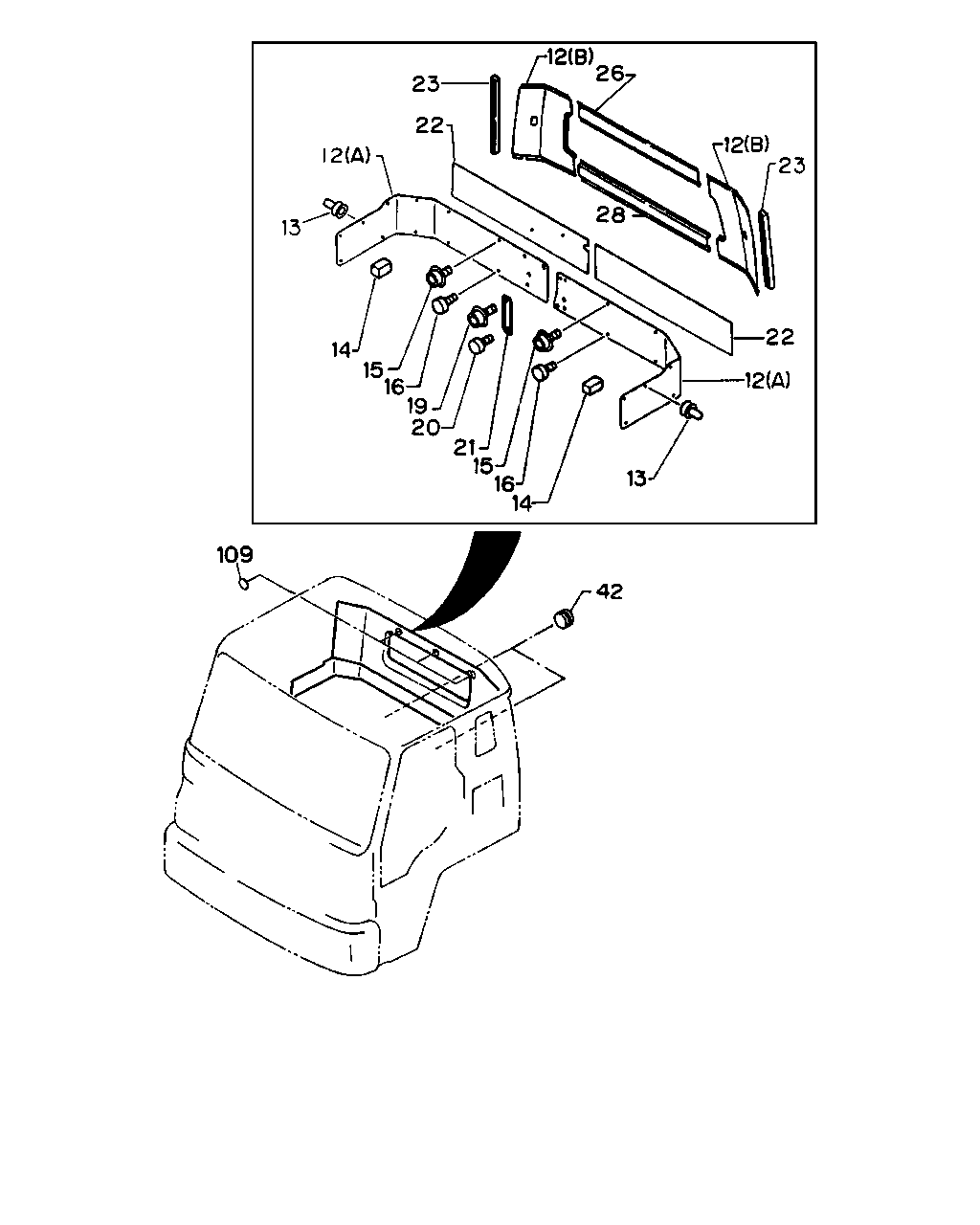

çizim 95667
12 26 23 22 28 12 23 22 12 13 14 16 15 21 20 19 16 15 14 13 12 42 109
BalonParca AdiParca NoAdetTipApplied Date
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-475-2 02 1 8712-9001
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-474-2 02 1 8712-9001
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-506-2 01 1 9002-9306
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-505-2 01 1 9002-9306
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-577-1 01 1 9307-
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-576-1 01 1 9307-
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-564-1 01 1 9002-9306
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-563-1 01 1 9002-9306
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-631-0 01 1 9307-
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-630-0 01 1 9307-
13 CLIP; BED ROOM TRIM 1-09987-119-1 04 1 8712-
14 INSULATOR; FLOOR SIDE REAR 1-73377-160-0 02 1 8712-
15 HOOK; BED ROOM TRIM
M4X14 HOOK MALE 		1-09981-370-0 08 1 8712-
16 CLIP; TRIM,BED ROOM
D6X23 BLACK 		1-09987-114-0 10 1 8712-
19 HOOK; RET
M4X14 HOOK MALE 		1-09981-370-0 01 1 8712-
20 FASTENER; RET
D6X23 BLACK 		1-09987-114-0 01 1 8712-
21 RETAINER; TRIM,BED ROOM 1-73347-476-1 01 1 8712-9001
21 RETAINER; TRIM,BED ROOM 1-73347-507-0 01 1 9002-9306
21 RETAINER; TRIM,BED ROOM 1-73347-603-0 01 1 9307-
22 SHEET; SILENCER,CAB FLOOR 1-73367-013-0 01 1 8712-
22 SHEET; SILENCER,CAB FLOOR 1-73367-012-0 01 1 8712-
23 FINISHER; BACK INNER PANEL 1-73337-264-0 02 1 8712-9001
23 FINISHER; BACK INNER PANEL
INTERIOR FULL TRIM<WM3> 		1-73337-300-0 02 1 9002-9306
23 FINISHER; BACK INNER PANEL
INTERIOR FULL TRIM<WM3> 		1-73337-438-0 02 1 9307-
23 FINISHER; BACK INNER PANEL
EXC. INTERIOR FULL TRIM<WM3> 		1-73337-264-0 02 1 9002-
26 TRIM; ROOM,BACK WINDOW CENTER UPR
INTERIOR FULL TRIM<WM3> 		1-73347-567-1 01 1 9002-9306
26 TRIM; ROOM,BACK WINDOW CENTER UPR
INTERIOR FULL TRIM<WM3> 		1-73347-632-0 01 1 9307-
28 TRIM; ROOM,BACK WINDOW CENTER LWR
INTERIOR FULL TRIM<WM3> 		1-73347-569-1 01 1 9002-9306
28 TRIM; ROOM,BACK WINDOW CENTER LWR
INTERIOR FULL TRIM<WM3> 		1-73347-633-0 01 1 9307-
42 SEAL; BACK OUTER PANEL
OD=36 		1-76778-007-0 04 1 8712-9103
42 SEAL; BACK OUTER PANEL
OD=36 		1-76778-007-0 07 1 9104-9306
42 SEAL; BACK OUTER PANEL
OD=36 		1-76798-018-0 07 1 9307-
109 SEAL; HOLE
WHITE 		1-76777-076-0 03 1 9104-
109 SEAL; HOLE
OD=20 T=0.4 BLACK 		1-76798-020-0 03 1 9104-
