3-20 — AIR TANK (#5729) — 692 parça
çizim 26068

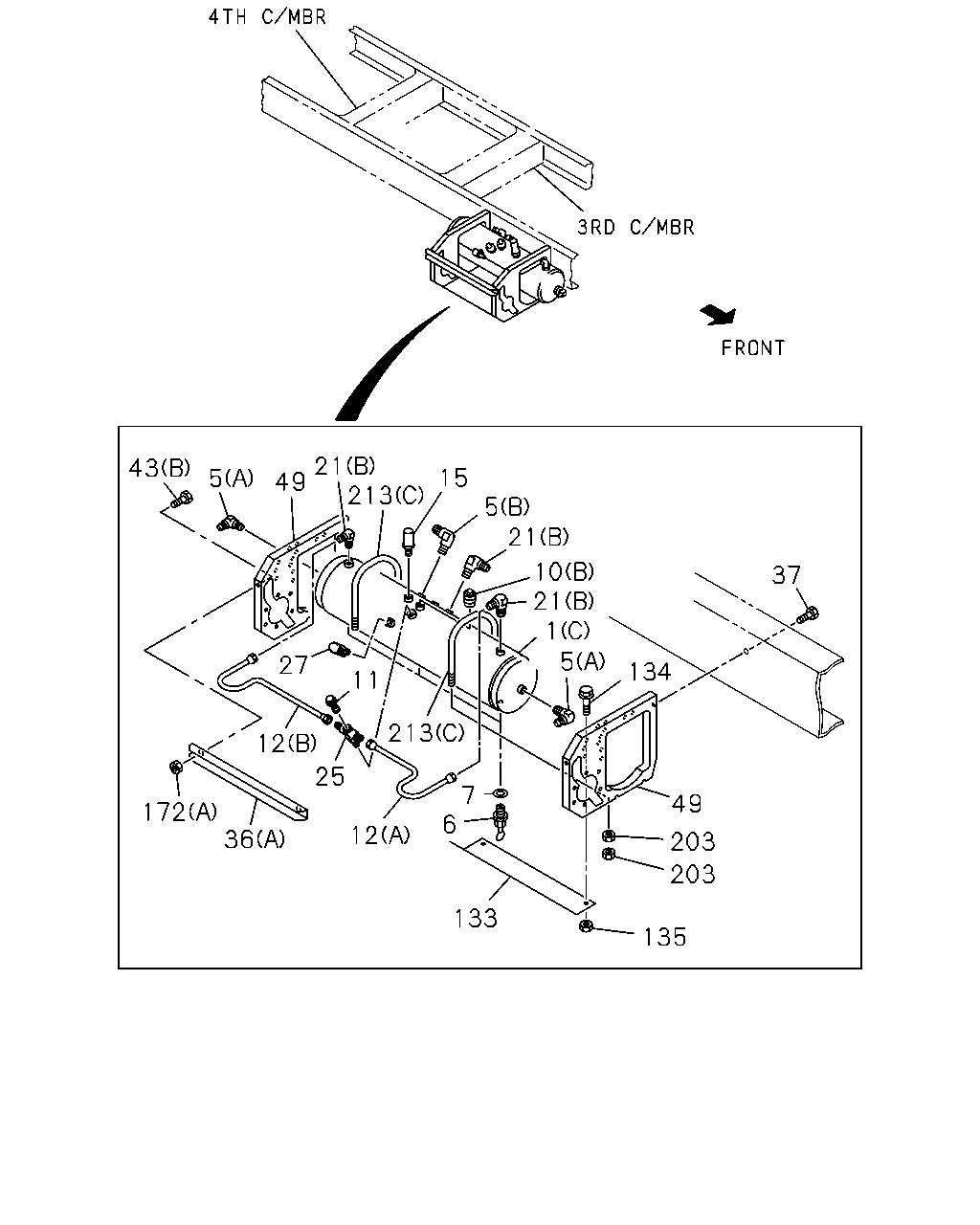

21 49 213 43 15 5 5 21 10 21 1 5 37 27 134 11 213 12 25 7 6 49 172 36 12 203 203 133 135
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 0611- ●
1 TANK ASM; AIR
(B) 		1-48370-512-2 01 1 0611- ●
1 TANK ASM; AIR
(C) TAI 		8-97530-492-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(D) TAI 		8-97530-590-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(A) 		1-48330-686-1 01 1 0611- ●
1 TANK ASM; AIR
(A) TAI 		8-97530-493-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(A) TAI 		8-97530-591-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(B) TAI 		8-97530-612-0 01 1 9907-0610 ●
5 UNION; AIR TANK
(C) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0611- ●
5 UNION; AIR TANK
(B) 		1-09650-261-2 01 1 0611- ●
5 UNION; AIR TANK
(A) M12 & PT3/8 ELBOW TAI 		1-09650-436-0 01 1 0611- ●
5 UNION; AIR TANK
(A) M16 & PT1/4 ELBOW TAI 		1-09650-434-0 02 1 9811-9906 ●
5 UNION; AIR TANK
(B) M12 & PT3/8 ELBOW TAI 		1-09650-436-0 01 1 9811-9906 ●
5 UNION; AIR TANK
(C) M20 & PT3/8 ELBOW 		1-09650-439-0 04 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9811-9906 ● ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9811-9906 ● ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 9907-0610 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0611- ● ●
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 0611- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 9811-9906 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9907-0610 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9811-9906 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 9907-0610 ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 9811- ● ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-507-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-621-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-508-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-509-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(C) TAI 		8-97530-619-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-011-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-510-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-620-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-012-0 01 1 0611- ●
15 SWITCH; LOW PRESS,AIR TANK
530KPA 		1-48340-054-1 01 1 0611- ●
15 SWITCH; LOW PRESS,AIR TANK
530KPA TAI 		1-48340-054-0 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 02 1 0611- ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 04 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 TAI 		1-48410-136-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 9811-0610 ●
25 UNION; 4 WAY
TAI 		1-09656-699-0 01 1 0611- ●
25 UNION; 4 WAY
TAI 		1-09656-699-0 01 1 9811-9906 ●
27 UNION; ELBOW,AIR TANK
M12 & PT1/4 ELBOW TAI 		1-09650-430-0 01 1 9811-9906 ●
27 UNION; ELBOW,AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9907-0610 ●
27 UNION; ELBOW,AIR TANK
M12 & PT3/8 ELBOW TAI 		1-09650-436-0 01 1 9907-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 0611- ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 9811-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 9811-0610 ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 9811-9906 ●
36 STAY; MAIN TANK
(B) TAI 		1-48317-349-0 01 1 9907-0610 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 06 1 9811-0512 ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0601- ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0611- ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0610 ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28681-025-0 04 1 9811-0610 ●
49 BRACKET; AIR TANK 1-48317-709-4 02 1 0611- ●
49 BRACKET; AIR TANK 1-53318-338-6 02 1 0611- ●
49 BRACKET; AIR TANK
TAI 		1-48317-709-3 02 1 9811-0610 ●
49 BRACKET; AIR TANK
TAI 		1-53318-338-5 02 1 9811-0610 ●
133 COVER; AIR MASTER 1-48317-641-1 01 1 9811- ●
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28680-820-0 04 1 9811-0512 ●
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
135 NUT; COVER
M8 FLANGE 		0-91150-108-0 04 1 9811-0602 ●
135 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 0611- ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91150-108-0 02 1 9811-0610 ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91150-210-0 04 1 9811-0610 ●
203 NUT
M8 		0-91110-508-0 08 1 0611- ●
203 NUT
M8 		9-09110-408-0 08 1 9811-0610 ●
213 BOLT; U AIR TANK
(C) L=250 TAI 		1-48317-308-0 02 1 9811- ●
213 BOLT; U AIR TANK
(A) L=97.5 TAI 		1-48317-323-1 02 1 9811- ●
213 BOLT; U AIR TANK
(B) L=195 TAI 		1-48317-367-2 02 1 9811- ●

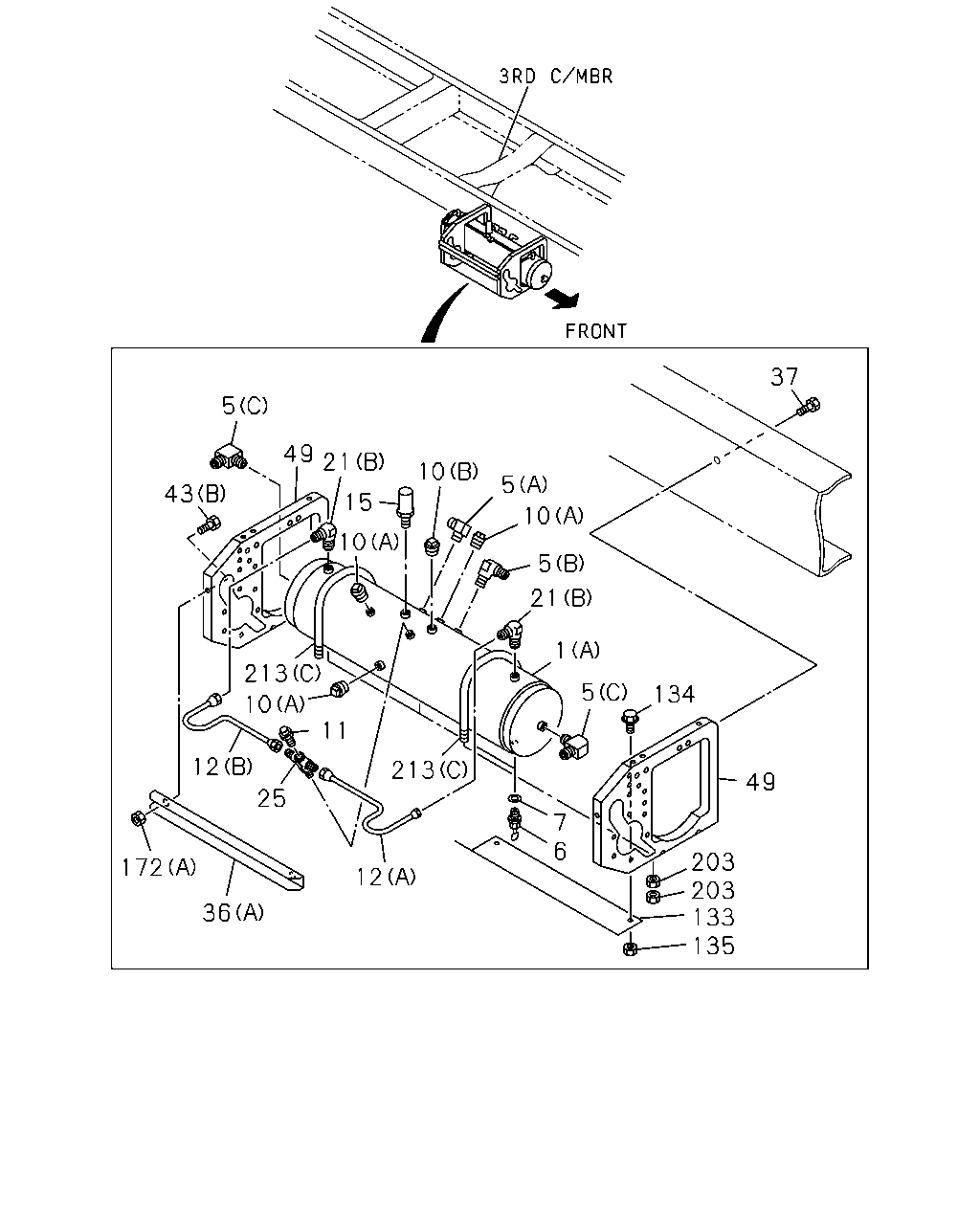

çizim 26202
37 5 49 21 10 5 43 15 10 10 5 21 1 213 5 134 10 11 12 213 49 25 7 6 203 203 133 135 172 12 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 0611- ●
1 TANK ASM; AIR
(B) 		1-48370-512-2 01 1 0611- ●
1 TANK ASM; AIR
(C) TAI 		8-97530-492-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(D) TAI 		8-97530-590-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(A) 		1-48330-686-1 01 1 0611- ●
1 TANK ASM; AIR
(A) TAI 		8-97530-493-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(A) TAI 		8-97530-591-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(B) TAI 		8-97530-612-0 01 1 9907-0610 ●
5 UNION; AIR TANK
(C) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0611- ●
5 UNION; AIR TANK
(B) 		1-09650-261-2 01 1 0611- ●
5 UNION; AIR TANK
(A) M12 & PT3/8 ELBOW TAI 		1-09650-436-0 01 1 0611- ●
5 UNION; AIR TANK
(A) M16 & PT1/4 ELBOW TAI 		1-09650-434-0 02 1 9811-9906 ●
5 UNION; AIR TANK
(B) M12 & PT3/8 ELBOW TAI 		1-09650-436-0 01 1 9811-9906 ●
5 UNION; AIR TANK
(C) M20 & PT3/8 ELBOW 		1-09650-439-0 04 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9811-9906 ● ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9811-9906 ● ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 9907-0610 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0611- ● ●
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 0611- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 9811-9906 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9907-0610 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9811-9906 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 9907-0610 ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 9811- ● ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-507-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-621-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-508-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-509-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(C) TAI 		8-97530-619-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-011-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-510-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-620-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-012-0 01 1 0611- ●
15 SWITCH; LOW PRESS,AIR TANK
530KPA 		1-48340-054-1 01 1 0611- ●
15 SWITCH; LOW PRESS,AIR TANK
530KPA TAI 		1-48340-054-0 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 02 1 0611- ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 04 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 TAI 		1-48410-136-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 9811-0610 ●
25 UNION; 4 WAY
TAI 		1-09656-699-0 01 1 0611- ●
25 UNION; 4 WAY
TAI 		1-09656-699-0 01 1 9811-9906 ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 0611- ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 9811-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 9811-0610 ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 9811-9906 ●
36 STAY; MAIN TANK
(B) TAI 		1-48317-349-0 01 1 9907-0610 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 06 1 9811-0512 ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0601- ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0611- ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0610 ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28681-025-0 04 1 9811-0610 ●
49 BRACKET; AIR TANK 1-48317-709-4 02 1 0611- ●
49 BRACKET; AIR TANK 1-53318-338-6 02 1 0611- ●
49 BRACKET; AIR TANK
TAI 		1-48317-709-3 02 1 9811-0610 ●
49 BRACKET; AIR TANK
TAI 		1-53318-338-5 02 1 9811-0610 ●
133 COVER; AIR MASTER 1-48317-641-1 01 1 9811- ●
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28680-820-0 04 1 9811-0512 ●
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
135 NUT; COVER
M8 FLANGE 		0-91150-108-0 04 1 9811-0602 ●
135 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 0611- ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91150-108-0 02 1 9811-0610 ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91150-210-0 04 1 9811-0610 ●
203 NUT
M8 		0-91110-508-0 08 1 0611- ●
203 NUT
M8 		9-09110-408-0 08 1 9811-0610 ●
213 BOLT; U AIR TANK
(C) L=250 TAI 		1-48317-308-0 02 1 9811- ●
213 BOLT; U AIR TANK
(A) L=97.5 TAI 		1-48317-323-1 02 1 9811- ●
213 BOLT; U AIR TANK
(B) L=195 TAI 		1-48317-367-2 02 1 9811- ●
çizim 26412

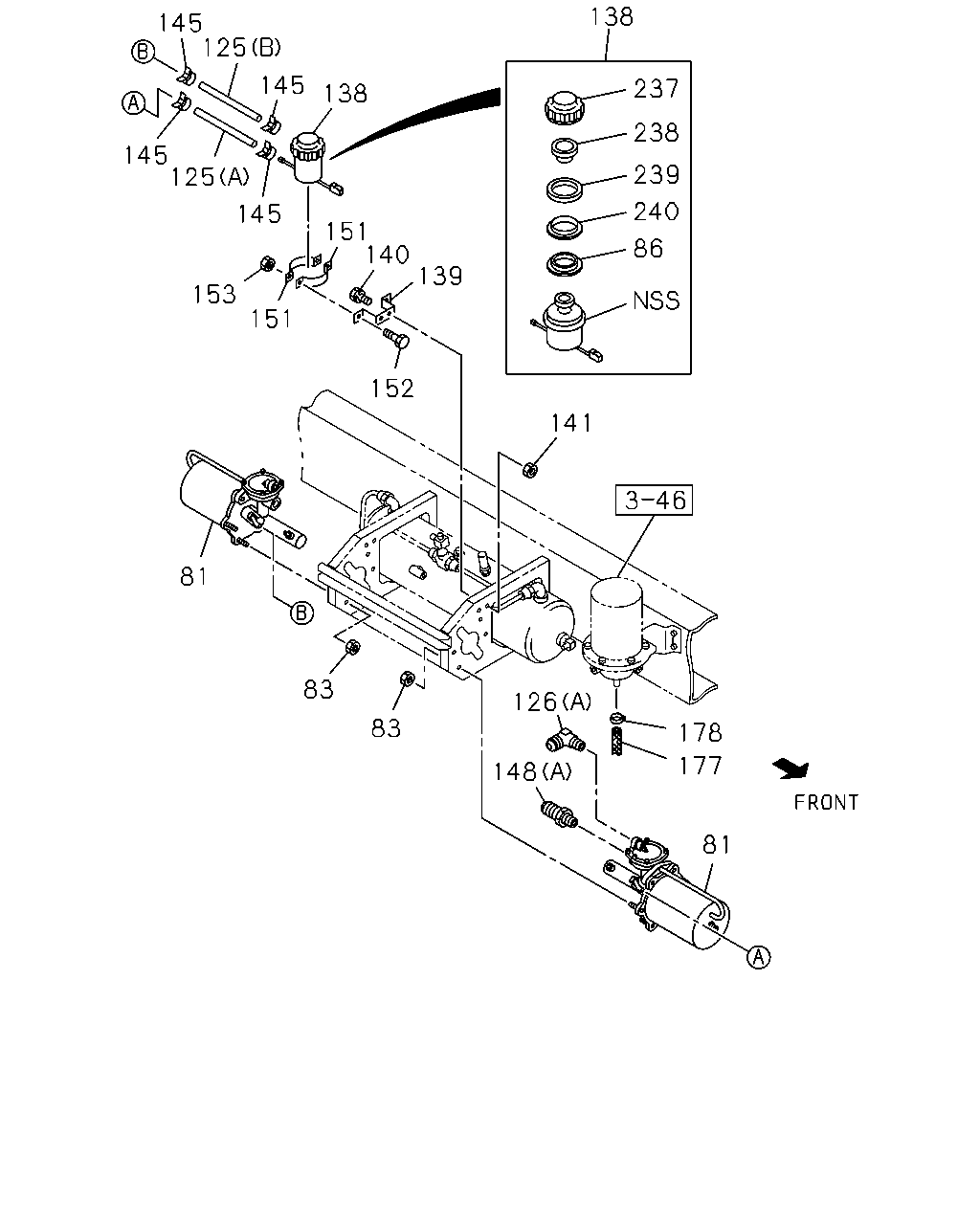

138 145 125 145 237 138 238 145 125 239 240 145 151 140 139 86 153 151 152 141 81 83 126 83 178 177 148 81
BalonParca AdiParca NoAdetTipApplied Date A B
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-656-2 02 1 9811-0202 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-789-0 02 1 0203- ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-670-1 01 1 9811-0206 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-793-0 01 1 0207-0610 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-663-1 01 1 0611- ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-671-2 01 1 9811-0206 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-794-0 01 1 0207-0610 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-664-2 01 1 0611- ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91150-108-0 08 1 9811-0602 ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 08 1 0603- ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91150-210-0 10 1 9811-0602 ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 10 1 0603- ●
86 SEAL; DUST 1-47529-019-0 01 1 9811- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) TAI 		8-97530-414-0 01 1 9811-0610 ●
125 HOSE; OIL TANK TO AIR MASTER
(A) L=335 		1-47469-045-0 01 1 0611- ●
125 HOSE; OIL TANK TO AIR MASTER
(B) TAI 		8-97530-417-0 01 1 9811-9906 ●
125 HOSE; OIL TANK TO AIR MASTER
(B) TAI 		8-97531-033-0 01 1 9907-0610 ●
125 HOSE; OIL TANK TO AIR MASTER
(B) L=240 SERVICED BY L=1800 TAI 		1-09360-320-0 01 1 0611- ●
125 HOSE; OIL TANK TO AIR MASTER
(C) TAI 		8-97530-418-0 02 1 9811-0610 ●
125 HOSE; OIL TANK TO AIR MASTER
(C) L=270 SERVICED BY L=1800 TAI 		1-09360-320-0 02 1 0611- ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 04 1 9907-0610 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9907-0610 ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 0611- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 01 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/8 ELBOW 		1-09650-439-0 02 1 9907-0610 ●
138 TANK ASM; OIL,AIR MASTER 1-47530-170-1 01 1 9811-0011 ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-184-0 01 1 0012-0206 ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0207- ● ●
139 BRACKET; OIL TANK 1-47537-123-1 01 1 9811- ●
139 BRACKET; OIL TANK 1-47537-081-2 01 1 9811- ●
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9811-0512 ● ●
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601-0610 ● ●
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0611- ● ●
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 9811-0602 ● ●
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 9811- ● ●
148 CONNECTOR; AIR MASTER
(A) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 9811-9906 ●
148 CONNECTOR; AIR MASTER
(B) M20 & PT1/2 STRAIGHT 		1-09650-249-1 02 1 9907-0610 ●
148 CONNECTOR; AIR MASTER
(A) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 02 1 0611- ●
148 CONNECTOR; AIR MASTER
(B) FLARE M22 PT1/2 		9-09231-815-1 02 1 9811-9906 ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 9811- ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0512 ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91150-108-0 02 1 9811-0602 ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
177 HOSE; RUBBER,DRAIN
L=220 SERVICED BY L=3000 		0-03266-300-0 01 1 9811-0109 ● ●
177 HOSE; RUBBER,DRAIN
L=220 SERVICED BY L=3000 		0-03566-300-0 01 1 0110-0610 ● ●
177 HOSE; RUBBER,DRAIN
L=90 		9-09712-638-0 01 1 0611- ● ●
178 CLIP; HOSE
ID=21 USA 		8-94242-034-0 01 1 9908-0610 ● ●
178 CLIP; HOSE
ID=33.6 		8-94362-518-0 01 1 0611- ● ●
237 CAP; OIL TANK 1-47525-019-2 01 1 9811-9906 ● ●
237 CAP; OIL TANK 1-47525-024-0 01 1 9907-0011 ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 0012- ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 9811- ● ●
239 FILTER; DUST 1-47529-017-0 01 1 9811- ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 9811- ● ●

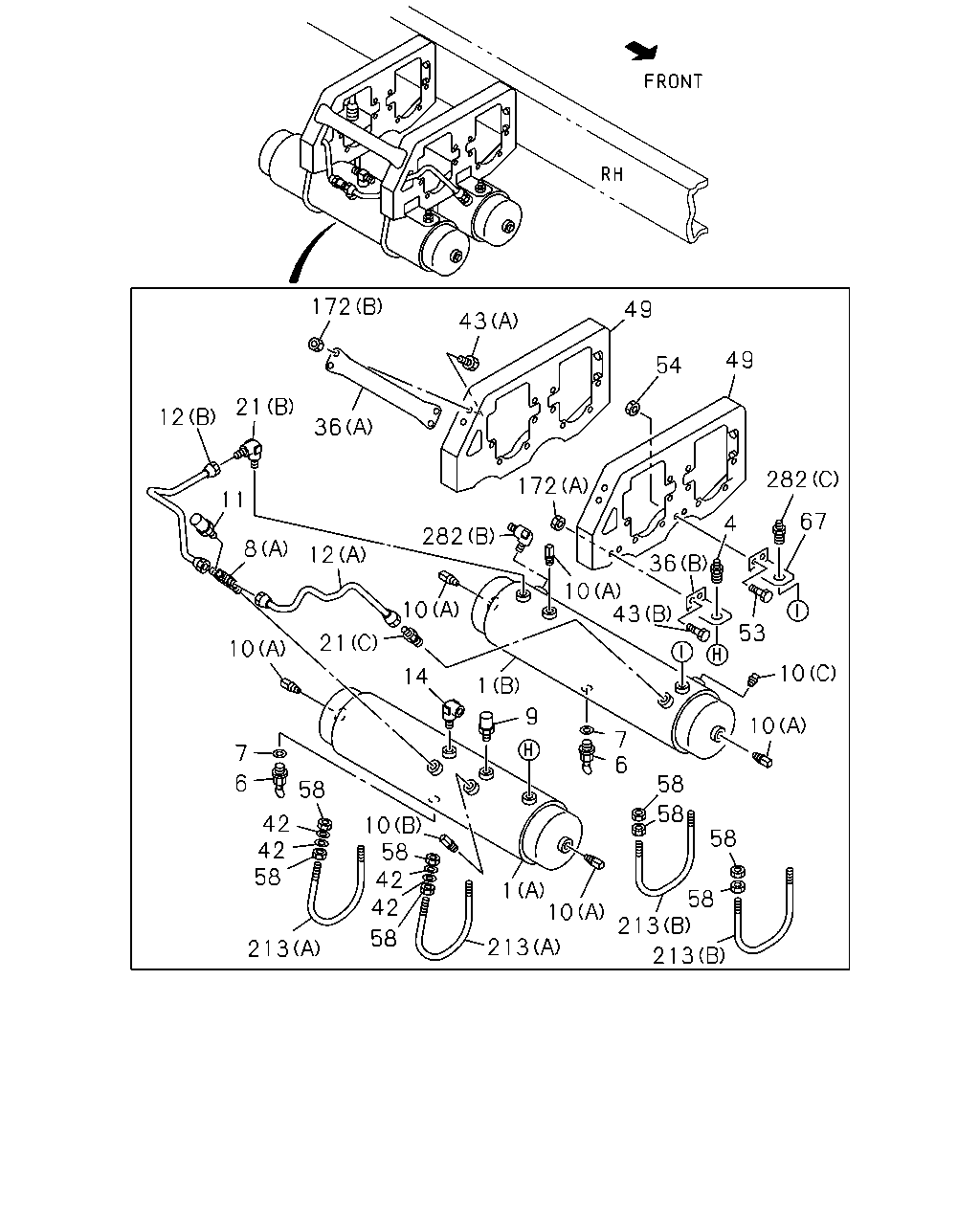

çizim 98845
172 49 43 49 54 21 12 36 282 172 11 67 4 282 8 12 36 10 43 10 53 21 10 10 14 1 9 10 7 6 7 6 58 58 58 42 42 58 10 58 42 42 58 1 10 58 213 58 213 213 213
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 0611- ●
1 TANK ASM; AIR
(B) 		1-48370-512-2 01 1 0611- ●
1 TANK ASM; AIR
(C) TAI 		8-97530-492-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(D) TAI 		8-97530-590-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(A) 		1-48330-686-1 01 1 0611- ●
1 TANK ASM; AIR
(A) TAI 		8-97530-493-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(A) TAI 		8-97530-591-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(B) TAI 		8-97530-612-0 01 1 9907-0610 ●
4 CONNECTOR; FLARE 1-09650-536-0 01 1 0611- ●
4 CONNECTOR; FLARE
DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9811-9906 ● ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9811-9906 ● ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 9907-0610 ●
8 CONNECTOR; AIR TANK
(A) TAI 		1-09656-699-0 01 1 0611- ●
8 CONNECTOR; AIR TANK
(B) TAI 		1-09650-283-1 01 1 9811-9906 ●
8 CONNECTOR; AIR TANK
(A) TAI 		1-09656-699-0 01 1 9811-9906 ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA 		1-48340-054-1 01 1 0611- ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA TAI 		1-48340-054-0 01 1 9907-0610 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0611- ● ●
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 0611- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 9811-9906 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9907-0610 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9811-9906 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 9907-0610 ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 9811- ● ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-507-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-621-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-508-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-509-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(C) TAI 		8-97530-619-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-011-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-510-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-620-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-012-0 01 1 0611- ●
14 UNION; 3 WAY,AIR TANK
DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0611- ●
14 UNION; 3 WAY,AIR TANK
TAI 		1-09656-702-0 01 1 9811-9906 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 02 1 0611- ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 04 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 TAI 		1-48410-136-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 9811-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 0611- ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 9811-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 9811-0610 ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 9811-9906 ●
36 STAY; MAIN TANK
(B) TAI 		1-48317-349-0 01 1 9907-0610 ●
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 0611- ●
42 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 04 1 9811-0610 ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0611- ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0610 ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28681-025-0 04 1 9811-0610 ●
49 BRACKET; AIR TANK 1-48317-709-4 02 1 0611- ●
49 BRACKET; AIR TANK 1-53318-338-6 02 1 0611- ●
49 BRACKET; AIR TANK
TAI 		1-48317-709-3 02 1 9811-0610 ●
49 BRACKET; AIR TANK
TAI 		1-53318-338-5 02 1 9811-0610 ●
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0611- ●
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0610 ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
54 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 9811-0610 ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 16 1 0611- ●
58 NUT; BAND,AIR TANK
M8 		9-09110-408-0 16 1 9811-0610 ●
67 STAY; SUB TANK
TAI 		1-48317-349-0 01 1 0611- ●
67 STAY; SUB TANK
TAI 		1-48317-349-0 01 1 9811-0610 ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 0611- ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91150-108-0 02 1 9811-0610 ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91150-210-0 04 1 9811-0610 ●
213 BOLT; U AIR TANK
(C) L=250 TAI 		1-48317-308-0 02 1 9811- ●
213 BOLT; U AIR TANK
(A) L=97.5 TAI 		1-48317-323-1 02 1 9811- ●
213 BOLT; U AIR TANK
(B) L=195 TAI 		1-48317-367-2 02 1 9811- ●
282 UNION; 2 WAY
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 01 1 0611- ●
282 UNION; 2 WAY
(C) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 0611- ●
282 UNION; 2 WAY
(C) M22 & PT3/8 ELBOW TAI 		1-09650-440-0 01 1 9811-9906 ●
282 UNION; 2 WAY
(A) DIN8 & R3/8 STRAIGHT TAI 		1-09660-964-0 01 1 9811-9906 ●
282 UNION; 2 WAY
(B) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 9811-9906 ●

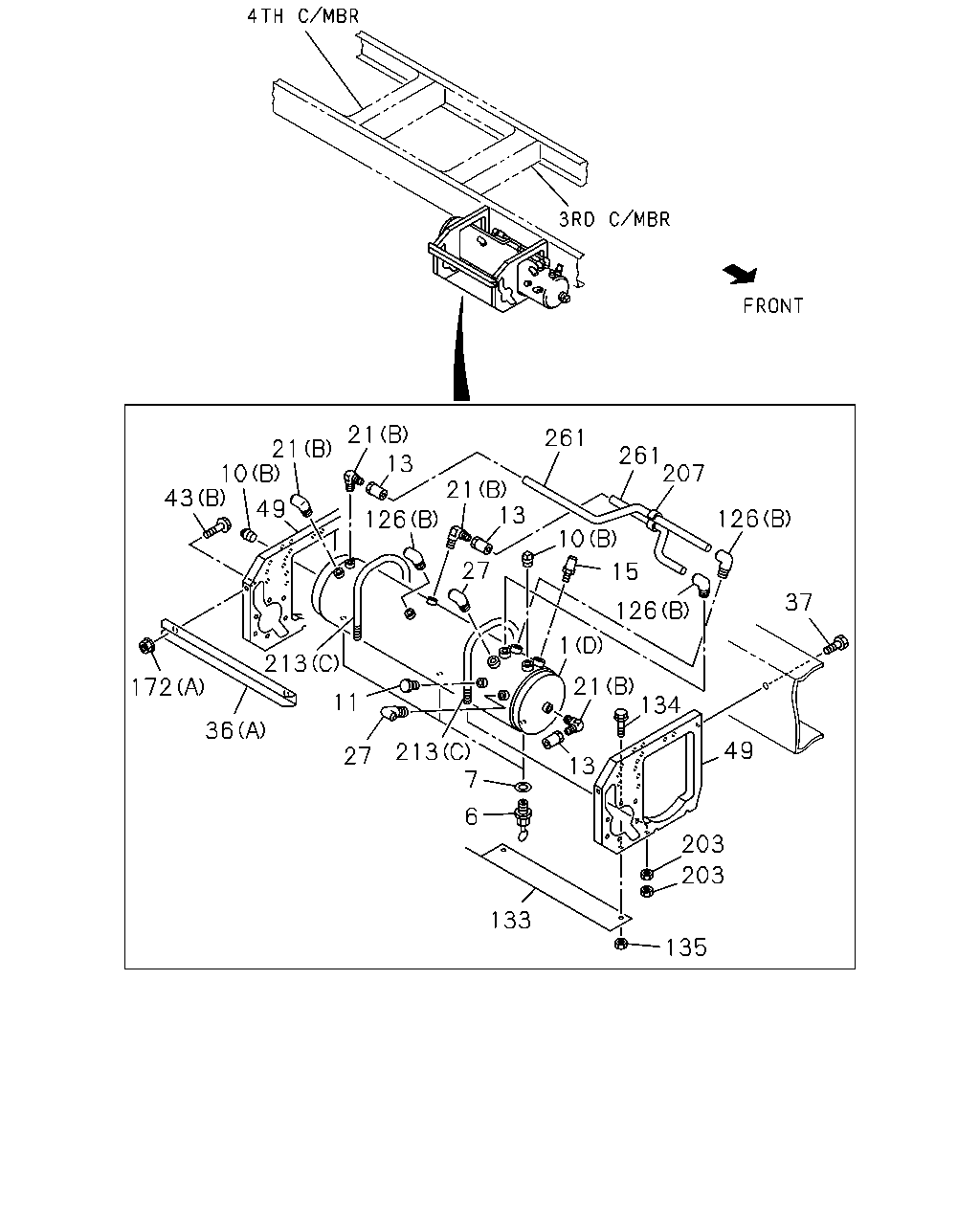

çizim 99579
21 13 261 21 10 43 261 207 21 13 49 126 126 10 27 15 37 126 1 213 21 134 172 11 36 213 7 49 27 13 6 203 203 133 135
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 0611- ●
1 TANK ASM; AIR
(B) 		1-48370-512-2 01 1 0611- ●
1 TANK ASM; AIR
(C) TAI 		8-97530-492-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(D) TAI 		8-97530-590-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(A) 		1-48330-686-1 01 1 0611- ●
1 TANK ASM; AIR
(A) TAI 		8-97530-493-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(A) TAI 		8-97530-591-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(B) TAI 		8-97530-612-0 01 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9811-9906 ● ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9811-9906 ● ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 9907-0610 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0611- ● ●
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 0611- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 9811-9906 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9907-0610 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9811-9906 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 9907-0610 ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 9811- ● ●
13 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09661-097-0 03 1 9907-0610 ●
13 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT TAI 		1-09660-882-0 01 1 9811-9906 ●
15 SWITCH; LOW PRESS,AIR TANK
530KPA 		1-48340-054-1 01 1 0611- ●
15 SWITCH; LOW PRESS,AIR TANK
530KPA TAI 		1-48340-054-0 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 02 1 0611- ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 04 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 TAI 		1-48410-136-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 9811-0610 ●
27 UNION; ELBOW,AIR TANK
M12 & PT1/4 ELBOW TAI 		1-09650-430-0 01 1 9811-9906 ●
27 UNION; ELBOW,AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9907-0610 ●
27 UNION; ELBOW,AIR TANK
M12 & PT3/8 ELBOW TAI 		1-09650-436-0 01 1 9907-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 0611- ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 9811-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 9811-0610 ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 9811-9906 ●
36 STAY; MAIN TANK
(B) TAI 		1-48317-349-0 01 1 9907-0610 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 06 1 9811-0512 ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0601- ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0611- ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0610 ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28681-025-0 04 1 9811-0610 ●
49 BRACKET; AIR TANK 1-48317-709-4 02 1 0611- ●
49 BRACKET; AIR TANK 1-53318-338-6 02 1 0611- ●
49 BRACKET; AIR TANK
TAI 		1-48317-709-3 02 1 9811-0610 ●
49 BRACKET; AIR TANK
TAI 		1-53318-338-5 02 1 9811-0610 ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 04 1 9907-0610 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9907-0610 ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 0611- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 01 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/8 ELBOW 		1-09650-439-0 02 1 9907-0610 ●
133 COVER; AIR MASTER 1-48317-641-1 01 1 9811- ●
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28680-820-0 04 1 9811-0512 ●
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
135 NUT; COVER
M8 FLANGE 		0-91150-108-0 04 1 9811-0602 ●
135 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 0611- ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91150-108-0 02 1 9811-0610 ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91150-210-0 04 1 9811-0610 ●
203 NUT
M8 		0-91110-508-0 08 1 0611- ●
203 NUT
M8 		9-09110-408-0 08 1 9811-0610 ●
207 CLIP; AIR PIPE
ID=12 & 12 		1-09709-280-1 01 1 9907-0610 ● ●
213 BOLT; U AIR TANK
(C) L=250 TAI 		1-48317-308-0 02 1 9811- ●
213 BOLT; U AIR TANK
(A) L=97.5 TAI 		1-48317-323-1 02 1 9811- ●
213 BOLT; U AIR TANK
(B) L=195 TAI 		1-48317-367-2 02 1 9811- ●
261 TUBE; NYLON
SERVICED BY L=2000 OD=12 TAI 		1-87410-069-0 02 1 9907-0610 ●
çizim 99580
246
BalonParca AdiParca NoAdetTipApplied Date A B
246 GROMMET; VINYL PIPE
OD=35 		8-94122-971-0 01 1 9811- ● ●

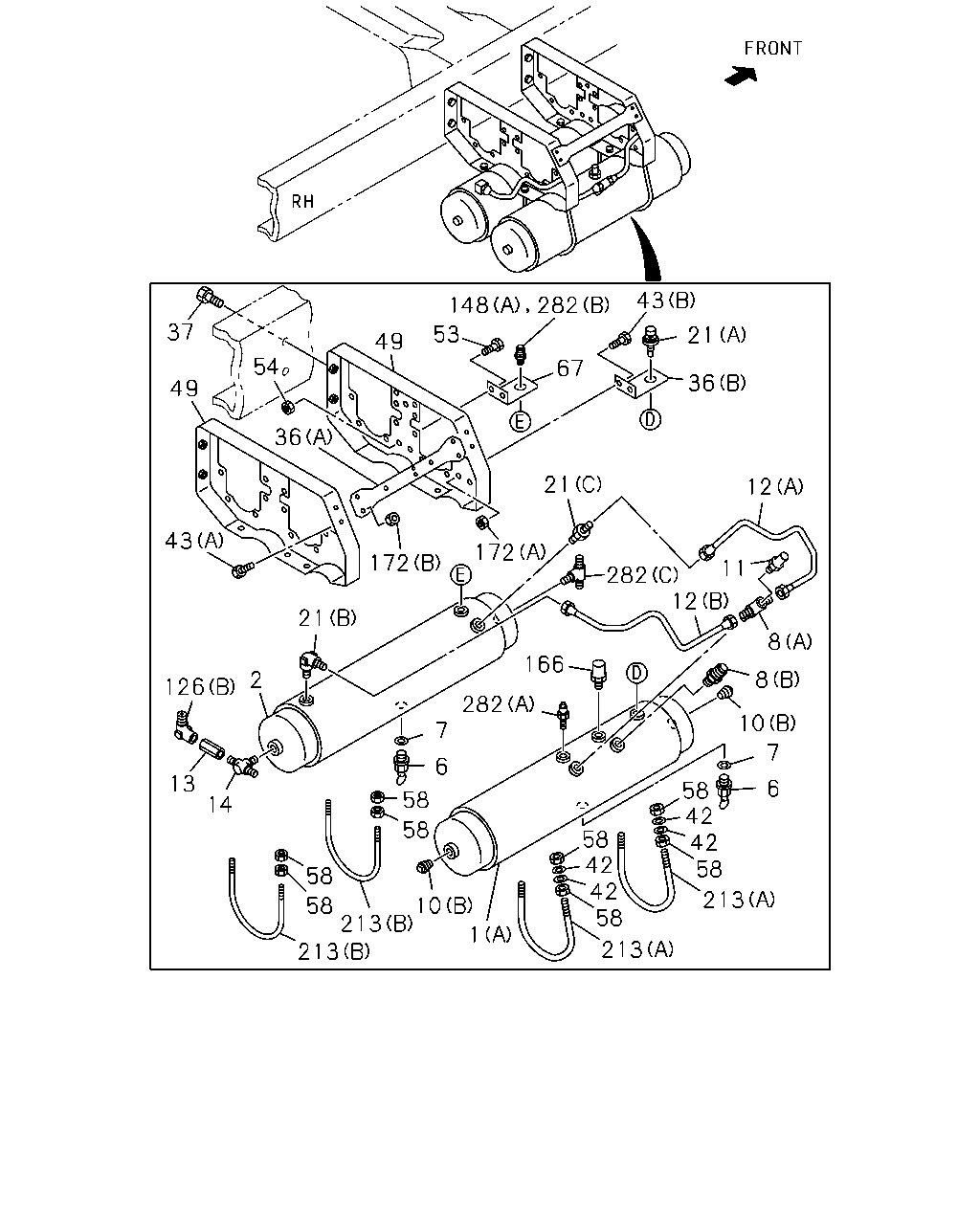

çizim 99581
43 148 37 53 21 49 54 67 36 49 36 21 12 43 172 172 11 282 12 21 8 166 2 8 126 282 10 7 7 6 13 6 58 42 42 58 58 14 58 58 42 42 58 58 213 58 10 213 213 1 213 282
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 0611- ●
1 TANK ASM; AIR
(B) 		1-48370-512-2 01 1 0611- ●
1 TANK ASM; AIR
(C) TAI 		8-97530-492-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(D) TAI 		8-97530-590-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(A) 		1-48330-686-1 01 1 0611- ●
1 TANK ASM; AIR
(A) TAI 		8-97530-493-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(A) TAI 		8-97530-591-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(B) TAI 		8-97530-612-0 01 1 9907-0610 ●
2 TANK; AIR
TAI 		8-97530-495-0 01 1 9811-9906 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9811-9906 ● ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9811-9906 ● ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 9907-0610 ●
8 CONNECTOR; AIR TANK
(A) TAI 		1-09656-699-0 01 1 0611- ●
8 CONNECTOR; AIR TANK
(B) TAI 		1-09650-283-1 01 1 9811-9906 ●
8 CONNECTOR; AIR TANK
(A) TAI 		1-09656-699-0 01 1 9811-9906 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0611- ● ●
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 0611- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 9811-9906 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9907-0610 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9811-9906 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 9907-0610 ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 9811- ● ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-507-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-621-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-508-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-509-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(C) TAI 		8-97530-619-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-011-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-510-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-620-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-012-0 01 1 0611- ●
13 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09661-097-0 03 1 9907-0610 ●
13 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT TAI 		1-09660-882-0 01 1 9811-9906 ●
14 UNION; 3 WAY,AIR TANK
DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0611- ●
14 UNION; 3 WAY,AIR TANK
TAI 		1-09656-702-0 01 1 9811-9906 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 02 1 0611- ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 04 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 TAI 		1-48410-136-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 9811-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 0611- ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 9811-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 9811-0610 ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 9811-9906 ●
36 STAY; MAIN TANK
(B) TAI 		1-48317-349-0 01 1 9907-0610 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 06 1 9811-0512 ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0601- ●
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 0611- ●
42 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 04 1 9811-0610 ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0611- ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0610 ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28681-025-0 04 1 9811-0610 ●
49 BRACKET; AIR TANK 1-48317-709-4 02 1 0611- ●
49 BRACKET; AIR TANK 1-53318-338-6 02 1 0611- ●
49 BRACKET; AIR TANK
TAI 		1-48317-709-3 02 1 9811-0610 ●
49 BRACKET; AIR TANK
TAI 		1-53318-338-5 02 1 9811-0610 ●
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0611- ●
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0610 ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
54 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 9811-0610 ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 16 1 0611- ●
58 NUT; BAND,AIR TANK
M8 		9-09110-408-0 16 1 9811-0610 ●
67 STAY; SUB TANK
TAI 		1-48317-349-0 01 1 0611- ●
67 STAY; SUB TANK
TAI 		1-48317-349-0 01 1 9811-0610 ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 04 1 9907-0610 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9907-0610 ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 0611- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 01 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/8 ELBOW 		1-09650-439-0 02 1 9907-0610 ●
148 CONNECTOR; AIR MASTER
(A) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 9811-9906 ●
148 CONNECTOR; AIR MASTER
(B) M20 & PT1/2 STRAIGHT 		1-09650-249-1 02 1 9907-0610 ●
148 CONNECTOR; AIR MASTER
(A) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 02 1 0611- ●
148 CONNECTOR; AIR MASTER
(B) FLARE M22 PT1/2 		9-09231-815-1 02 1 9811-9906 ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
530KPA TAI 		1-48340-054-0 01 1 9811-9906 ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 0611- ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91150-108-0 02 1 9811-0610 ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91150-210-0 04 1 9811-0610 ●
213 BOLT; U AIR TANK
(C) L=250 TAI 		1-48317-308-0 02 1 9811- ●
213 BOLT; U AIR TANK
(A) L=97.5 TAI 		1-48317-323-1 02 1 9811- ●
213 BOLT; U AIR TANK
(B) L=195 TAI 		1-48317-367-2 02 1 9811- ●
282 UNION; 2 WAY
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 01 1 0611- ●
282 UNION; 2 WAY
(C) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 0611- ●
282 UNION; 2 WAY
(C) M22 & PT3/8 ELBOW TAI 		1-09650-440-0 01 1 9811-9906 ●
282 UNION; 2 WAY
(A) DIN8 & R3/8 STRAIGHT TAI 		1-09660-964-0 01 1 9811-9906 ●
282 UNION; 2 WAY
(B) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 9811-9906 ●

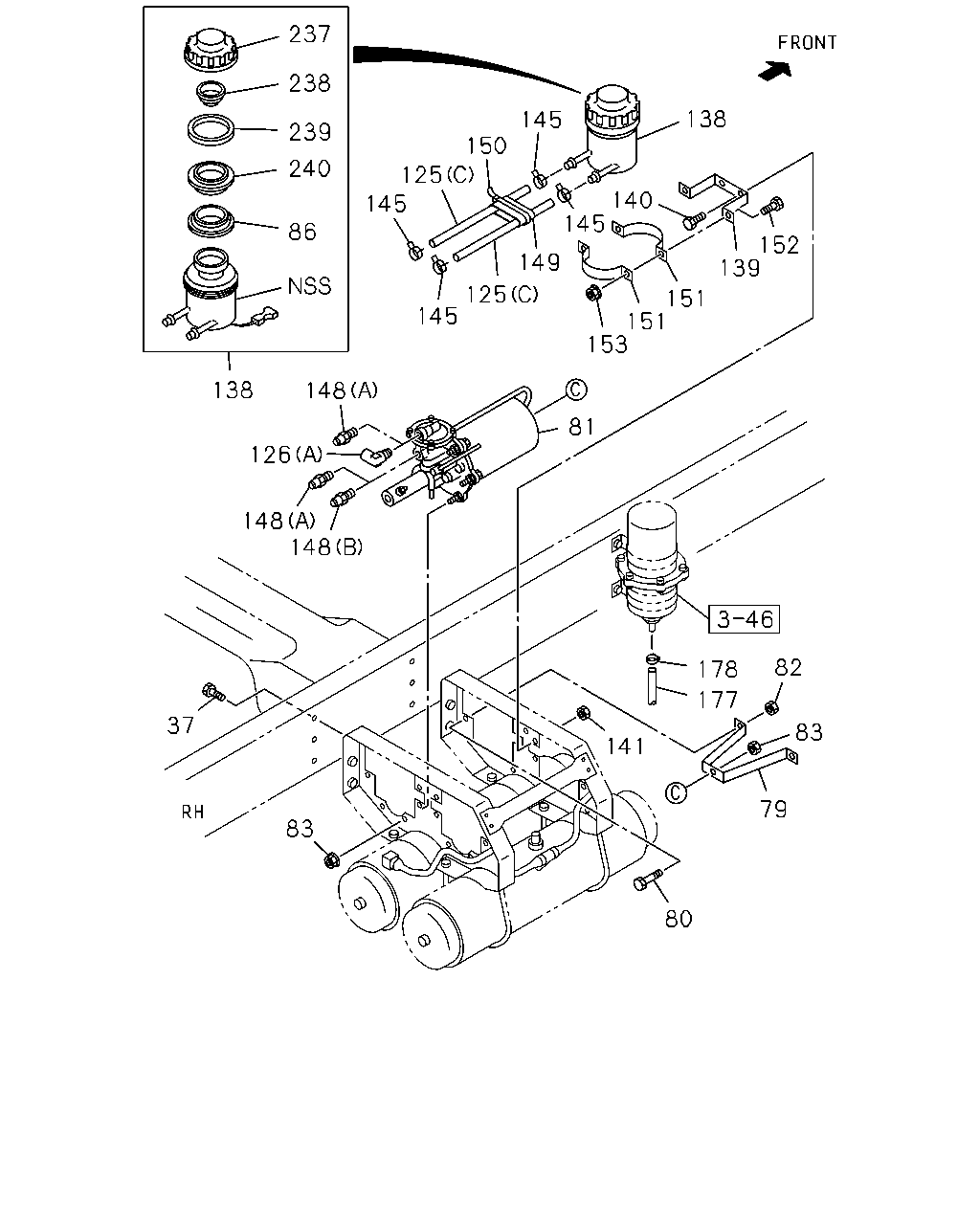

çizim 99583
237 238 138 145 239 150 240 125 145 140 145 86 152 139 149 125 151 151 153 145 138 148 81 126 148 148 82 178 177 37 83 141 79 83 80
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 06 1 9811-0512 ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0601- ●
79 STAY; AIR MASTER TO BRKT
TAI 		8-97530-360-0 02 1 9811-0610 ●
79 STAY; AIR MASTER TO BRKT
TAI 		1-53318-347-0 02 1 0611- ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9811-0512 ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-656-2 02 1 9811-0202 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-789-0 02 1 0203- ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-670-1 01 1 9811-0206 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-793-0 01 1 0207-0610 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY 		1-47800-663-1 01 1 0611- ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-671-2 01 1 9811-0206 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-794-0 01 1 0207-0610 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY 		1-47800-664-2 01 1 0611- ●
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91150-210-0 04 1 9811-0602 ●
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91150-108-0 08 1 9811-0602 ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 08 1 0603- ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91150-210-0 10 1 9811-0602 ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 10 1 0603- ●
86 SEAL; DUST 1-47529-019-0 01 1 9811- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) TAI 		8-97530-414-0 01 1 9811-0610 ●
125 HOSE; OIL TANK TO AIR MASTER
(A) L=335 		1-47469-045-0 01 1 0611- ●
125 HOSE; OIL TANK TO AIR MASTER
(B) TAI 		8-97530-417-0 01 1 9811-9906 ●
125 HOSE; OIL TANK TO AIR MASTER
(B) TAI 		8-97531-033-0 01 1 9907-0610 ●
125 HOSE; OIL TANK TO AIR MASTER
(B) L=240 SERVICED BY L=1800 TAI 		1-09360-320-0 01 1 0611- ●
125 HOSE; OIL TANK TO AIR MASTER
(C) TAI 		8-97530-418-0 02 1 9811-0610 ●
125 HOSE; OIL TANK TO AIR MASTER
(C) L=270 SERVICED BY L=1800 TAI 		1-09360-320-0 02 1 0611- ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 04 1 9907-0610 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9907-0610 ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 0611- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 01 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/8 ELBOW 		1-09650-439-0 02 1 9907-0610 ●
138 TANK ASM; OIL,AIR MASTER 1-47530-170-1 01 1 9811-0011 ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-184-0 01 1 0012-0206 ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0207- ● ●
139 BRACKET; OIL TANK 1-47537-123-1 01 1 9811- ●
139 BRACKET; OIL TANK 1-47537-081-2 01 1 9811- ●
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9811-0512 ● ●
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601-0610 ● ●
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0611- ● ●
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 9811-0602 ● ●
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 9811- ● ●
148 CONNECTOR; AIR MASTER
(A) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 9811-9906 ●
148 CONNECTOR; AIR MASTER
(B) M20 & PT1/2 STRAIGHT 		1-09650-249-1 02 1 9907-0610 ●
148 CONNECTOR; AIR MASTER
(A) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 02 1 0611- ●
148 CONNECTOR; AIR MASTER
(B) FLARE M22 PT1/2 		9-09231-815-1 02 1 9811-9906 ●
149 SLEEVE; RUBBER,HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 9811- ●
150 CLIP; BAND,RUBBER SLEEVE
L=140 		5-09707-031-1 01 1 9811- ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 9811- ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0512 ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91150-108-0 02 1 9811-0602 ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
177 HOSE; RUBBER,DRAIN
L=220 SERVICED BY L=3000 		0-03266-300-0 01 1 9811-0109 ● ●
177 HOSE; RUBBER,DRAIN
L=220 SERVICED BY L=3000 		0-03566-300-0 01 1 0110-0610 ● ●
177 HOSE; RUBBER,DRAIN
L=90 		9-09712-638-0 01 1 0611- ● ●
178 CLIP; HOSE
ID=21 USA 		8-94242-034-0 01 1 9908-0610 ● ●
178 CLIP; HOSE
ID=33.6 		8-94362-518-0 01 1 0611- ● ●
237 CAP; OIL TANK 1-47525-019-2 01 1 9811-9906 ● ●
237 CAP; OIL TANK 1-47525-024-0 01 1 9907-0011 ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 0012- ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 9811- ● ●
239 FILTER; DUST 1-47529-017-0 01 1 9811- ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 9811- ● ●

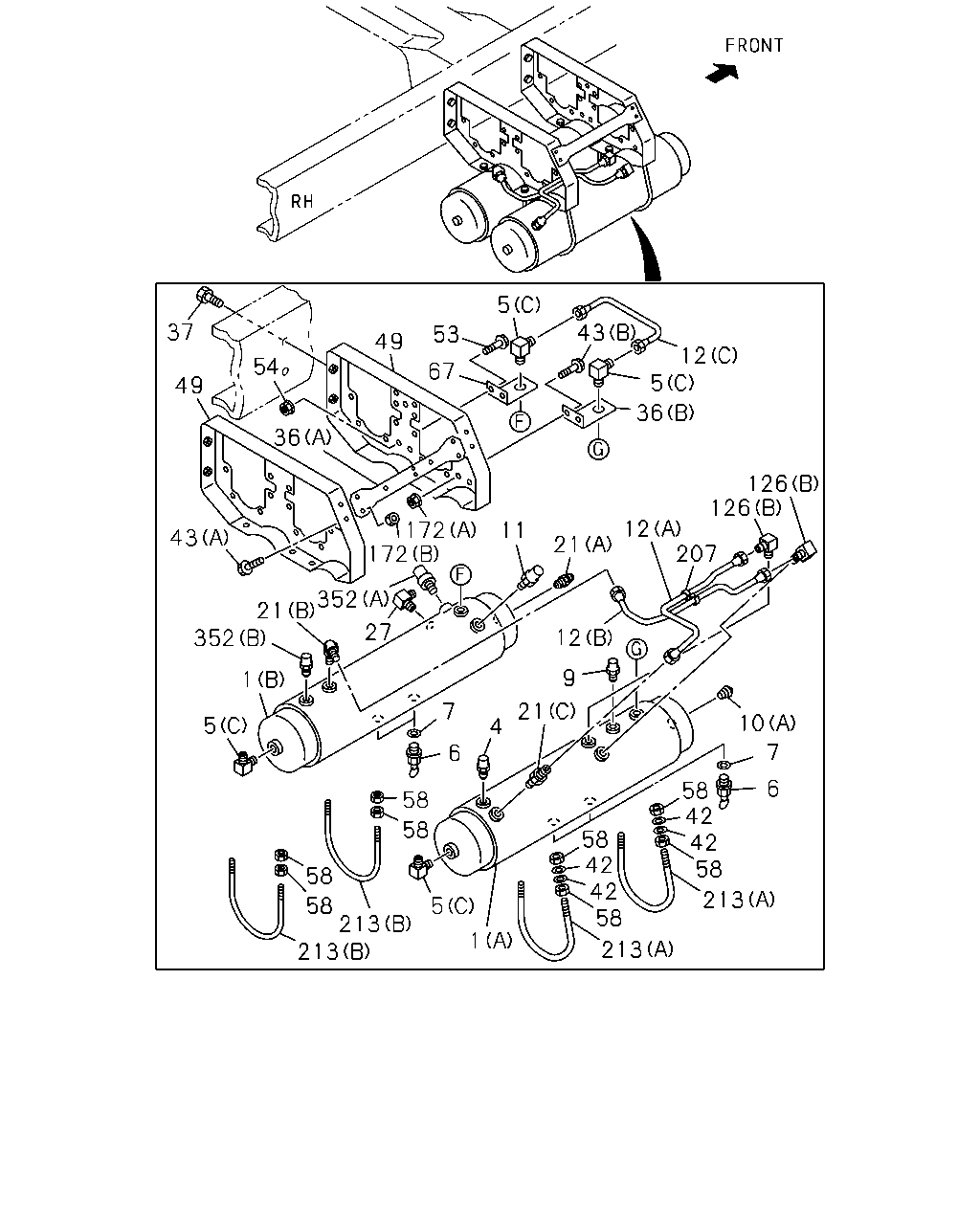

çizim 99587
5 43 37 53 49 12 5 54 67 49 36 36 126 126 172 172 12 207 11 43 21 352 21 352 27 12 9 1 21 7 10 5 4 7 6 6 58 42 42 58 58 58 58 42 42 58 58 213 58 213 213 5 1 213
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 0611- ●
1 TANK ASM; AIR
(B) 		1-48370-512-2 01 1 0611- ●
1 TANK ASM; AIR
(C) TAI 		8-97530-492-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(D) TAI 		8-97530-590-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(A) 		1-48330-686-1 01 1 0611- ●
1 TANK ASM; AIR
(A) TAI 		8-97530-493-0 01 1 9811-9906 ●
1 TANK ASM; AIR
(A) TAI 		8-97530-591-0 01 1 9907-0610 ●
1 TANK ASM; AIR
(B) TAI 		8-97530-612-0 01 1 9907-0610 ●
4 CONNECTOR; FLARE 1-09650-536-0 01 1 0611- ●
4 CONNECTOR; FLARE
DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 9907-0610 ●
5 UNION; AIR TANK
(C) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0611- ●
5 UNION; AIR TANK
(B) 		1-09650-261-2 01 1 0611- ●
5 UNION; AIR TANK
(A) M12 & PT3/8 ELBOW TAI 		1-09650-436-0 01 1 0611- ●
5 UNION; AIR TANK
(A) M16 & PT1/4 ELBOW TAI 		1-09650-434-0 02 1 9811-9906 ●
5 UNION; AIR TANK
(B) M12 & PT3/8 ELBOW TAI 		1-09650-436-0 01 1 9811-9906 ●
5 UNION; AIR TANK
(C) M20 & PT3/8 ELBOW 		1-09650-439-0 04 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 0611- ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9907-0610 ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 03 1 9811-9906 ● ●
6 COCK; DRAIN,AIR TANK
TAI 		1-48312-015-0 04 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 0611- ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9907-0610 ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 03 1 9811-9906 ● ●
7 GASKET; DRAIN COCK
ID=14 TAI 		1-09630-145-0 04 1 9907-0610 ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA 		1-48340-054-1 01 1 0611- ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA TAI 		1-48340-054-0 01 1 9907-0610 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0611- ● ●
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 0611- ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 0611- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 9811-9906 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9907-0610 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 9811-9906 ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 9907-0610 ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 9811- ● ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-507-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-621-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-508-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) TAI 		8-97530-509-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(C) TAI 		8-97530-619-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-011-0 01 1 0611- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-510-0 01 1 9811-9906 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) TAI 		8-97530-620-0 01 1 9907-0610 ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-012-0 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 02 1 0611- ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 0611- ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 04 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 TAI 		1-48410-136-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(C) TAI 		1-48410-182-3 01 1 9811-0610 ●
21 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW TAI 		1-48410-412-0 01 1 9811-0610 ●
27 UNION; ELBOW,AIR TANK
M12 & PT1/4 ELBOW TAI 		1-09650-430-0 01 1 9811-9906 ●
27 UNION; ELBOW,AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9907-0610 ●
27 UNION; ELBOW,AIR TANK
M12 & PT3/8 ELBOW TAI 		1-09650-436-0 01 1 9907-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 0611- ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 0611- ●
36 STAY; MAIN TANK
(A) TAI 		1-48317-307-2 01 1 9811-0610 ●
36 STAY; MAIN TANK
(A) TAI 		1-53318-293-1 01 1 9811-0610 ●
36 STAY; MAIN TANK
(B) TAI 		8-94301-490-0 01 1 9811-9906 ●
36 STAY; MAIN TANK
(B) TAI 		1-48317-349-0 01 1 9907-0610 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512 ●
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 06 1 9811-0512 ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0601- ●
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 0611- ●
42 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 04 1 9811-0610 ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0611- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0611- ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0610 ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE 		0-28681-025-0 04 1 9811-0610 ●
49 BRACKET; AIR TANK 1-48317-709-4 02 1 0611- ●
49 BRACKET; AIR TANK 1-53318-338-6 02 1 0611- ●
49 BRACKET; AIR TANK
TAI 		1-48317-709-3 02 1 9811-0610 ●
49 BRACKET; AIR TANK
TAI 		1-53318-338-5 02 1 9811-0610 ●
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0611- ●
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0610 ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
54 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 9811-0610 ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 16 1 0611- ●
58 NUT; BAND,AIR TANK
M8 		9-09110-408-0 16 1 9811-0610 ●
67 STAY; SUB TANK
TAI 		1-48317-349-0 01 1 0611- ●
67 STAY; SUB TANK
TAI 		1-48317-349-0 01 1 9811-0610 ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 04 1 9907-0610 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9811-9906 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 02 1 9907-0610 ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 0611- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW TAI 		1-09660-959-0 01 1 9811-9906 ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/8 ELBOW 		1-09650-439-0 02 1 9907-0610 ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 0611- ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91150-108-0 02 1 9811-0610 ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91150-210-0 04 1 9811-0610 ●
207 CLIP; AIR PIPE
ID=12 & 12 		1-09709-280-1 01 1 9907-0610 ● ●
213 BOLT; U AIR TANK
(C) L=250 TAI 		1-48317-308-0 02 1 9811- ●
213 BOLT; U AIR TANK
(A) L=97.5 TAI 		1-48317-323-1 02 1 9811- ●
213 BOLT; U AIR TANK
(B) L=195 TAI 		1-48317-367-2 02 1 9811- ●
352 CONNECTOR; STRAIGHT
(A) DIN8 & R3/8 STRAIGHT TAI 		1-09660-964-0 01 1 9907-0610 ●
352 CONNECTOR; STRAIGHT
(B) DIN12 & R3/8 STRAIGHT TAI 		1-09660-965-0 01 1 9907-0610 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
